Craftsman
Electric Walk-Behind Mower

Model # 13191517 Official Craftsman 18" lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191517 18" lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Handle Knob 62366
#5

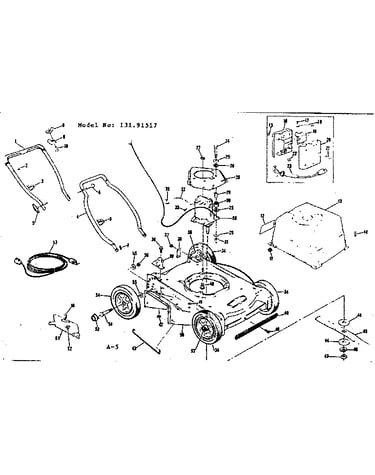

Replacement parts diagram

Handle knob

Part #62366

Replaced by #532183724

?
Manufacturer substitution
This part replaces 62366. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bolt 58714
#6

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Cotter Pin 455563
#7

Replacement parts diagram

Cotter pin

Part #455563

Replaced by #532051793

?
Manufacturer substitution
This part replaces 455563. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Washer Blade 61651
#46

Replacement parts diagram

Washer blade

Part #61651

Replaced by #532401630

?
Manufacturer substitution
This part replaces 61651. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Screw 9414578
#38

Replacement parts diagram

Screw

Part #9414578

The manufacturer no longer makes this part, and there's no substitute part

Bolt 423562
#40

Replacement parts diagram

Bolt

Part #423562

The manufacturer no longer makes this part, and there's no substitute part

Wheel And Tire Assembly 58857
#34

Replacement parts diagram

Wheel and tire assembly

Part #58857

The manufacturer no longer makes this part, and there's no substitute part

Grommet 57813
#11

Replacement parts diagram

Grommet

Part #57813

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 60744
#32

Replacement parts diagram

Wire assembly

Part #60744

The manufacturer no longer makes this part, and there's no substitute part

Cover 62546
#16

Replacement parts diagram

Cover

Part #62546

The manufacturer no longer makes this part, and there's no substitute part
