Model # 14364105 Official Craftsman lawn & garden subassembly

Here are the diagrams and repair parts for Official Craftsman 14364105 lawn & garden subassembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Clips & Holders

Screws

ALL PARTS

Showing 10 of 27 parts |

#29

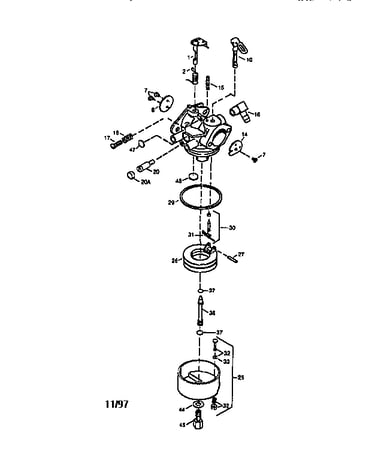

Carburetor 64105 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty

#30

Carburetor 64105 diagram

Needle seat

Part #631021

Replaced by #631021B

This item is not returnable

$9.79 |

9% OFF Phone Price : $10.79

In Stock

Qty

#28

Carburetor 64105 diagram

Float

Part #632019

Replaced by #632019A

This item is not returnable

$8.89 |

10% OFF Phone Price : $9.89

In Stock

Qty

Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 631025l, 631867, 631867l) 631951

#25

Carburetor 64105 diagram

Lawn & garden equipment engine carburetor float bowl (replaces 631025, 631025l, 631867, 631867l)

Part #631951

This item is not returnable

$19.59 |

9% OFF Phone Price : $21.59

In Stock

Qty

Carburetor Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A

#32

Carburetor 64105 diagram

Carburetor lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable

$8.09 |

11% OFF Phone Price : $9.09

In Stock

Qty

#20

Carburetor 64105 diagram

Lawn & garden equipment screw

Part #640016

This item is not returnable

$10.29

In Stock

Qty

Lawn & Garden Equipment Engine Choke Spring 630735

#15

Carburetor 64105 diagram

Lawn & garden equipment engine choke spring

Part #630735

This item is not returnable

$2.16

In Stock

Qty

Carburetor 64105 diagram

Lawn & garden equipment engine carburetor

Part #640105

$88.06 |

6% OFF Phone Price : $94.06

In Stock

Qty

Lawn & Garden Equipment Engine Carburetor Float Pin 631022

#31

Carburetor 64105 diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable

$2.49 |

29% OFF Phone Price : $3.49

In Stock

Qty

#17

Carburetor 64105 diagram

Lawn & garden equipment screw

Part #651025

This item is not returnable

$2.16

In Stock

Qty
