Model # 315174440 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315174440 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Screw 617966-030
#15

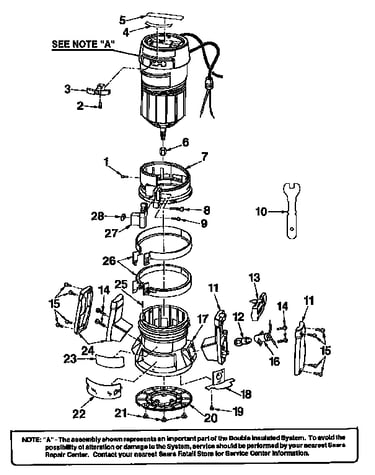

Field assembly diagram

Screw

Part #617966-030

The manufacturer no longer makes this part, and there's no substitute part

Router Collet Nut 989985-003
#6

Field assembly diagram

Router collet nut

Part #989985-003

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-048
#11

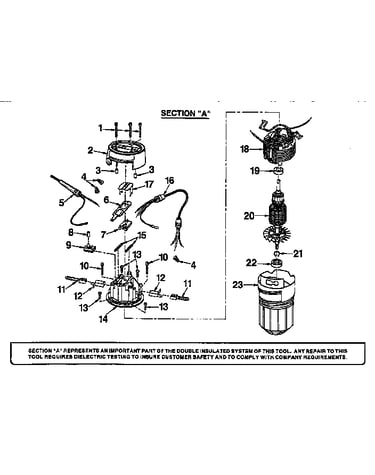

Field/motor housing diagram

Brush assembly

Part #610784-048

The manufacturer no longer makes this part, and there's no substitute part

Router Motor Housing 612848-007
#14

Field/motor housing diagram

Router motor housing

Part #612848-007

The manufacturer no longer makes this part, and there's no substitute part

Field 970794-005
#18

Field/motor housing diagram

Field

Part #970794-005

The manufacturer no longer makes this part, and there's no substitute part

Screw 606124-007
#9

Field assembly diagram

Screw

Part #606124-007

The manufacturer no longer makes this part, and there's no substitute part

Base 970503-003
#17

Field assembly diagram

Base

Part #970503-003

The manufacturer no longer makes this part, and there's no substitute part

Chip Shield 606688-002
#22

Field assembly diagram

Chip shield

Part #606688-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 989684-001
#19

Field assembly diagram

Screw

Part #989684-001

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 971669-002
#16

Field/motor housing diagram

Ac cord

Part #971669-002

The manufacturer no longer makes this part, and there's no substitute part
