Model # DDW195-1W Official Modern Maid dishwasher

Here are the diagrams and repair parts for Official Modern Maid DDW195-1W dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

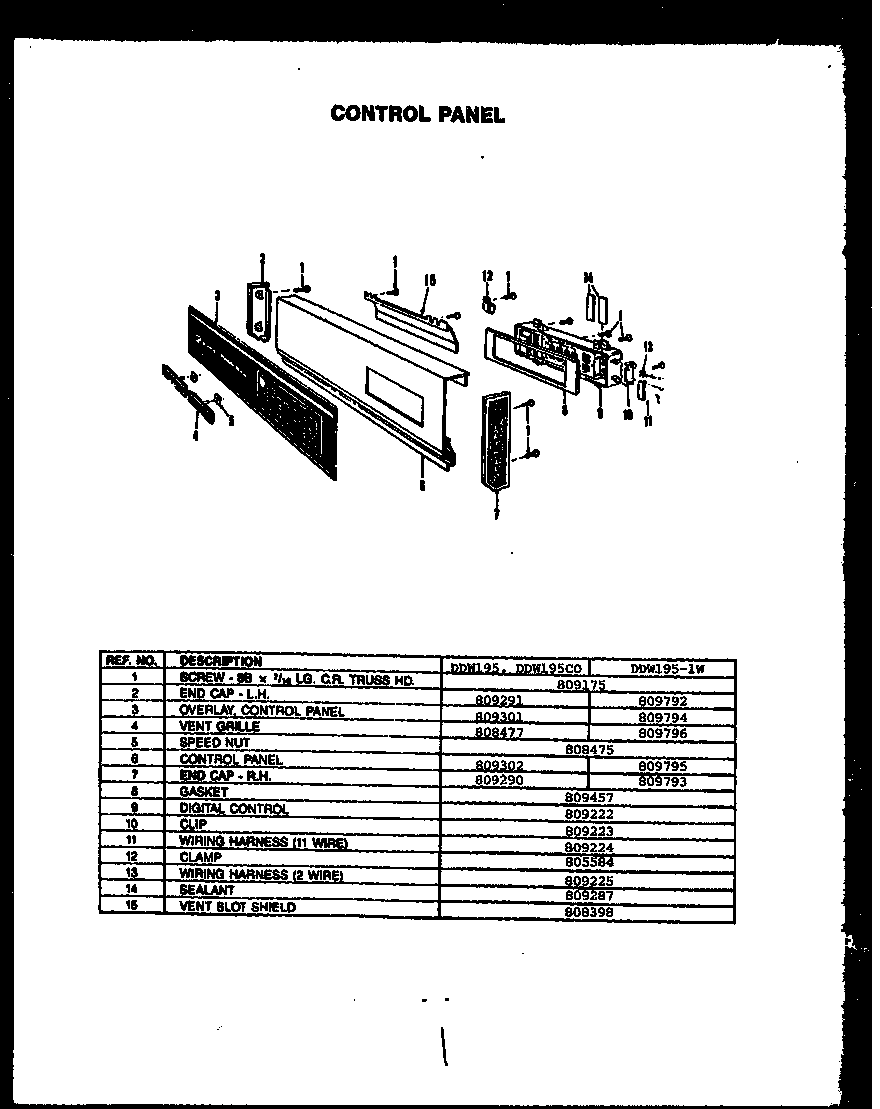

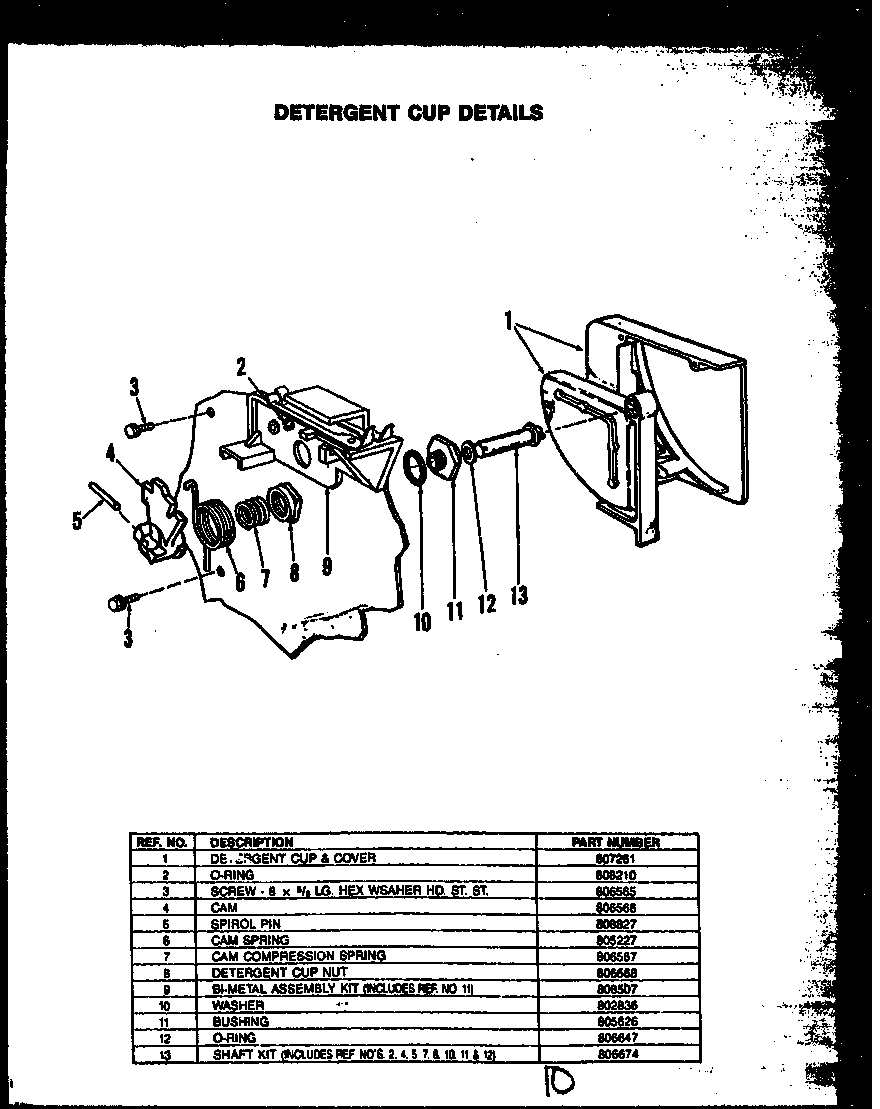

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDDW195-1W Dishwasher

  • Clamp Ring(p 807712
    #15

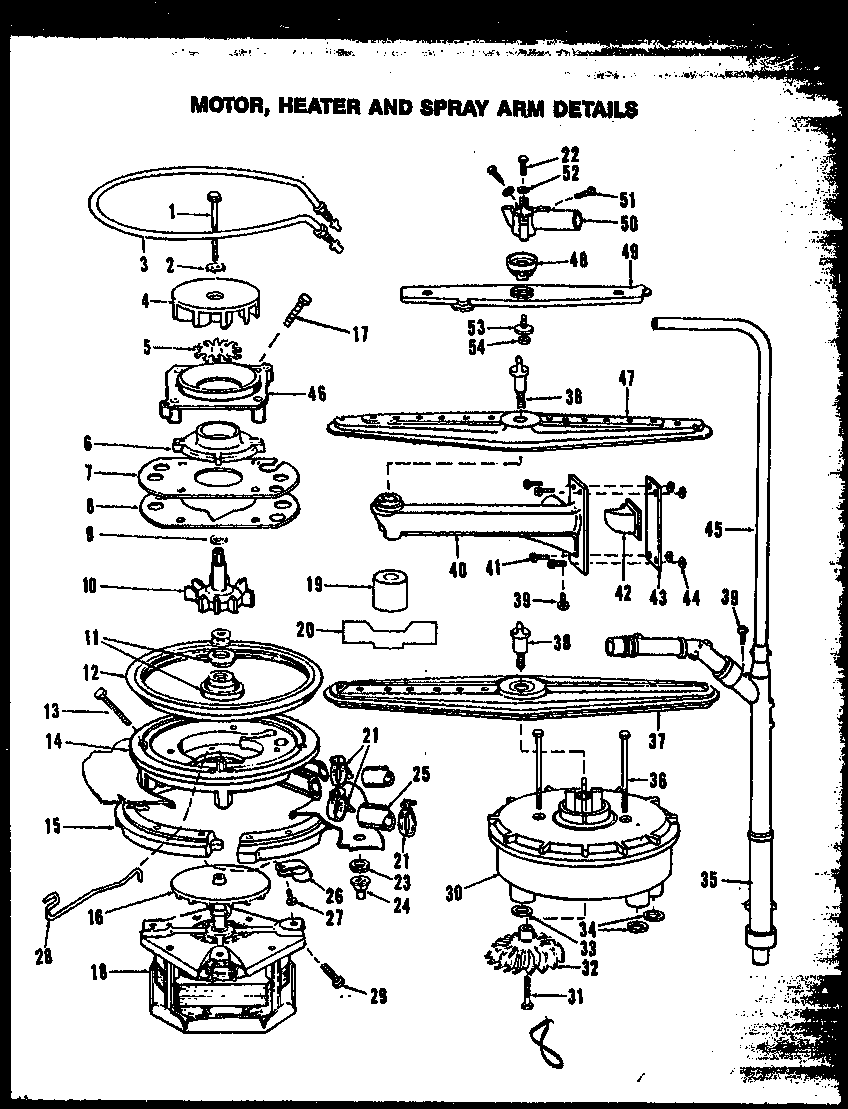

    Motor diagram

    Clamp ring(p

    Part #807712

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 806890
    #7

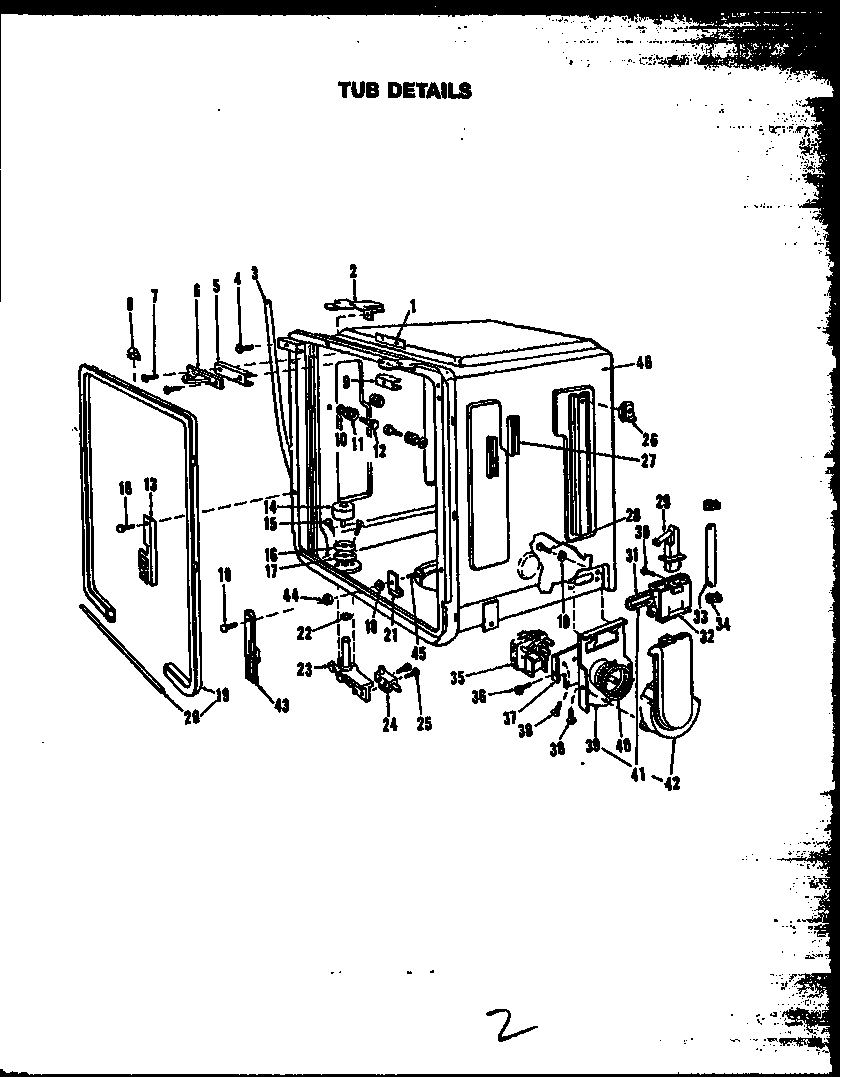

    Tub details diagram

    Screw

    Part #806890

    Replaced by #WP22001496

    ?
    Manufacturer substitution
    This part replaces 806890. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Gasket 808063
    #17

    Tub details diagram

    Gasket

    Part #808063

    Replaced by #5300808063

    ?
    Manufacturer substitution
    This part replaces 808063. Substitute parts can look different from the original.
    This item is not returnable
    $5.29
    16% OFF Phone Price : $6.29
    In Stock
  • Gasket 805763
    #8

    Tub details diagram

    Gasket

    Part #805763

    Replaced by #5300805763

    ?
    Manufacturer substitution
    This part replaces 805763. Substitute parts can look different from the original.
    In Stock
  • Washer 809044
    Washer

    Part #809044

    The manufacturer no longer makes this part, and there's no substitute part

  • Junction Box Cover 800222
    #11

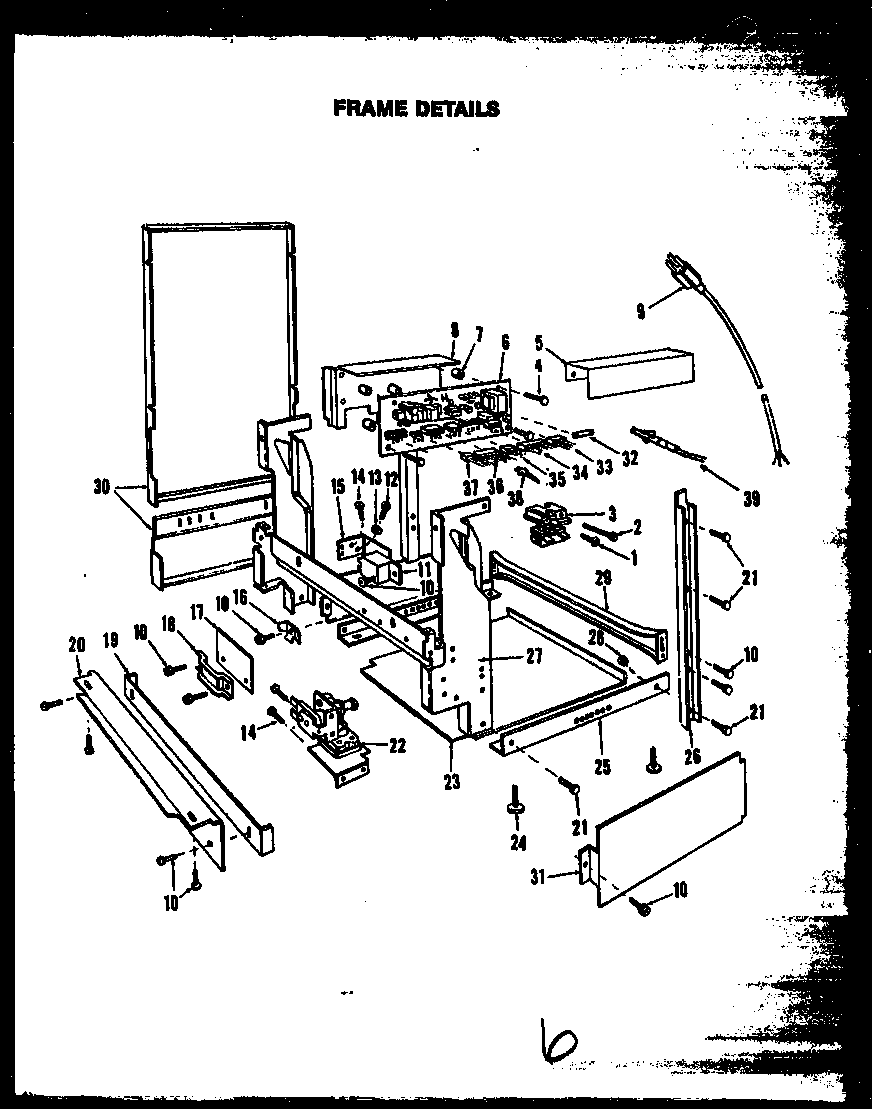

    Frame details diagram

    Junction box cover

    Part #800222

    The manufacturer no longer makes this part, and there's no substitute part

  • Access Panel Side Trim - L.h. 808029
    #42B

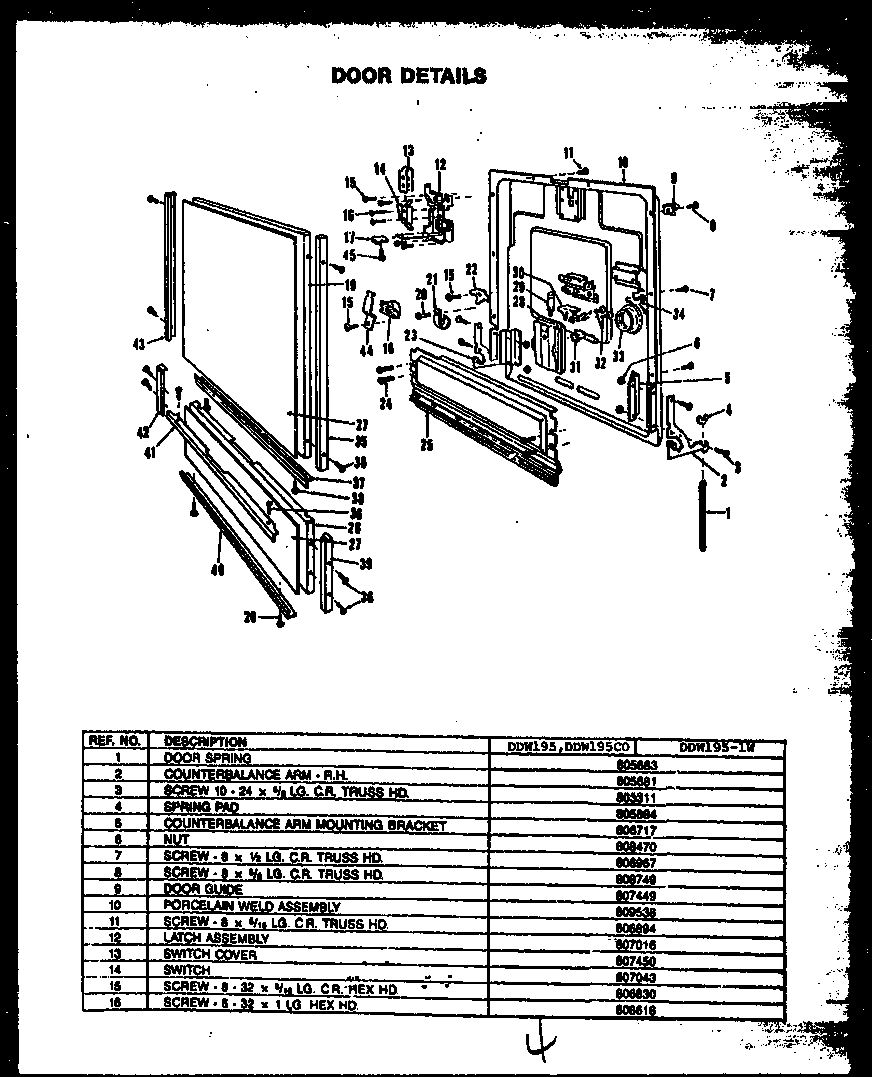

    Door details diagram

    Access panel side trim - l.h.

    Part #808029

    The manufacturer no longer makes this part, and there's no substitute part

  • Bolt 809018
    #38

    Motor diagram

    Bolt

    Part #809018

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw # 10 X 1 Lg. Hex Washer Hd. Cad. Pl. 809022
    #29

    Motor diagram

    Screw # 10 x 1 lg. hex washer hd. cad. pl.

    Part #809022

    The manufacturer no longer makes this part, and there's no substitute part

  • Slide Cap Pin 809502
    #9

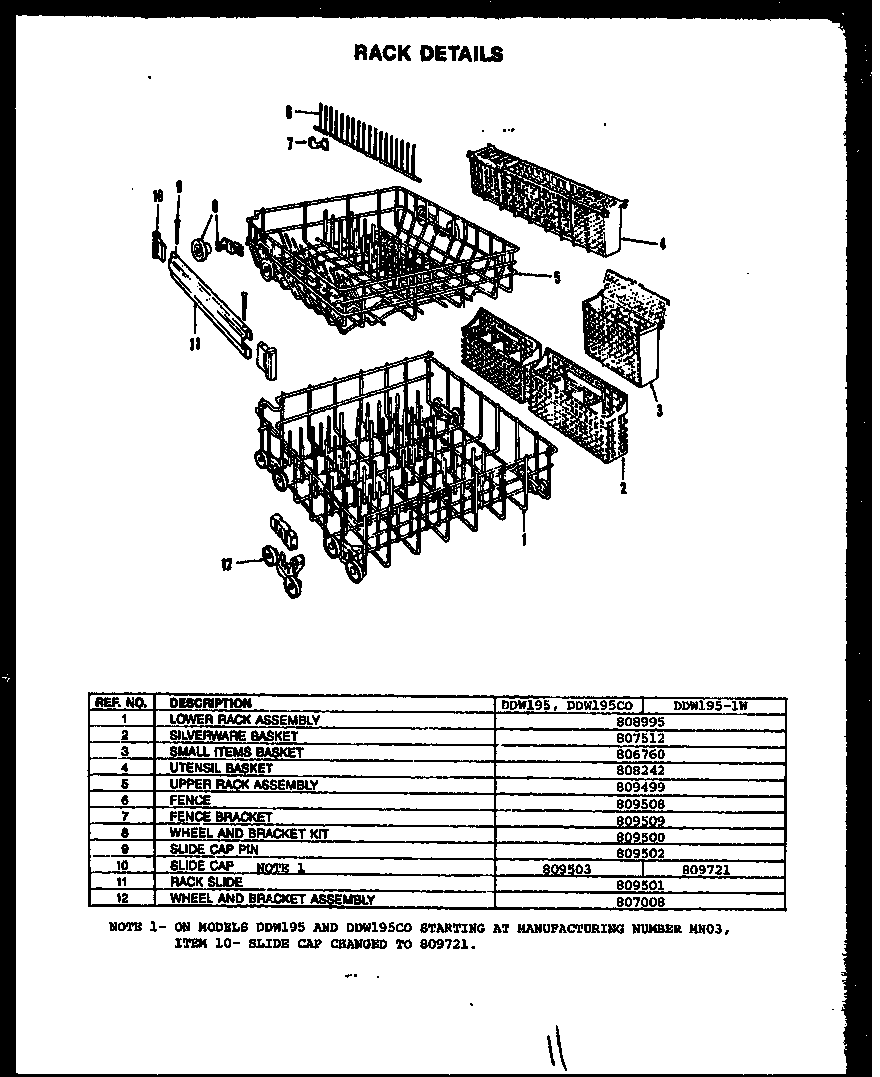

    Rack details diagram

    Slide cap pin

    Part #809502

    The manufacturer no longer makes this part, and there's no substitute part
