Model # AOCS3040CC-P1132378NCC Official Amana wall oven

Here are the diagrams and repair parts for Official Amana AOCS3040CC-P1132378NCC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

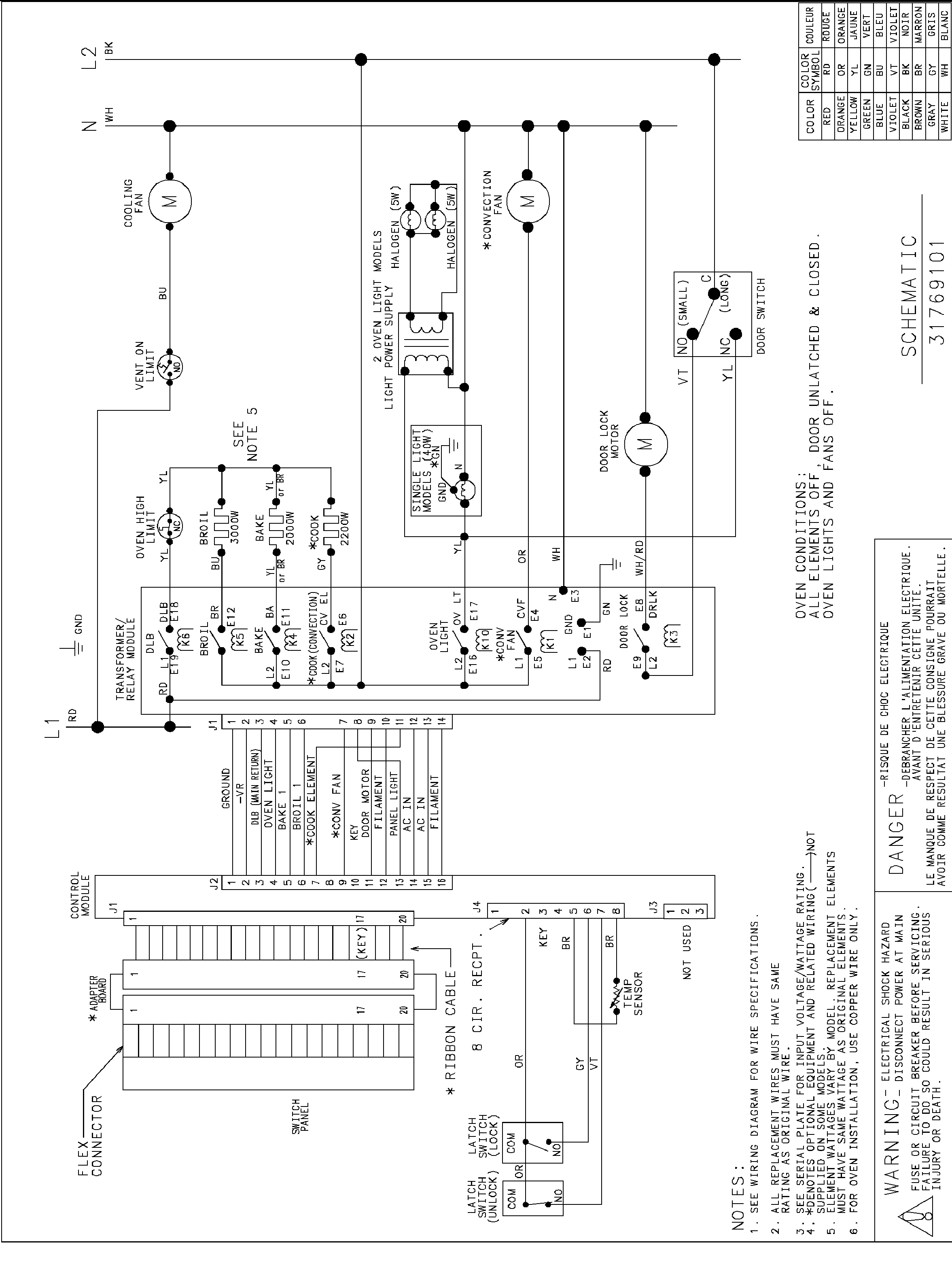

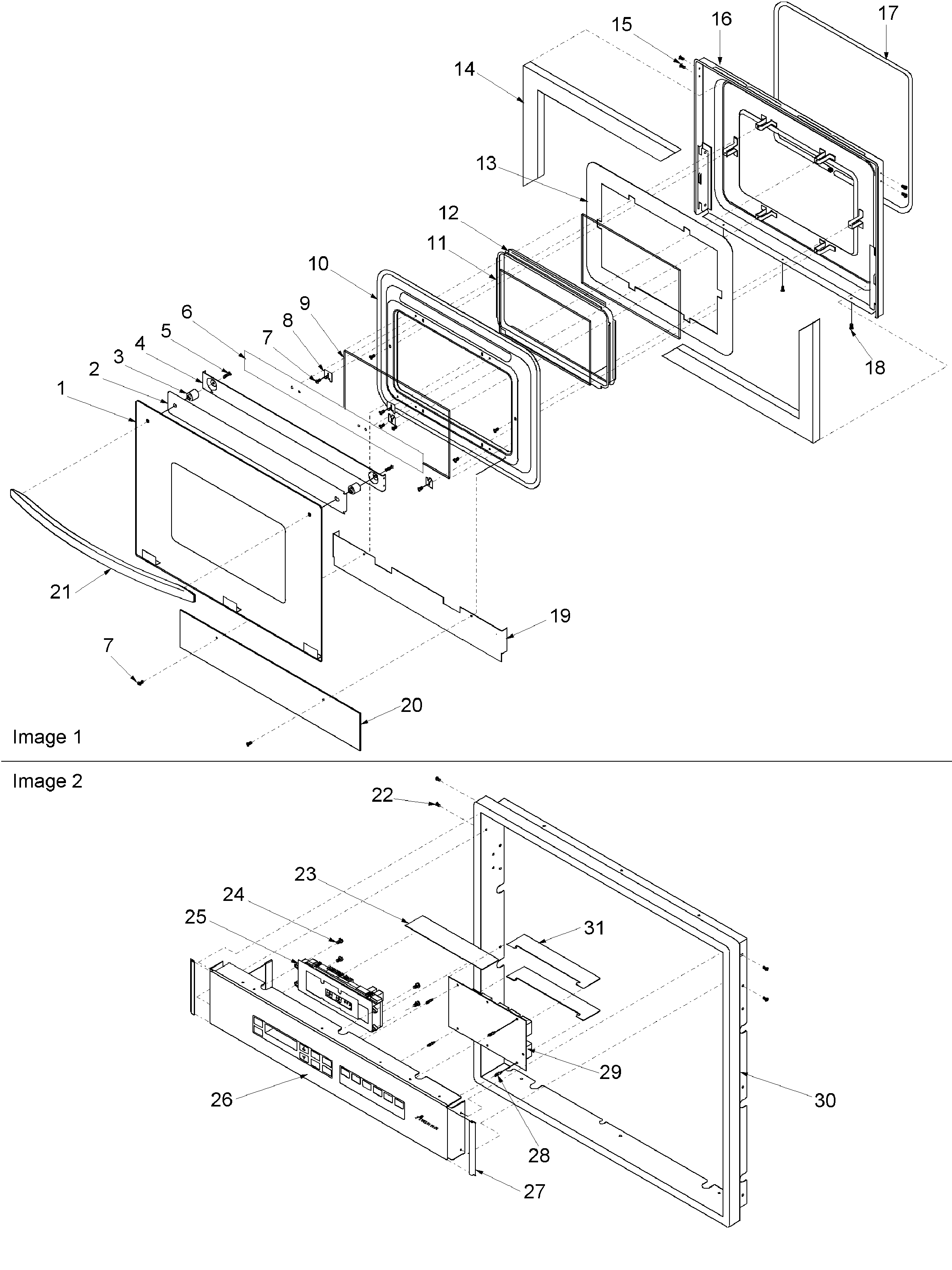

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Lamp 0042175
#14A

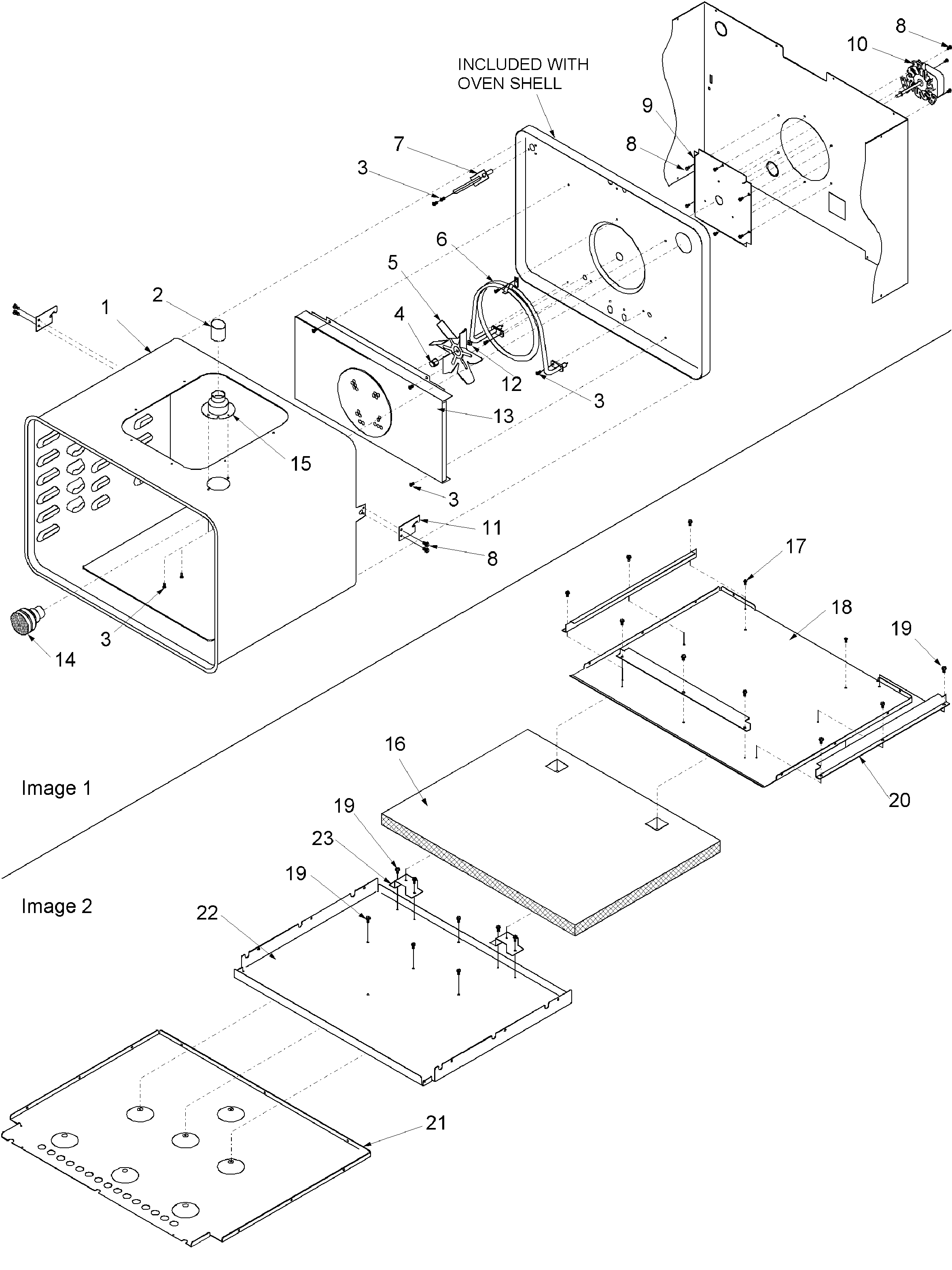

Oven & bottom insulation assy diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
"grid, Broile" 304451CG
#16

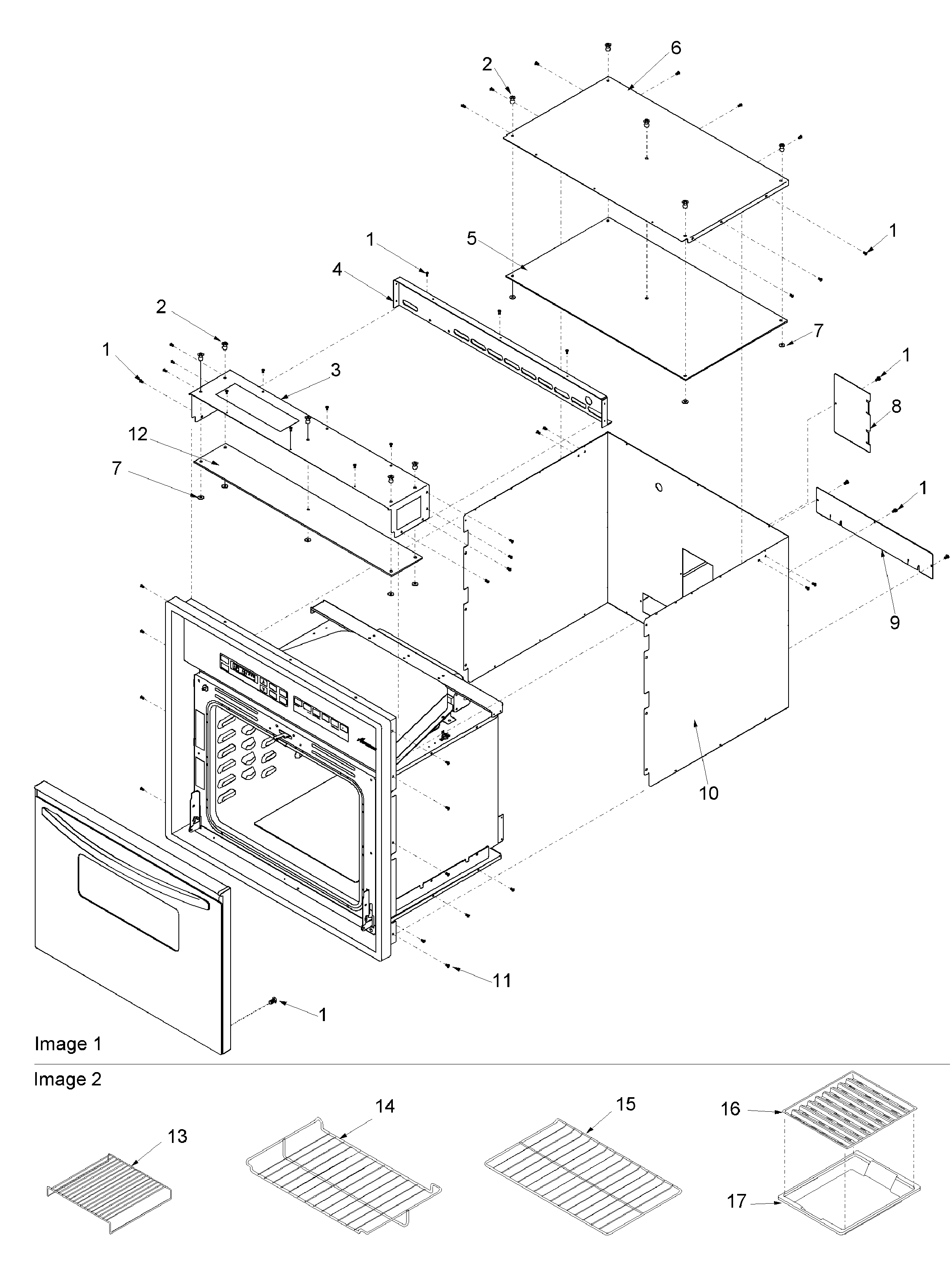

Outer cabinet & racks diagram

"grid, broile"

Part #304451CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 314175CG
#17

Outer cabinet & racks diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Oven Broiler Element 77001099
#24

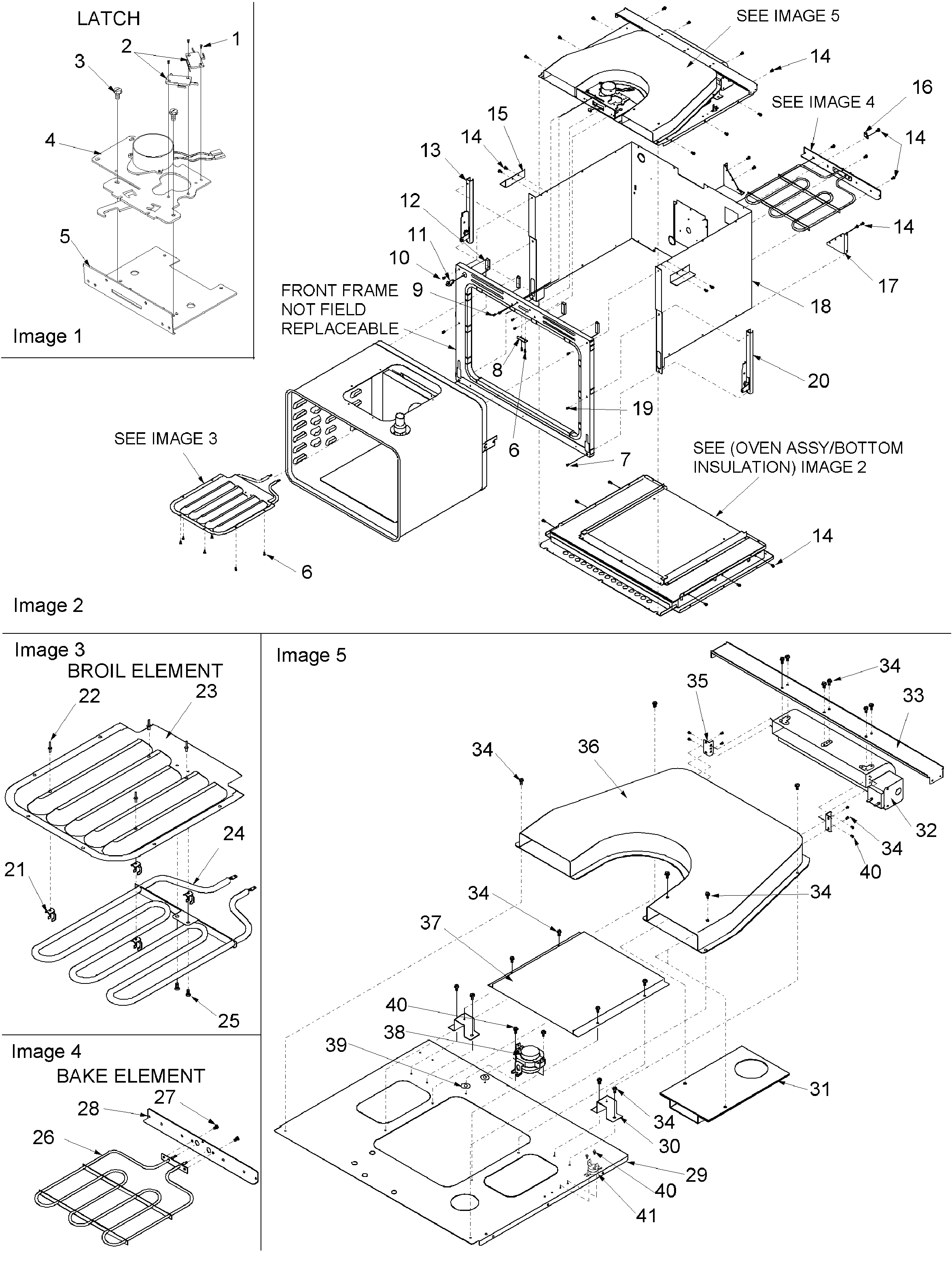

Inner cavity, blower, bake, & broil assy diagram

Oven broiler element

Part #77001099

The manufacturer no longer makes this part, and there's no substitute part

Oven Rack 314763J
#15

Outer cabinet & racks diagram

Oven rack

Part #314763J

$15.74
In Stock
Screw 31750701
Screw

Part #31750701

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750701. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 31750432
Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Oven Light 0314842
#14

Oven & bottom insulation assy diagram

Oven light

Part #0314842

The manufacturer no longer makes this part, and there's no substitute part

Oven Sensor 31968201
#7

Oven & bottom insulation assy diagram

Oven sensor

Part #31968201

The manufacturer no longer makes this part, and there's no substitute part

Rt2520001 Tech Sheet Rev. 16021876
#4

Supplemental information diagram

Rt2520001 tech sheet rev.

Part #16021876

The manufacturer no longer makes this part, and there's no substitute part
