Model # AFF2534FES7 Official Amana refrigerator
Here are the diagrams and repair parts for Official Amana AFF2534FES7 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

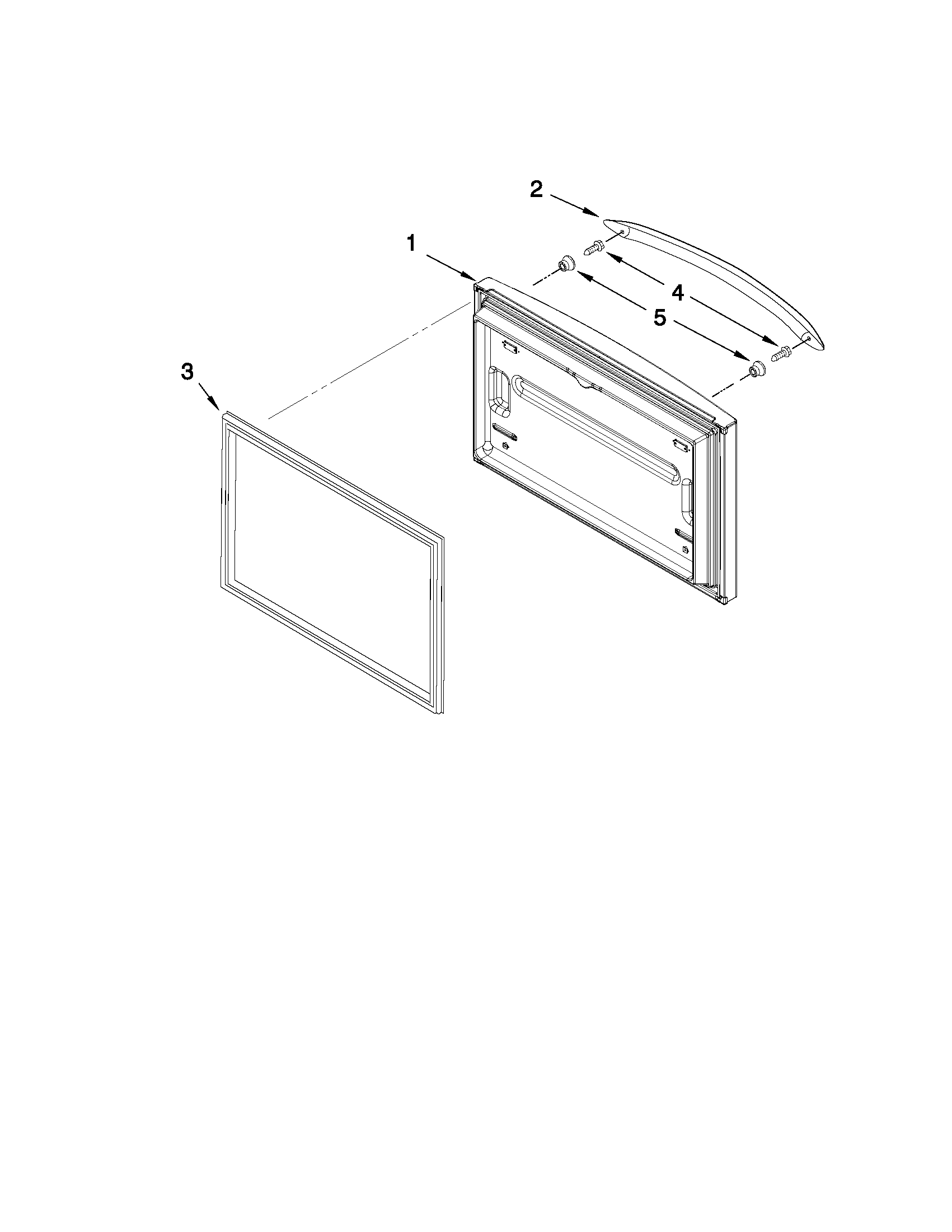

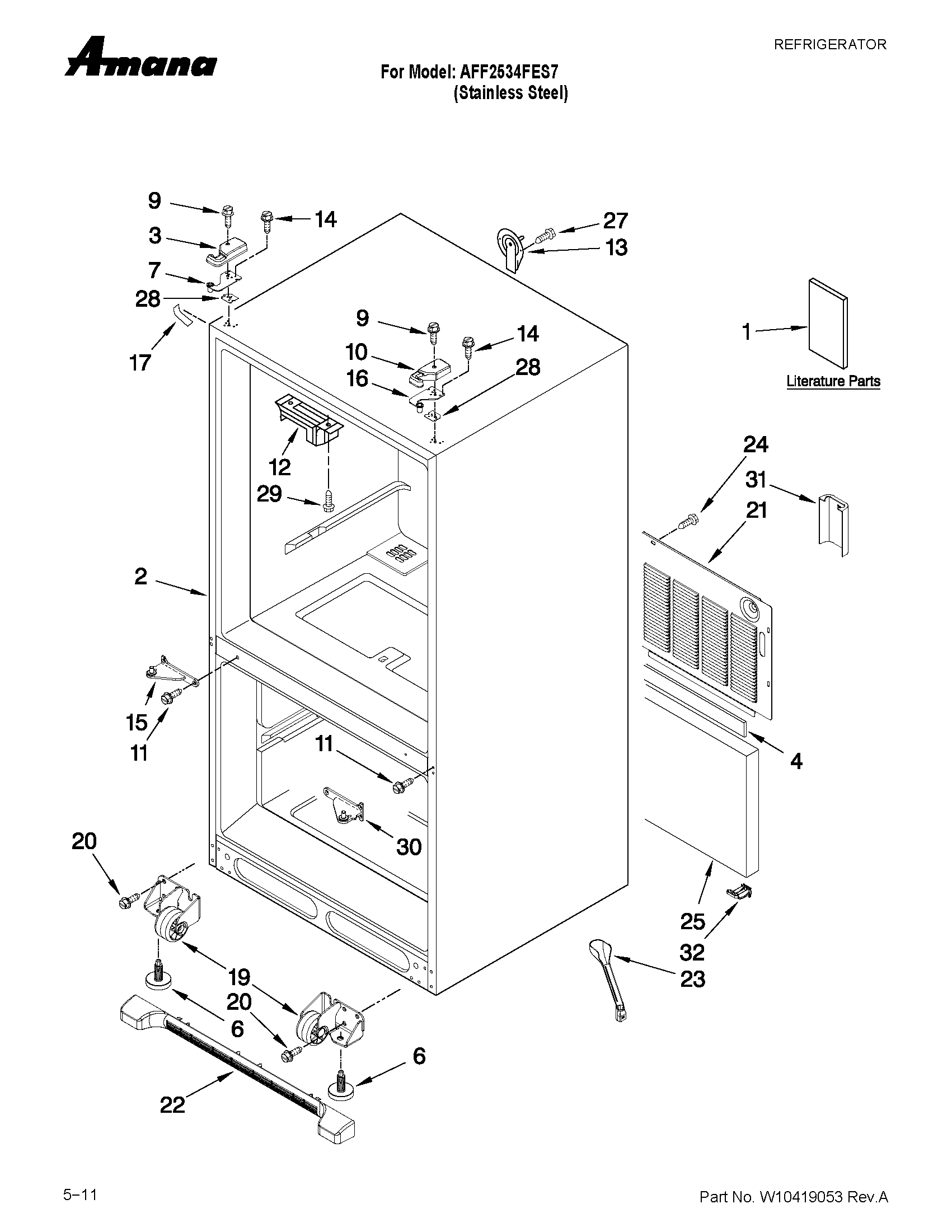

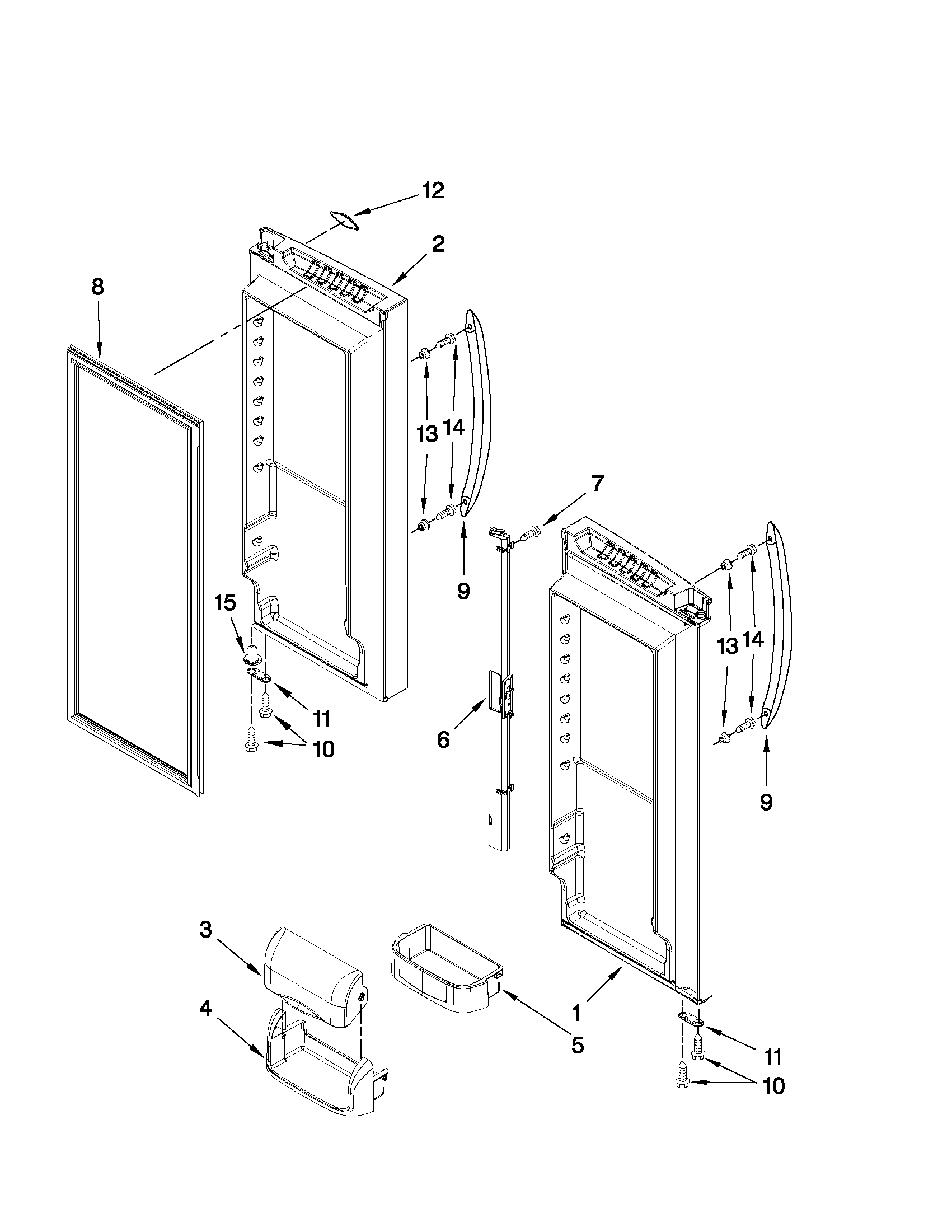

SELECT DIAGRAM
Browse Parts for
AFF2534FES7 Refrigerators
#27

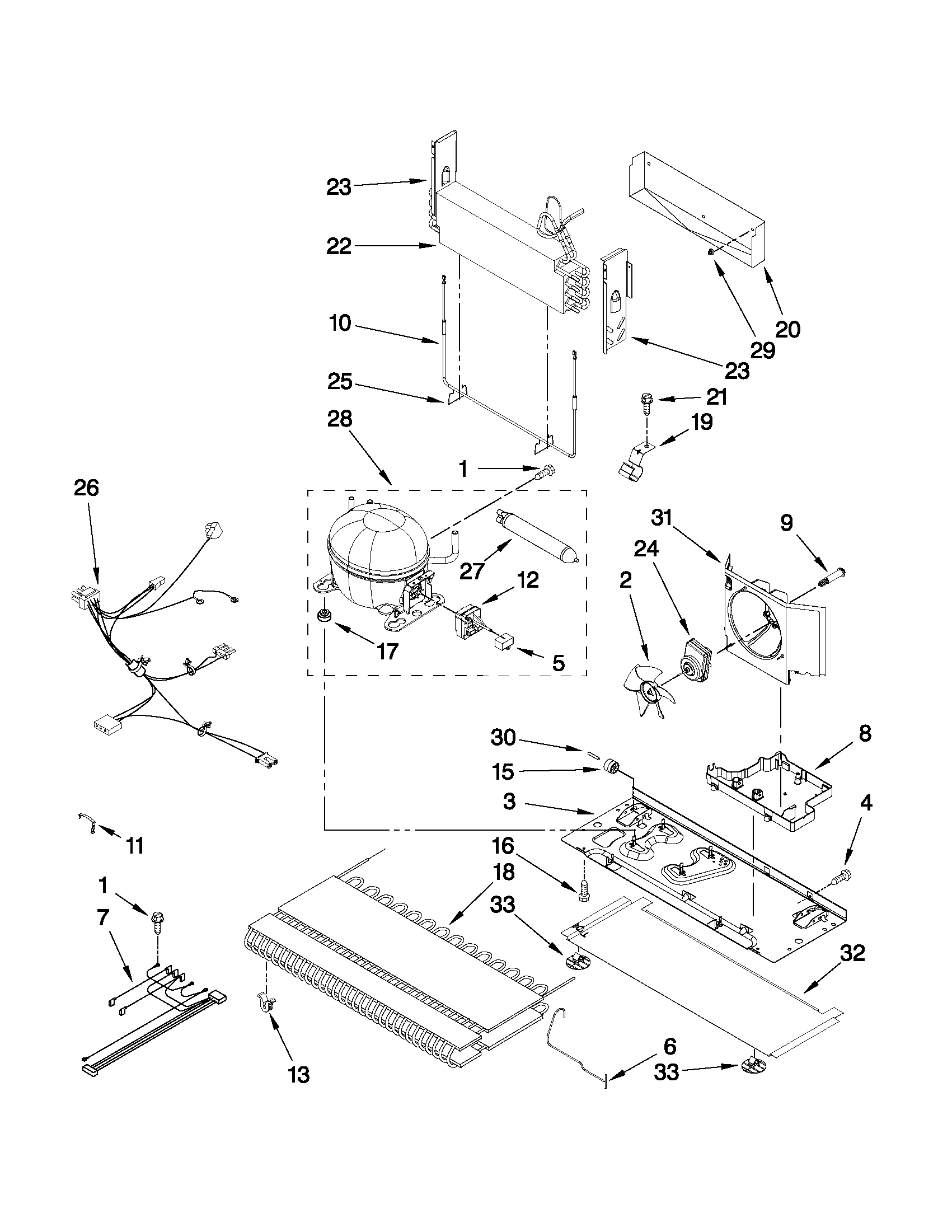

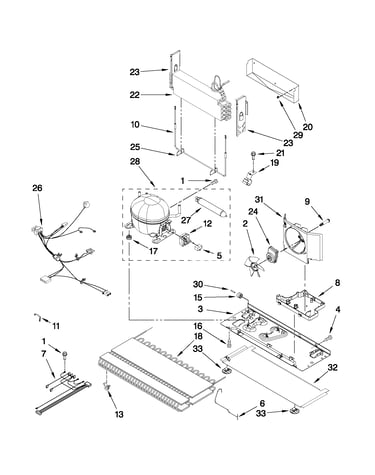

Unit parts diagram
Refrigerator uv filter dryer
Part #W10143759
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#5

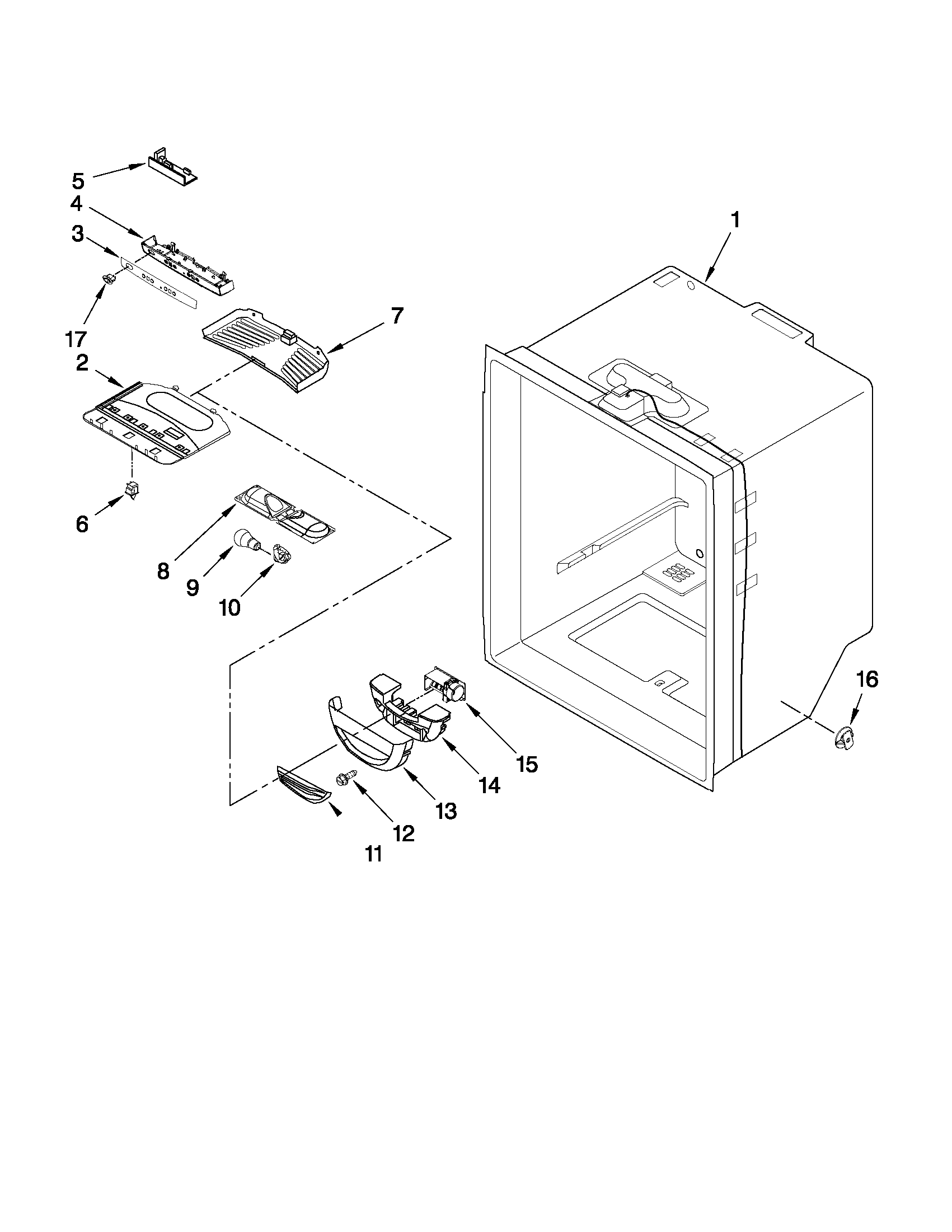

Refrigerator liner parts diagram
Refrigerator electronic control
Part #12784415V
Replaced by #WPW10503278
?
Manufacturer substitution
This part replaces 12784415V. Substitute parts can look different from the original.
$138.53 |
8% OFF Phone Price : $150.53
In Stock
#6
Refrigerator liner parts diagram
Refrigerator switch
Part #C3680310V
Replaced by #W11384469
?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
$21.70 |
22% OFF Phone Price : $27.70
In Stock
#24

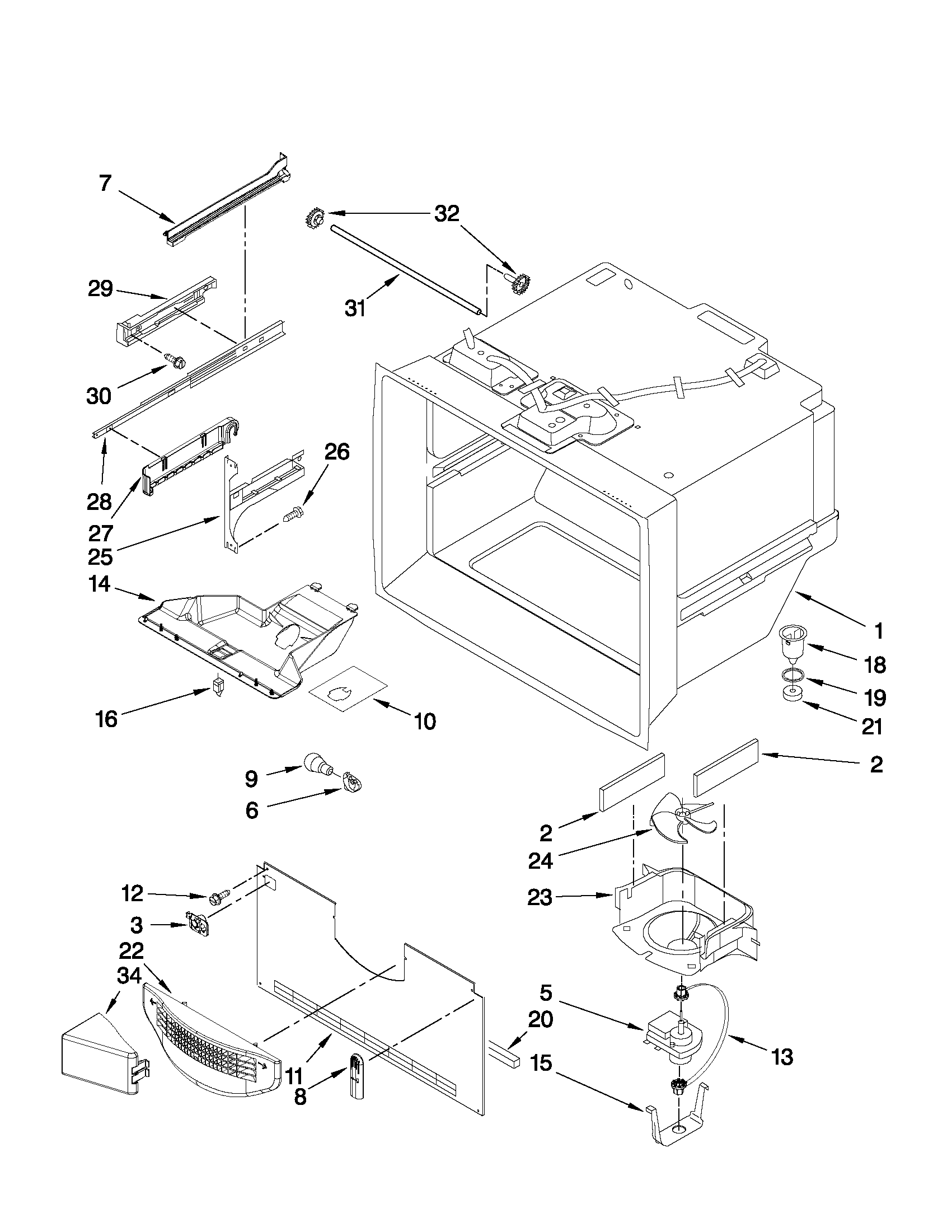

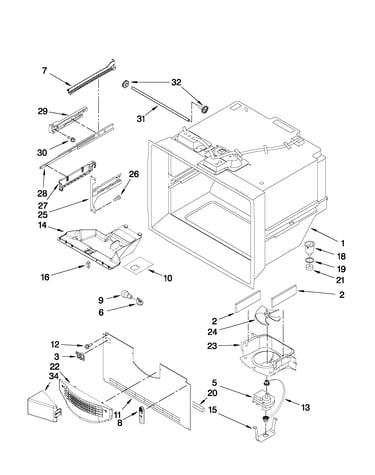

Freezer liner parts diagram
Refrigerator evaporator fan blade
Part #2169142
Replaced by #WP2169142
?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
$32.96 |
15% OFF Phone Price : $38.96
In Stock
#26A

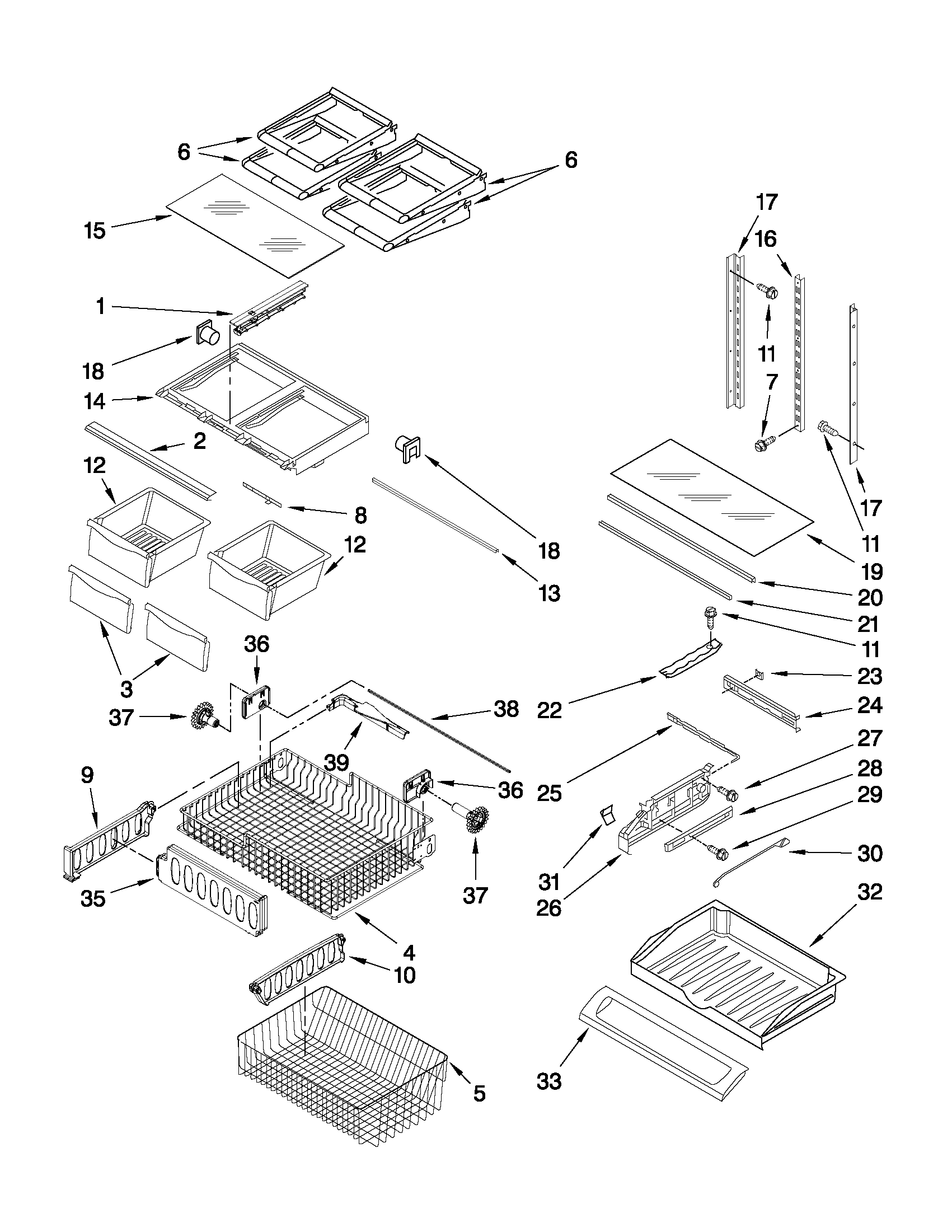

Shelf parts diagram
Refrigerator end cap
Part #12656106
Replaced by #W10874836
?
Manufacturer substitution
This part replaces 12656106. Substitute parts can look different from the original.
$35.29 |
15% OFF Phone Price : $41.29
In Stock
#26
Shelf parts diagram
Refrigerator pantry drawer end cap
Part #12656019
Replaced by #W10874836
?
Manufacturer substitution
This part replaces 12656019. Substitute parts can look different from the original.
$35.29 |
15% OFF Phone Price : $41.29
In Stock
#5
Unit parts diagram
Refrigerator run capacitor
Part #2264017
Replaced by #WPW10662129
?
Manufacturer substitution
This part replaces 2264017. Substitute parts can look different from the original.
$44.35 |
12% OFF Phone Price : $50.35
In Stock
#16
Freezer liner parts diagram
Light swit
Part #12466105
Replaced by #W11396033
?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
$19.31 |
9% OFF Phone Price : $21.31
In Stock
#5

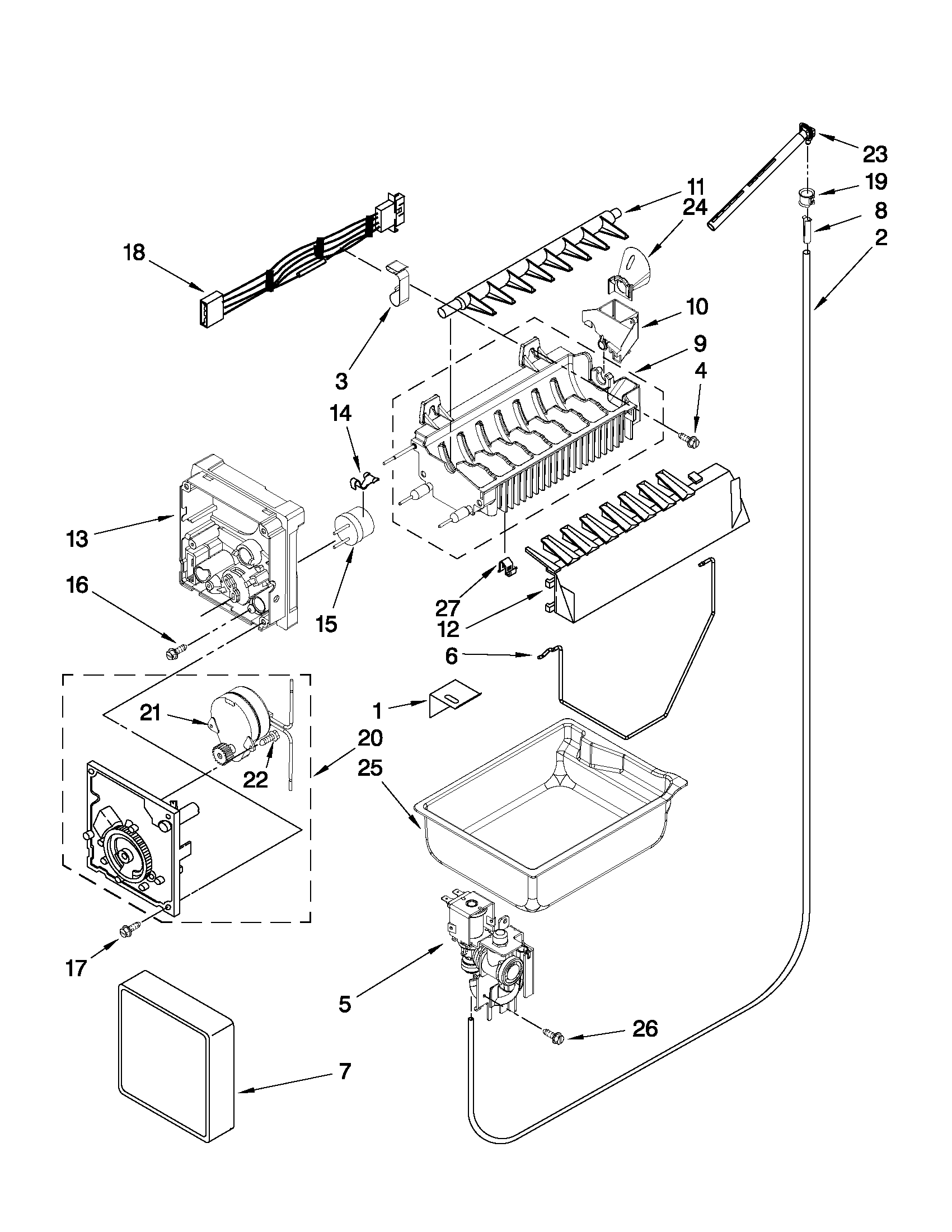

Icemaker parts diagram
Refrigerator water inlet valve assembly
Part #W10219716
Replaced by #WP2315576
?
Manufacturer substitution
This part replaces W10219716. Substitute parts can look different from the original.
$46.64 |
11% OFF Phone Price : $52.64
In Stock
#33
Shelf parts diagram
Refrigerator cover
Part #12656816
Replaced by #W10827015
?
Manufacturer substitution
This part replaces 12656816. Substitute parts can look different from the original.
$95.97 |
11% OFF Phone Price : $107.97
In Stock
