Model # 29609 Official Lifestyler treadmill

Here are the diagrams and repair parts for Official Lifestyler 29609 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Beam Sprt 064998
#26

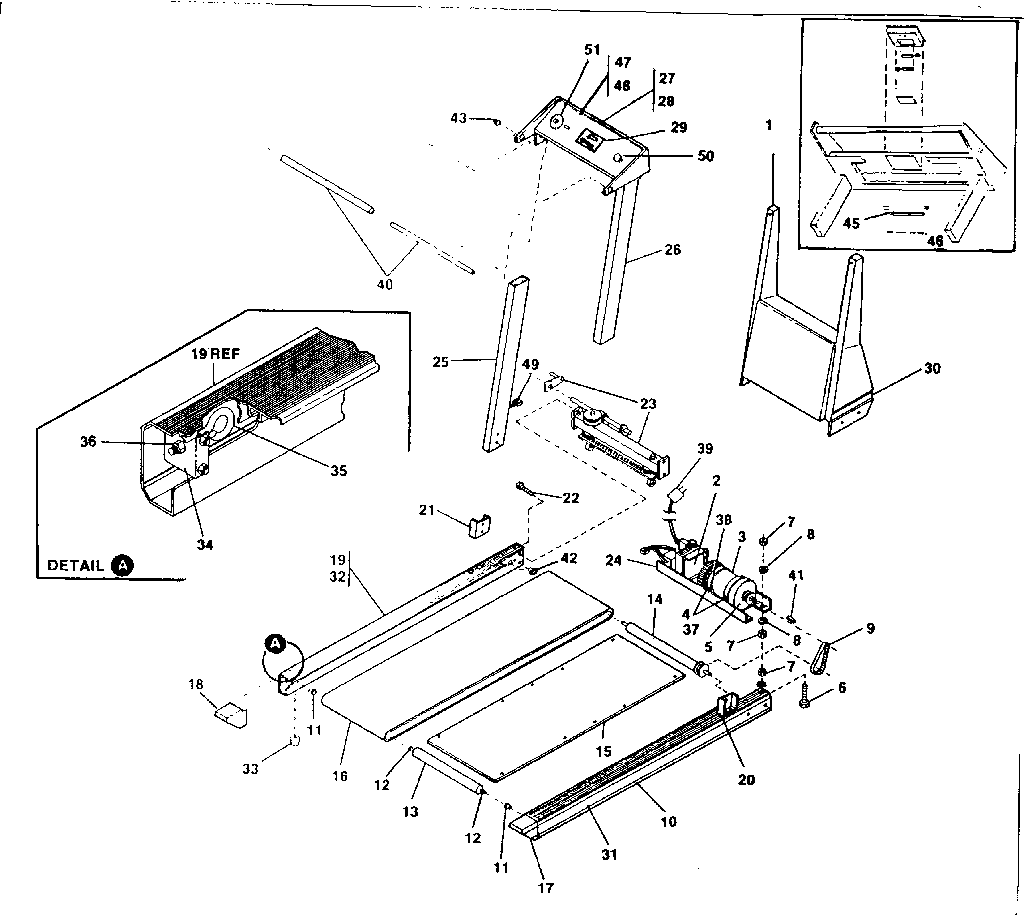

Unit parts diagram

Beam sprt

Part #064998

The manufacturer no longer makes this part, and there's no substitute part

End Cover 069272
#17

Unit parts diagram

End cover

Part #069272

The manufacturer no longer makes this part, and there's no substitute part

Bracket 084387
#45

Unit parts diagram

Bracket

Part #084387

The manufacturer no longer makes this part, and there's no substitute part

Console Assembly 083534
#27

Unit parts diagram

Console assembly

Part #083534

The manufacturer no longer makes this part, and there's no substitute part

Bushing 046345
#11

Unit parts diagram

Bushing

Part #046345

The manufacturer no longer makes this part, and there's no substitute part

Belt 061395
#9

Unit parts diagram

Belt

Part #061395

The manufacturer no longer makes this part, and there's no substitute part

Cap 065072
#43

Unit parts diagram

Cap

Part #065072

The manufacturer no longer makes this part, and there's no substitute part

Hh Bolt 061247
#22

Unit parts diagram

Hh bolt

Part #061247

The manufacturer no longer makes this part, and there's no substitute part

Asm Roller 061603
#13

Unit parts diagram

Asm roller

Part #061603

The manufacturer no longer makes this part, and there's no substitute part

Bracket 079219
#34

Unit parts diagram

Bracket

Part #079219

The manufacturer no longer makes this part, and there's no substitute part
