Model # 79571019011 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 79571019011 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

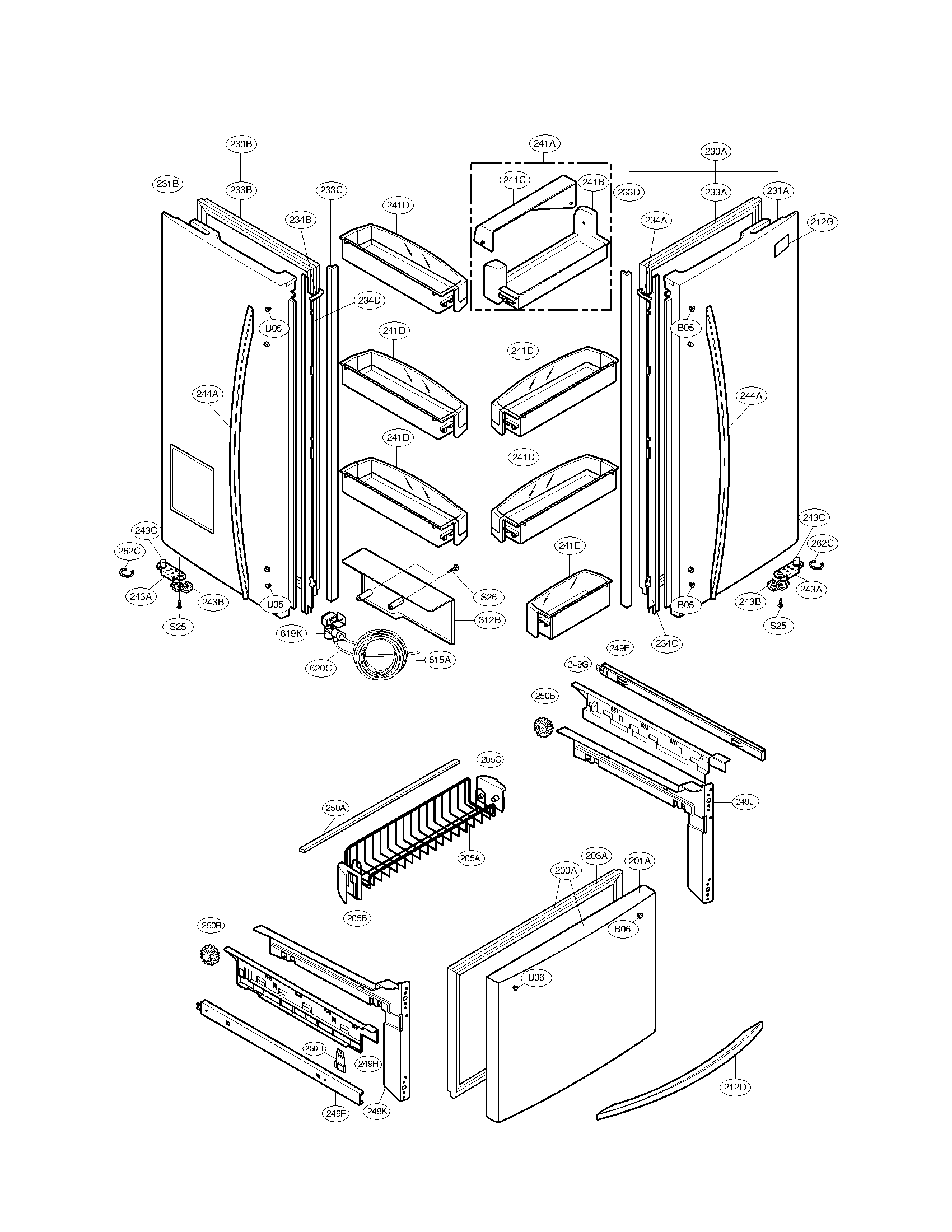

SELECT DIAGRAM
Browse Parts for79571019011 Refrigerators
- #300A

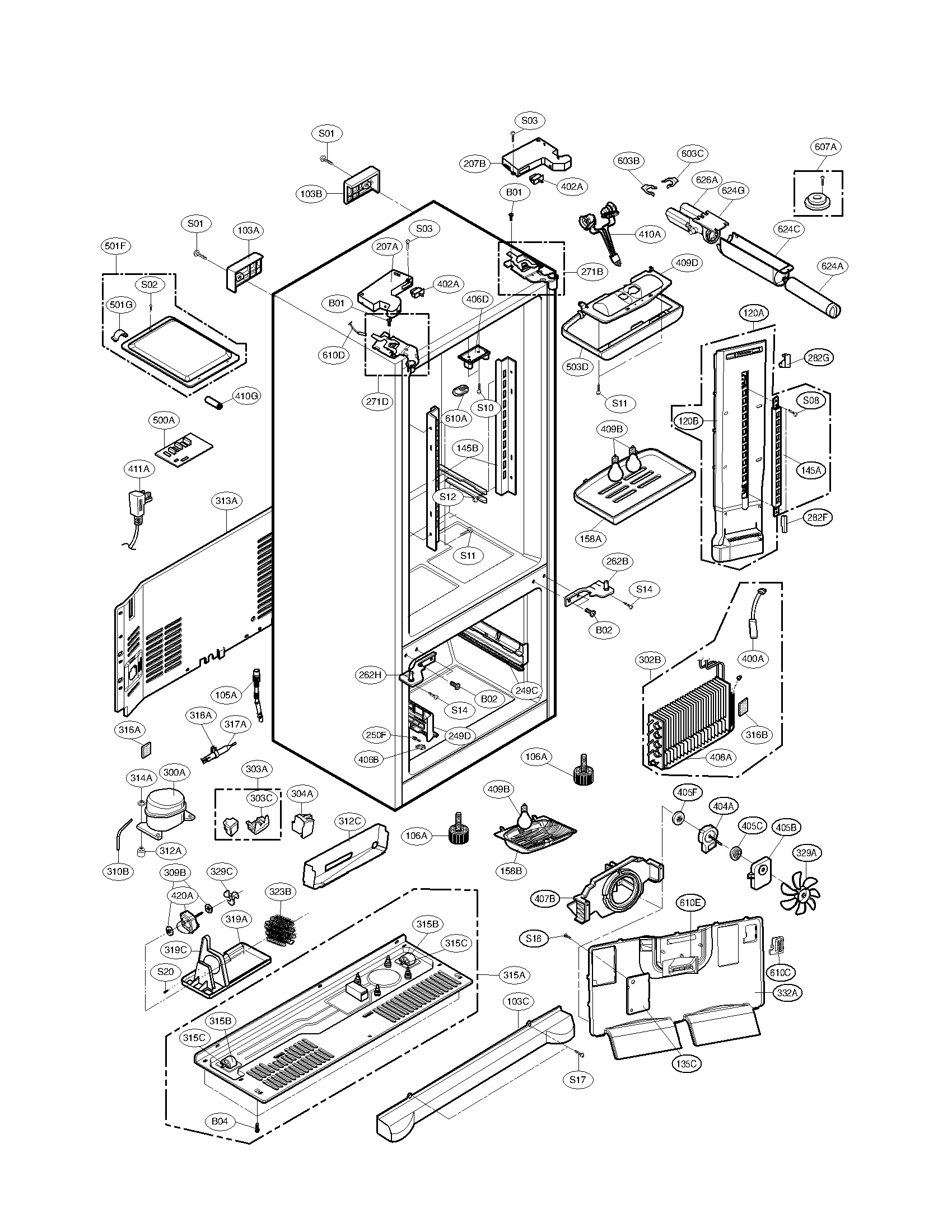

Case parts diagram
Refrigerator compressorPart #TCA35271201
Replaced by #TCA38151706
?Manufacturer substitutionThis part replaces TCA35271201. Substitute parts can look different from the original.$439.28 |$12.00 OFF Phone Price : $451.28In Stock - #624A
Case parts diagram
Kenmore refrigerator water filter 9990Part #5231JA2006E
The manufacturer no longer makes this part, and there's no substitute part
- #317A
Case parts diagram
Refrigerator filter dryerPart #5851JA2008U
Replaced by #ADH73150208
?Manufacturer substitutionThis part replaces 5851JA2008U. Substitute parts can look different from the original.$80.97 |7% OFF Phone Price : $86.97In Stock - #600A

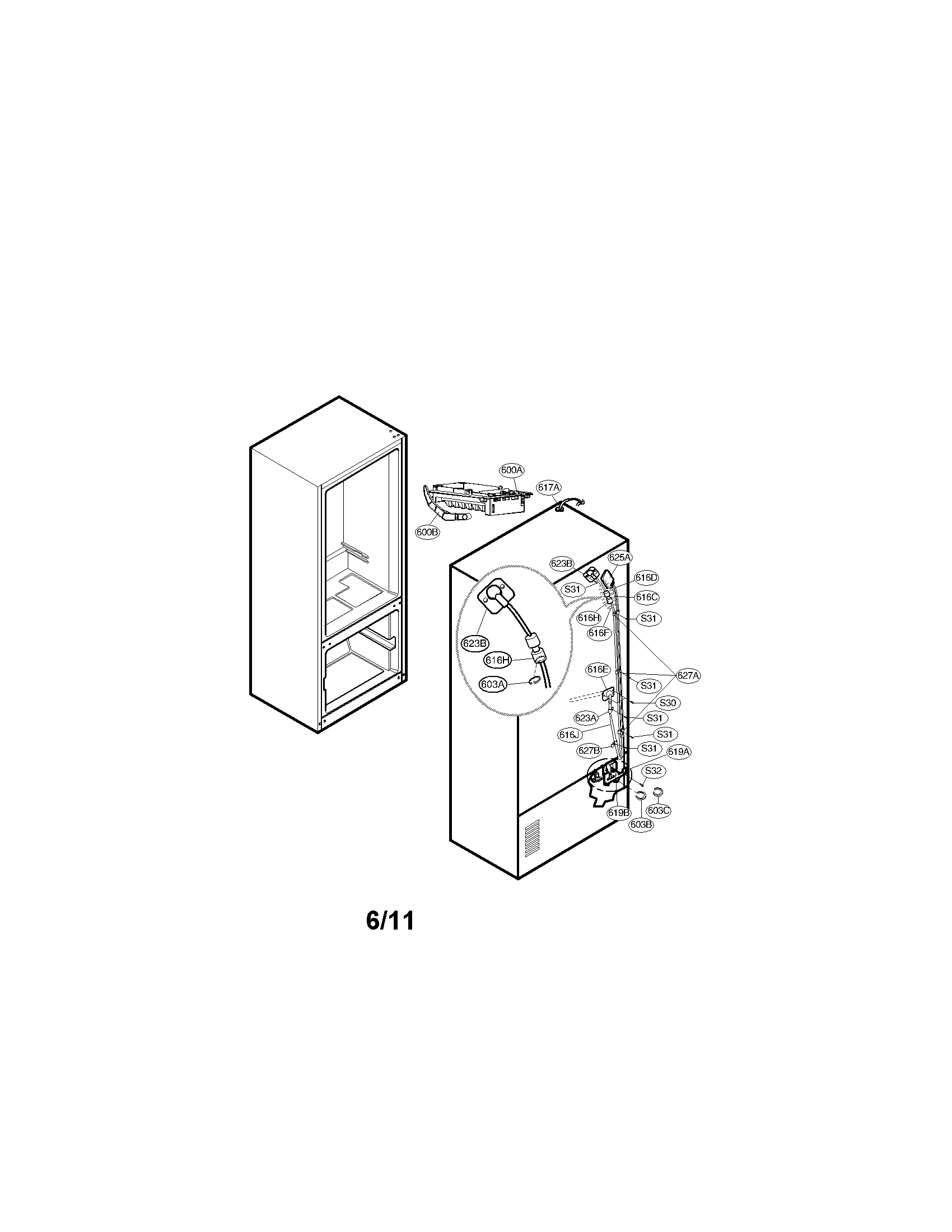

Icemaker parts diagram
Ice maker assembly (aeq72909602) - refrigerator ice maker part by lgPart #AEQ72909602
Replaced by #AEQ72909603
?Manufacturer substitutionThis part replaces AEQ72909602. Substitute parts can look different from the original.$226.70 |5% OFF Phone Price : $238.70In Stock - #323B
Case parts diagram
Refrigerator condenser coilPart #ACG72915209
Replaced by #ACG73784701
?Manufacturer substitutionThis part replaces ACG72915209. Substitute parts can look different from the original.$155.19 |7% OFF Phone Price : $167.19In Stock - #403A

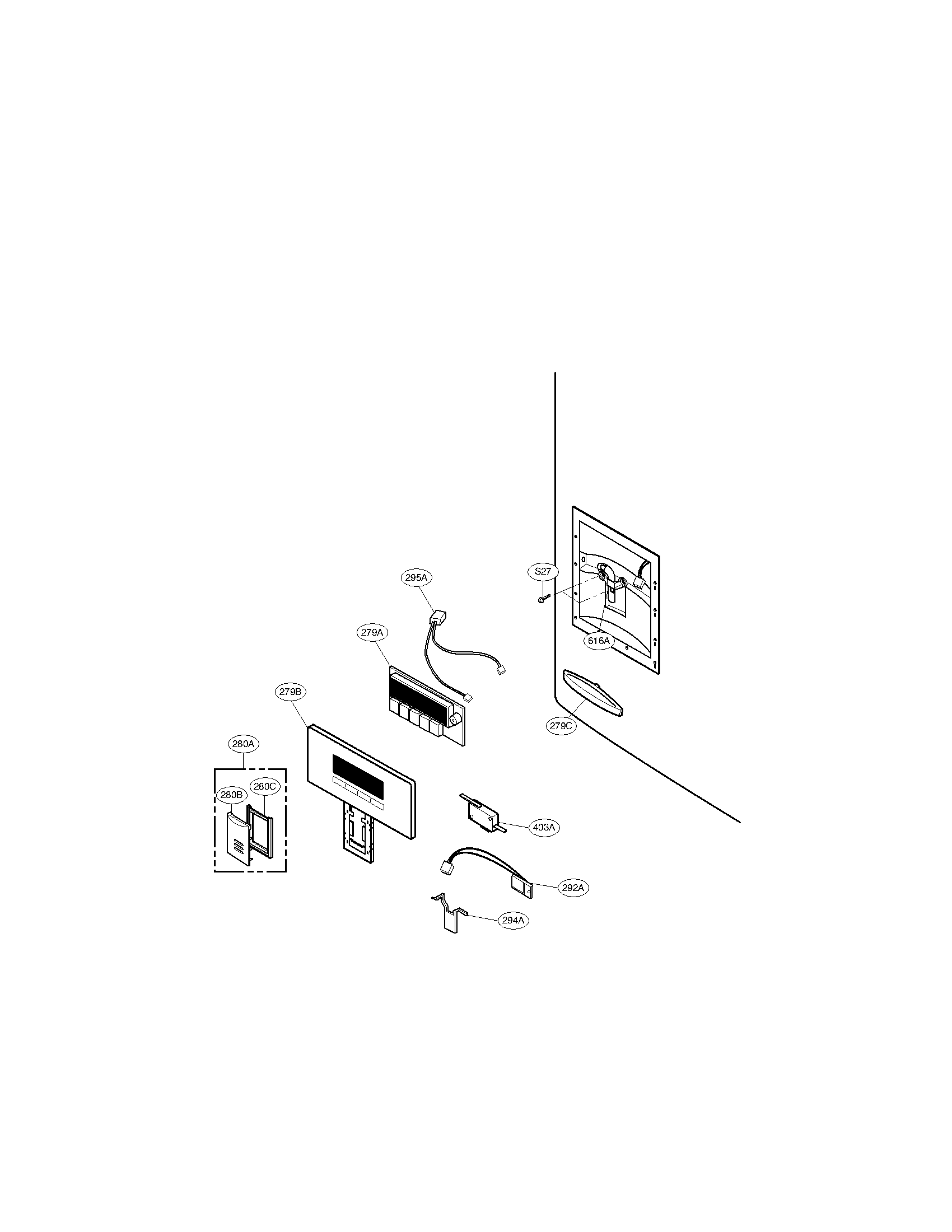

Dispenser parts diagram
Lg refrigerator dispenser switchPart #6600JB3001C
$39.99 |13% OFF Phone Price : $45.99In Stock - #145M

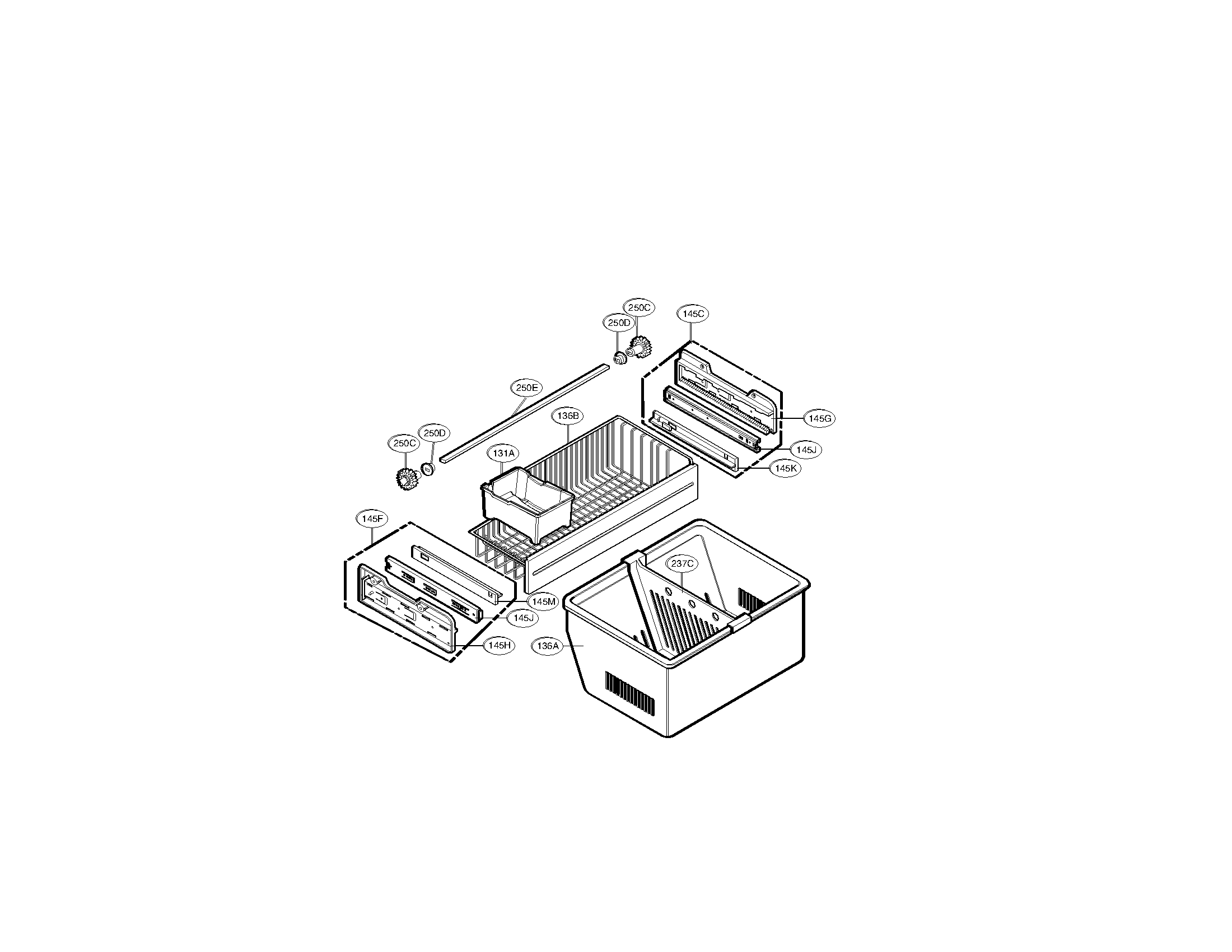

Freezer parts diagram
Refrigerator freezer basket support rail, leftPart #4932JA1010A
$15.36 |12% OFF Phone Price : $17.36In Stock - #310B
Case parts diagram
Refrigerator compressor process tubePart #4J00977P
$8.67 |10% OFF Phone Price : $9.67In Stock - #105A
Case parts diagram
Refrigerator drain tubePart #5251JA3003E
Replaced by #5251JA3003D
?Manufacturer substitutionThis part replaces 5251JA3003E. Substitute parts can look different from the original.$13.78 |13% OFF Phone Price : $15.78In Stock - #145D

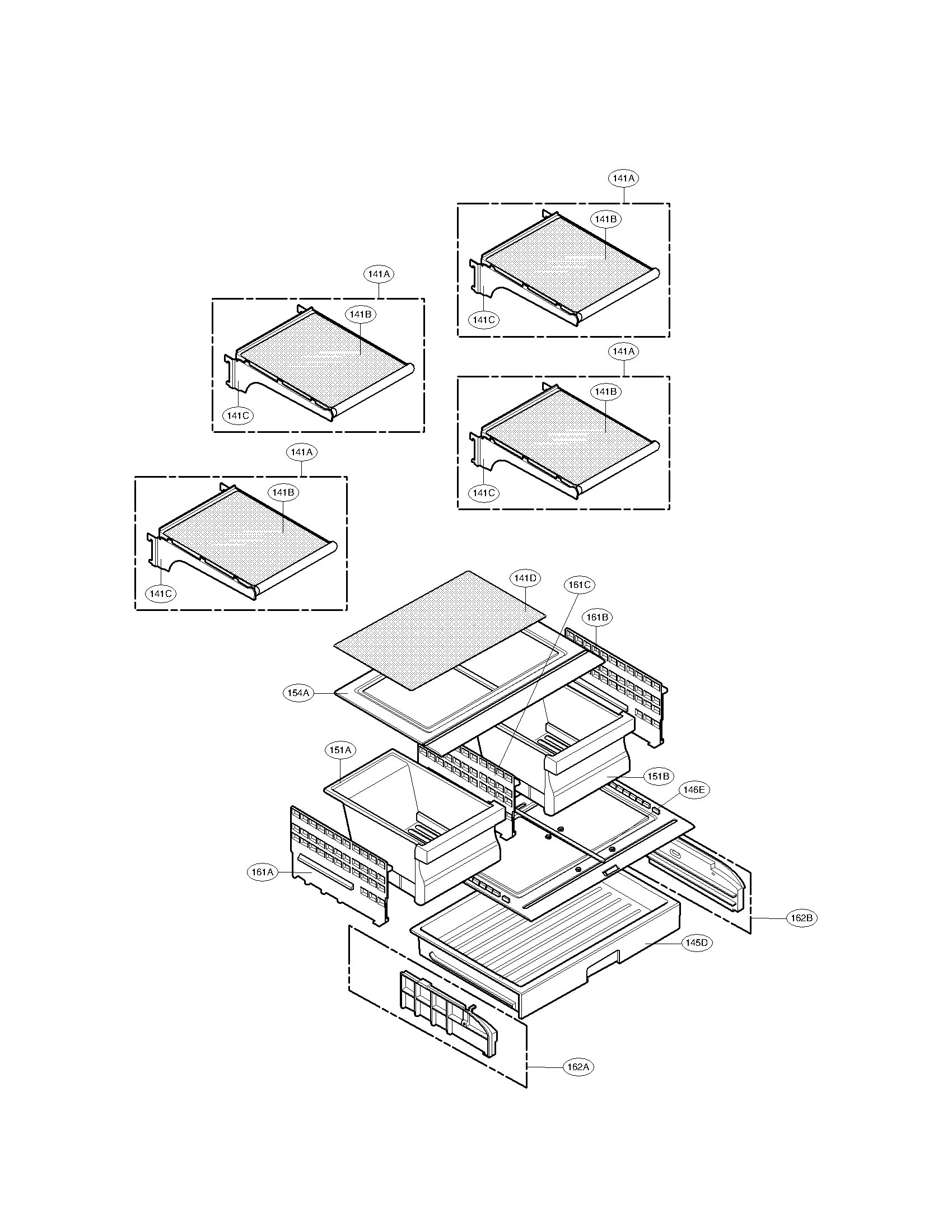

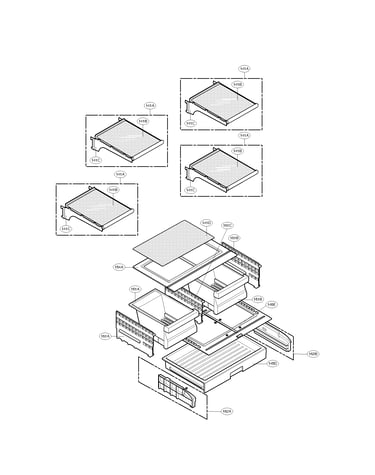

Refrigerator parts diagram
Refrigerator trayPart #AJP36700901
Replaced by #AJP73874601
?Manufacturer substitutionThis part replaces AJP36700901. Substitute parts can look different from the original.$76.80 |7% OFF Phone Price : $82.80In Stock
