Amana
Side-By-Side Refrigerator

Model # AC2224PEKB12 Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana AC2224PEKB12 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

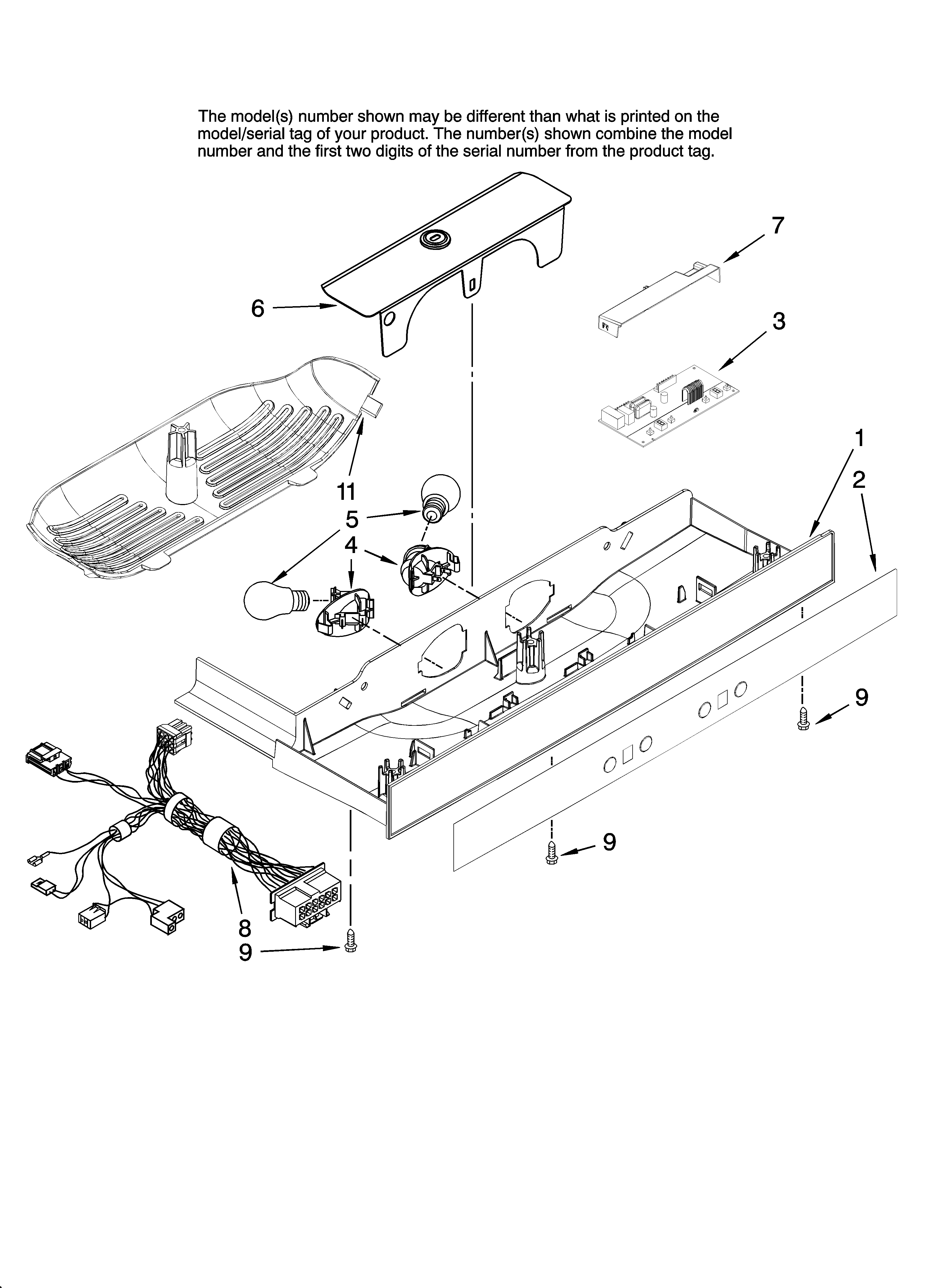

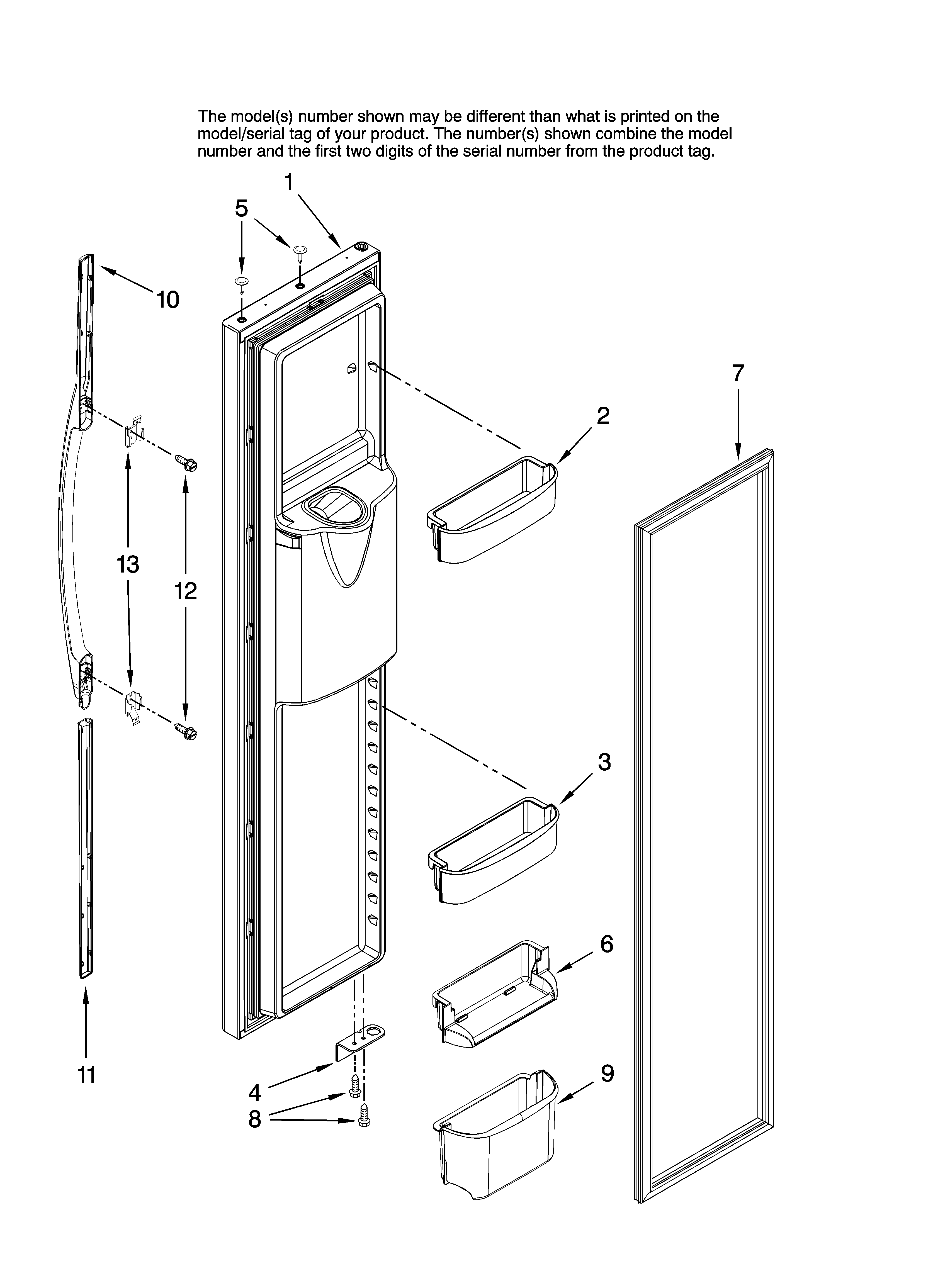

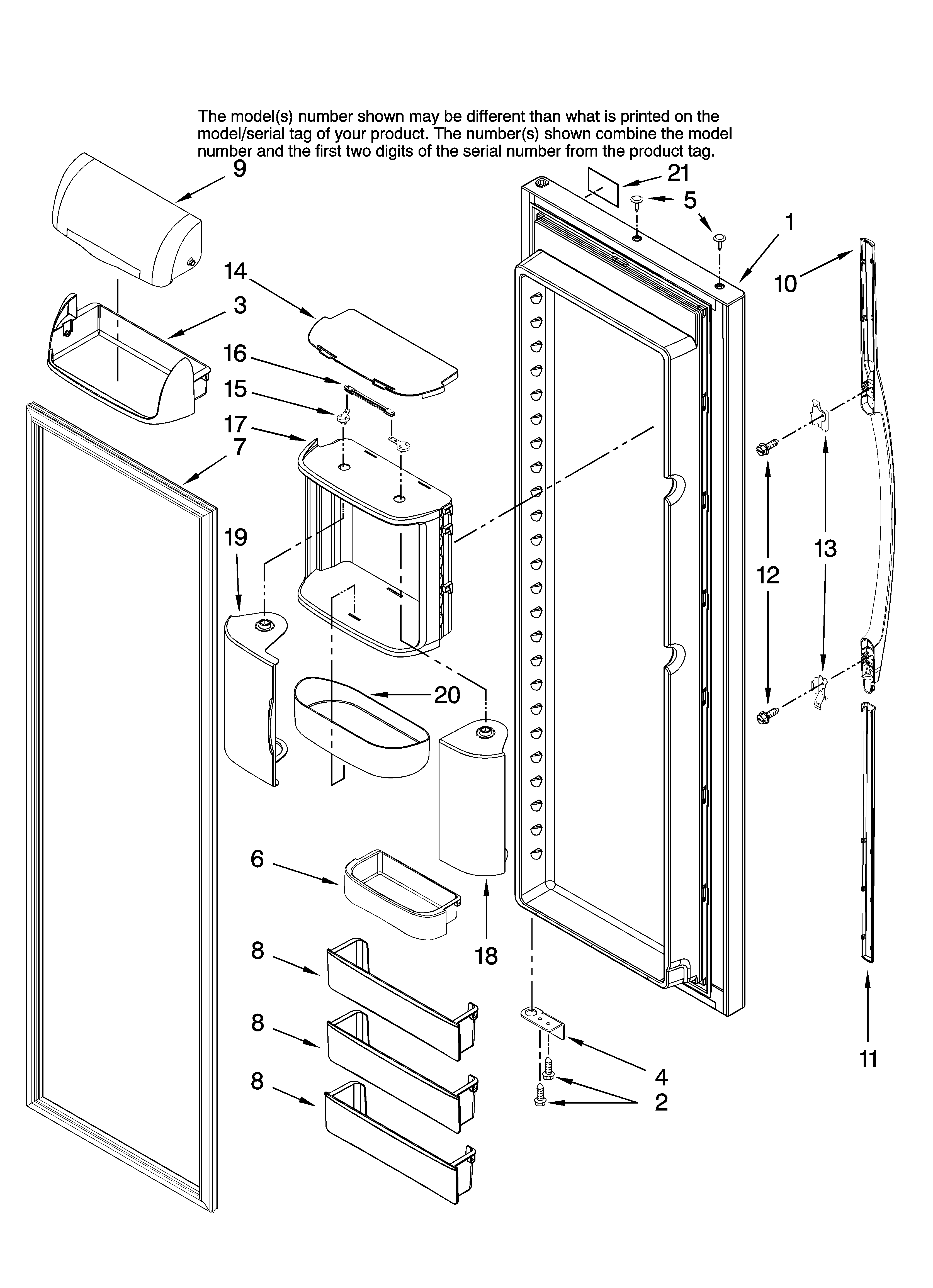

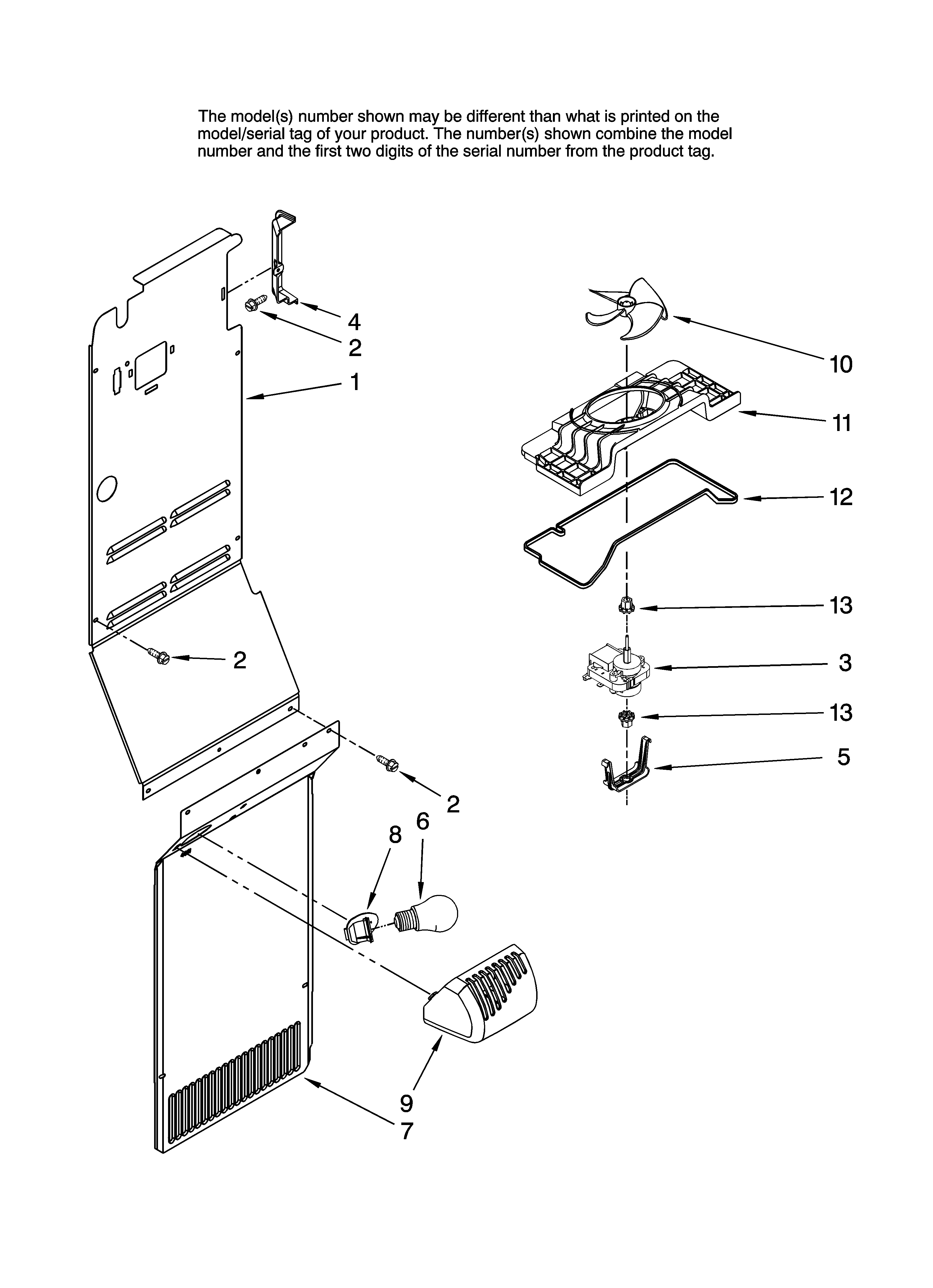

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Refrigerator Uv Filter Dryer W10143759
#24

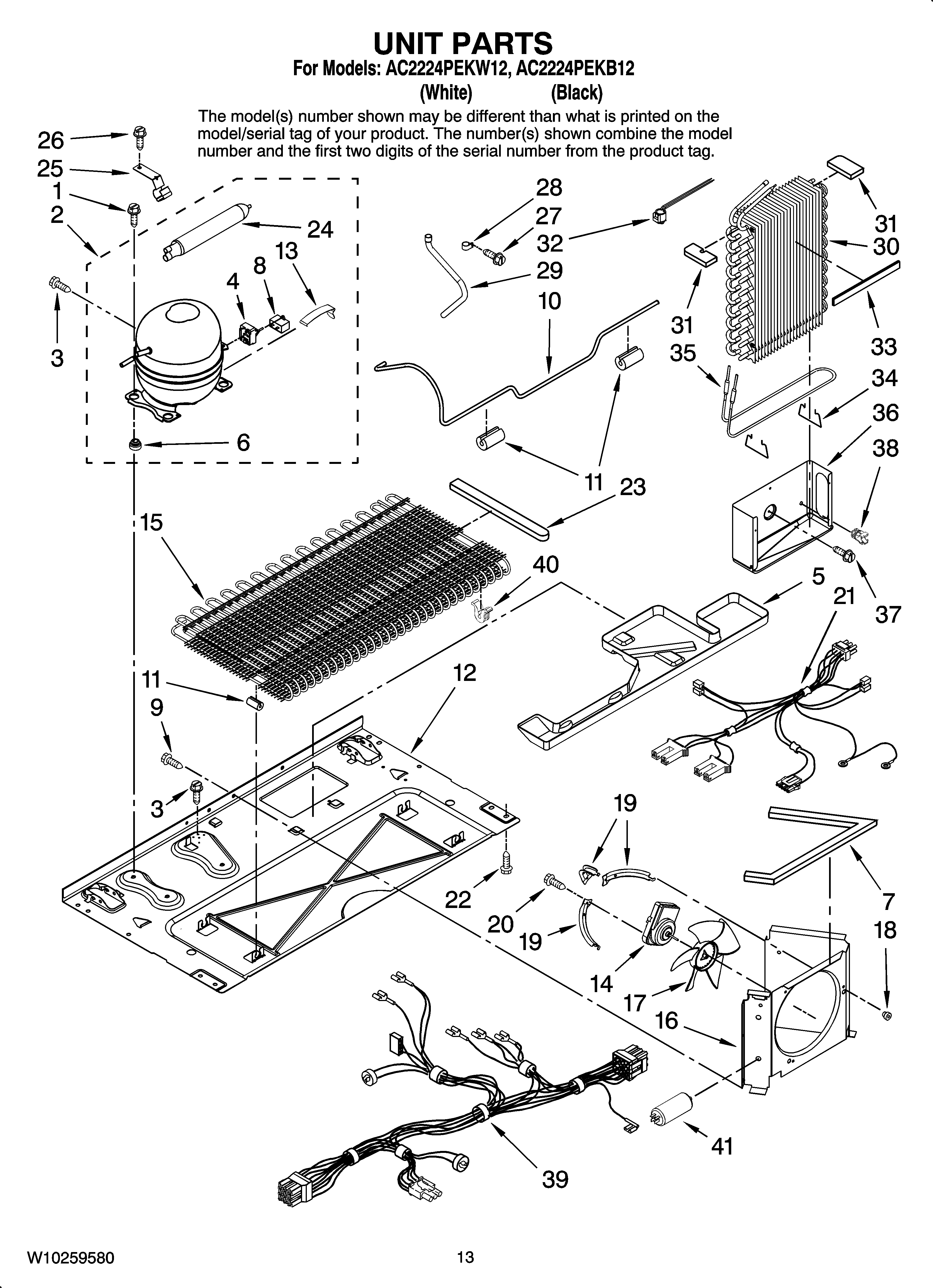

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 12466103
#11

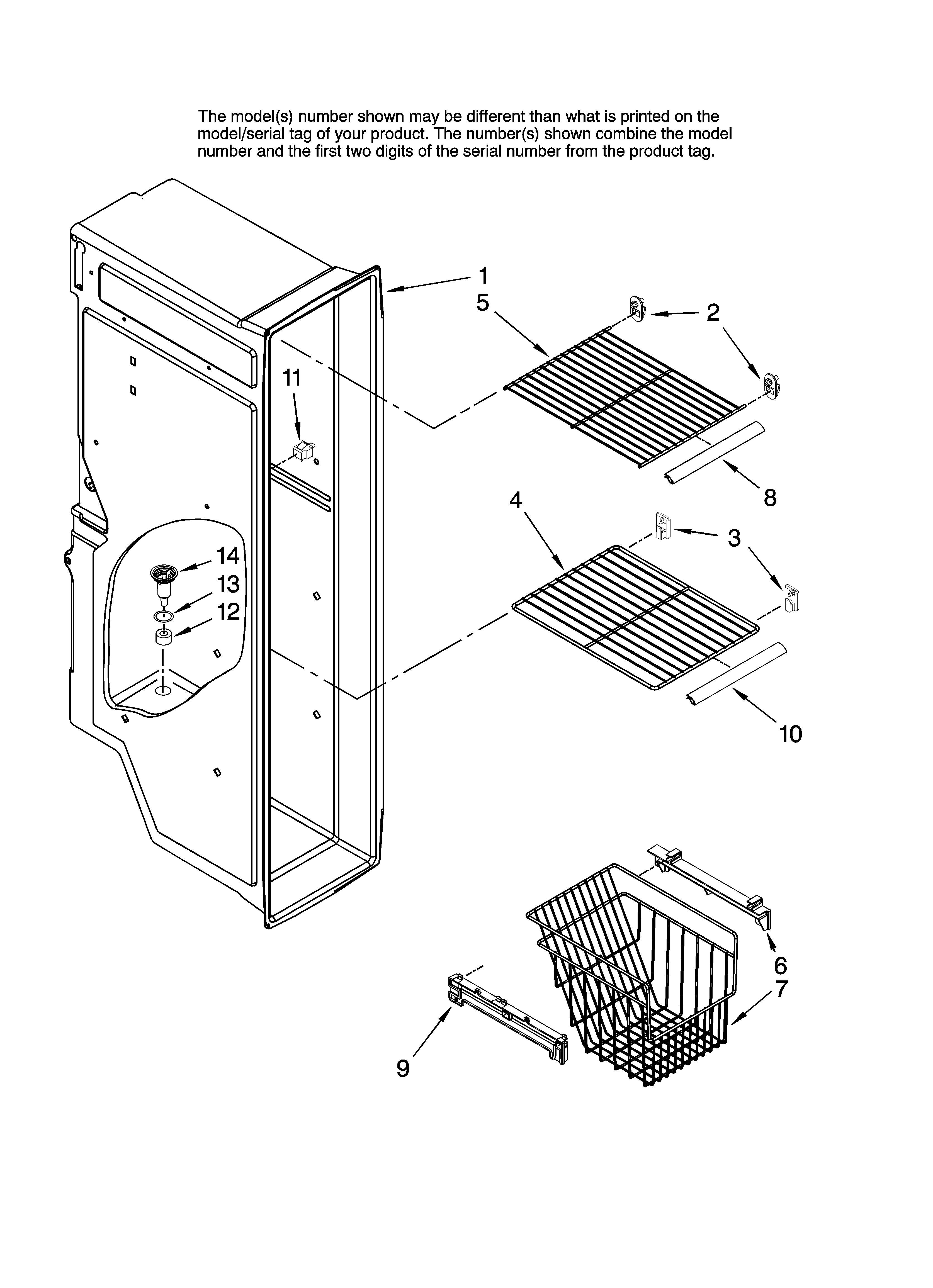

Freezer liner parts diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Refrigerant Discharge Tube 12866903
#10

Unit parts diagram

Refrigerator refrigerant discharge tube

Part #12866903

Replaced by #WP12866903

?
Manufacturer substitution
This part replaces 12866903. Substitute parts can look different from the original.
BEST SELLER
$82.79 |
7% OFF Phone Price : $88.79
In Stock
Refrigerator Screw 67006492
#12

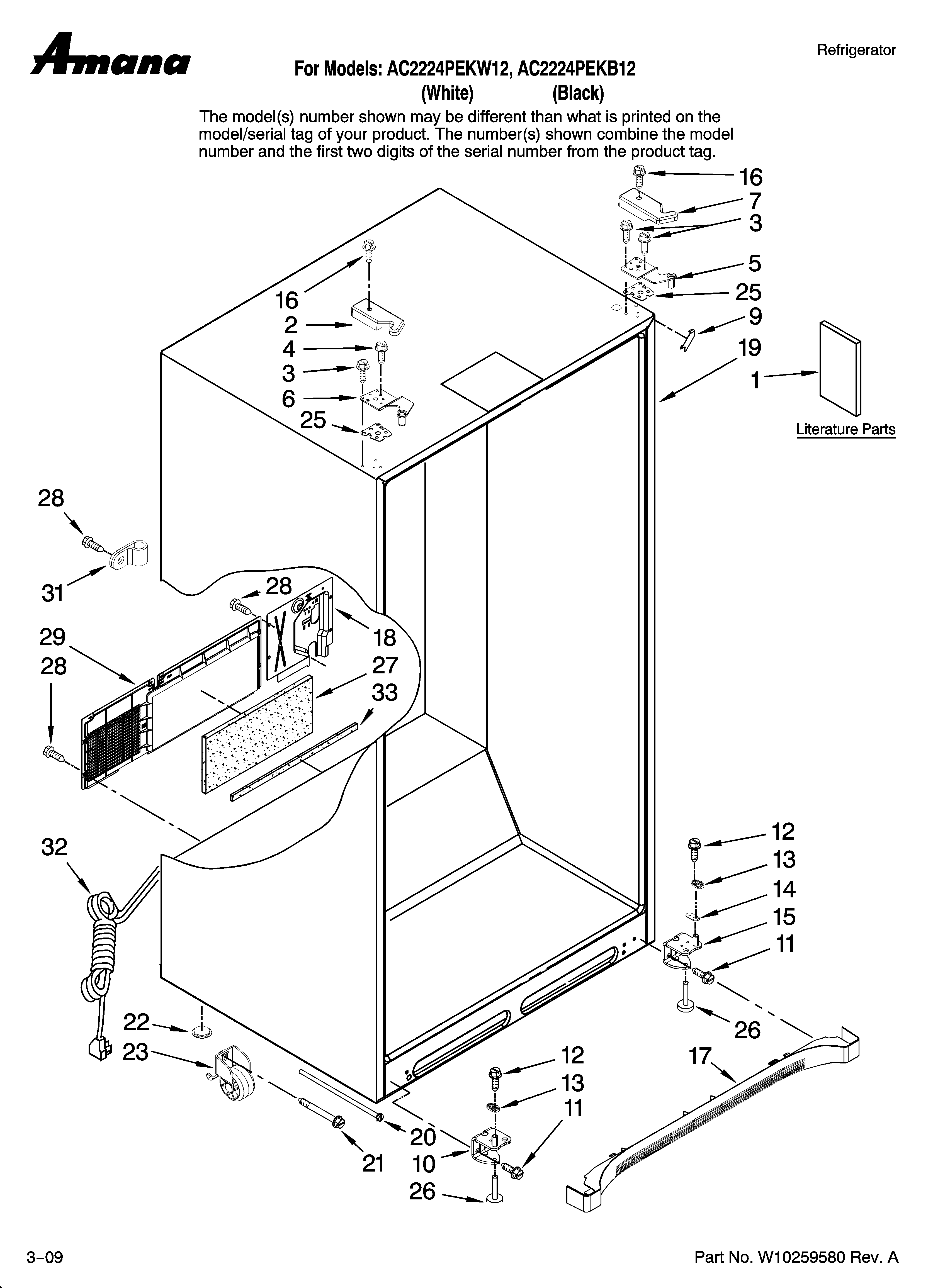

Cabinet parts diagram

Refrigerator screw

Part #67006492

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 67006492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Fan Blade W10162928
#17

Unit parts diagram

Refrigerator fan blade

Part #W10162928

Replaced by #W10156818

?
Manufacturer substitution
This part replaces W10162928. Substitute parts can look different from the original.
BEST SELLER
$42.67 |
12% OFF Phone Price : $48.67
In Stock
Refrigerator Light Switch 12466104
#12

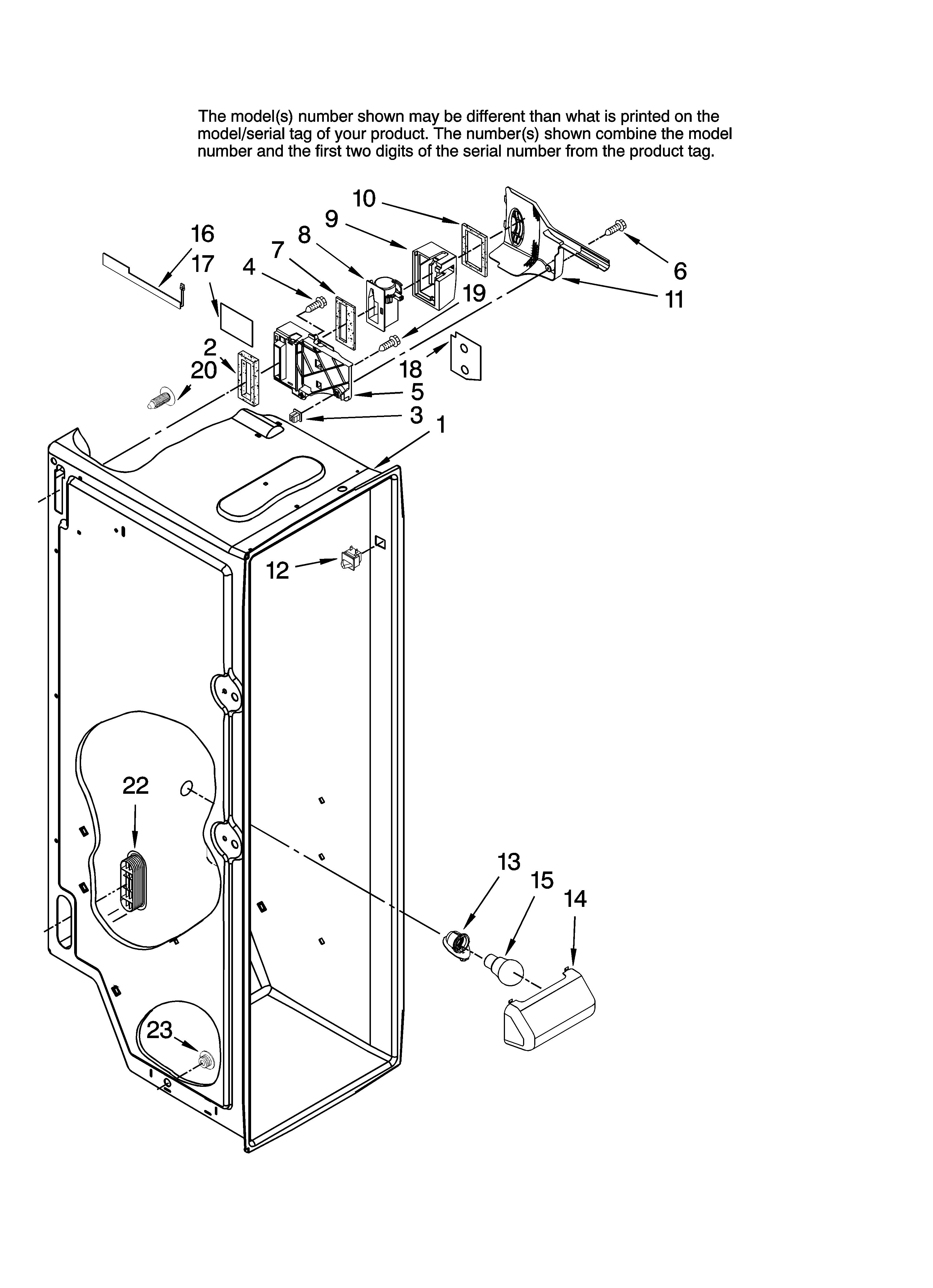

Refrigerator liner parts diagram

Refrigerator light switch

Part #12466104

Replaced by #W11291138

?
Manufacturer substitution
This part replaces 12466104. Substitute parts can look different from the original.
$24.79 |
19% OFF Phone Price : $30.79
In Stock
Appliance Touch-up Paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, R9900463, W10831386) 4392899
#NI

Unit parts diagram

Appliance touch-up paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, r9900463, w10831386)

Part #4392899

This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Spray Paint (white) 350939
#NI

Unit parts diagram

Spray paint (white)

Part #350939

Replaced by #285006

?
Manufacturer substitution
This part replaces 350939. Substitute parts can look different from the original.
This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Bisq Paint 4392901
#NI

Unit parts diagram

Bisq paint

Part #4392901

Replaced by #4392901

?
Manufacturer substitution
This part replaces 4392901. Substitute parts can look different from the original.
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Crisper Pan, Large 67005412
#8

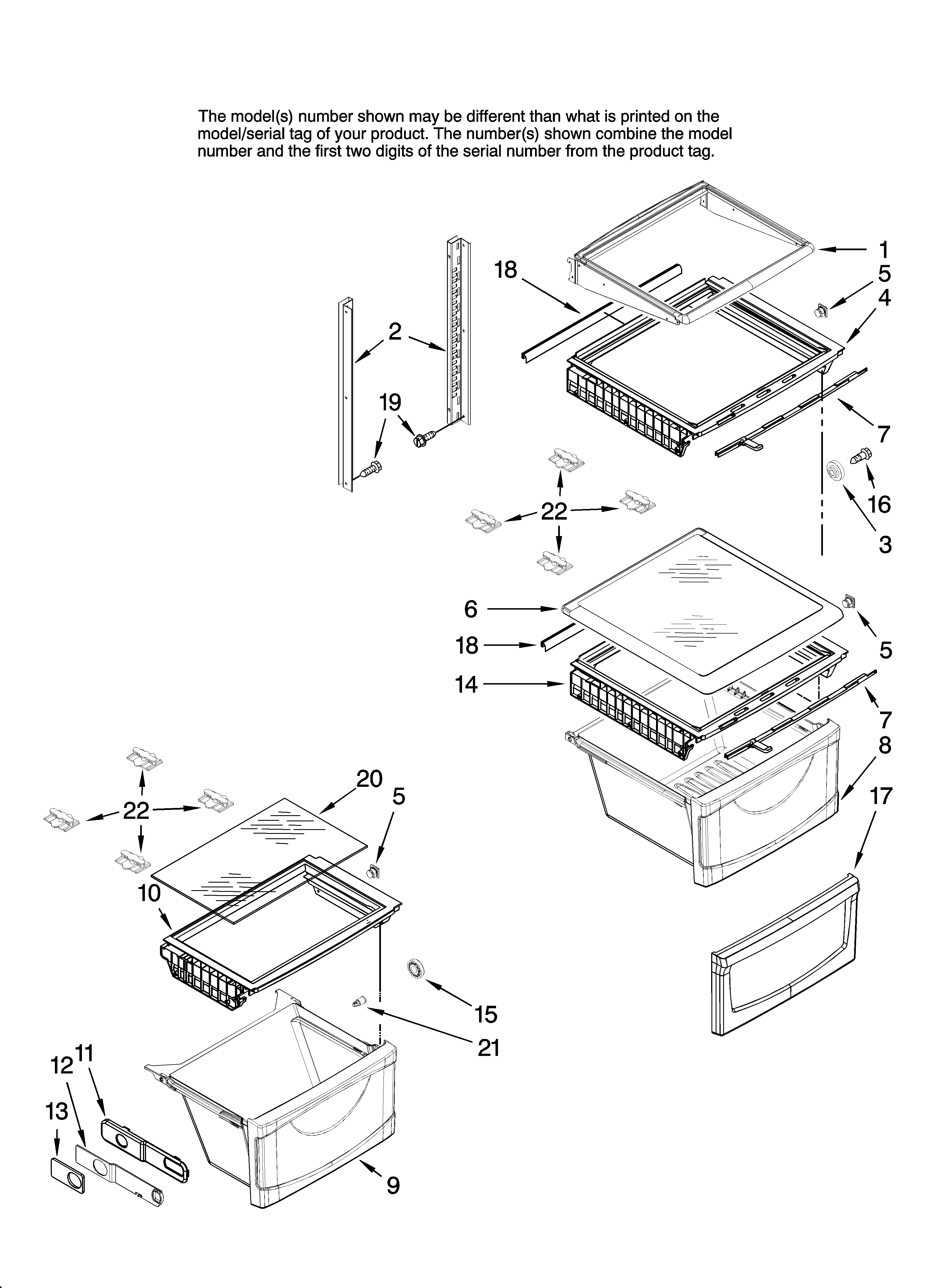

Refrigerator shelf parts diagram

Crisper pan, large

Part #67005412

Replaced by #WP67005816

?
Manufacturer substitution
This part replaces 67005412. Substitute parts can look different from the original.
$87.45 |
6% OFF Phone Price : $93.45
In Stock
