Model # 1106102600 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 1106102600 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1106102600 Washer

  • Tap Screw 90767
    #24

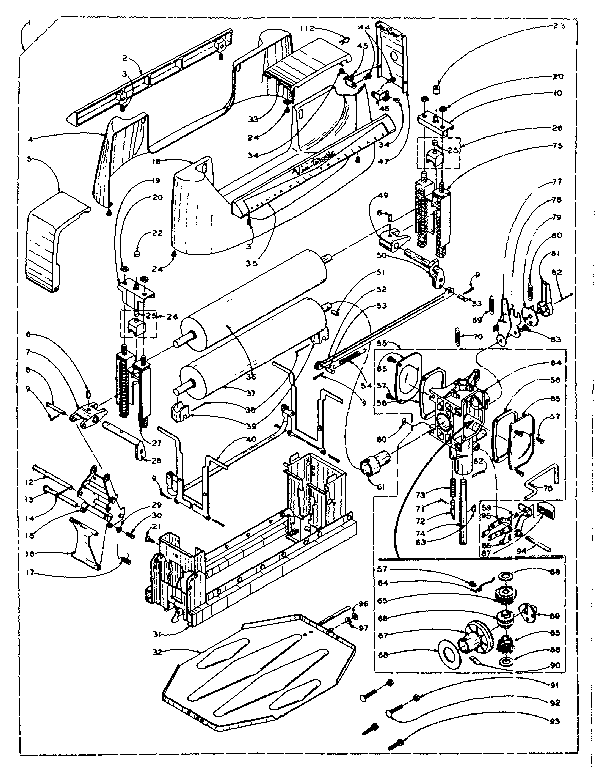

    Wringer and wringer gear case assembly diagram

    Tap screw

    Part #90767

    Replaced by #WP90767

    ?
    Manufacturer substitution
    This part replaces 90767. Substitute parts can look different from the original.
    1 (1)
    BEST SELLER
    This item is not returnable
    $4.31 |
    19% OFF Phone Price : $5.31
    In Stock
  • Screw 90464
    #33

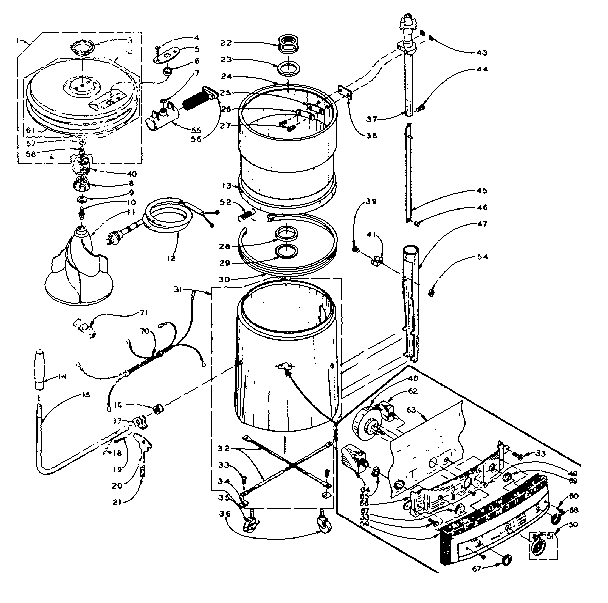

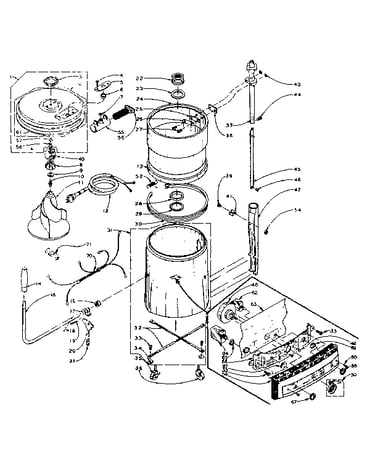

    Machine sub-assembly diagram

    Screw

    Part #90464

    Replaced by #WP681414

    ?
    Manufacturer substitution
    This part replaces 90464. Substitute parts can look different from the original.
    3 (2)
    BEST SELLER
    This item is not returnable
    $4.33 |
    19% OFF Phone Price : $5.33
    In Stock
  • Clamp 232402
    #55

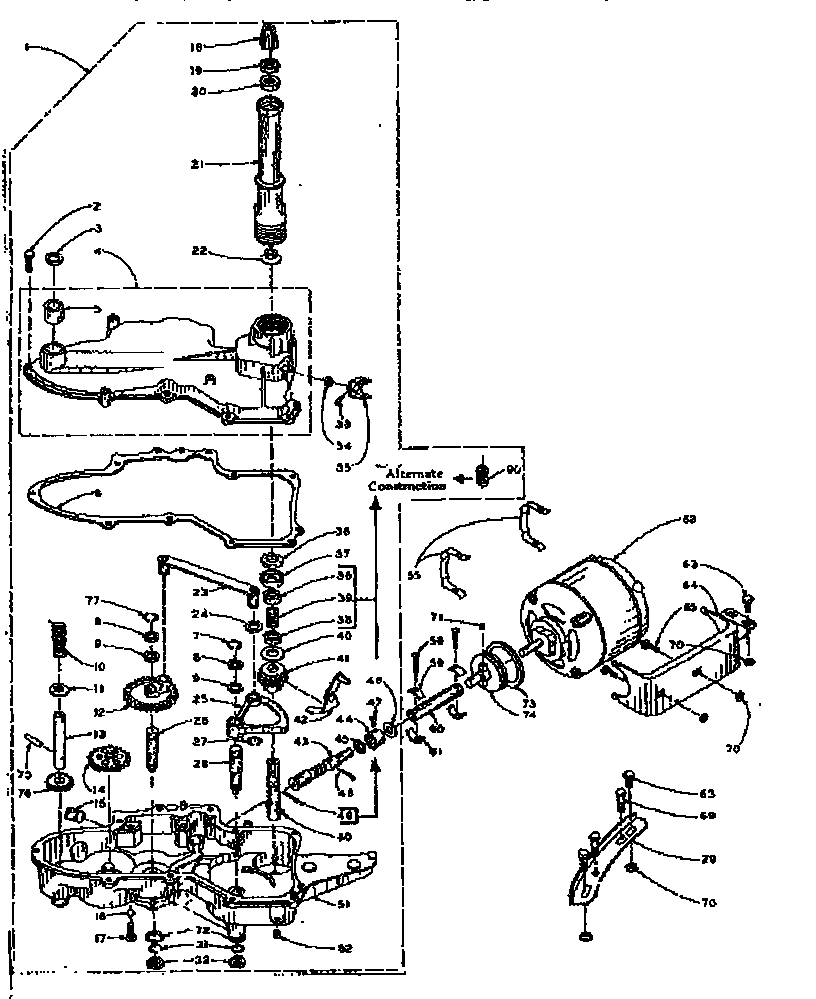

    Worm gear and motor diagram

    Clamp

    Part #232402

    Replaced by #WP660658

    ?
    Manufacturer substitution
    This part replaces 232402. Substitute parts can look different from the original.
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Hose Clamp 272856
    #32

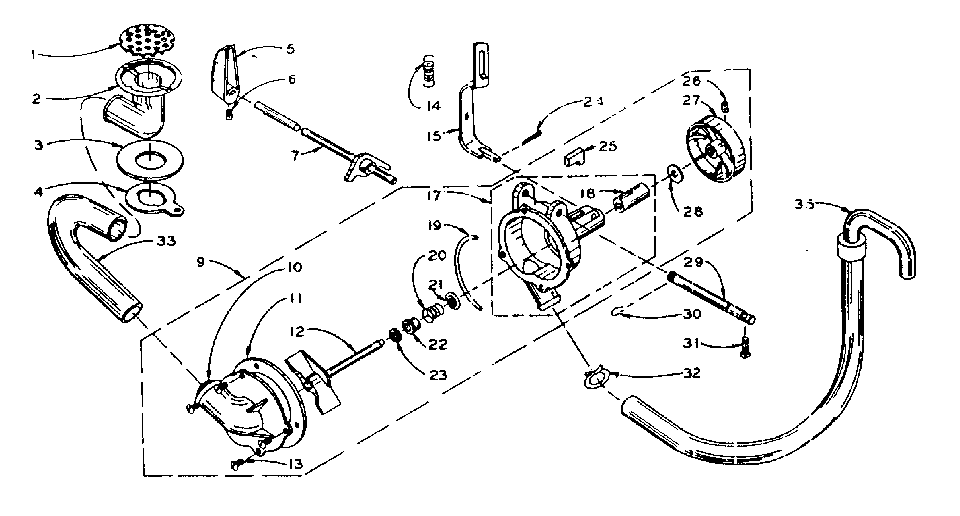

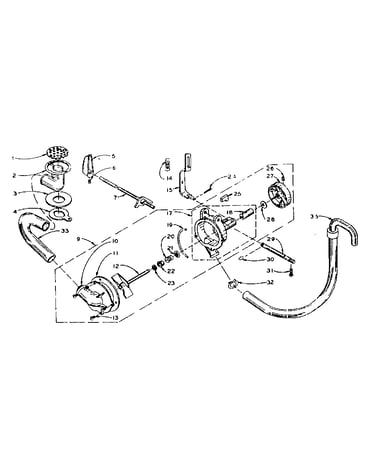

    Pump assembly diagram

    Hose clamp

    Part #272856

    Replaced by #WP356138

    ?
    Manufacturer substitution
    This part replaces 272856. Substitute parts can look different from the original.
    $35.96
    In Stock
  • Oil Plug 103865
    #52

    Worm gear and motor diagram

    Oil plug

    Part #103865

    Replaced by #W10295523

    ?
    Manufacturer substitution
    This part replaces 103865. Substitute parts can look different from the original.
    $18.24 |
    10% OFF Phone Price : $20.24
    In Stock
  • Carriage Bolt 126211
    #63

    Worm gear and motor diagram

    Carriage bolt

    Part #126211

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut 90984
    #70

    Worm gear and motor diagram

    Nut

    Part #90984

    $15.95 |
    11% OFF Phone Price : $17.95
    In Stock
  • Nut 271172
    #91

    Wringer and wringer gear case assembly diagram

    Nut

    Part #271172

    Replaced by #WP487939

    ?
    Manufacturer substitution
    This part replaces 271172. Substitute parts can look different from the original.
    This item is not returnable
    $4.25 |
    19% OFF Phone Price : $5.25
    In Stock
  • Hex Nut 120622
    #54

    Machine sub-assembly diagram

    Hex nut

    Part #120622

    Replaced by #WP486255

    ?
    Manufacturer substitution
    This part replaces 120622. Substitute parts can look different from the original.
    This item is not returnable
    $4.33
    In Stock
  • Cut Screw 90497
    #13

    Pump assembly diagram

    Cut screw

    Part #90497

    Replaced by #WPW10141625

    ?
    Manufacturer substitution
    This part replaces 90497. Substitute parts can look different from the original.
    This item is not returnable
    $16.43 |
    11% OFF Phone Price : $18.43
    In Stock
