Model # GT2425PDDW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT2425PDDW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

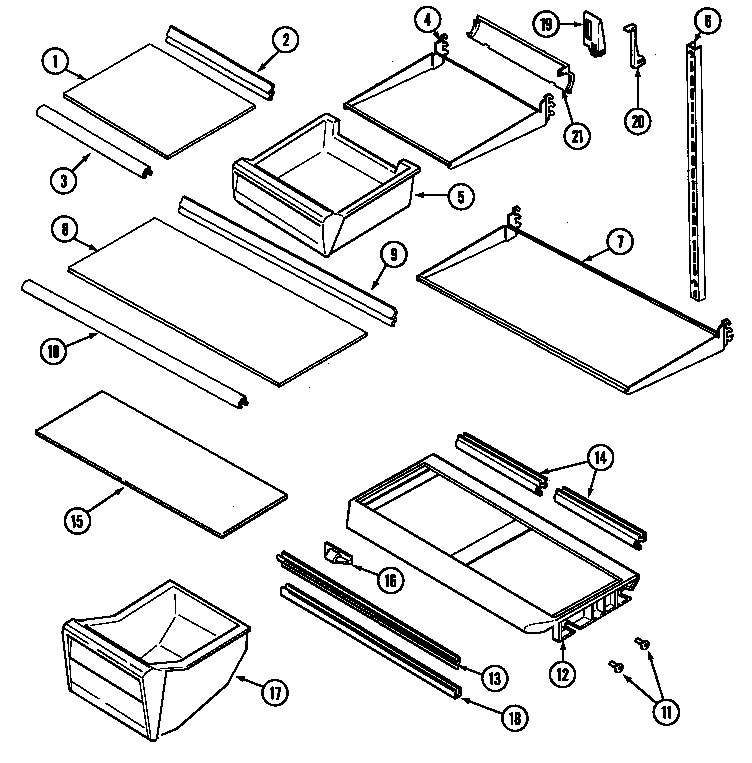

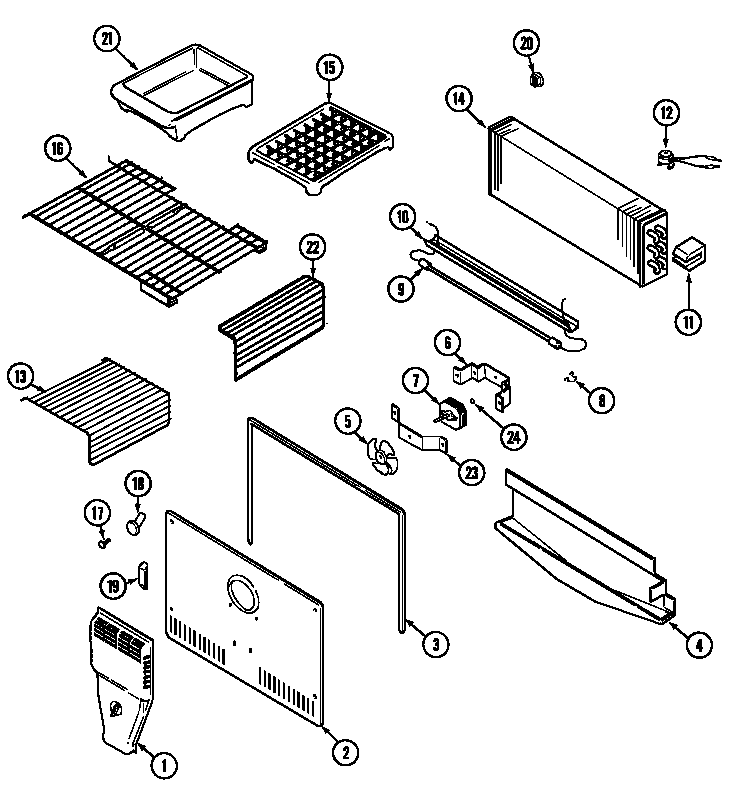

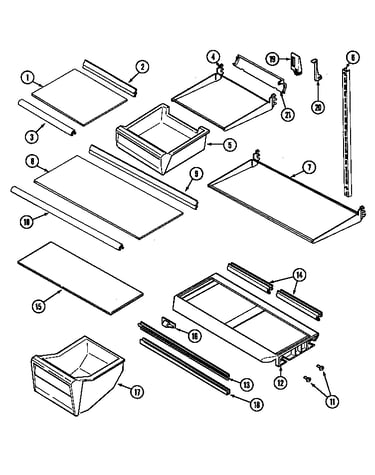

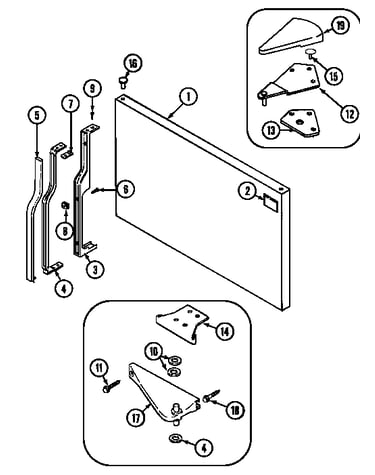

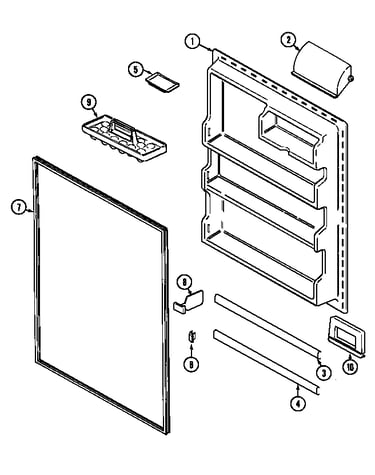

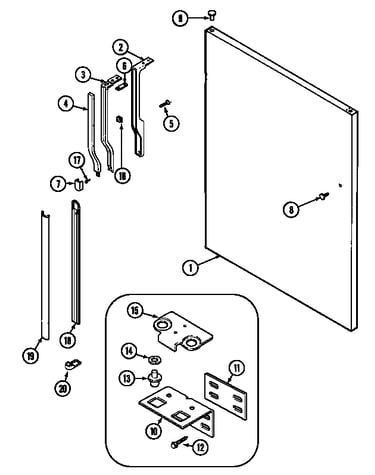

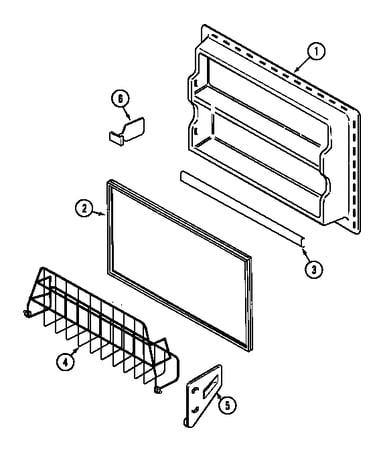

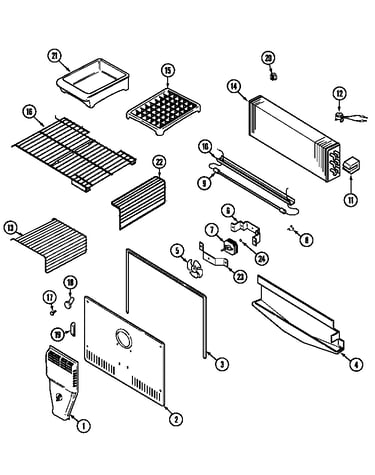

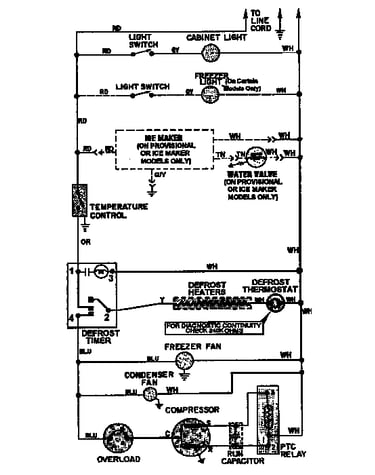

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

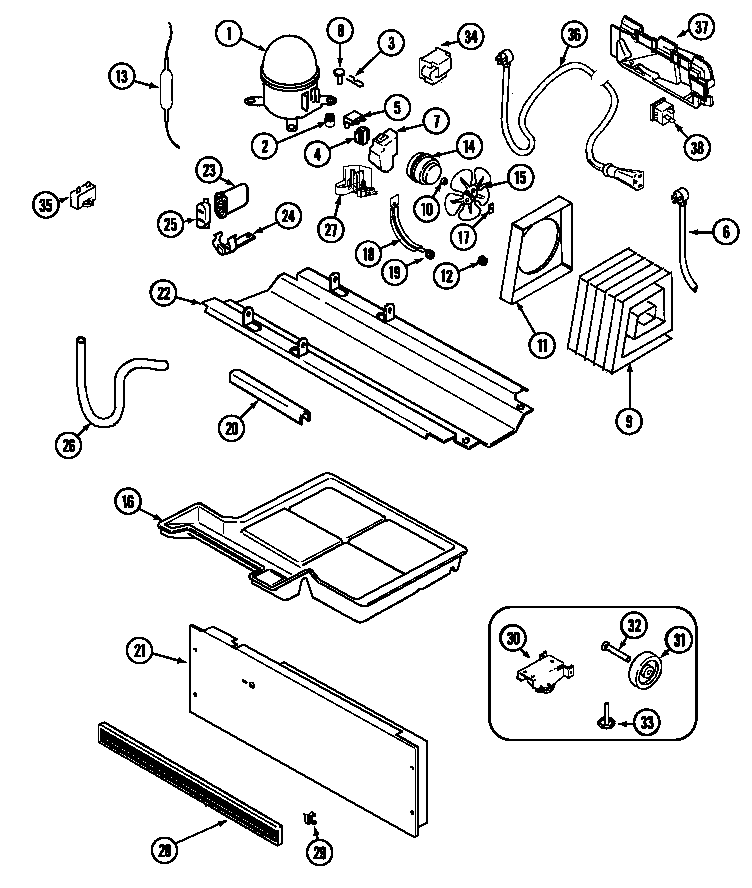

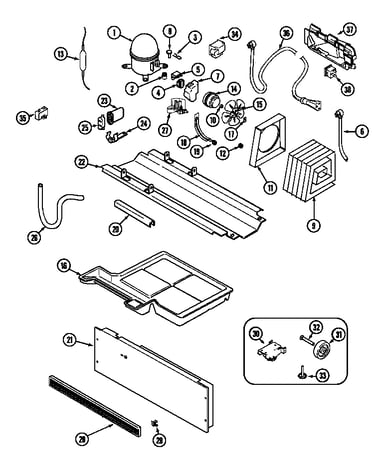

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 61003026
#10

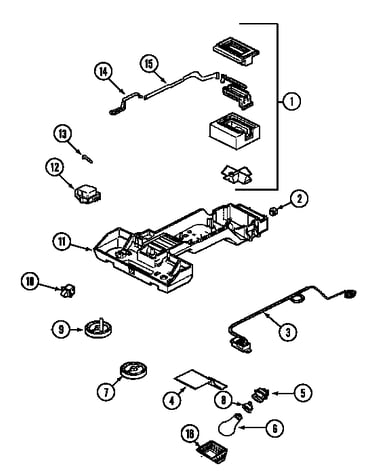

Controls diagram

Refrigerator light switch

Part #61003026

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 61003026. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Thermostat 95092-1
#20

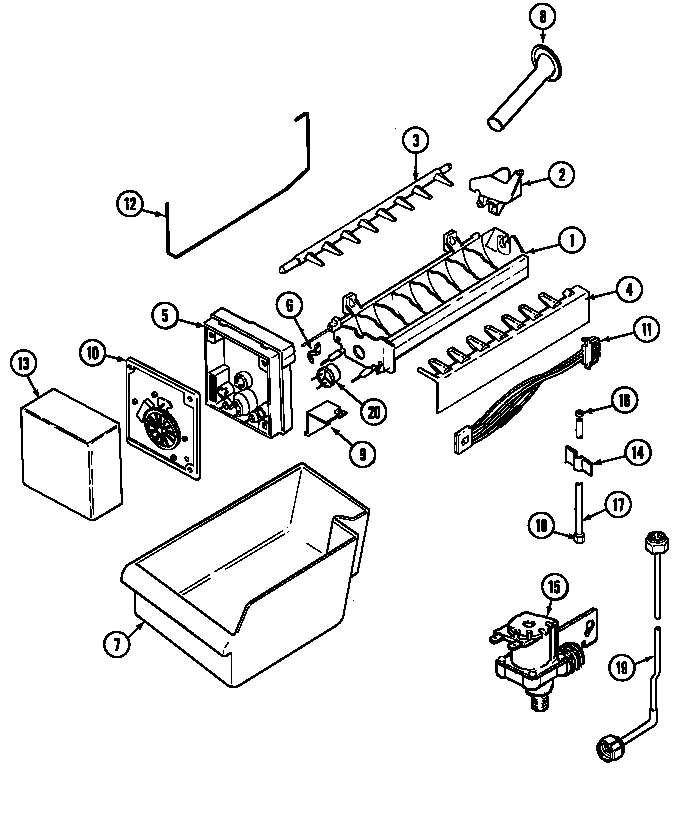

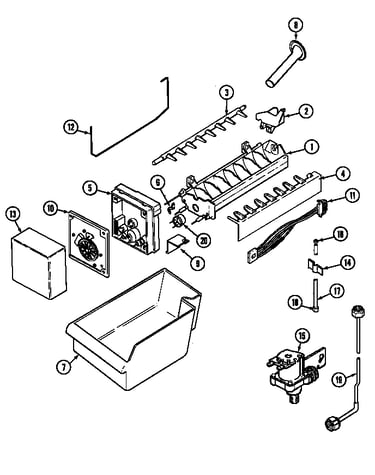

Optional ice maker kit-uki1000agx diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$47.98 |
11% OFF Phone Price : $53.98
In Stock
Refrigerator Tubing 61003021
#17

Optional ice maker kit-uki1000agx diagram

Refrigerator tubing

Part #61003021

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 61003021. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Screw 400016-1
#30A

Compressor diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Ice Maker Fill Cup 95100-1
#2

Optional ice maker kit-uki1000agx diagram

Refrigerator ice maker fill cup

Part #95100-1

Replaced by #WP628356

?
Manufacturer substitution
This part replaces 95100-1. Substitute parts can look different from the original.
This item is not returnable
$27.77 |
18% OFF Phone Price : $33.77
In Stock
Refrigerator Clamp Spring 60333-4
#16

Optional ice maker kit-uki1000agx diagram

Refrigerator clamp spring

Part #60333-4

Replaced by #WPM0114003

?
Manufacturer substitution
This part replaces 60333-4. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Condenser Blade 61001821
#15

Compressor diagram

Refrigerator condenser blade

Part #61001821

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 61001821. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock
Refrigerator Control Knob 61001996
#9

Controls diagram

Refrigerator control knob

Part #61001996

Replaced by #WP61006073

?
Manufacturer substitution
This part replaces 61001996. Substitute parts can look different from the original.
This item is not returnable
$23.71 |
20% OFF Phone Price : $29.71
In Stock
Hinge Washer 61002231
Hinge washer

Part #61002231

Replaced by #WP61002231

?
Manufacturer substitution
This part replaces 61002231. Substitute parts can look different from the original.
This item is not returnable
$6.84 |
13% OFF Phone Price : $7.84
In Stock
