KitchenAid
Electric Cooktop

Model # KECC667BSS02 Official KitchenAid electric counter unit

Here are the diagrams and repair parts for Official KitchenAid KECC667BSS02 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Terminal Block 7401P038-60
#6

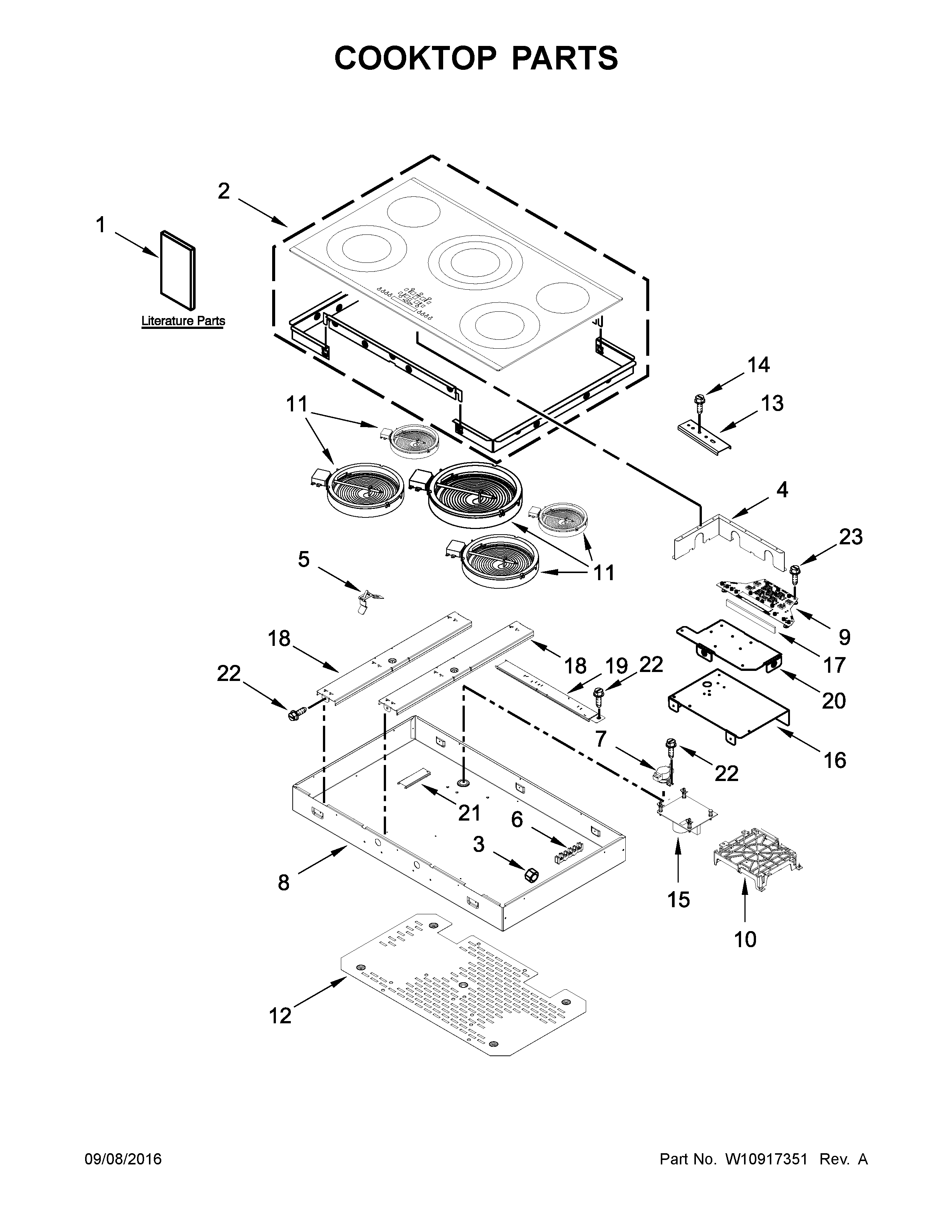

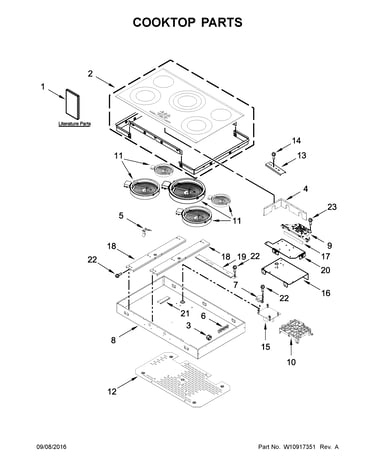

Cooktop parts diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Radiant Surface Element 8273994
#11A

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$105.41 |
10% OFF Phone Price : $117.41
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Dual Radiant Surface Element W10275049
#11

Cooktop parts diagram

Range dual radiant surface element

Part #W10275049

Replaced by #WPW10275049

?
Manufacturer substitution
This part replaces W10275049. Substitute parts can look different from the original.
$144.16 |
8% OFF Phone Price : $156.16
In Stock
Cooktop Scraper WA906B
#NI

Optional parts diagram

Cooktop scraper

Part #WA906B

This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Appliance Nut 3400029
#3

Cooktop parts diagram

Appliance nut

Part #3400029

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 3400029. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Mounting Bracket 4455917
#13

Cooktop parts diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Cooktop Main Top W10566715
#2

Cooktop parts diagram

Cooktop main top

Part #W10566715

Replaced by #W10524409

?
Manufacturer substitution
This part replaces W10566715. Substitute parts can look different from the original.
$365.39 |
$12.00 OFF Phone Price : $377.39
In Stock
Range Surface Element Spring W10225448
#5

Cooktop parts diagram

Range surface element spring

Part #W10225448

Replaced by #WPW10225448

?
Manufacturer substitution
This part replaces W10225448. Substitute parts can look different from the original.
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Cooktop Main Top Assembly W10566716
#2A

Cooktop parts diagram

Cooktop main top assembly

Part #W10566716

$389.78 |
$12.00 OFF Phone Price : $401.78
In Stock
