Model # KBDS250V1 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KBDS250V1 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Gasket 4211411
#9

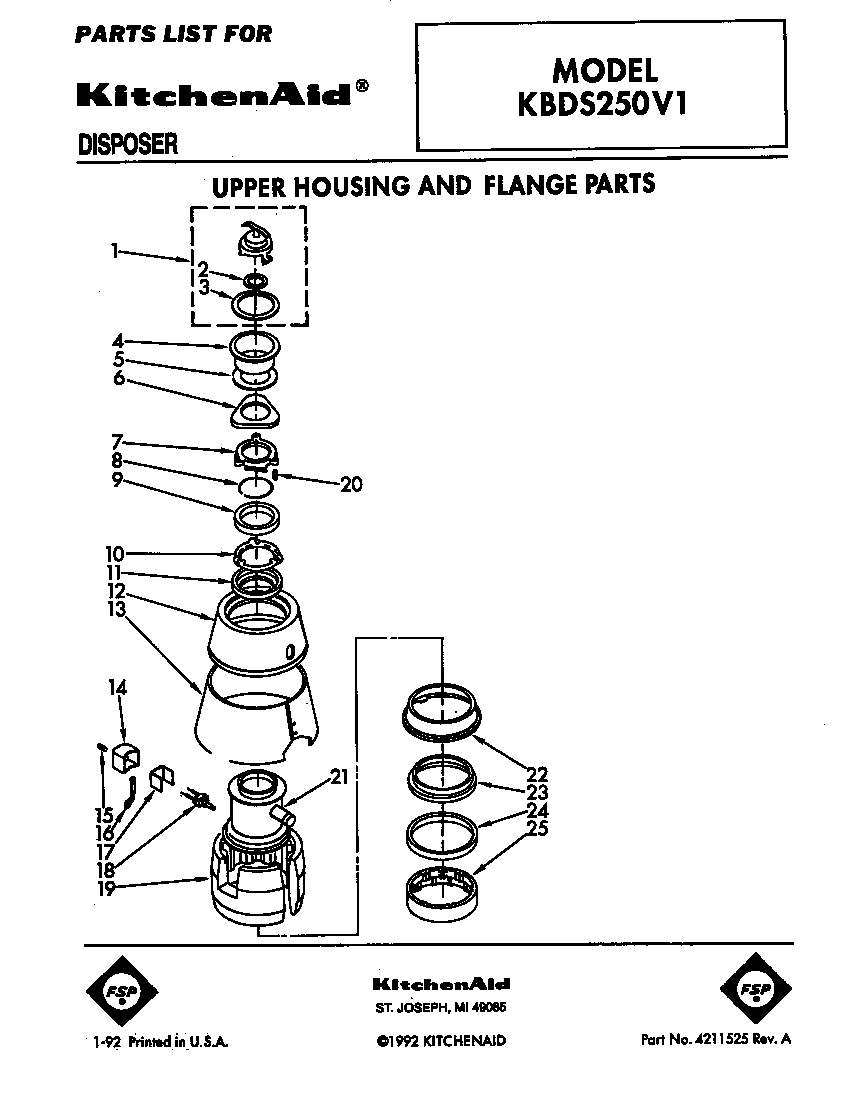

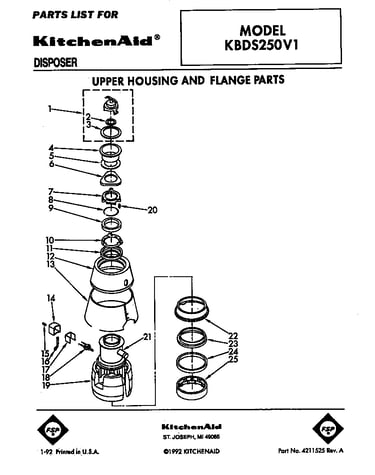

Upper housing and flange diagram

Gasket

Part #4211411

In Stock
Whirlpool Ring 4211306
#8

Upper housing and flange diagram

Whirlpool ring

Part #4211306

This item is not returnable
In Stock
Flange 4211301
#4

Upper housing and flange diagram

Flange

Part #4211301

In Stock
Whirlpool Garbage Disposal Mounting Flange Screw 4211305
#20

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange screw

Part #4211305

$16.79
11% OFF Phone Price : $18.79
In Stock
Whirlpool Flange 4211303
#6

Upper housing and flange diagram

Whirlpool flange

Part #4211303

In Stock
Whirlpool Adapter 4211396
#35

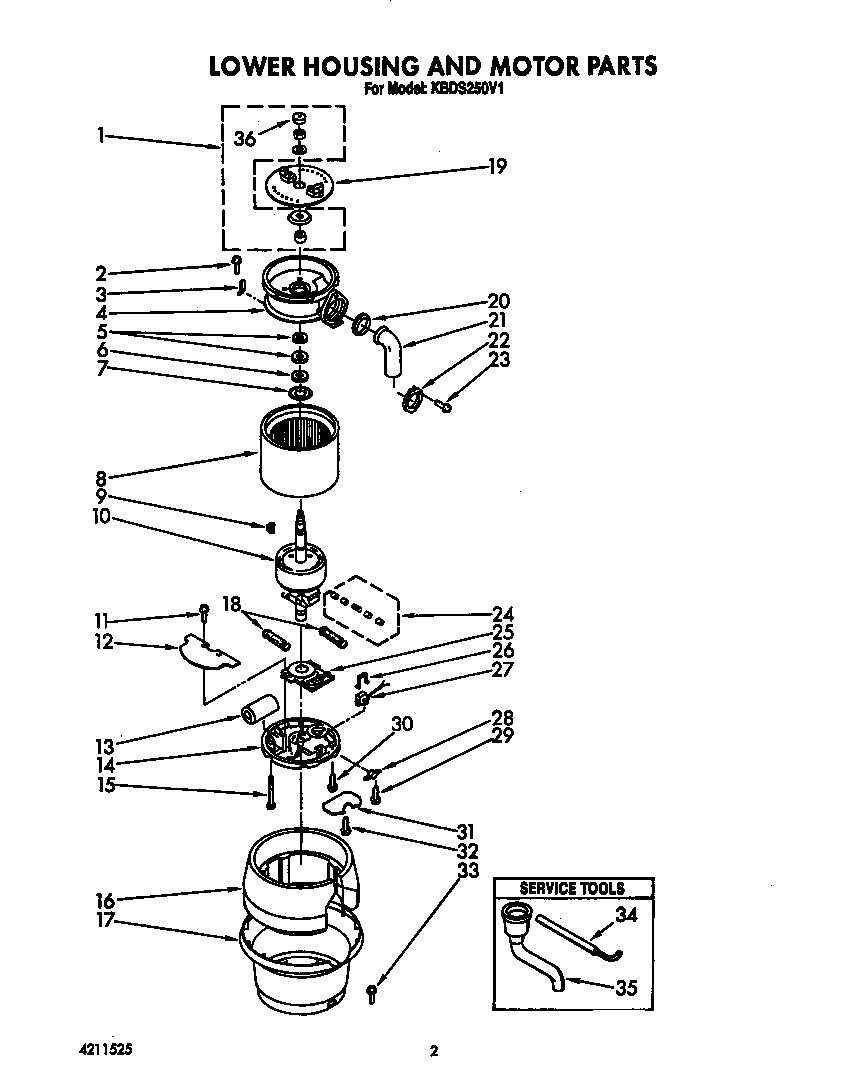

Lower housing and motor diagram

Whirlpool adapter

Part #4211396

In Stock
Gasket 4211355
#2

Upper housing and flange diagram

Gasket

Part #4211355

This item is not returnable
In Stock
Whirlpool Garbage Disposal Mounting Flange 4211304
#7

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange

Part #4211304

In Stock
Tailpipe 4211370
#21

Lower housing and motor diagram

Tailpipe

Part #4211370

Replaced by #4211317

?
Manufacturer substitution
This part replaces 4211370. Substitute parts can look different from the original.
In Stock
Wrench 4211435
#34

Lower housing and motor diagram

Wrench

Part #4211435

Replaced by #WP8174310

?
Manufacturer substitution
This part replaces 4211435. Substitute parts can look different from the original.
This item is not returnable
$17.59
10% OFF Phone Price : $19.59
In Stock
