Model # 34-440 (SN88J00001 THRU 90C12579) Official Delta 10" contractor saw

Here are the diagrams and repair parts for Official Delta 34-440-SN88J00001-THRU-90C12579 10" contractor saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

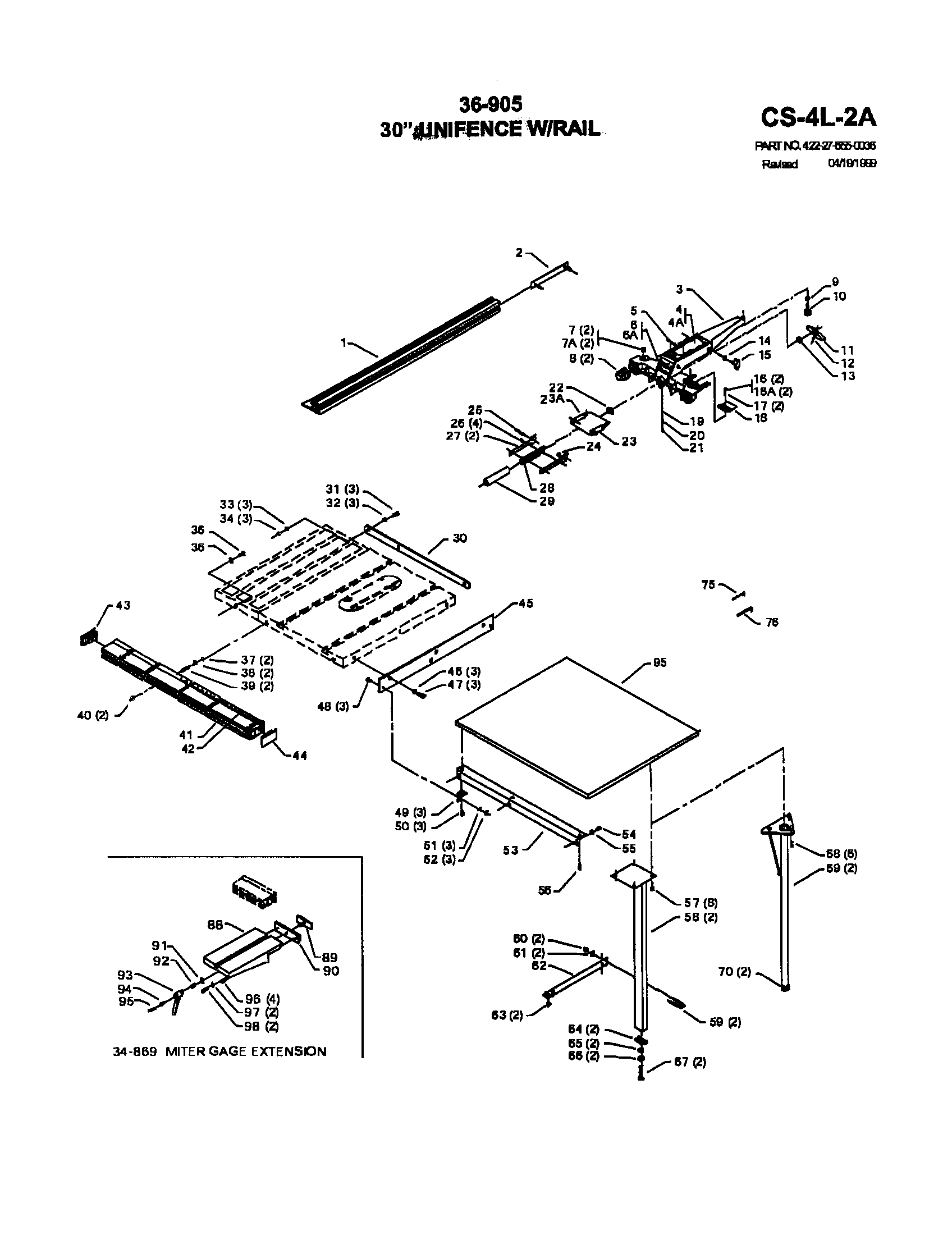

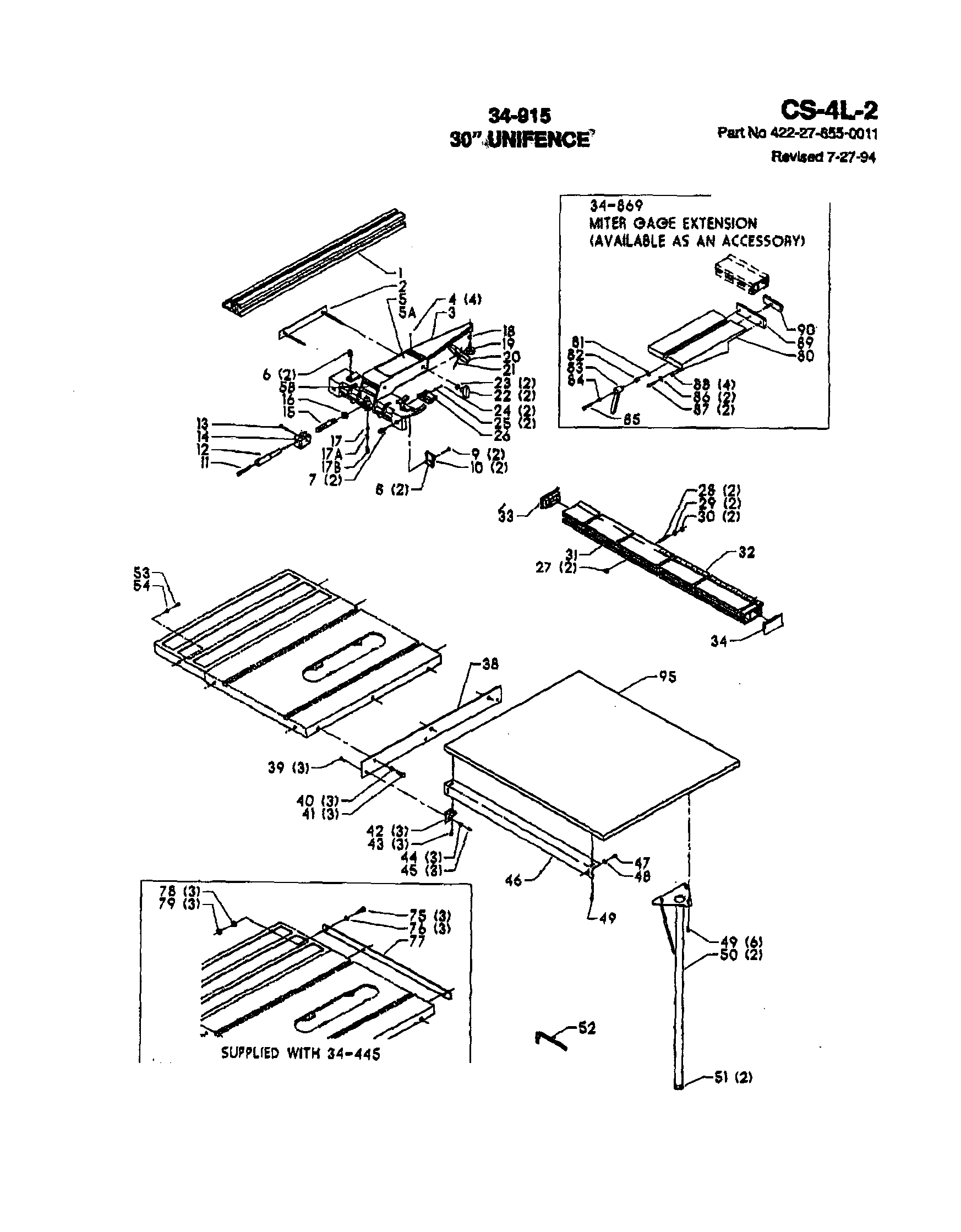

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Carriage Bolt 901-11-020-0834
Carriage bolt

Part #901-11-020-0834

The manufacturer no longer makes this part, and there's no substitute part

Cap Nut 1086388
#67

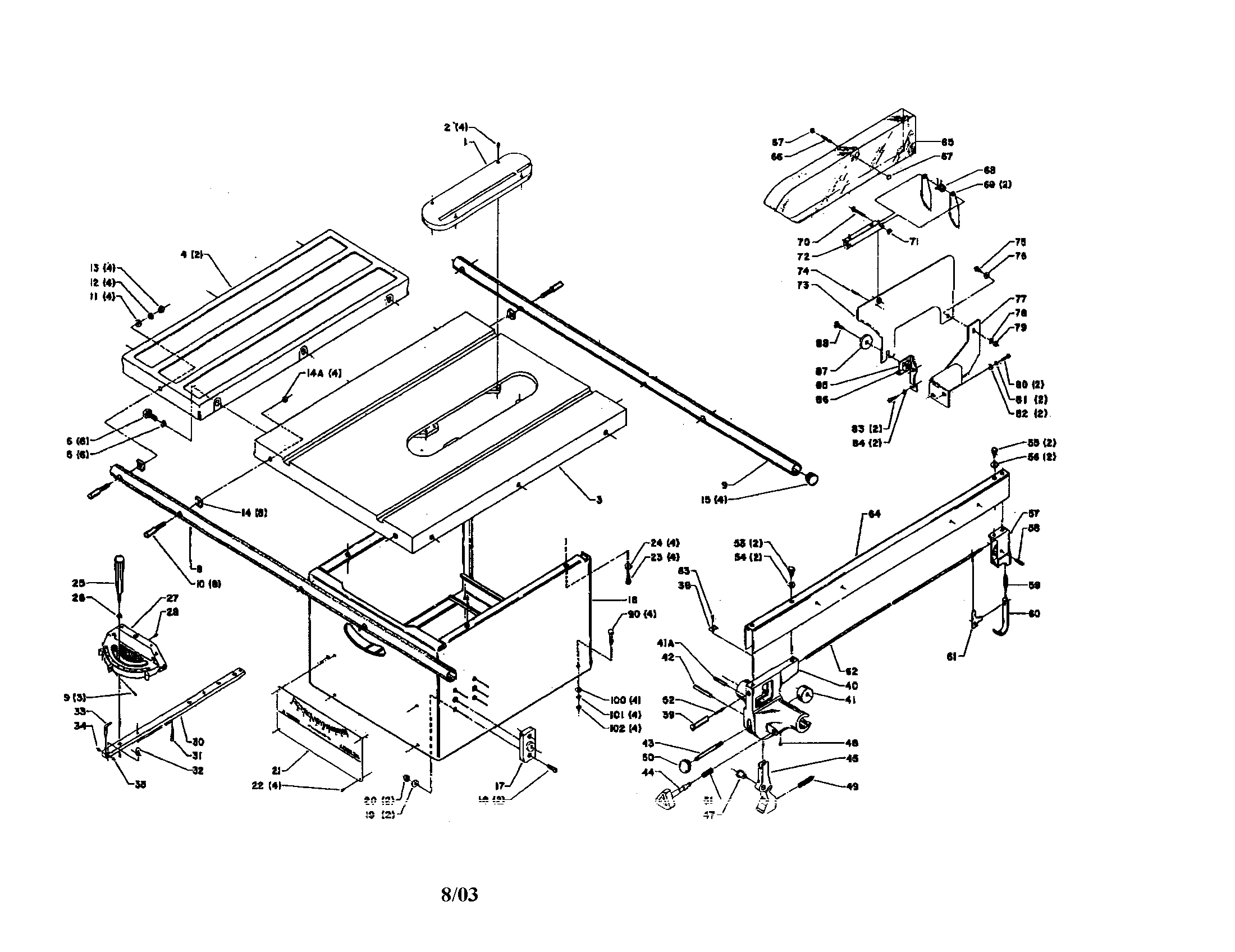

Table/extension/miter gage body diagram

Cap nut

Part #1086388

The manufacturer no longer makes this part, and there's no substitute part

Spacer 422-04-104-0001
#14

Table/extension/miter gage body diagram

Spacer

Part #422-04-104-0001

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Table Insert 34-154
#1

Table/extension/miter gage body diagram

Table saw table insert

Part #34-154

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1086894
#155

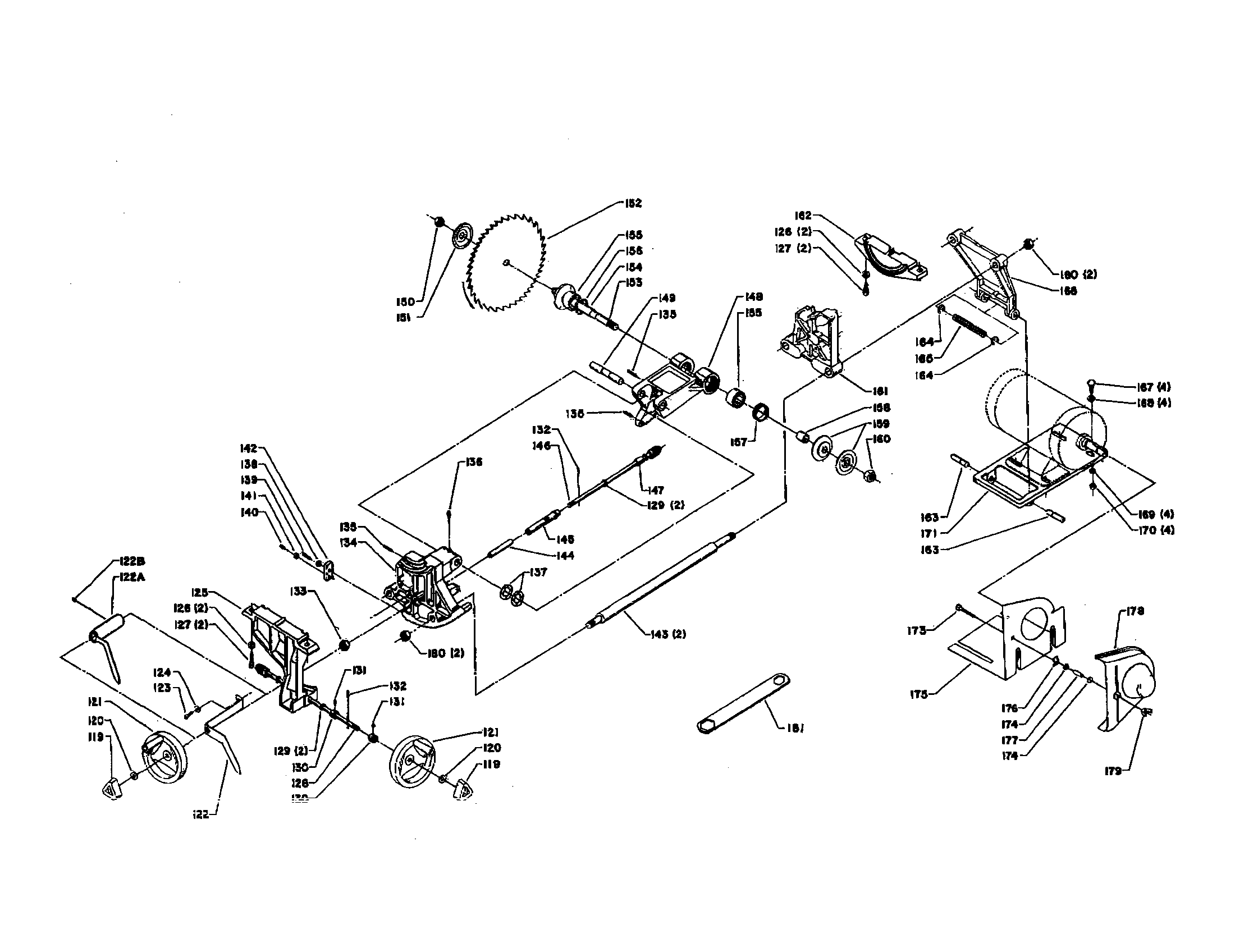

Blade/front trunnion/guard diagram

Bearing

Part #1086894

The manufacturer no longer makes this part, and there's no substitute part

Washer 904-01-033-1451
#54

Table/extension/miter gage body diagram

Washer

Part #904-01-033-1451

The manufacturer no longer makes this part, and there's no substitute part

Pin 1087811
#66

Table/extension/miter gage body diagram

Pin

Part #1087811

The manufacturer no longer makes this part, and there's no substitute part

Screw 901-01-060-0605
#55

Table/extension/miter gage body diagram

Screw

Part #901-01-060-0605

The manufacturer no longer makes this part, and there's no substitute part

Guide Rail 422-04-055-0002
#9

Table/extension/miter gage body diagram

Guide rail

Part #422-04-055-0002

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Drive Belt 49-034

#NI05

All parts diagram

Table saw drive belt

Part #49-034

The manufacturer no longer makes this part, and there's no substitute part
