Model # FHWT160JXX0 Official Whirlpool water dispenser
Here are the diagrams and repair parts for Official Whirlpool FHWT160JXX0 water dispenser, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
FHWT160JXX0 Water Dispenser
#13

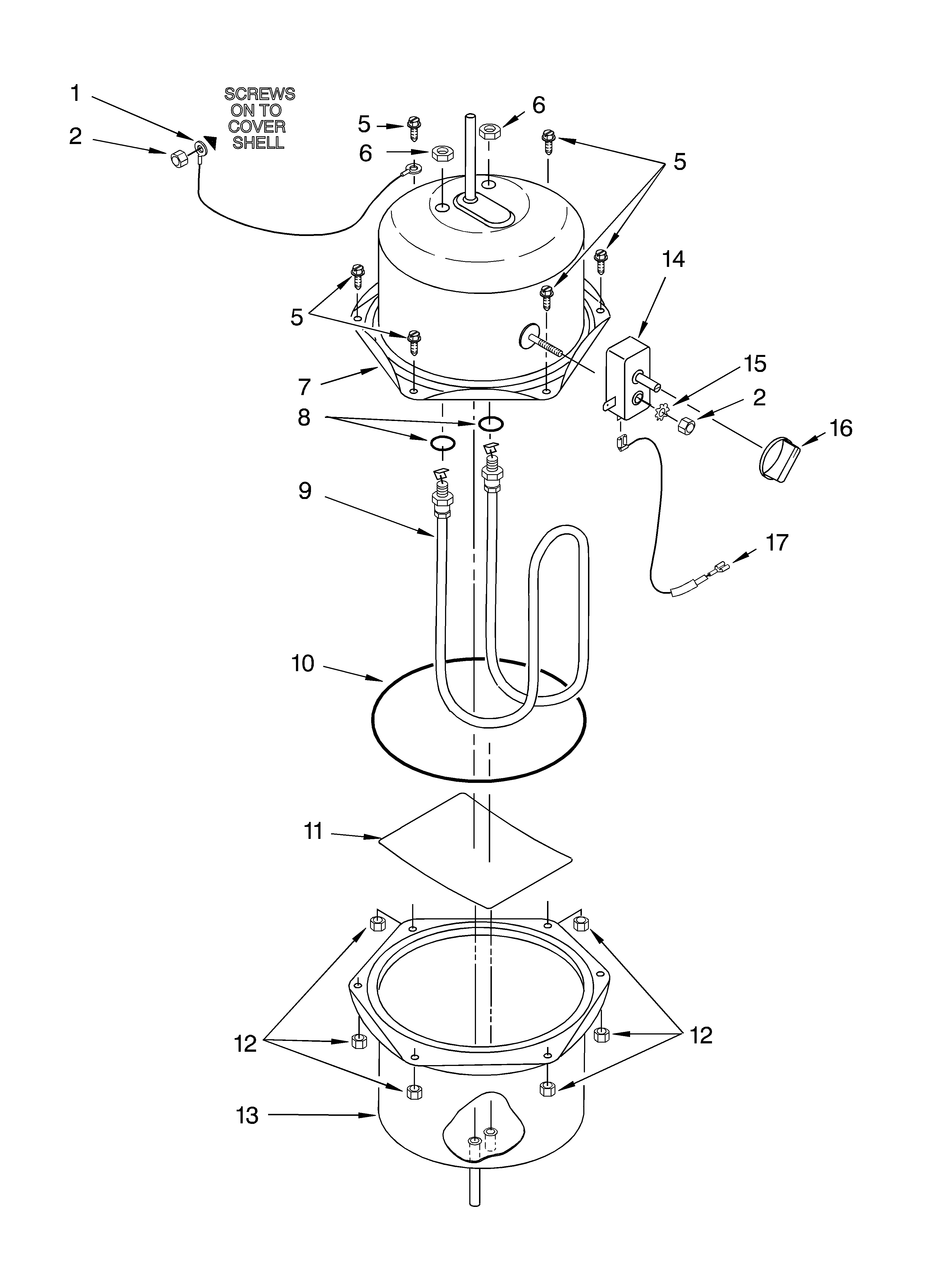

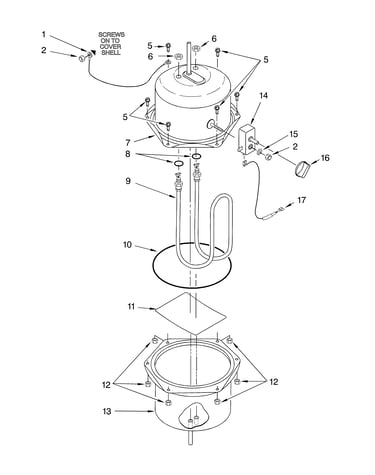

Upper and lower tank shell diagram
Tank
Part #3193069
$57.53
In Stock
#18

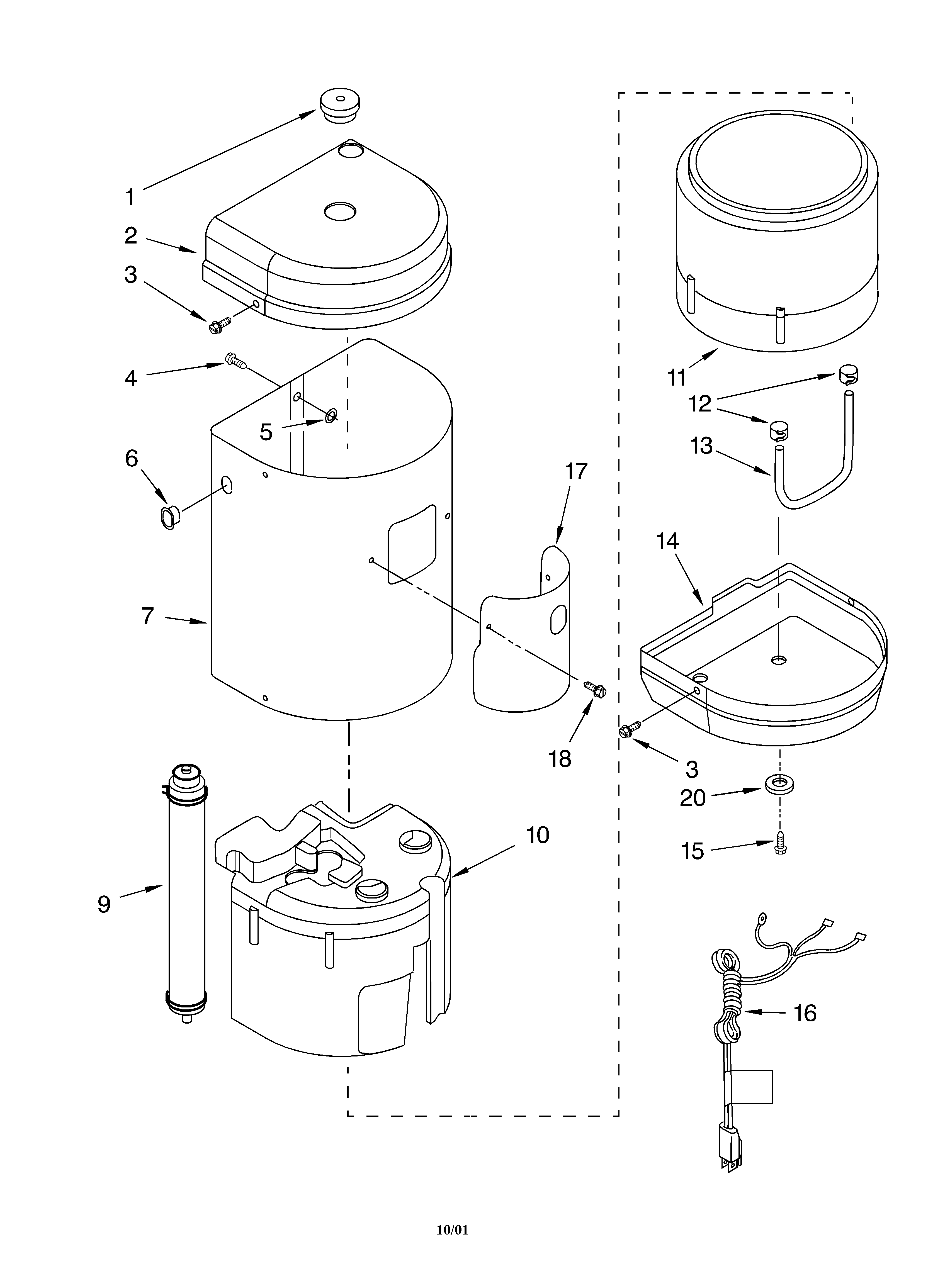

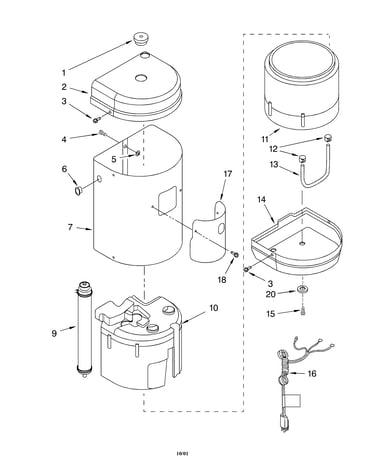

Outer cover and insulation diagram
Screw
Part #311932
Replaced by #WP313808
?
Manufacturer substitution
This part replaces 311932. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Lock washer
Part #4159493
Replaced by #4159493
?
Manufacturer substitution
This part replaces 4159493. Substitute parts can look different from the original.
$14.76
In Stock
#11
Upper and lower tank shell diagram
Deflector
Part #4176126
Replaced by #240802-2
?
Manufacturer substitution
This part replaces 4176126. Substitute parts can look different from the original.
This item is not returnable
$7.04
In Stock
Screw
Part #3192294
The manufacturer no longer makes this part, and there's no substitute part
#14
Upper and lower tank shell diagram
Thermostat
Part #3191423
The manufacturer no longer makes this part, and there's no substitute part
#17
Upper and lower tank shell diagram
Hot water dispenser thermal fuse
Part #3193190
The manufacturer no longer makes this part, and there's no substitute part
#1
Upper and lower tank shell diagram
Wire bushing
Part #3192080
The manufacturer no longer makes this part, and there's no substitute part
#9
Upper and lower tank shell diagram
Heater
Part #3191376
The manufacturer no longer makes this part, and there's no substitute part
#7
Upper and lower tank shell diagram
Tank
Part #3193068
The manufacturer no longer makes this part, and there's no substitute part
