Craftsman
Gas Walk-Behind Mower

Model # 917380130 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380130 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

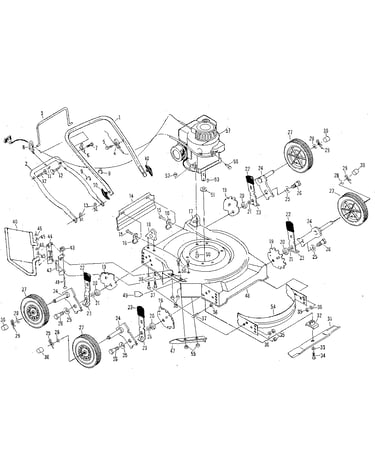

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Walk-behind Lawn Mower Selector Knob 87877
#22

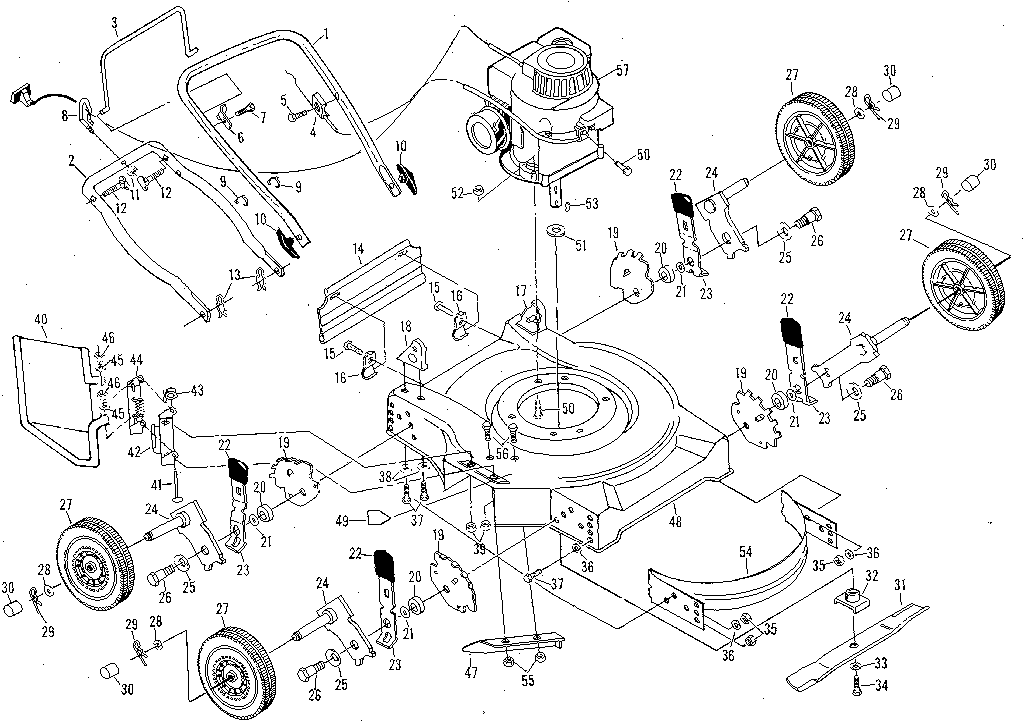

Replacement parts diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 69180
#55

Replacement parts diagram

Lock nut

Part #69180

Replaced by #532069180

?
Manufacturer substitution
This part replaces 69180. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bolt 58714
#12

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bracket 86900
#6

Replacement parts diagram

Bracket

Part #86900

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86900. Substitute parts can look different from the original.
$10.26
In Stock
Selctr Sprng 84888
#23

Replacement parts diagram

Selctr sprng

Part #84888

Replaced by #532401621

?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
$8.54
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#21

Replacement parts diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Knob 63688
#10

Replacement parts diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Deflector 88602
#42

Replacement parts diagram

Deflector

Part #88602

Replaced by #532088602

?
Manufacturer substitution
This part replaces 88602. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 59289
#38

Replacement parts diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Shoulder Bolt 84921
#26

Replacement parts diagram

Shoulder bolt

Part #84921

Replaced by #532174719

?
Manufacturer substitution
This part replaces 84921. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
