Frigidaire
Electric Cooktop

Model # FGIC3066TBB Official Frigidaire electric counter unit

Here are the diagrams and repair parts for Official Frigidaire FGIC3066TBB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

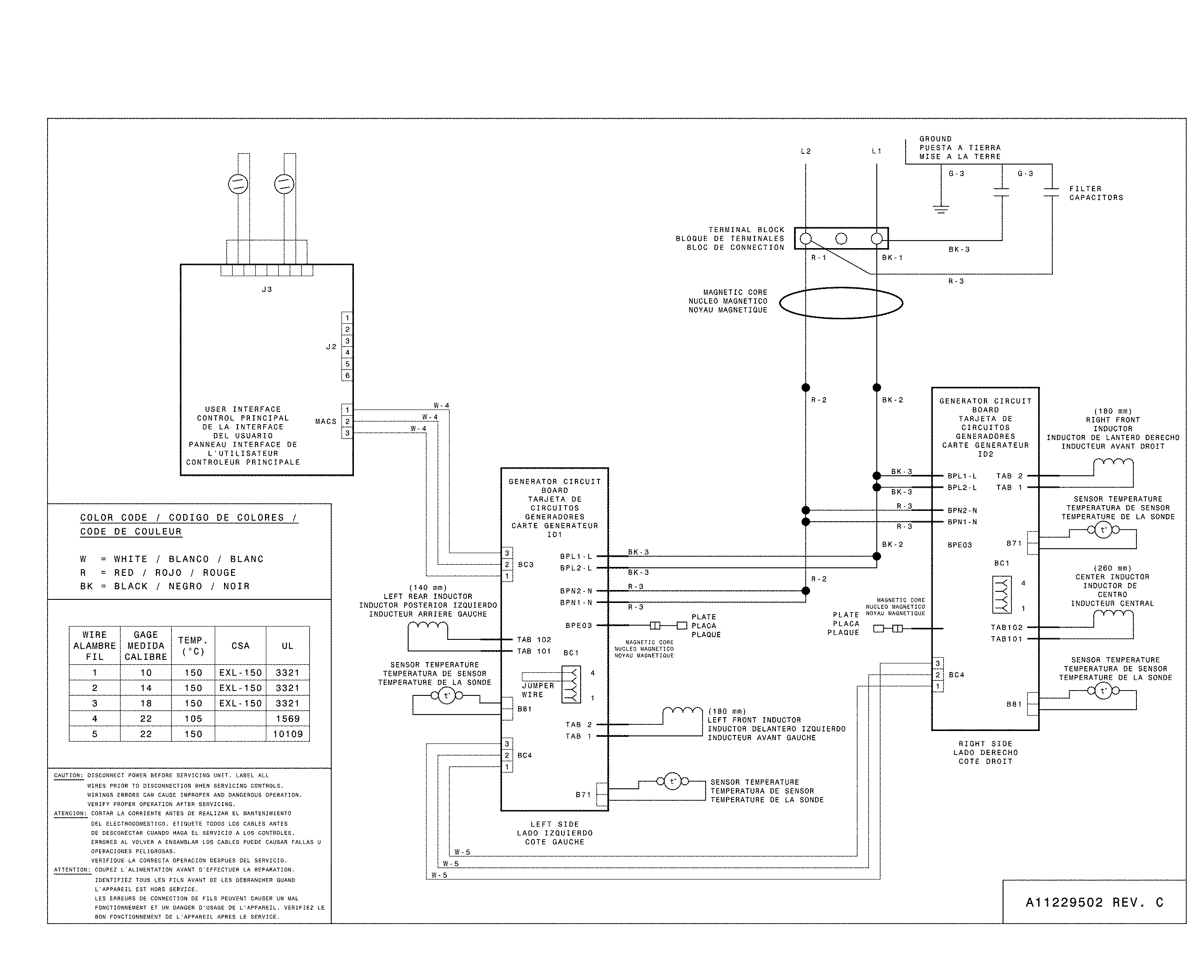

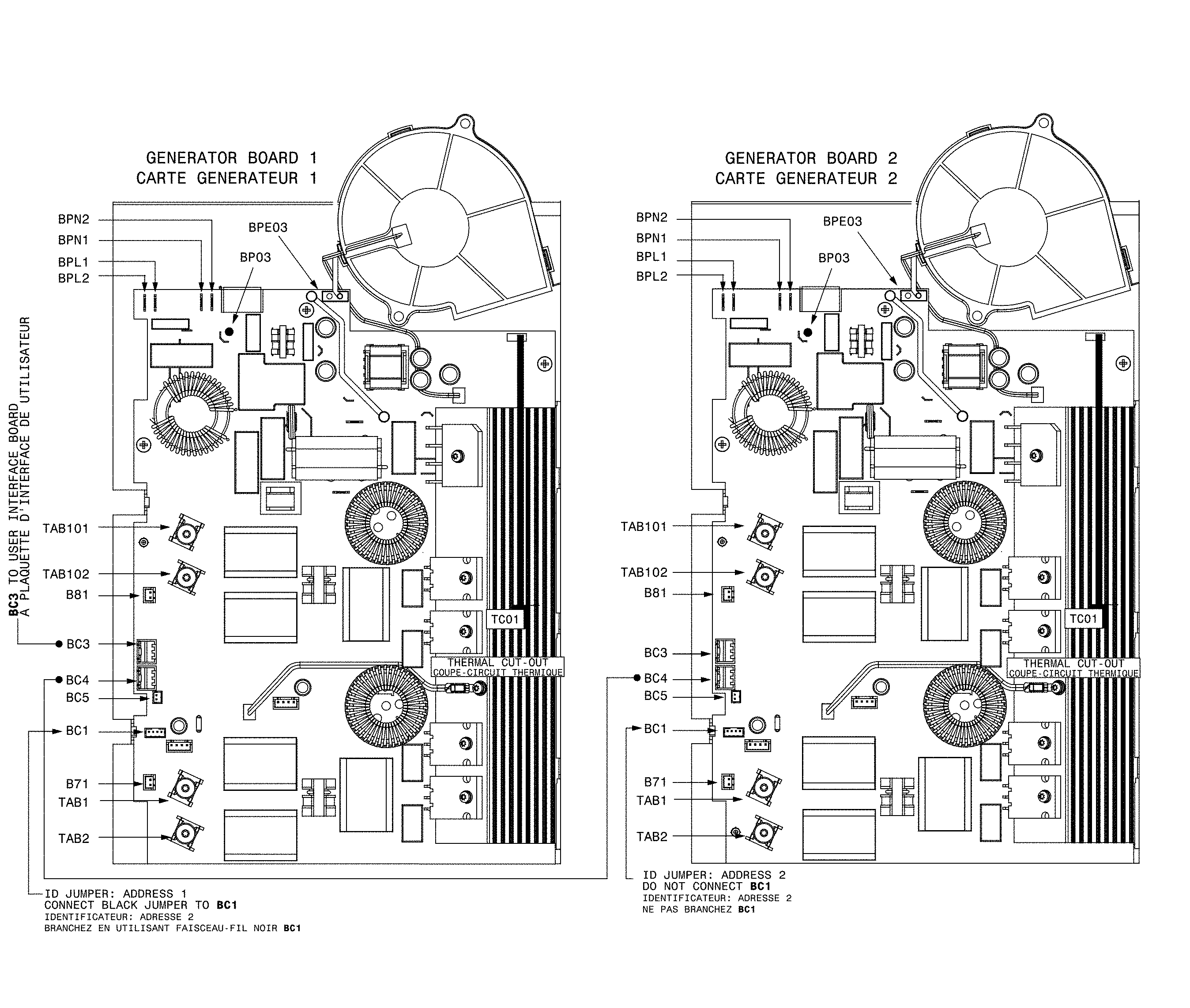

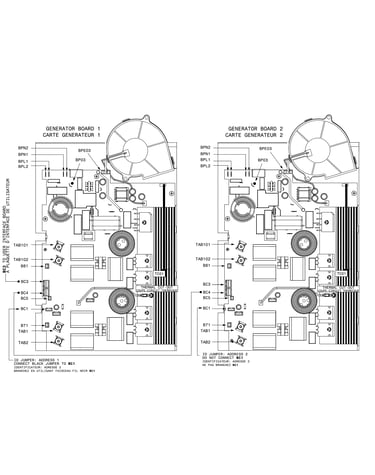

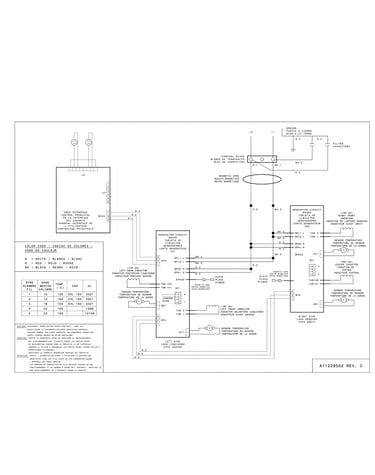

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Cooktop Induction Module (replaces 357266087) 357266088
#1

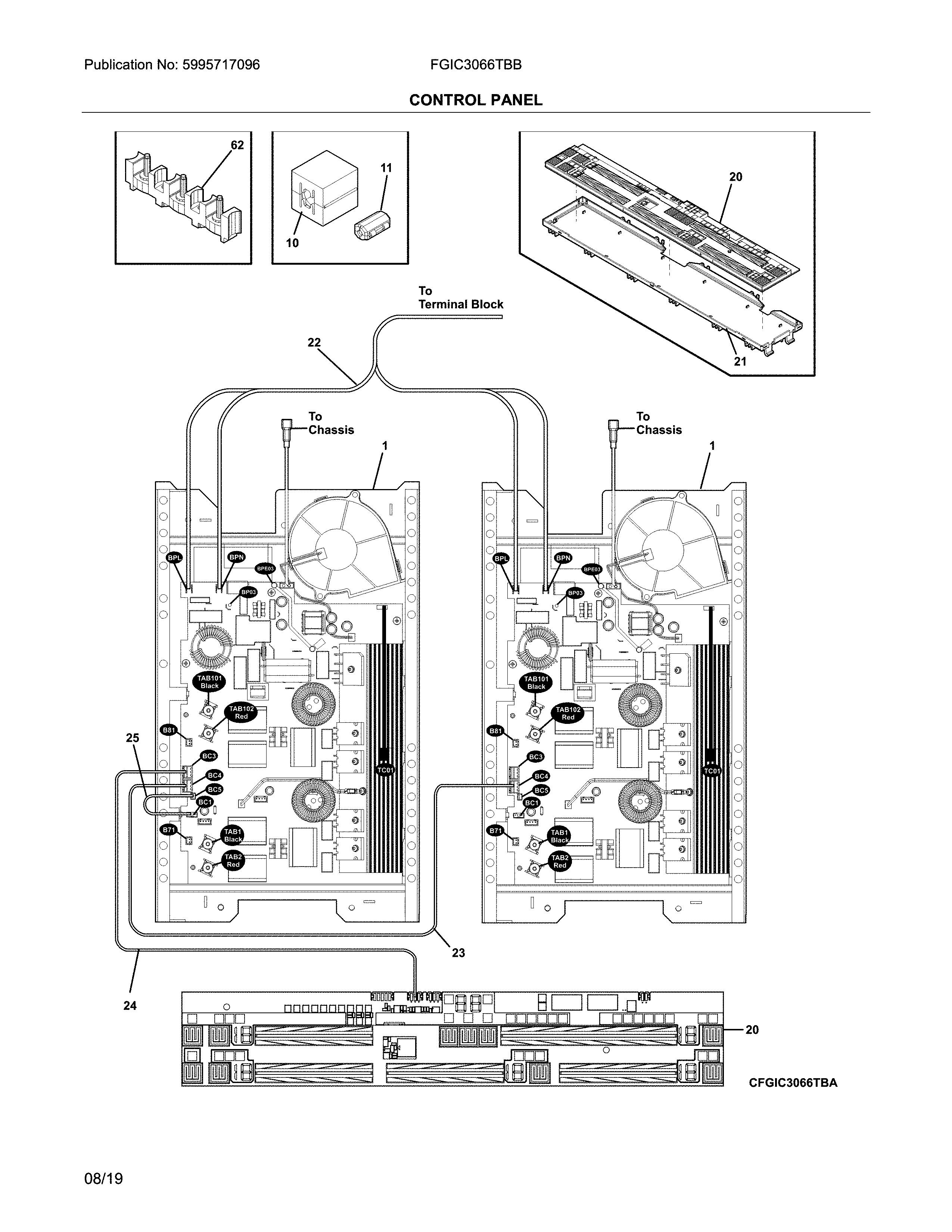

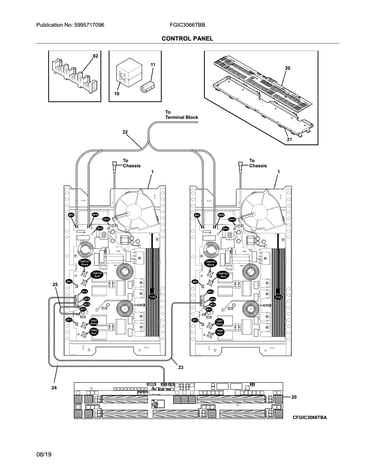

Control panel diagram

Cooktop induction module (replaces 357266087)

Part #357266088

$371.60
In Stock
Carrier,user Interface 561630814
#21

Control panel diagram

Carrier,user interface

Part #561630814

$38.64
In Stock
Element,induction Coil ,260 Mm 5304514341
#15B

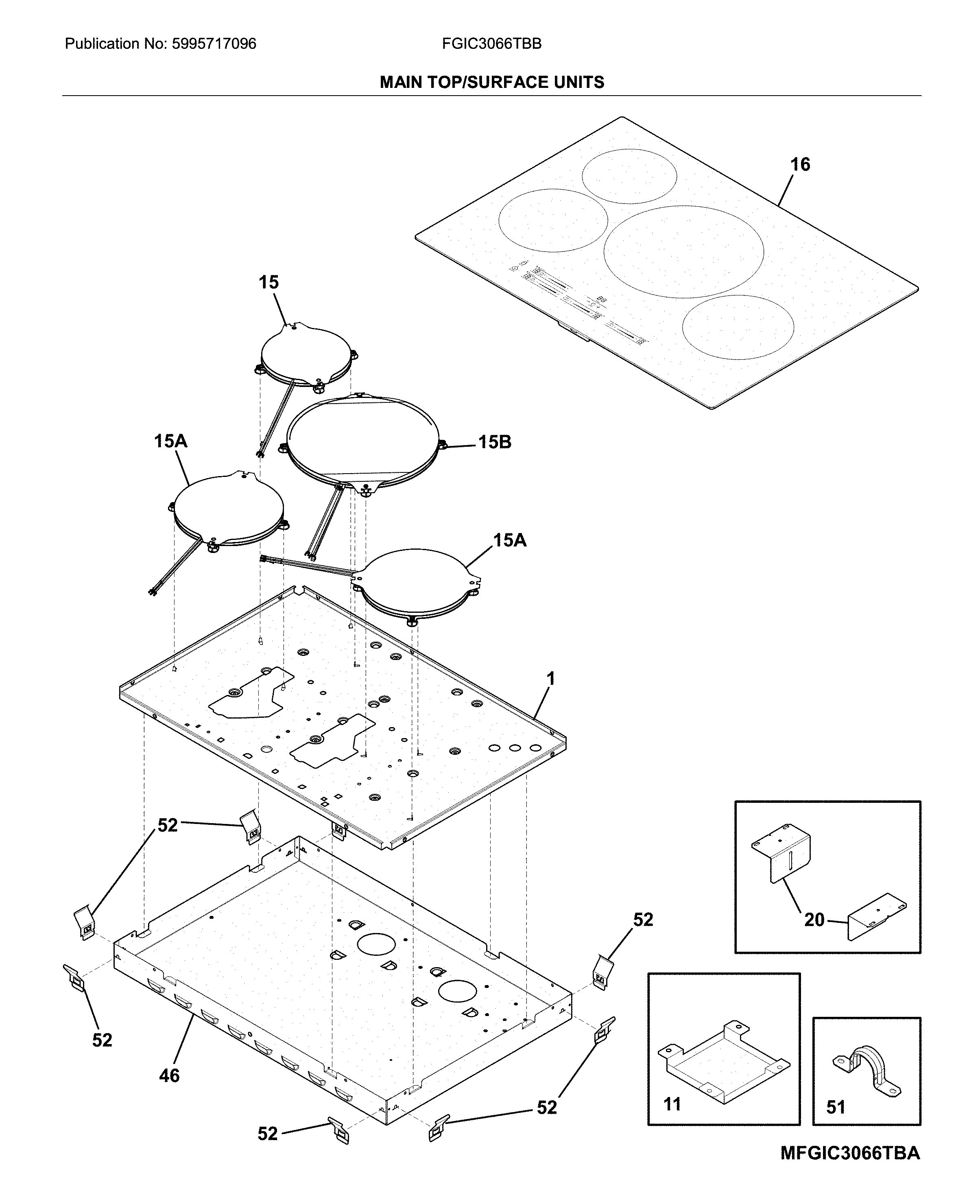

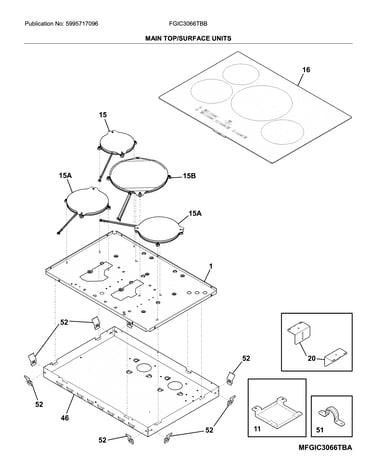

Main top/surface units diagram

Element,induction coil ,260 mm

Part #5304514341

$162.55 |
7% OFF Phone Price : $174.55
In Stock
Cooktop Main Top (black) (replaces 5304530044) 5304514344
#16

Main top/surface units diagram

Cooktop main top (black) (replaces 5304530044)

Part #5304514344

$412.98 |
$12.00 OFF Phone Price : $424.98
In Stock
Burner Box 5304514337
#46

Main top/surface units diagram

Burner box

Part #5304514337

$80.33
In Stock
Element,induction Coil ,180 Mm 357226370
#15A

Main top/surface units diagram

Element,induction coil ,180 mm

Part #357226370

$82.73
In Stock
Range Screw, 8 X 5/8-in 3131048
#NI

Main top/surface units diagram

Range screw, 8 x 5/8-in

Part #3131048

$21.71
In Stock
Cooktop Centering Spring 387174602
#52

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
Harness-elec 5304522464
#NI

Control panel diagram

Harness-elec

Part #5304522464

$113.10
In Stock
Filter,ferrite Choke 5304506076
#10

Control panel diagram

Filter,ferrite choke

Part #5304506076

$31.02
In Stock
