Model # 5MSF25N4BA00 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag 5MSF25N4BA00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

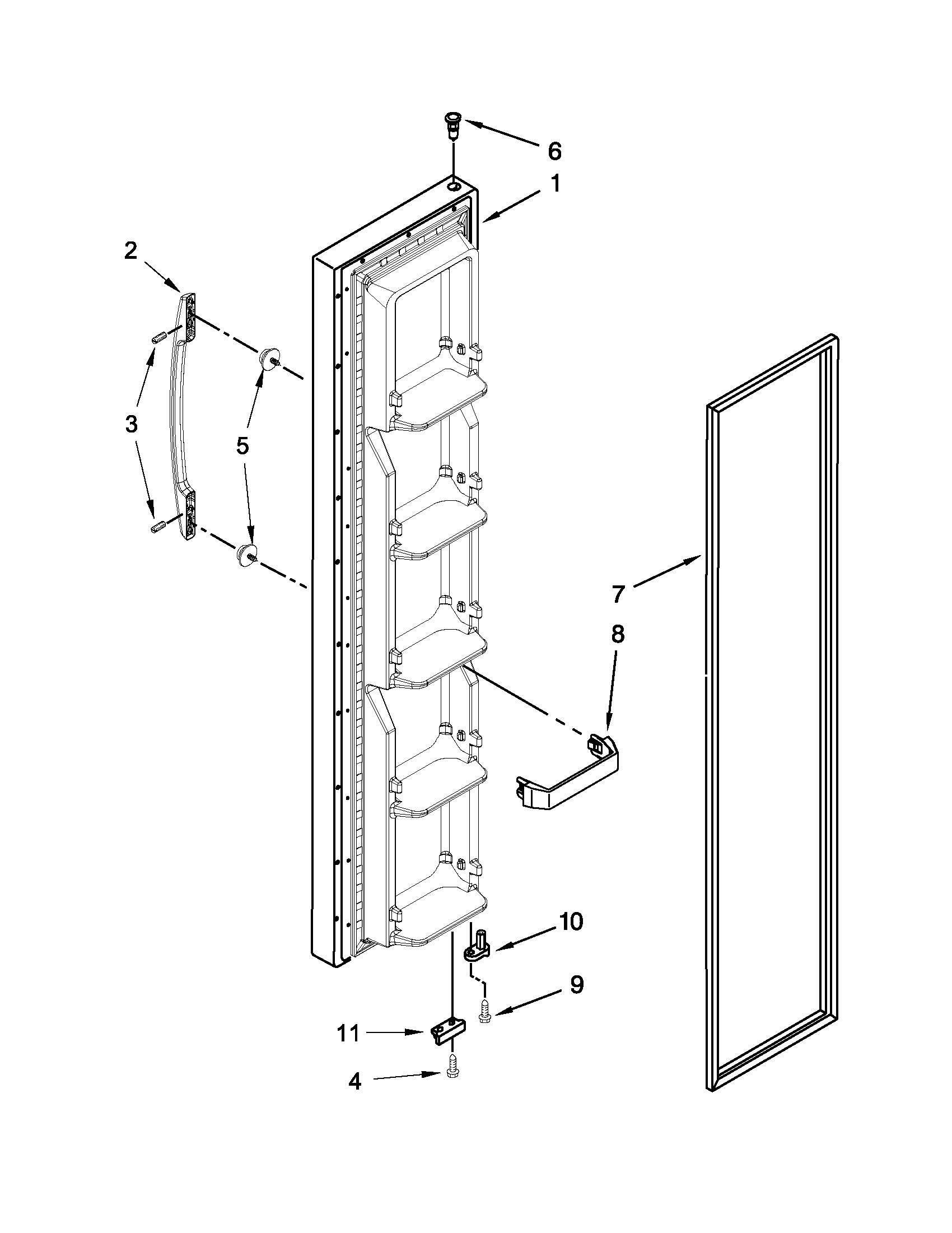

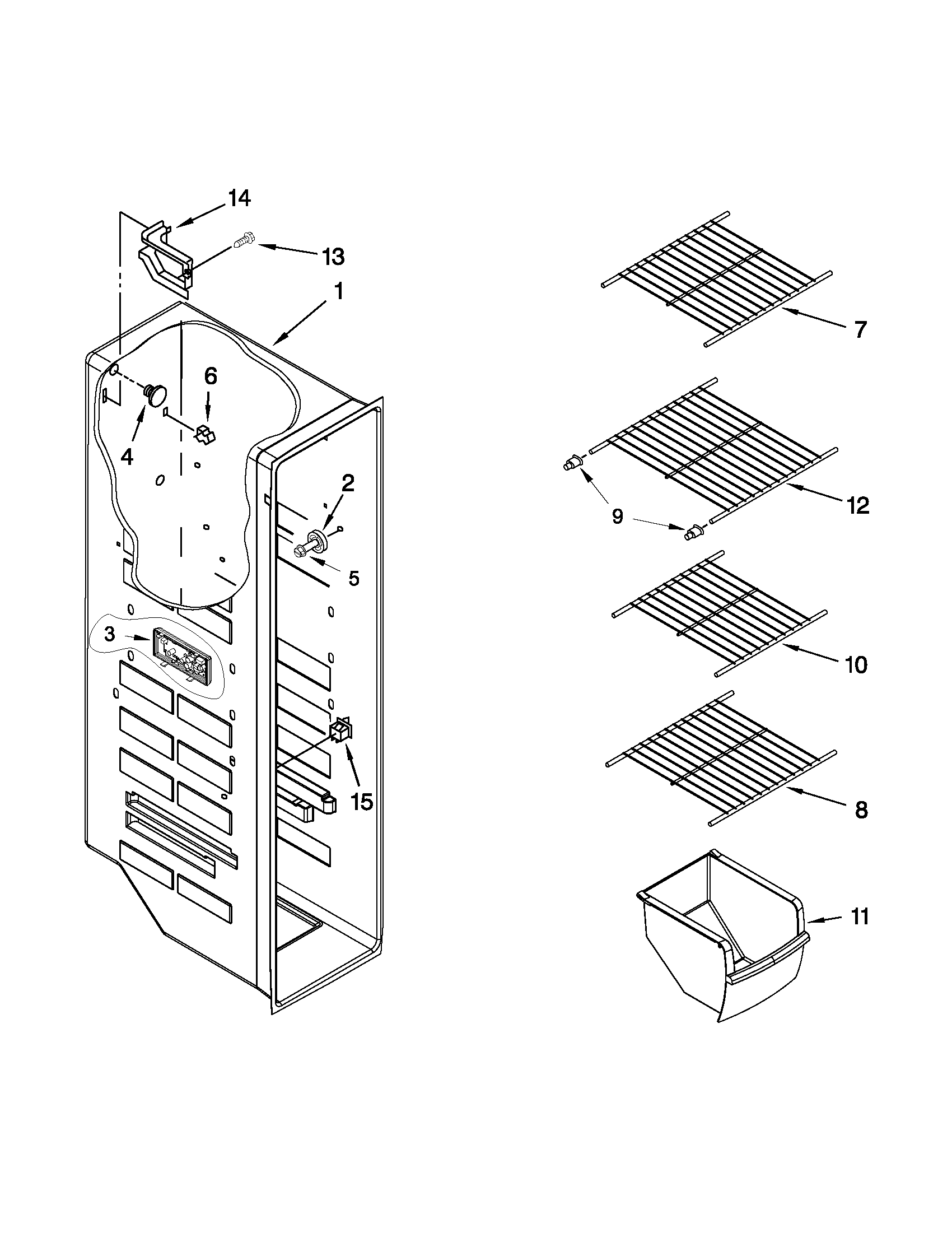

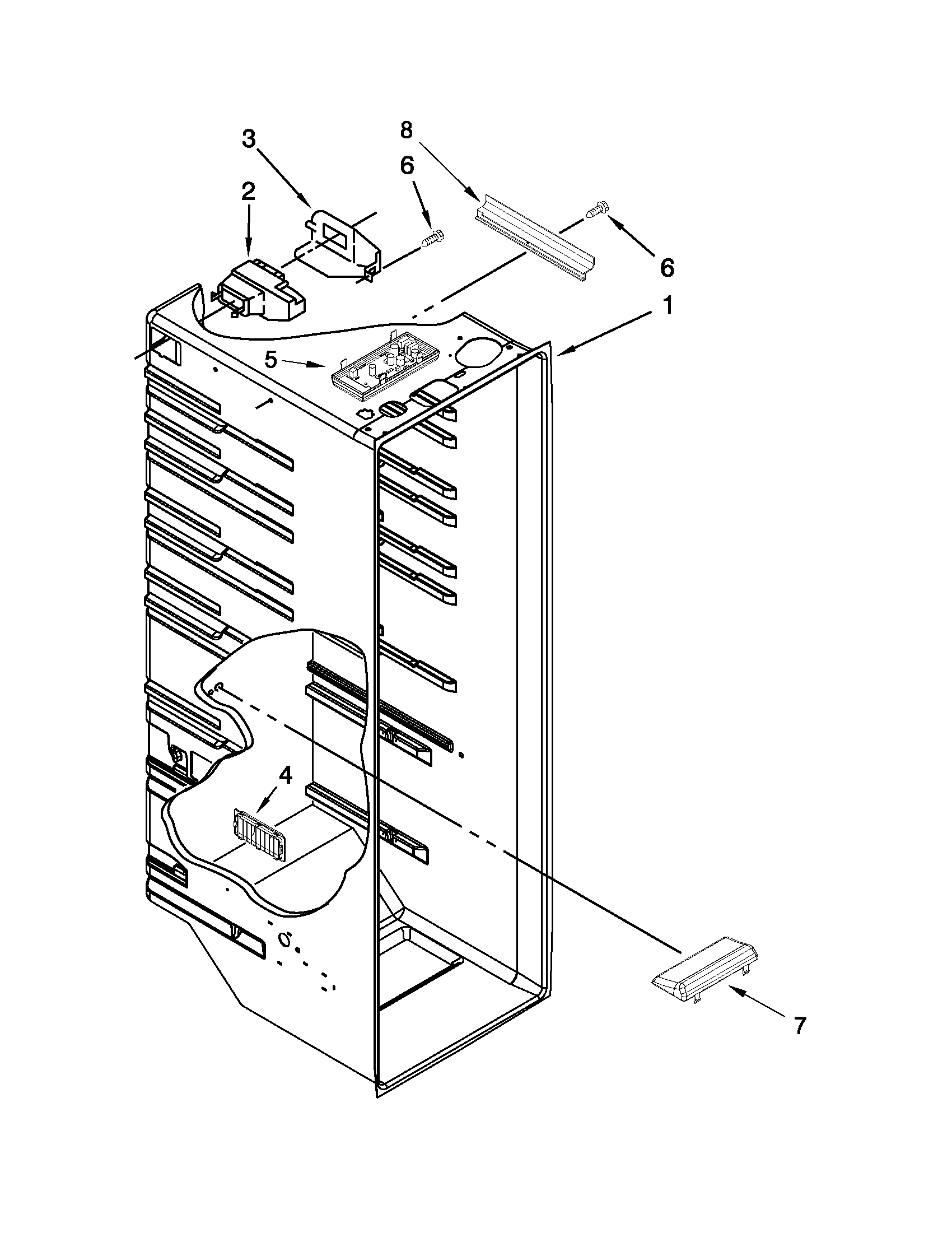

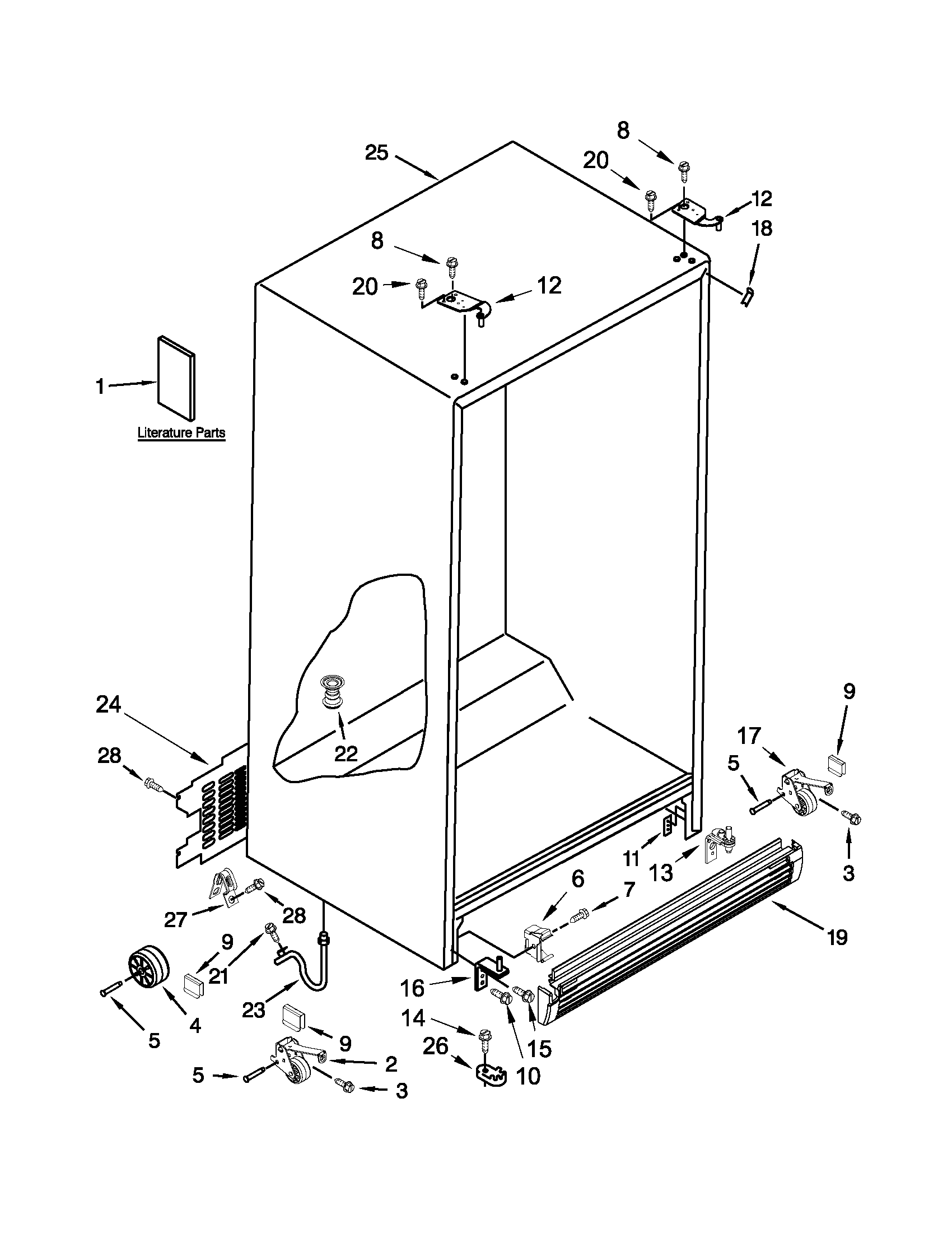

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Drier Tube W10177049
#27

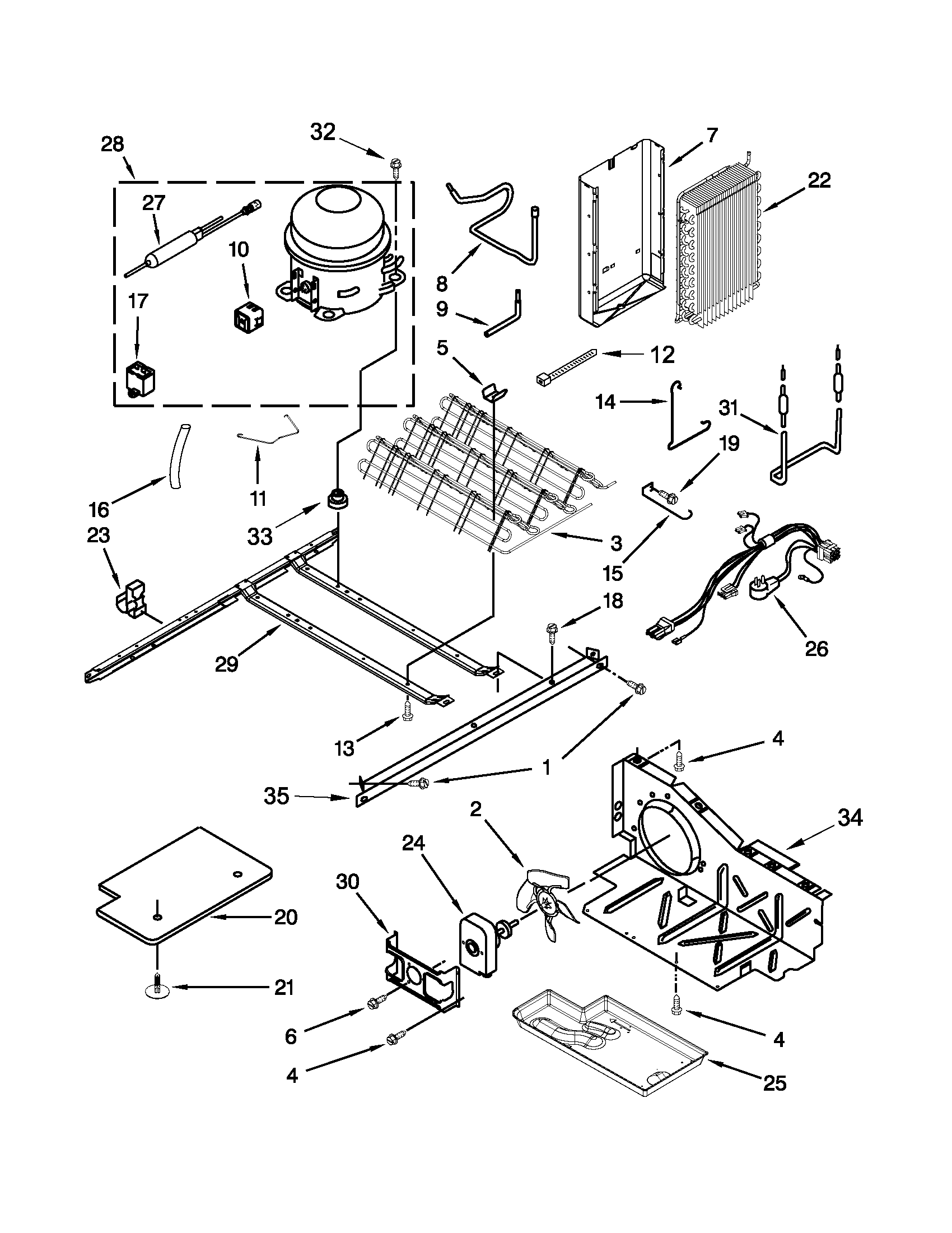

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Door Cam (black) 2182178
Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.35 |
16% OFF Phone Price : $12.35
In Stock
Refrigerator Meat Pan 2188654
#12

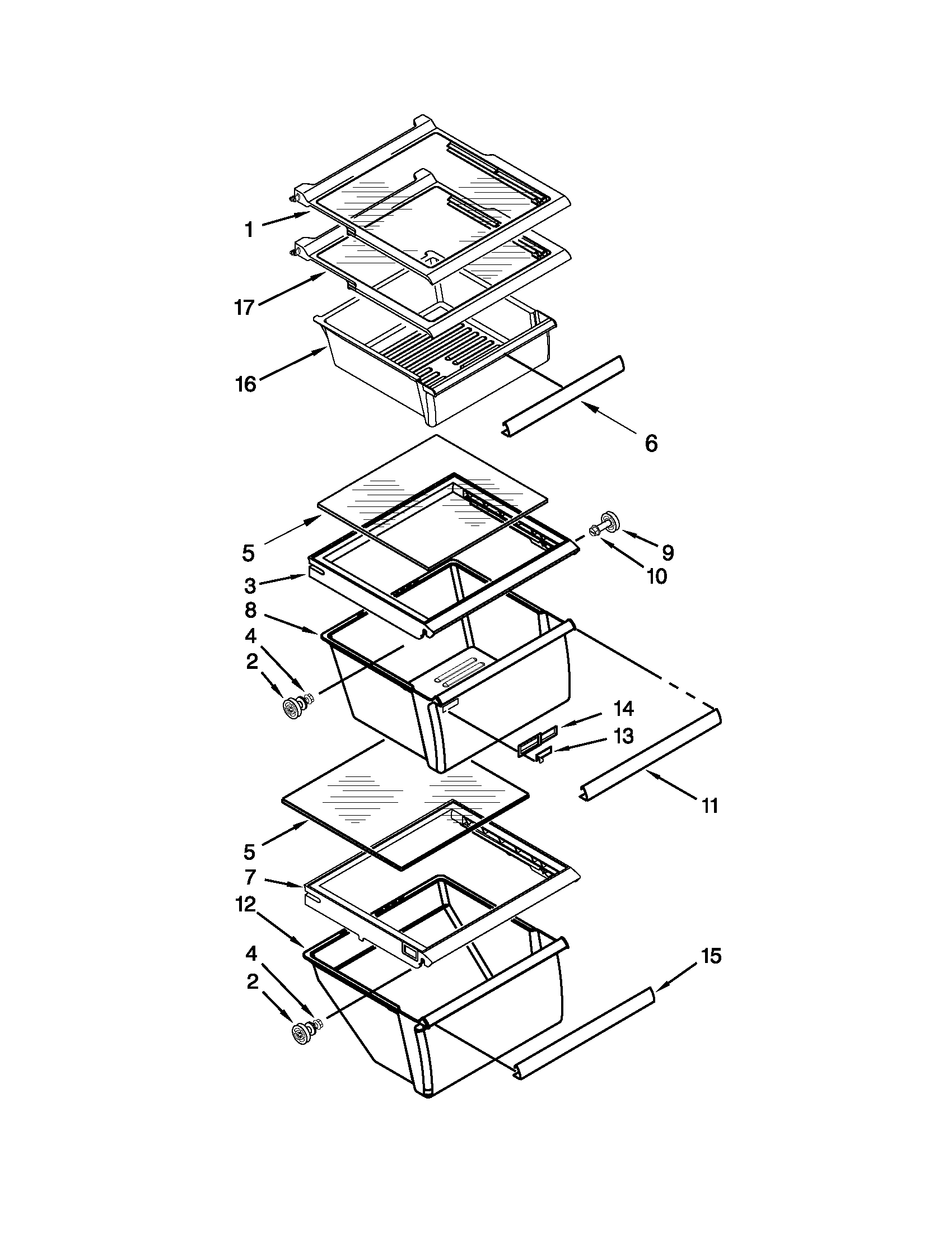

Refrigerator shelf parts diagram

Refrigerator meat pan

Part #2188654

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2188654. Substitute parts can look different from the original.
BEST SELLER
$57.82 |
9% OFF Phone Price : $63.82
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

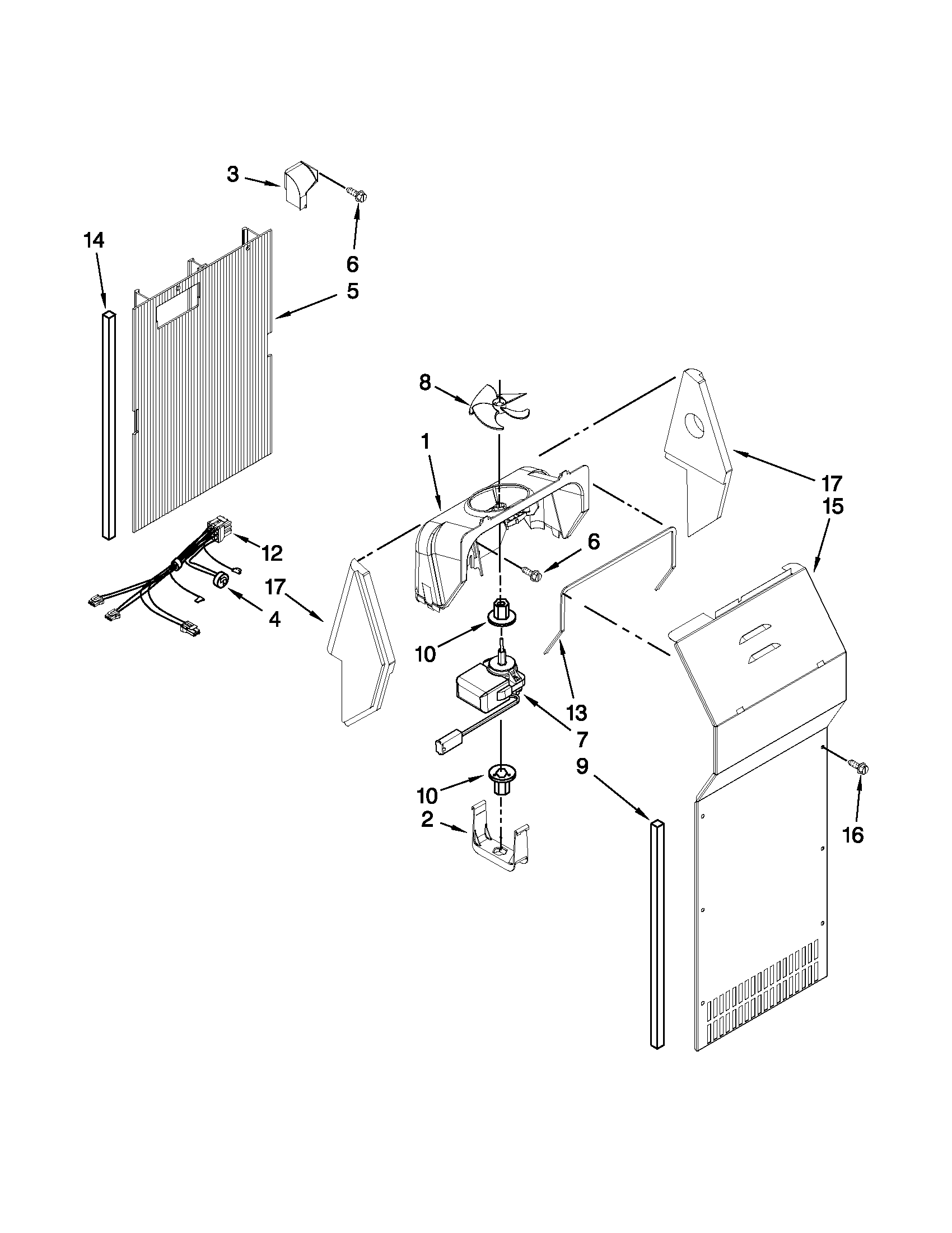

Air flow parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Gasket Panel (white) 2309528
#8

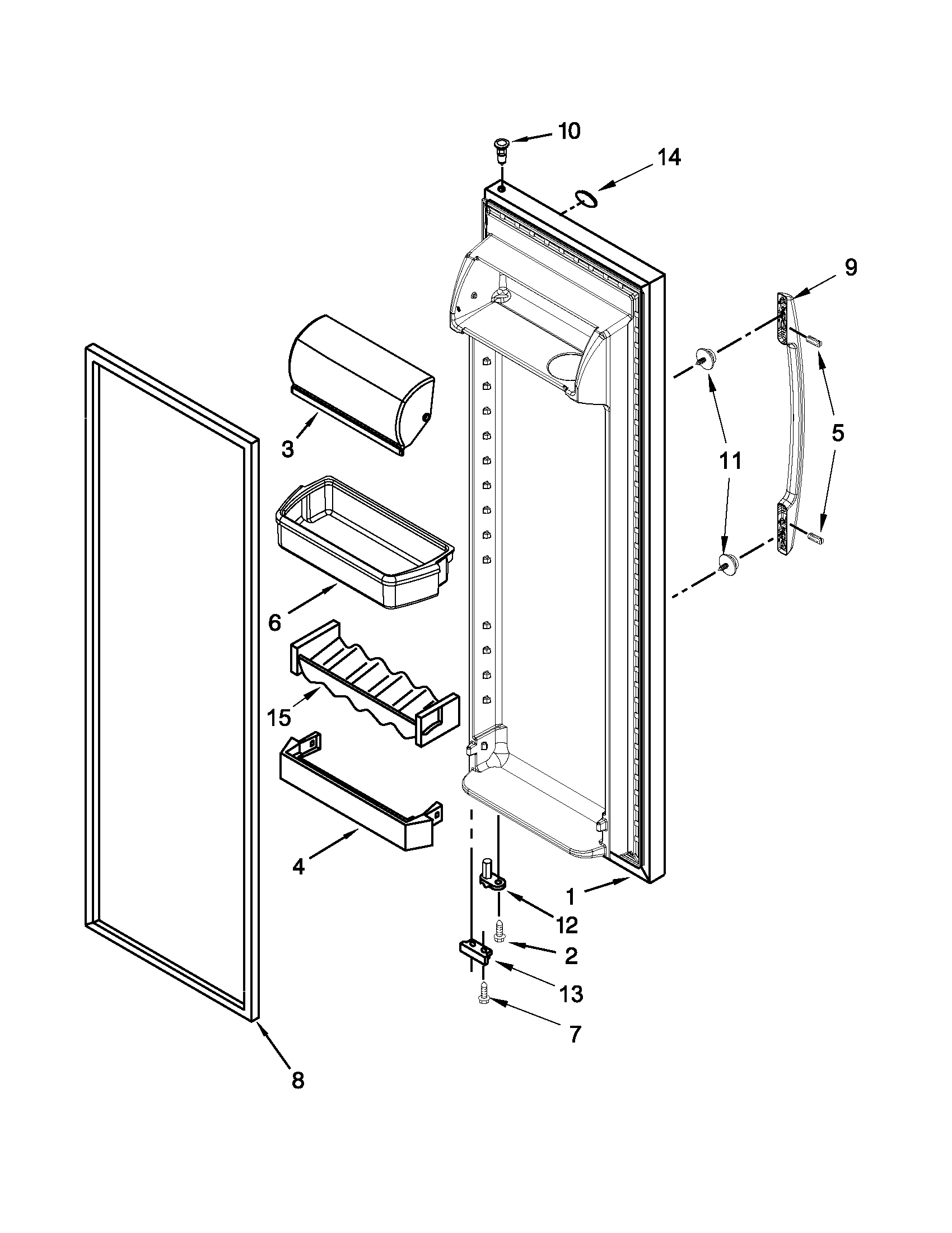

Refrigerator door parts diagram

Refrigerator gasket panel (white)

Part #2309528

Replaced by #2159075

?
Manufacturer substitution
This part replaces 2309528. Substitute parts can look different from the original.
BEST SELLER
$181.39 |
6% OFF Phone Price : $193.39
In Stock
Refrigerator Spill-safe Shelf W10276348
#1

Refrigerator shelf parts diagram

Refrigerator spill-safe shelf

Part #W10276348

Replaced by #WPW10276348

?
Manufacturer substitution
This part replaces W10276348. Substitute parts can look different from the original.
BEST SELLER
$138.48 |
8% OFF Phone Price : $150.48
In Stock
Refrigerator Snack Pan 2309518
#16

Refrigerator shelf parts diagram

Refrigerator snack pan

Part #2309518

Replaced by #WP2309517

?
Manufacturer substitution
This part replaces 2309518. Substitute parts can look different from the original.
BEST SELLER
$64.23 |
9% OFF Phone Price : $70.23
In Stock
Refrigerator Door Shelf Rail 2309941
#4

Refrigerator door parts diagram

Refrigerator door shelf rail

Part #2309941

Replaced by #WP2309941

?
Manufacturer substitution
This part replaces 2309941. Substitute parts can look different from the original.
BEST SELLER
$41.25 |
13% OFF Phone Price : $47.25
In Stock
Refrigerator Door Shelf Compartment Cover 2256101
#3

Refrigerator door parts diagram

Refrigerator door shelf compartment cover

Part #2256101

Replaced by #WP2256101

?
Manufacturer substitution
This part replaces 2256101. Substitute parts can look different from the original.
BEST SELLER
$49.86 |
11% OFF Phone Price : $55.86
In Stock
Refrigerator Plunger Switch 2321287
#4

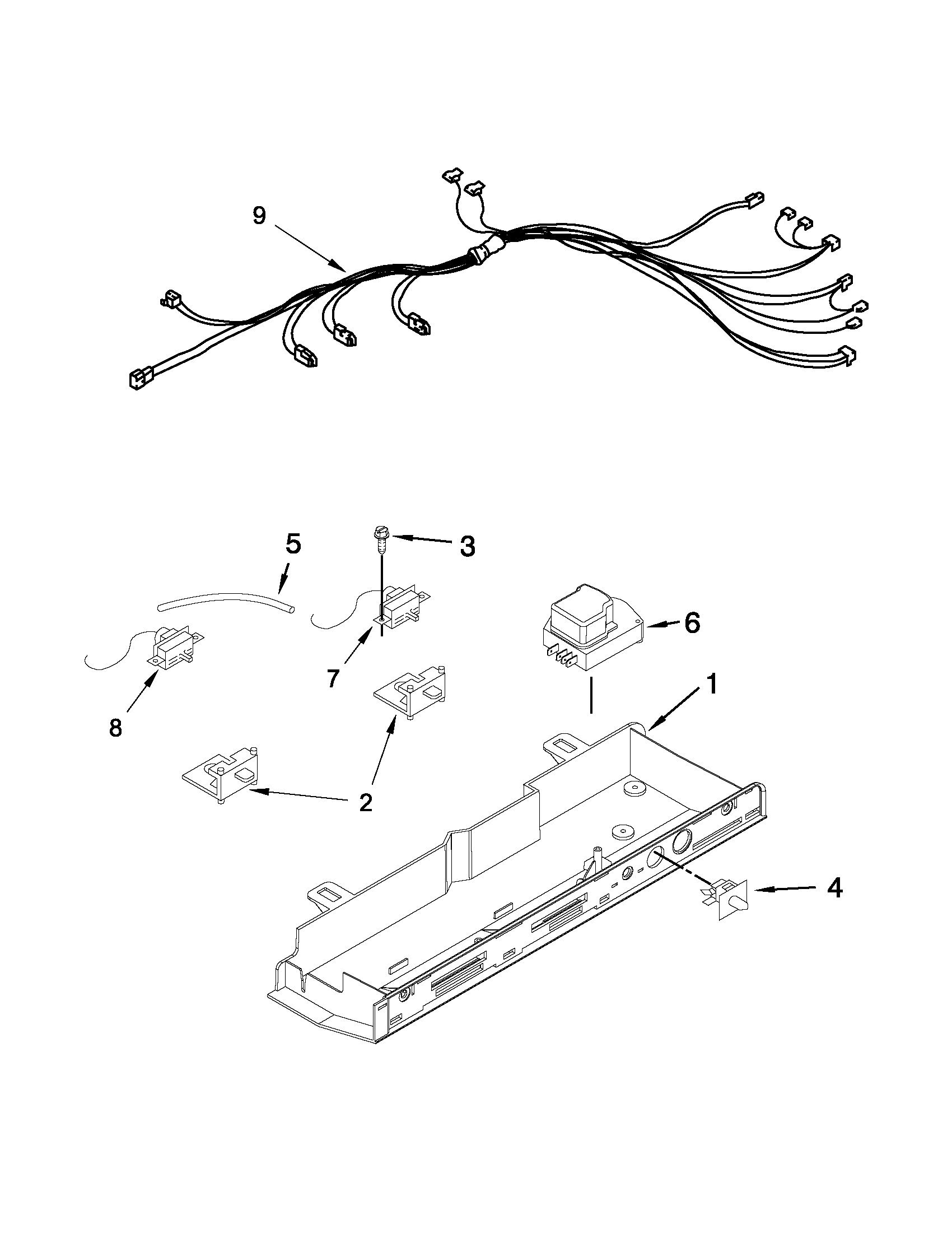

Control box parts diagram

Refrigerator plunger switch

Part #2321287

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2321287. Substitute parts can look different from the original.
BEST SELLER
$27.00 |
18% OFF Phone Price : $33.00
In Stock
