Kenmore Elite
Electric Wall Oven

Model # 79048473412 Official Kenmore Elite electric wall oven

Here are the diagrams and repair parts for Official Kenmore Elite 79048473412 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

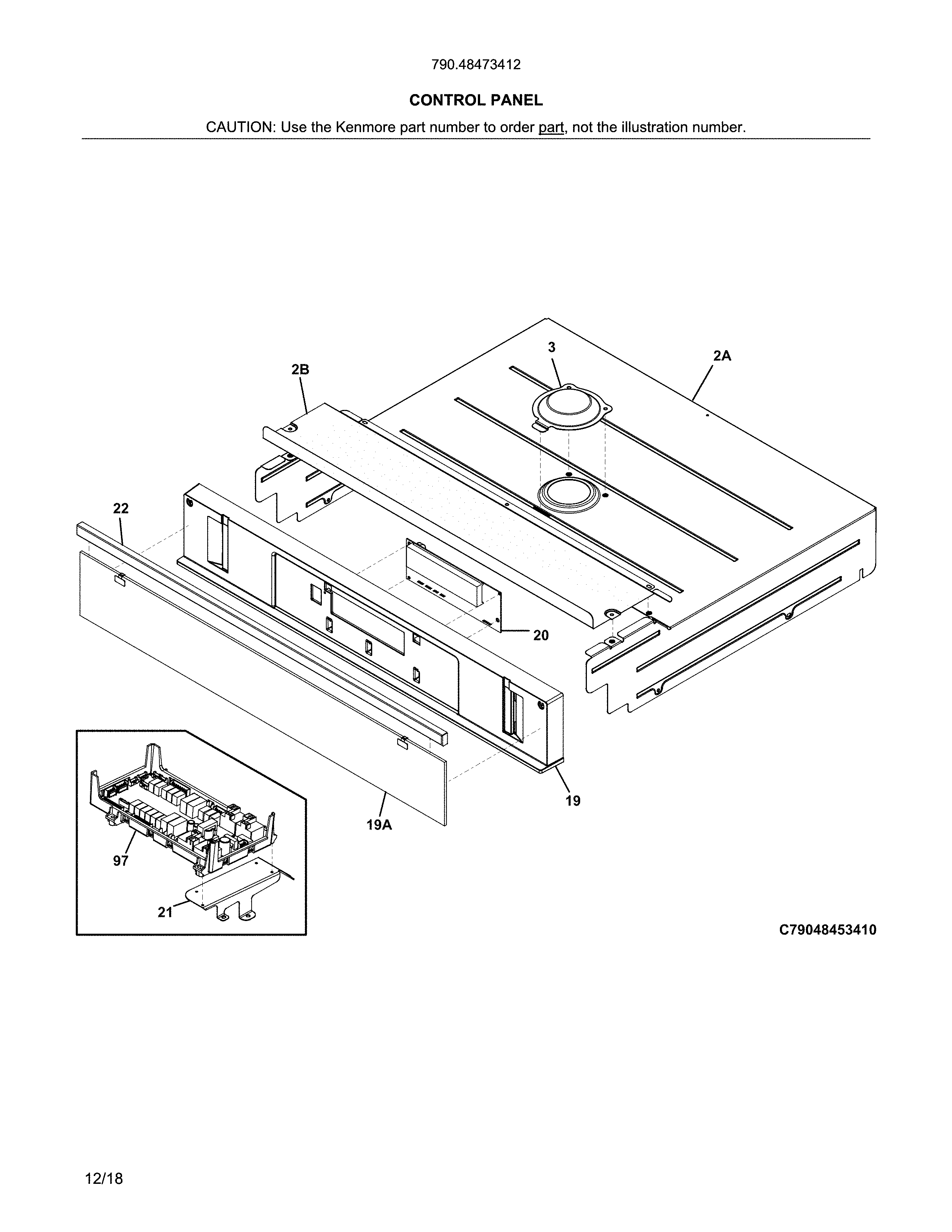

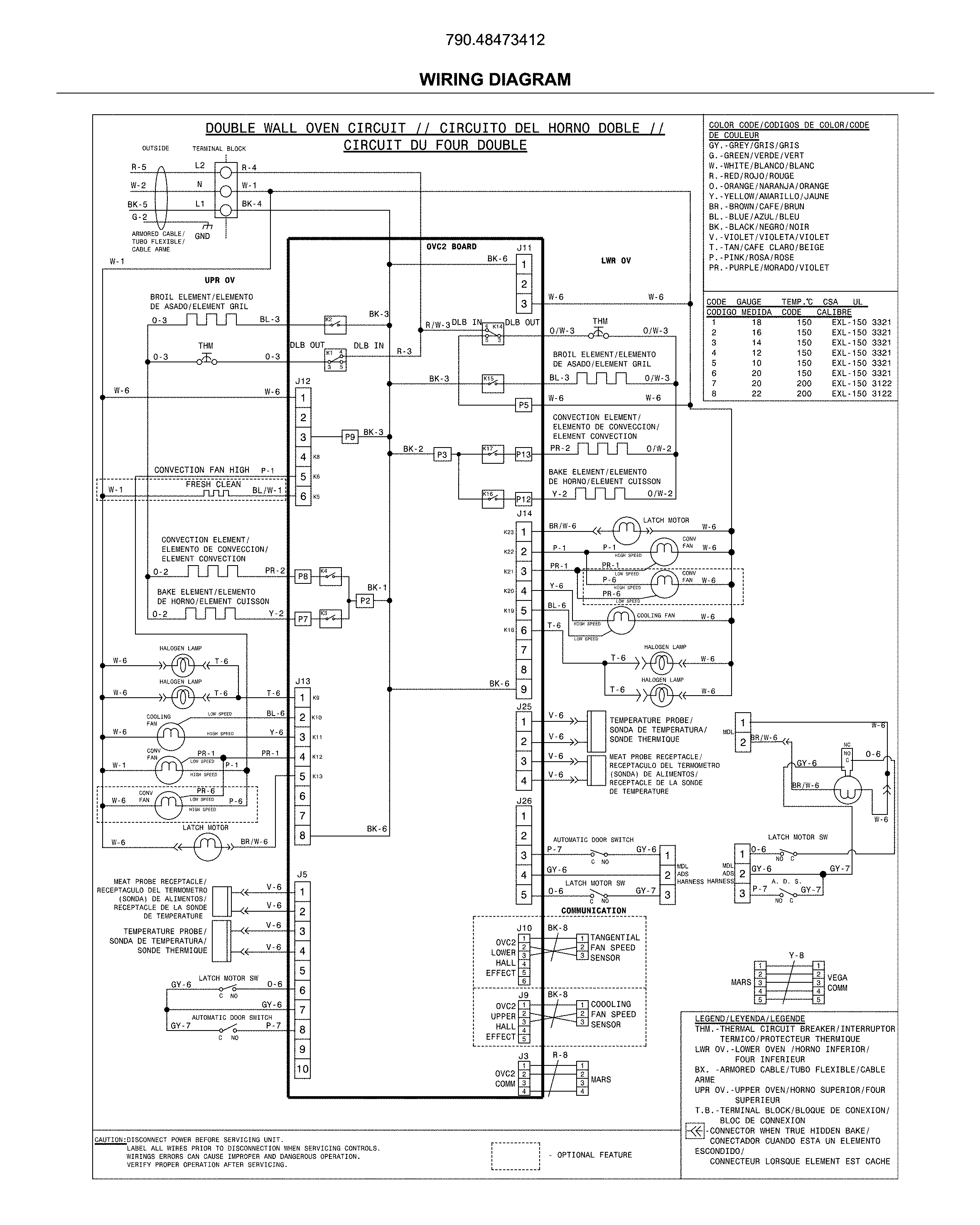

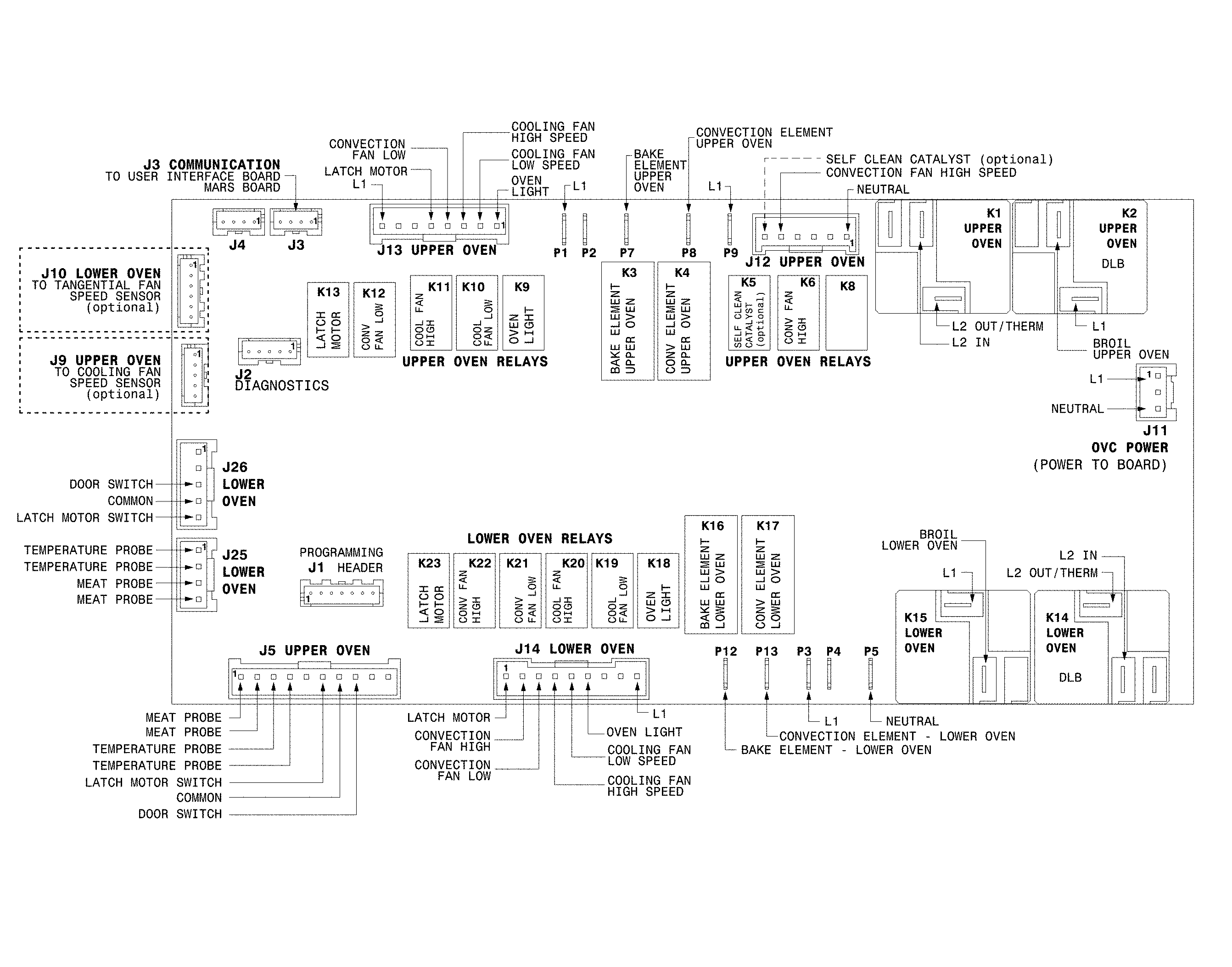

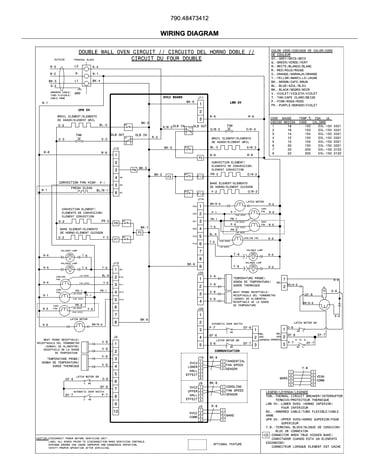

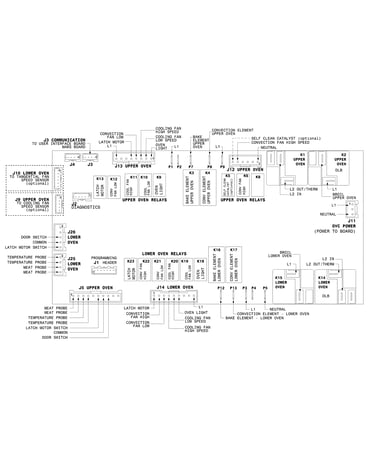

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Terminal Block 316056000
#62

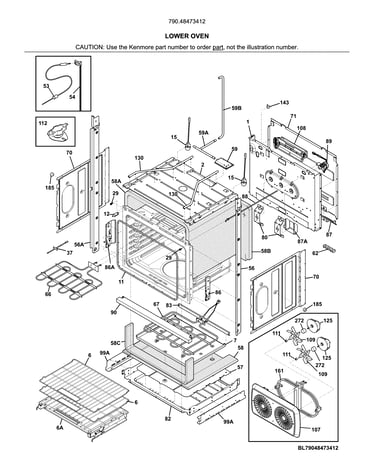

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Blade 139009100
Blade

Part #139009100

Replaced by #318398302

?
Manufacturer substitution
This part replaces 139009100. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Wall Oven Cooling Fan Assembly 807123001
#108

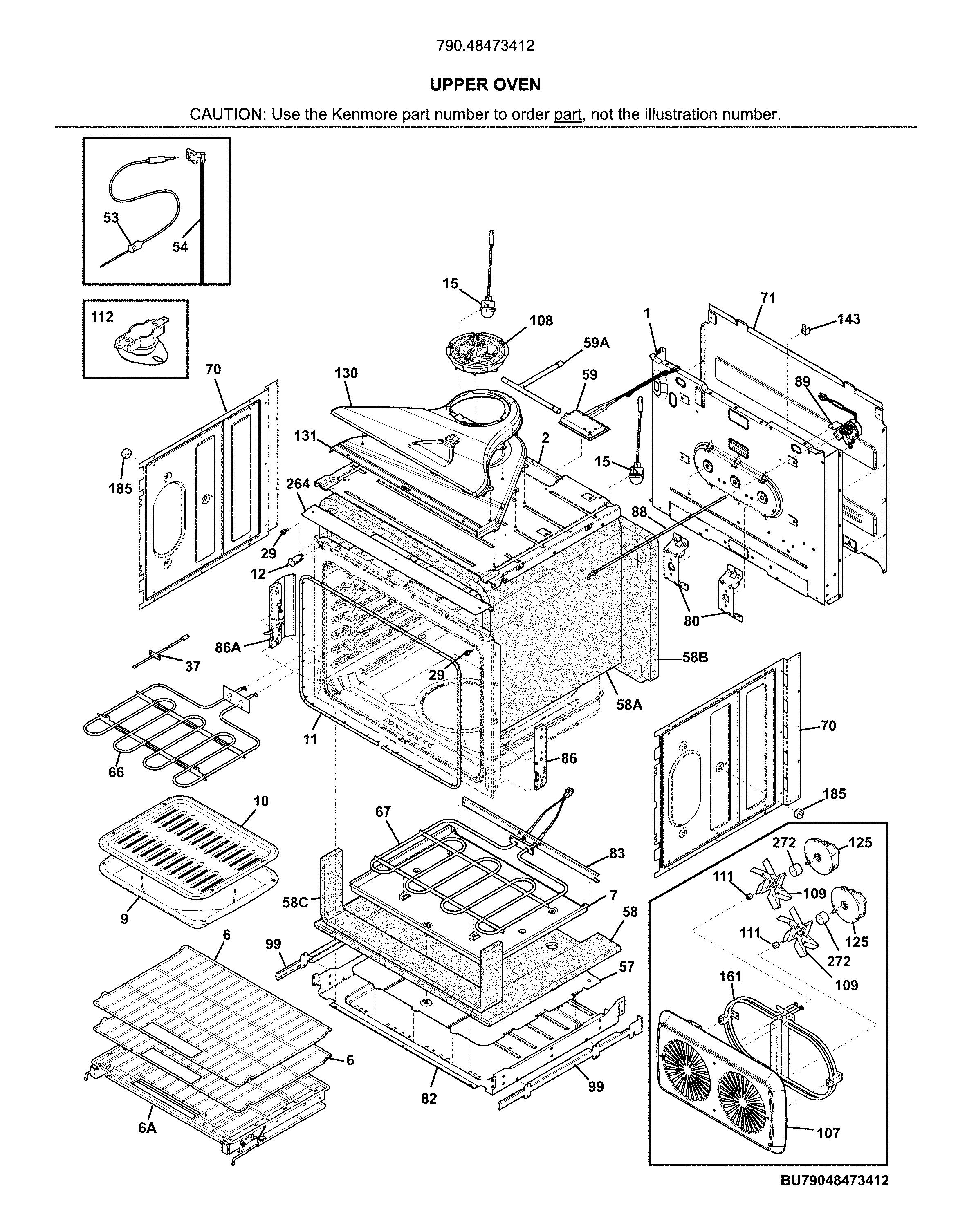

Upper oven diagram

Wall oven cooling fan assembly

Part #807123001

Replaced by #5304528825

?
Manufacturer substitution
This part replaces 807123001. Substitute parts can look different from the original.
BEST SELLER
$119.86 |
9% OFF Phone Price : $131.86
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Range Oven Door Handle Screw 316513301
#10

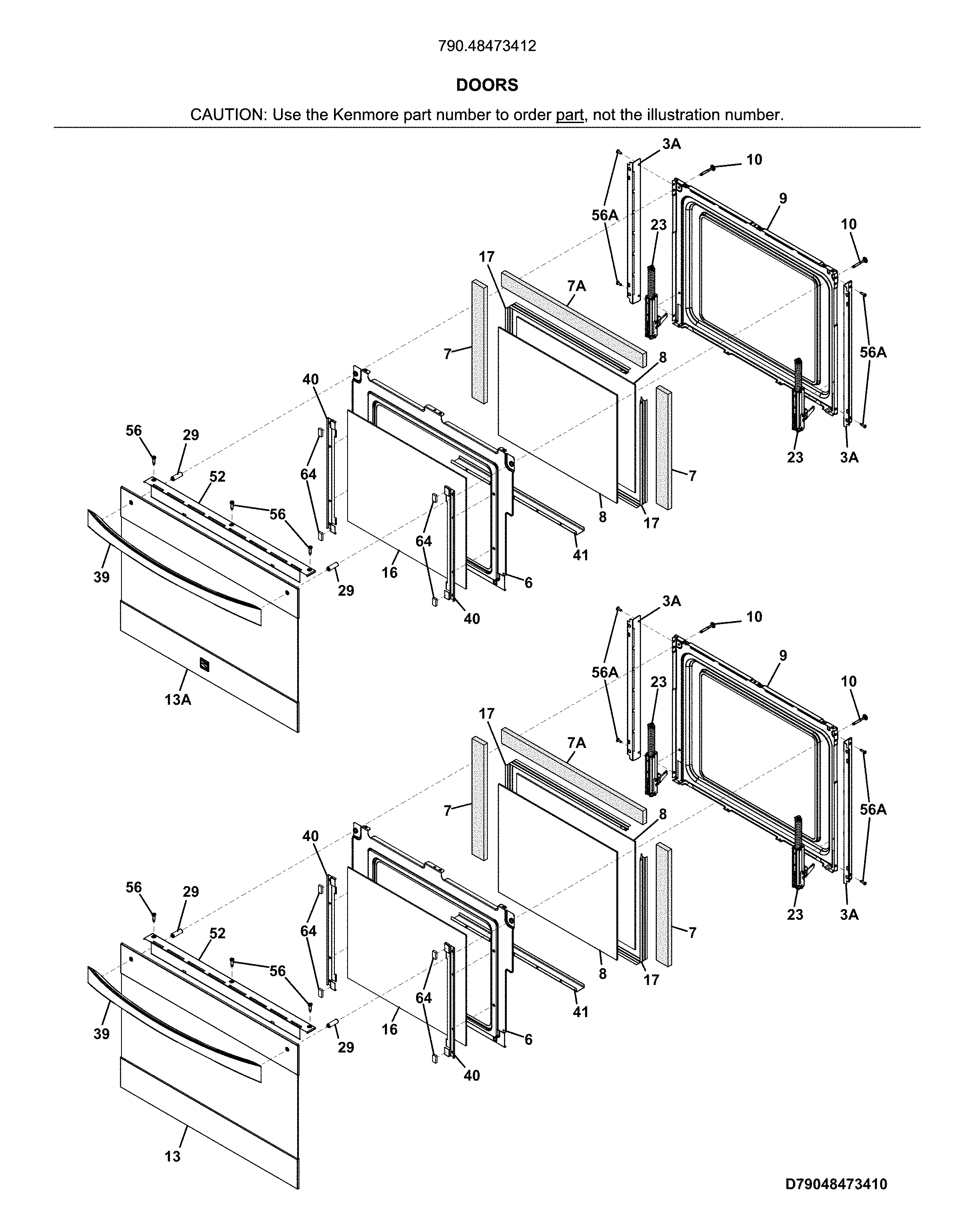

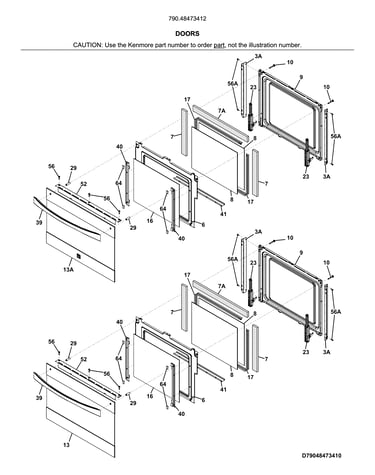

Doors diagram

Range oven door handle screw

Part #316513301

Replaced by #5304507924

?
Manufacturer substitution
This part replaces 316513301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
Range Oven Meat Probe Sensor 5304514885
Range oven meat probe sensor

Part #5304514885

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 5304514885. Substitute parts can look different from the original.
$92.28 |
6% OFF Phone Price : $98.28
In Stock
Range Oven Door Handle 5304504300
#39

Doors diagram

Range oven door handle

Part #5304504300

$118.11 |
9% OFF Phone Price : $130.11
In Stock
Range Broil Element 139000900
Range broil element

Part #139000900

Replaced by #5304521861

?
Manufacturer substitution
This part replaces 139000900. Substitute parts can look different from the original.
$67.72 |
8% OFF Phone Price : $73.72
In Stock
Range Oven Light Bulb 139009000
Range oven light bulb

Part #139009000

Replaced by #5304528790

?
Manufacturer substitution
This part replaces 139009000. Substitute parts can look different from the original.
$23.49 |
20% OFF Phone Price : $29.49
In Stock
Range Door Light Switch 318394802
Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
