Model # MHWZ400TQ01 Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MHWZ400TQ01 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
MHWZ400TQ01 Washer
#NI

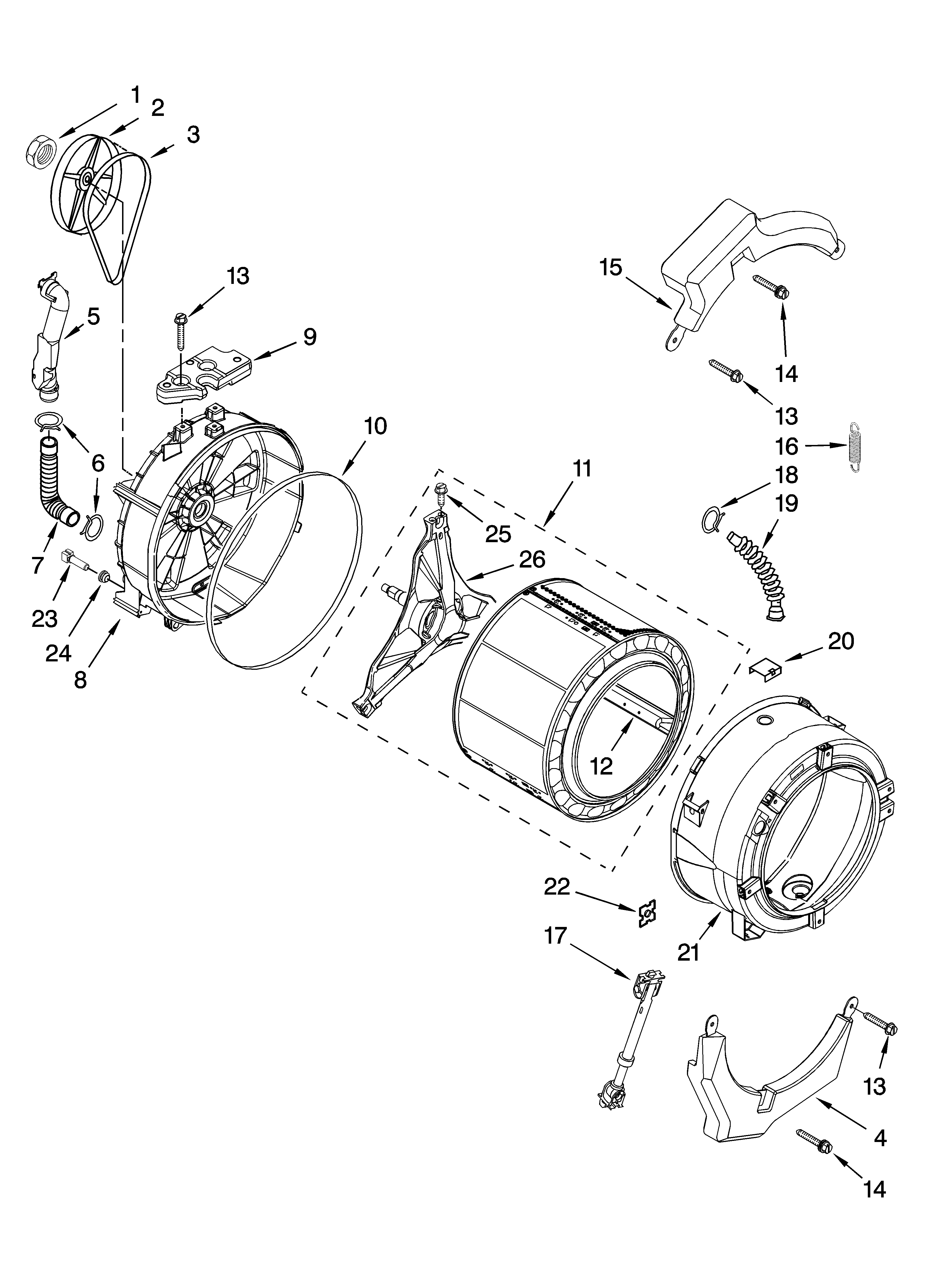

Tub and basket parts, optional parts (not included) diagram
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)
Part #W10135699
Get free shipping with Automatic Reorder
$11.89 |
14% OFF Phone Price : $13.89
In Stock
#1

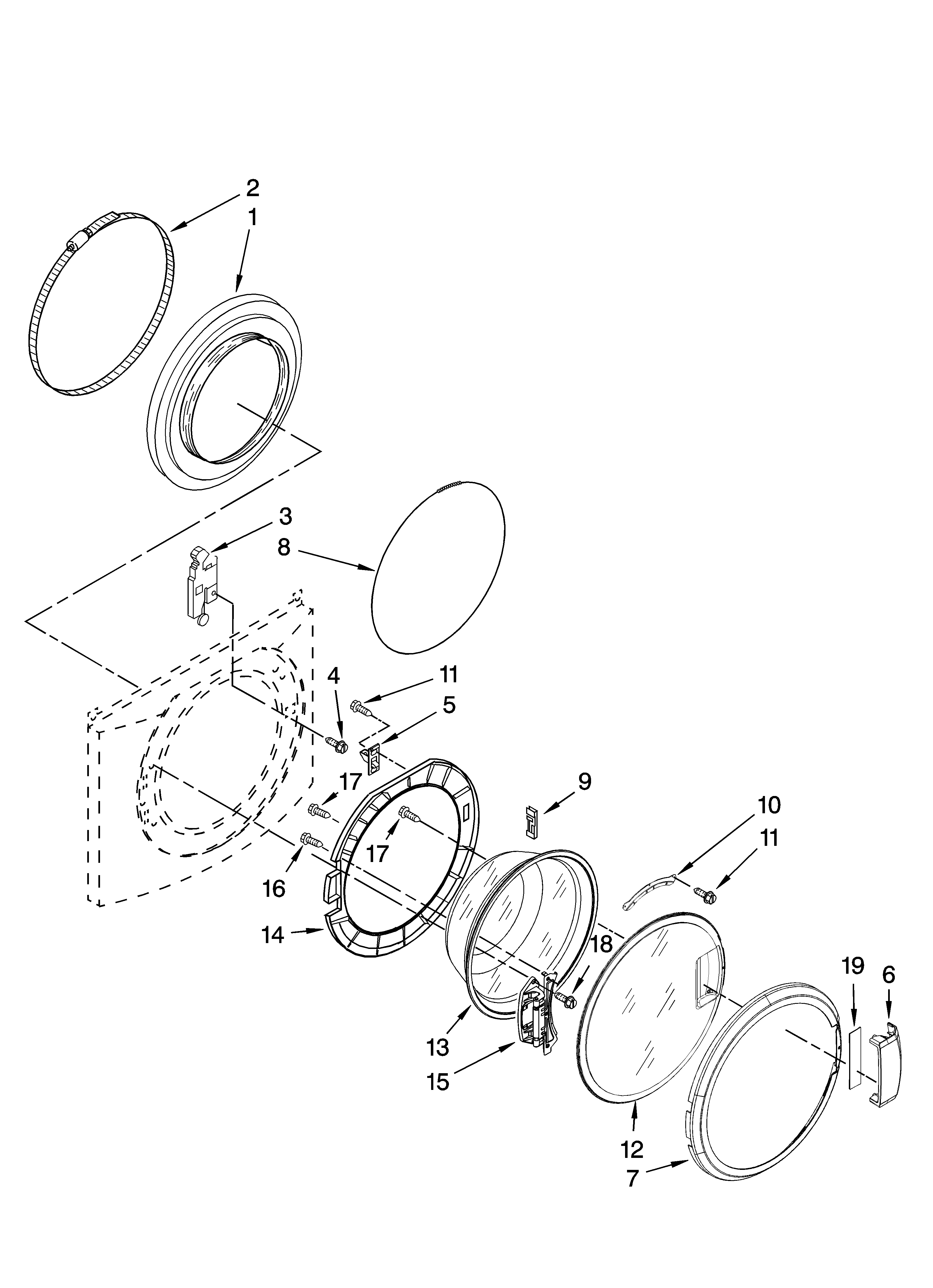

Door and latch parts diagram
Washer door boot
Part #8540952
Replaced by #WPW10111435
?
Manufacturer substitution
This part replaces 8540952. Substitute parts can look different from the original.
$120.46 |
9% OFF Phone Price : $132.46
In Stock
#3
Door and latch parts diagram
Latch
Part #8540772
Replaced by #WPW10253483
?
Manufacturer substitution
This part replaces 8540772. Substitute parts can look different from the original.
$135.76 |
8% OFF Phone Price : $147.76
In Stock
#23
Tub and basket parts, optional parts (not included) diagram
Sensor-ntc
Part #8540226
Replaced by #WPW10467289
?
Manufacturer substitution
This part replaces 8540226. Substitute parts can look different from the original.
$30.31 |
17% OFF Phone Price : $36.31
In Stock
#13

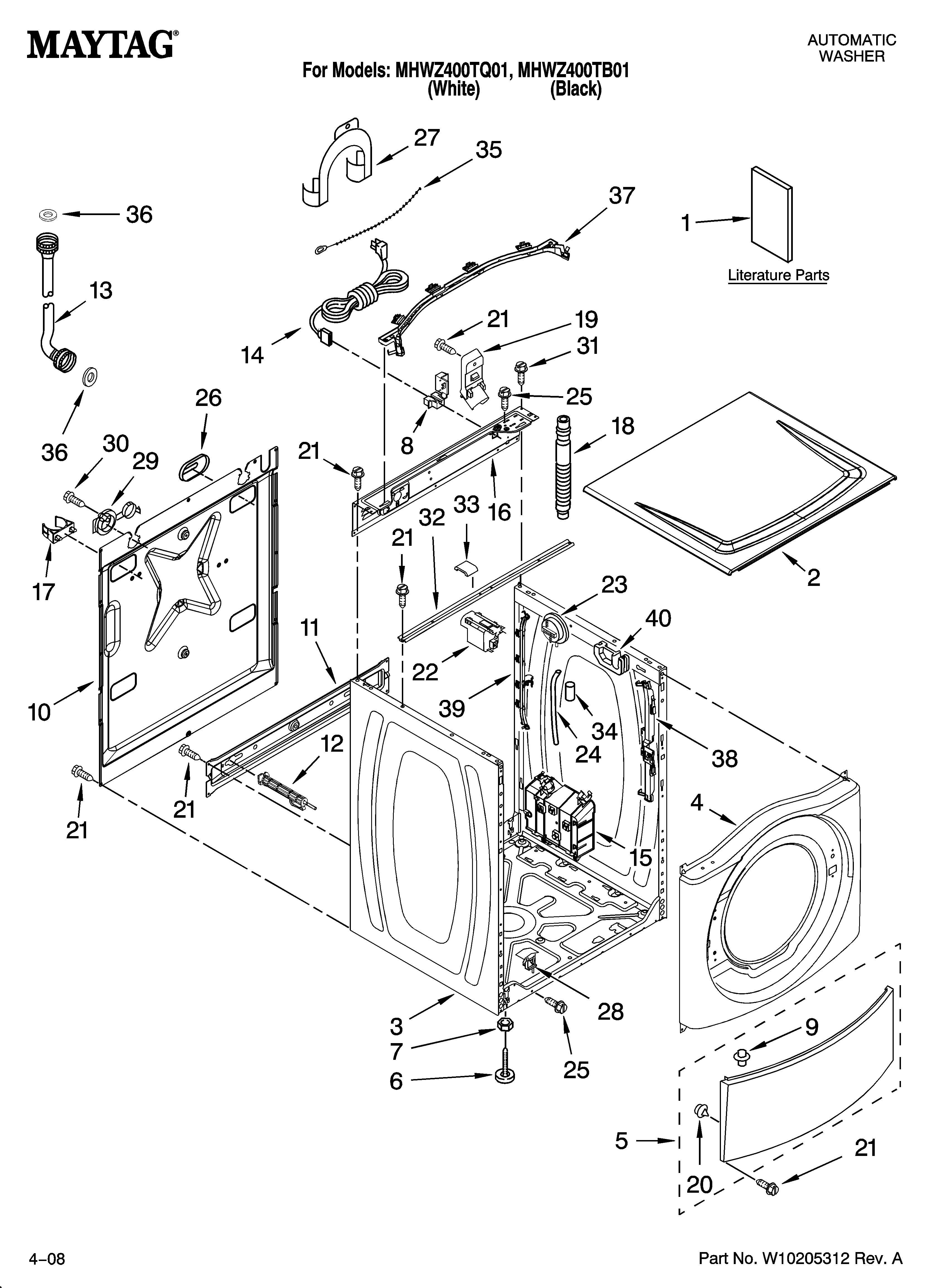

Top and cabinet parts diagram
Fill hose
Part #8571377
Replaced by #WP89503
?
Manufacturer substitution
This part replaces 8571377. Substitute parts can look different from the original.
$14.49 |
12% OFF Phone Price : $16.49
In Stock
#13A
Top and cabinet parts diagram
Washer fill hose
Part #8571378
Replaced by #WP89503
?
Manufacturer substitution
This part replaces 8571378. Substitute parts can look different from the original.
$14.49 |
12% OFF Phone Price : $16.49
In Stock
#NI
Tub and basket parts, optional parts (not included) diagram
Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)
Part #72017
$8.29 |
11% OFF Phone Price : $9.29
In Stock
#1

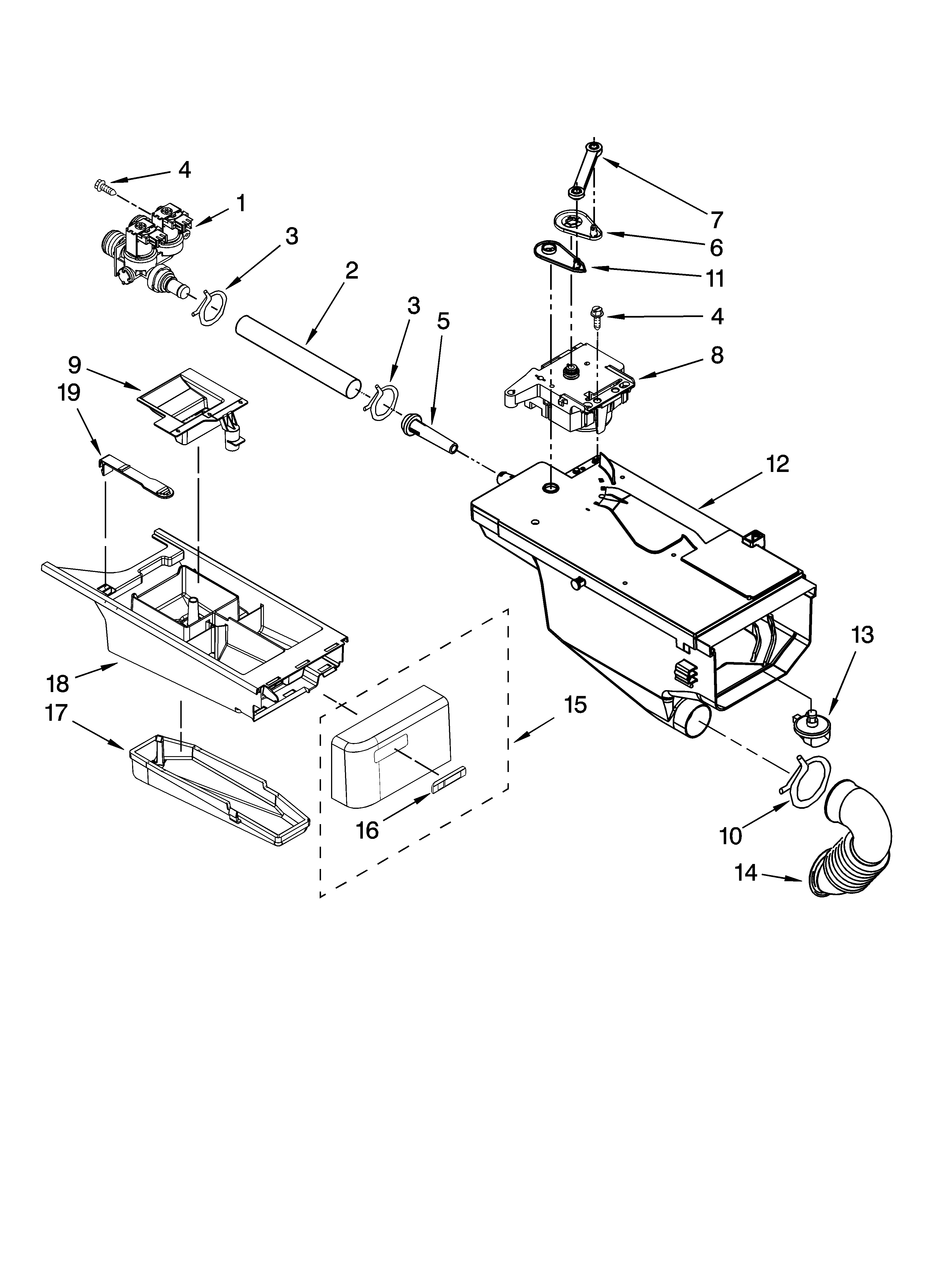

Dispenser parts diagram
Washer water inlet valve
Part #8540751
Replaced by #WP8540751
?
Manufacturer substitution
This part replaces 8540751. Substitute parts can look different from the original.
$65.73 |
8% OFF Phone Price : $71.73
In Stock
#14
Dispenser parts diagram
Washer dispenser hose
Part #8540063
Replaced by #W11366227
?
Manufacturer substitution
This part replaces 8540063. Substitute parts can look different from the original.
$20.64 |
23% OFF Phone Price : $26.64
In Stock
#6

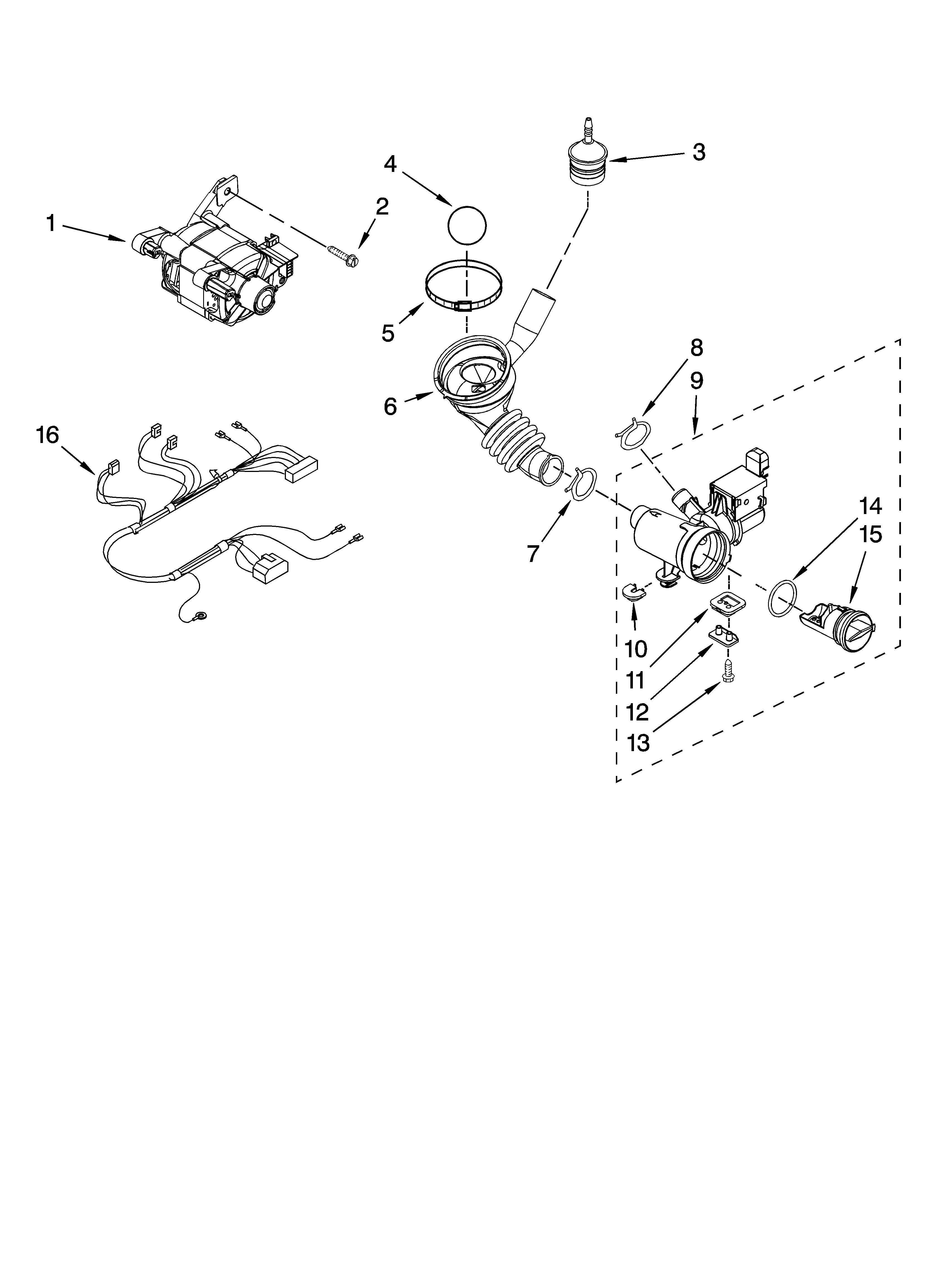

Pump and motor parts diagram
Washer tub-to-pump hose
Part #8540012
Replaced by #W11366249
?
Manufacturer substitution
This part replaces 8540012. Substitute parts can look different from the original.
$23.95 |
20% OFF Phone Price : $29.95
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $11.89 |14% OFF Phone Price : $13.89
- $8.29 |11% OFF Phone Price : $9.29
- $28.89 |17% OFF Phone Price : $34.89
- $31.19 |16% OFF Phone Price : $37.19
- $9.02 |10% OFF Phone Price : $10.02
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
