Sharp
Countertop Microwave

Model # R-209FW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-209FW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

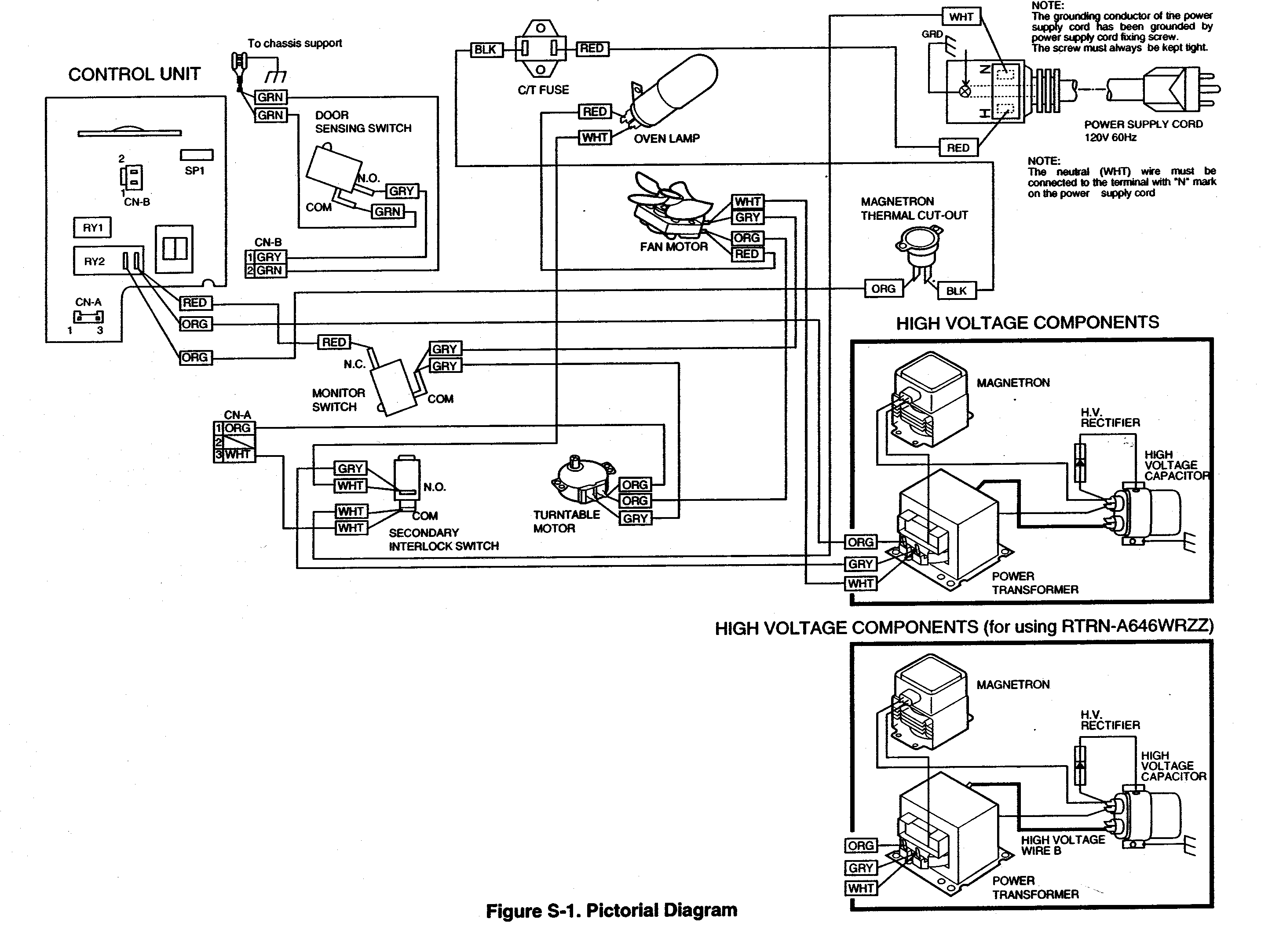

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Monitor Fuse FFS-BA025WRKZ
#1-2

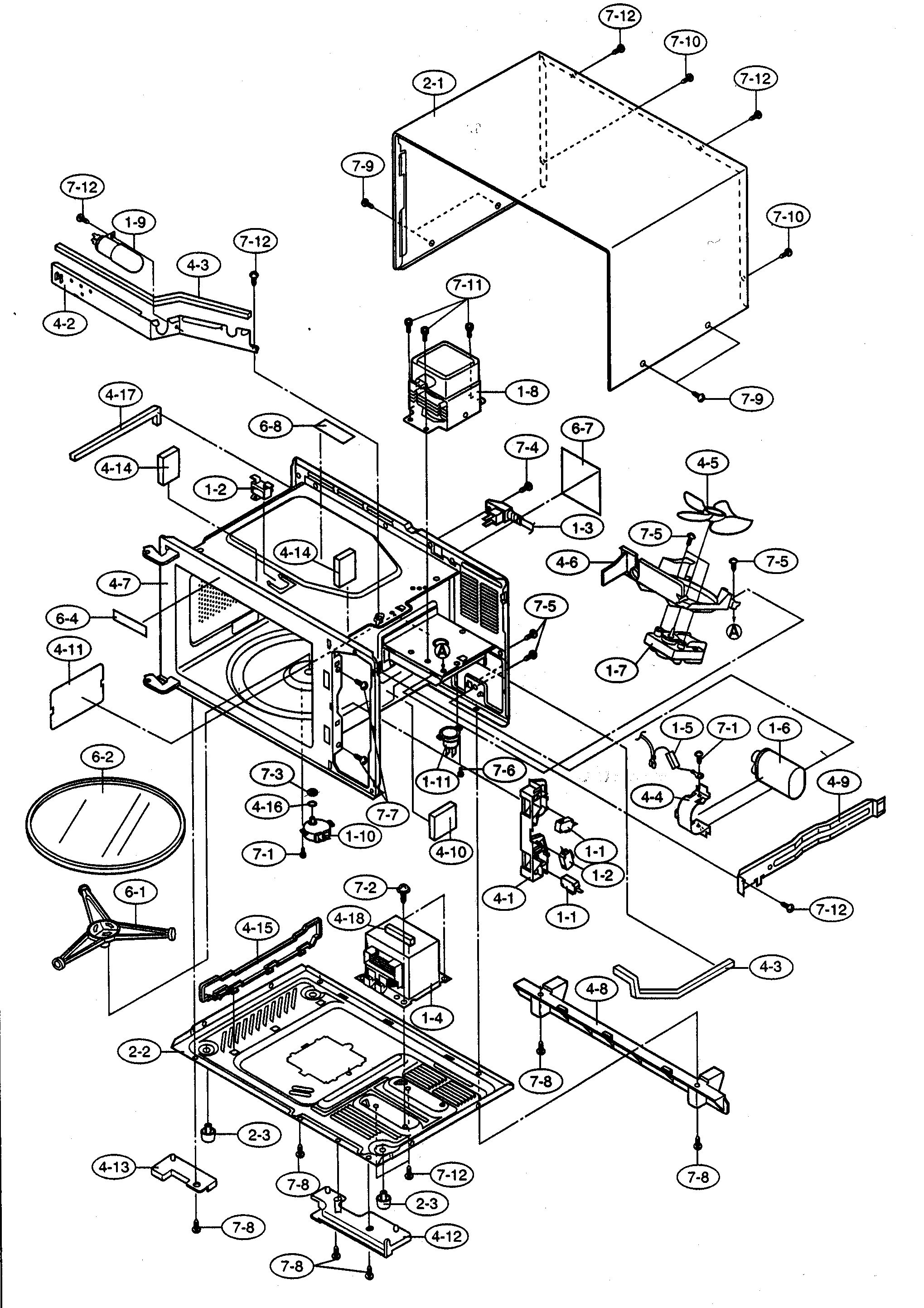

Oven/cabinet parts diagram

Monitor fuse

Part #FFS-BA025WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-9

Oven/cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Display RLCDSA089DRZZ
#3-4

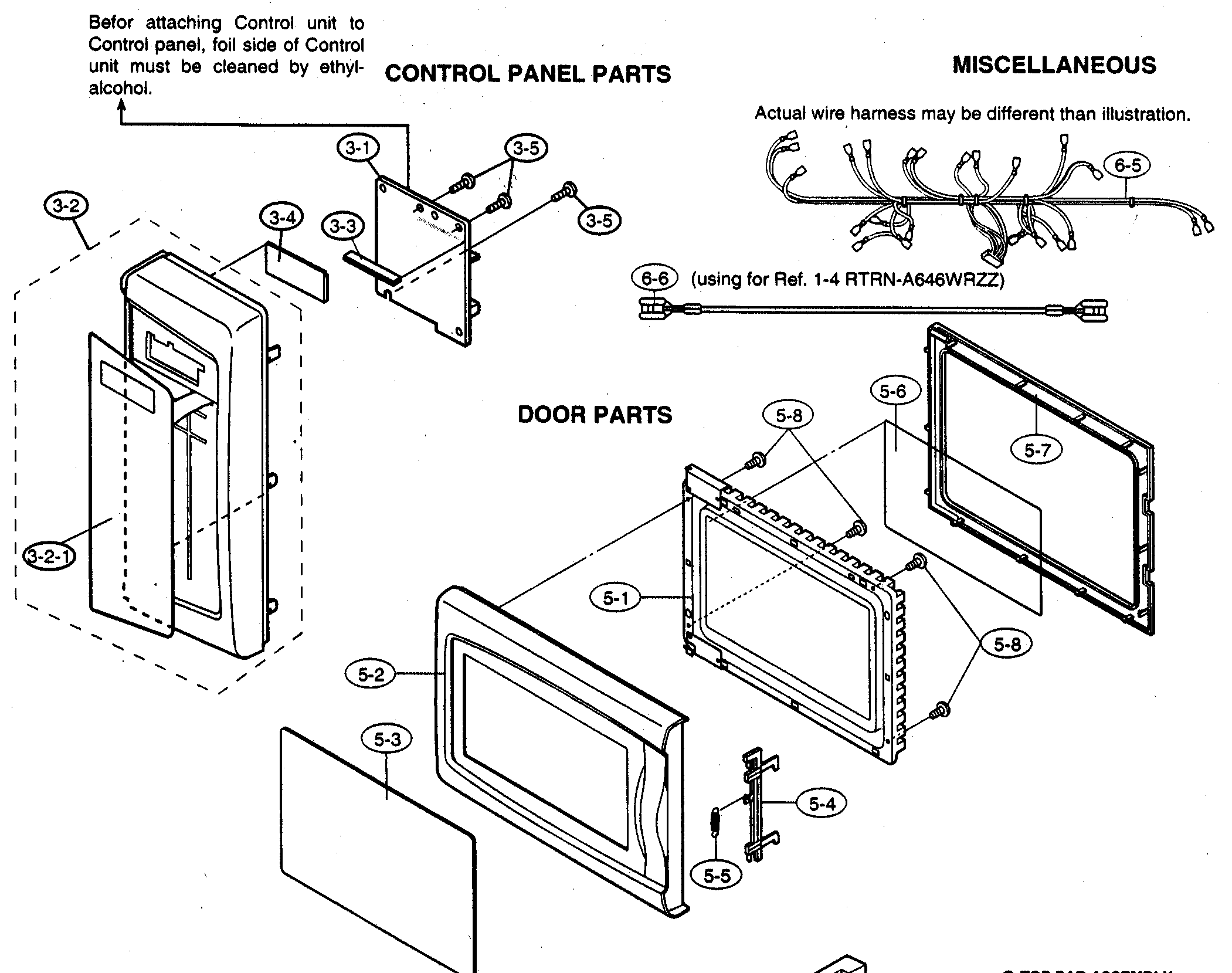

Control panel/door parts/miscellaneous diagram

Display

Part #RLCDSA089DRZZ

The manufacturer no longer makes this part, and there's no substitute part

O-ring PPACGA097WRE0
#4-16

Oven/cabinet parts diagram

O-ring

Part #PPACGA097WRE0

The manufacturer no longer makes this part, and there's no substitute part

Door Frame GWAKPA859WRRZ
#5-2A

Control panel/door parts/miscellaneous diagram

Door frame

Part #GWAKPA859WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Owner's Manual TINSEA934WRRZ
#NI

Oven/cabinet parts diagram

Microwave owner's manual

Part #TINSEA934WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Frame FPNLCB638WRKZ
#3-2

Control panel/door parts/miscellaneous diagram

Frame

Part #FPNLCB638WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA306WRZZ
#1-8

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA306WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Door Screen HPNL-A777WRRZ
#5-3A

Control panel/door parts/miscellaneous diagram

Door screen

Part #HPNL-A777WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor 507453
#110

Oven/cabinet parts diagram

Microwave turntable motor

Part #507453

The manufacturer no longer makes this part, and there's no substitute part
