RCA
Compact VHS-C Camcorder

Model # CC412 Official RCA camcorder

Here are the diagrams and repair parts for Official RCA CC412 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

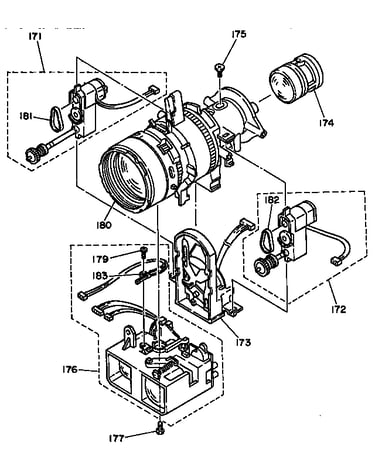

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Integrated Circuit 212801
#42

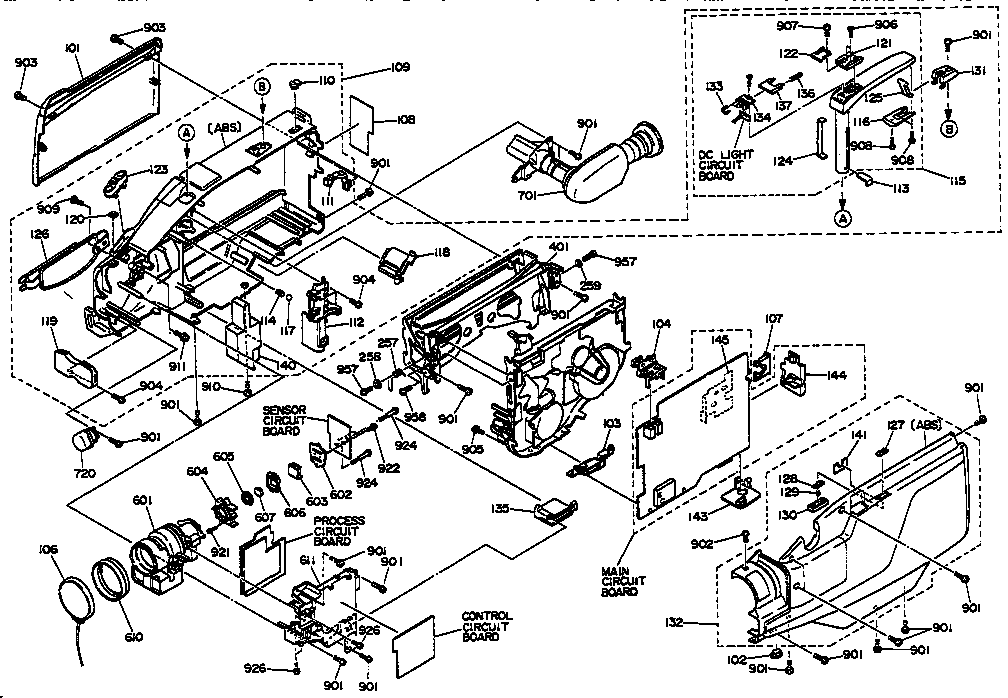

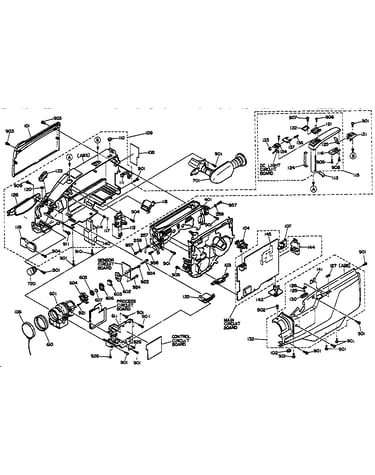

Camcorder diagram

Integrated circuit

Part #212801

The manufacturer no longer makes this part, and there's no substitute part

Holder 212837
#16

Camcorder diagram

Holder

Part #212837

The manufacturer no longer makes this part, and there's no substitute part

Bracket 214684
#35

Camcorder diagram

Bracket

Part #214684

The manufacturer no longer makes this part, and there's no substitute part

Cover 212867
#43

Camcorder diagram

Cover

Part #212867

The manufacturer no longer makes this part, and there's no substitute part

Plate 212913
#21

Camcorder diagram

Plate

Part #212913

The manufacturer no longer makes this part, and there's no substitute part

Spring 212912
#19

Camcorder diagram

Spring

Part #212912

The manufacturer no longer makes this part, and there's no substitute part

Eccd1h151kc 210217
#3

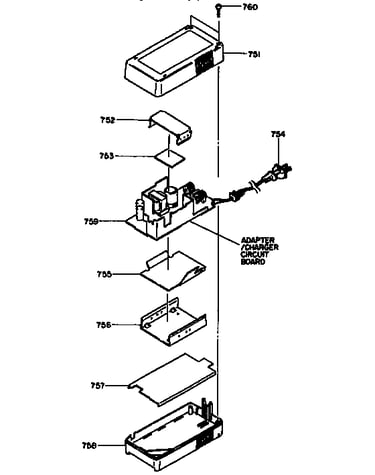

Ac adapter / charger diagram

Eccd1h151kc

Part #210217

The manufacturer no longer makes this part, and there's no substitute part

Plate 210220
#7

Ac adapter / charger diagram

Plate

Part #210220

The manufacturer no longer makes this part, and there's no substitute part

Kit 46-90200-3

#NI

All parts diagram

Kit

Part #46-90200-3

The manufacturer no longer makes this part, and there's no substitute part

Battery Lid 214662
#6

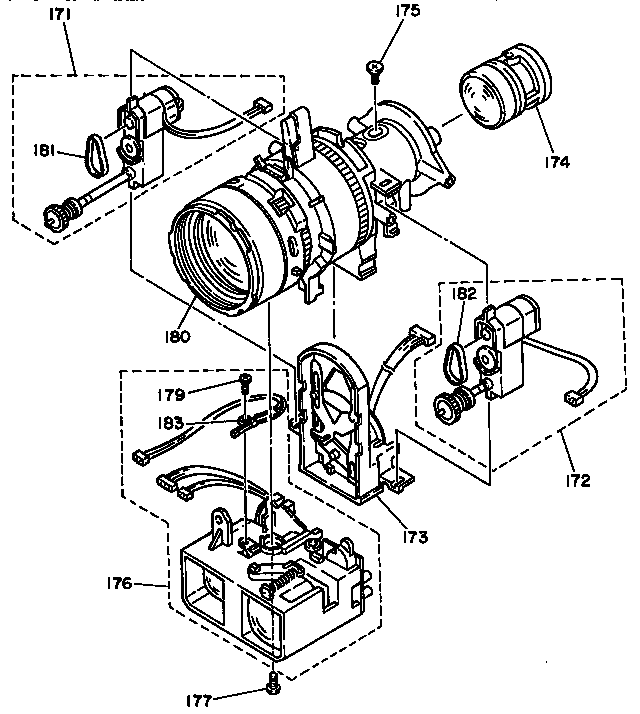

Camcorder diagram

Battery lid

Part #214662

The manufacturer no longer makes this part, and there's no substitute part
