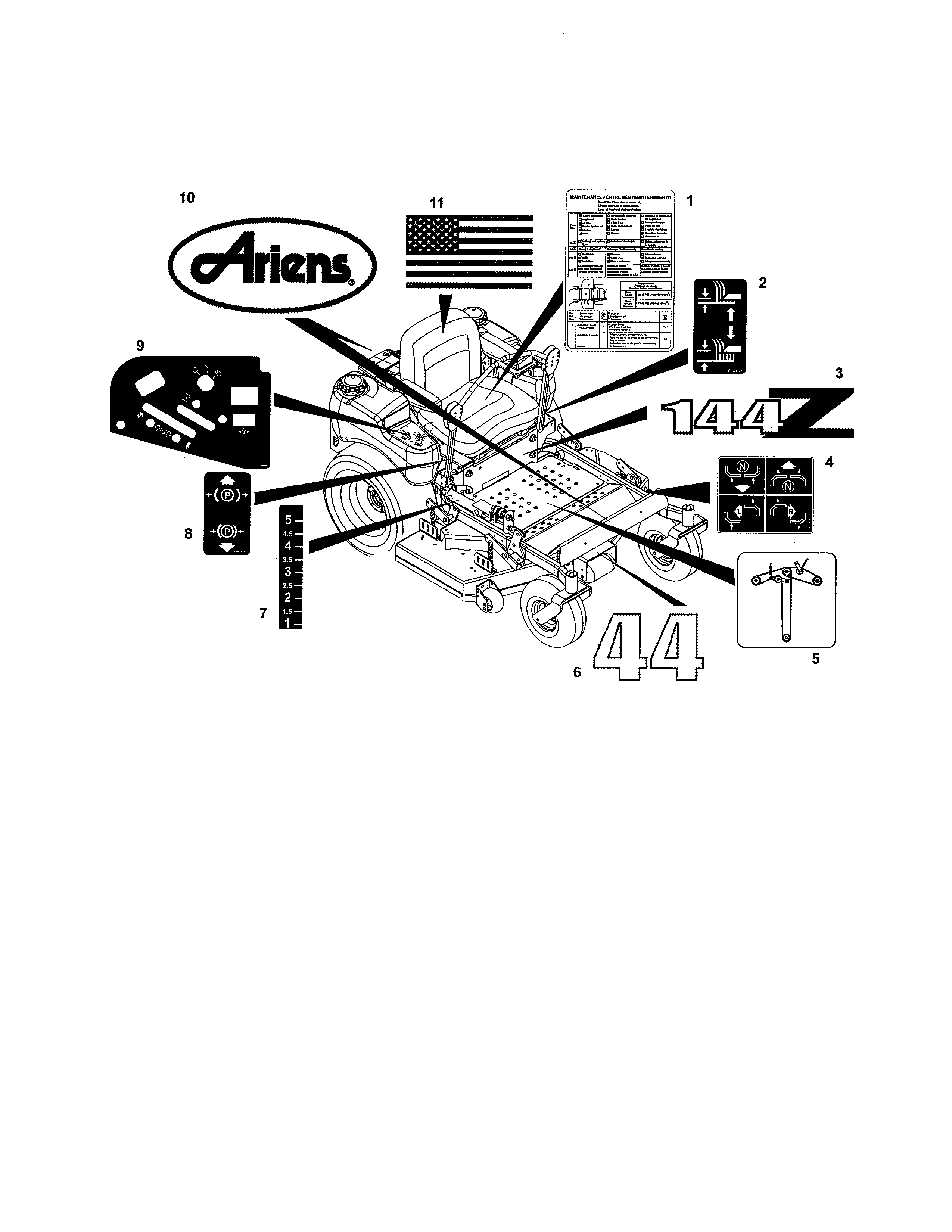

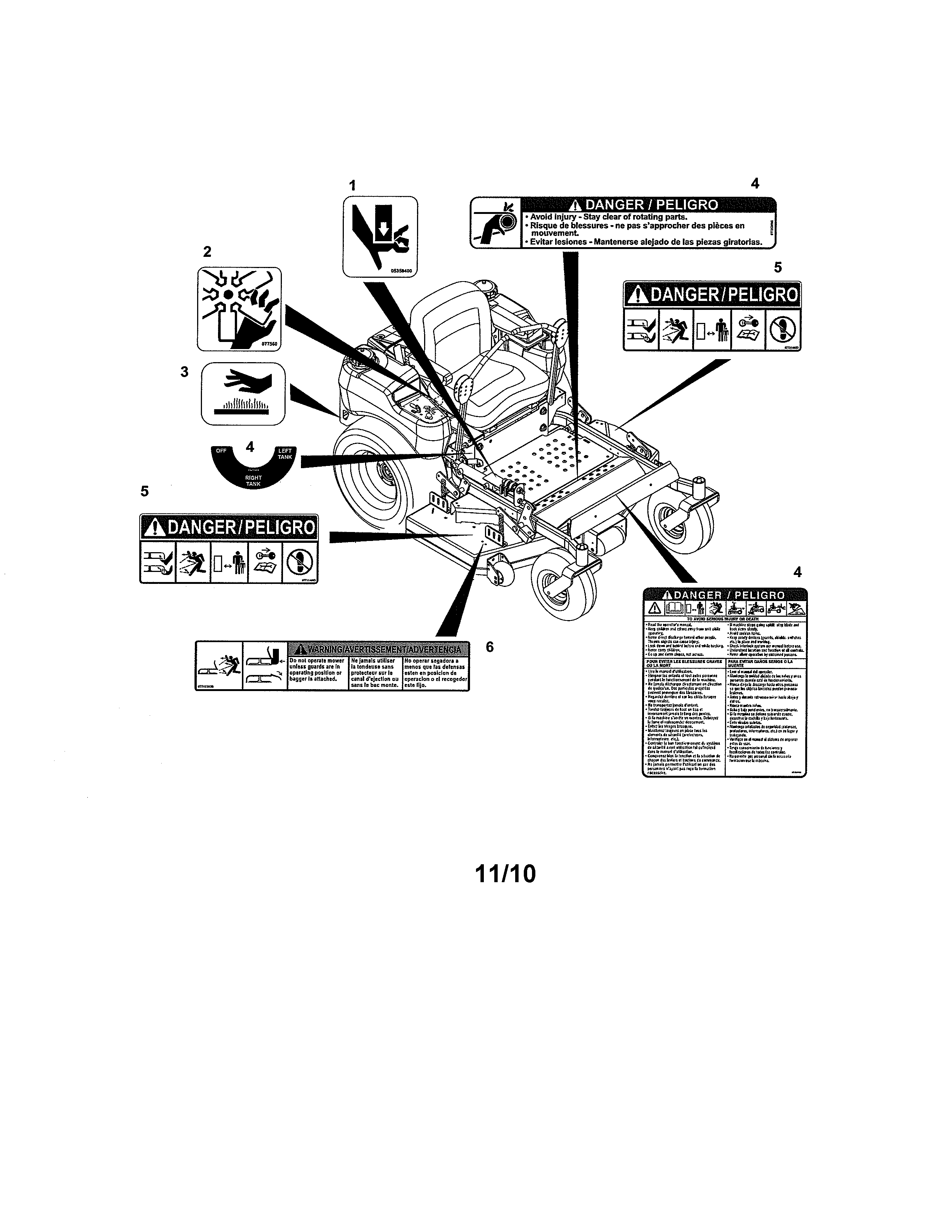

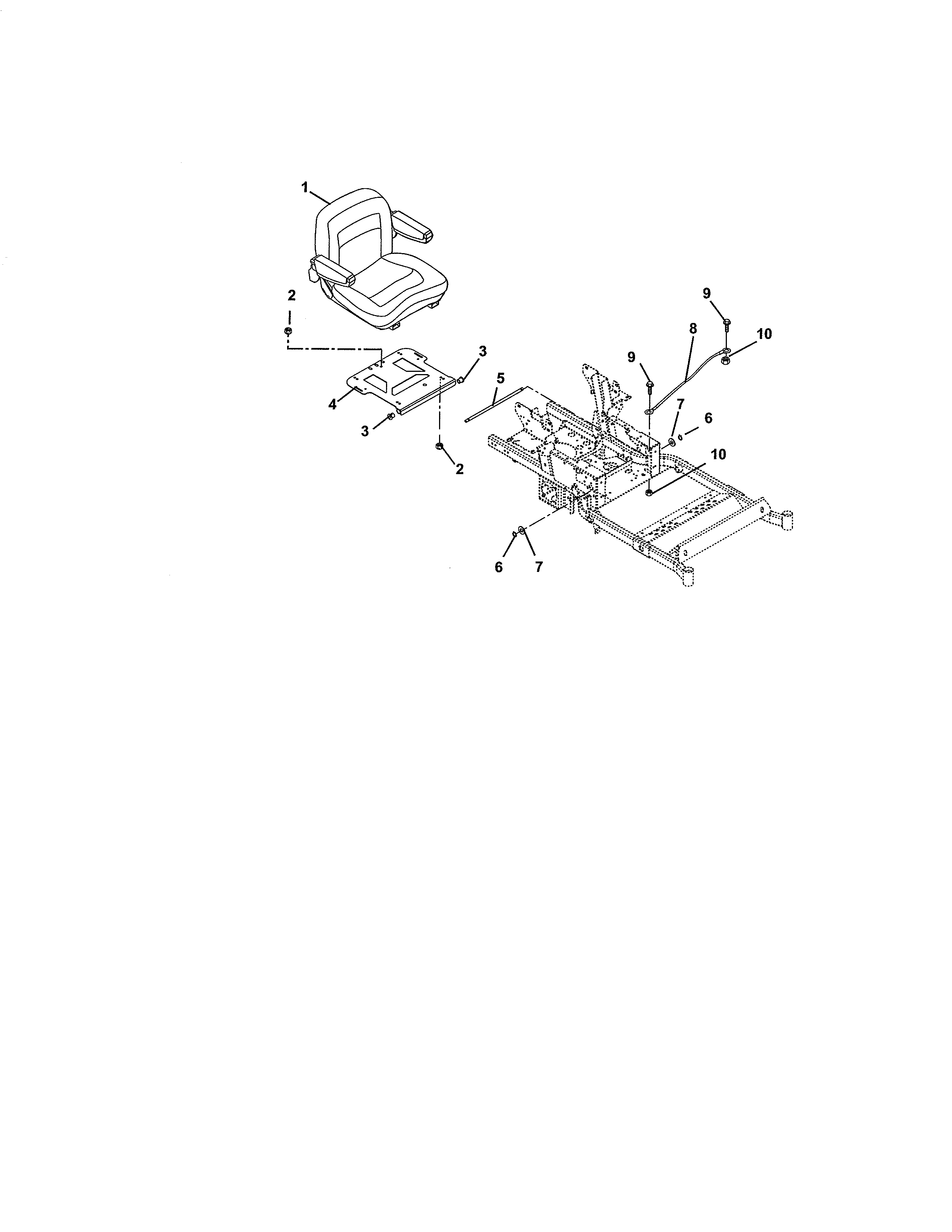

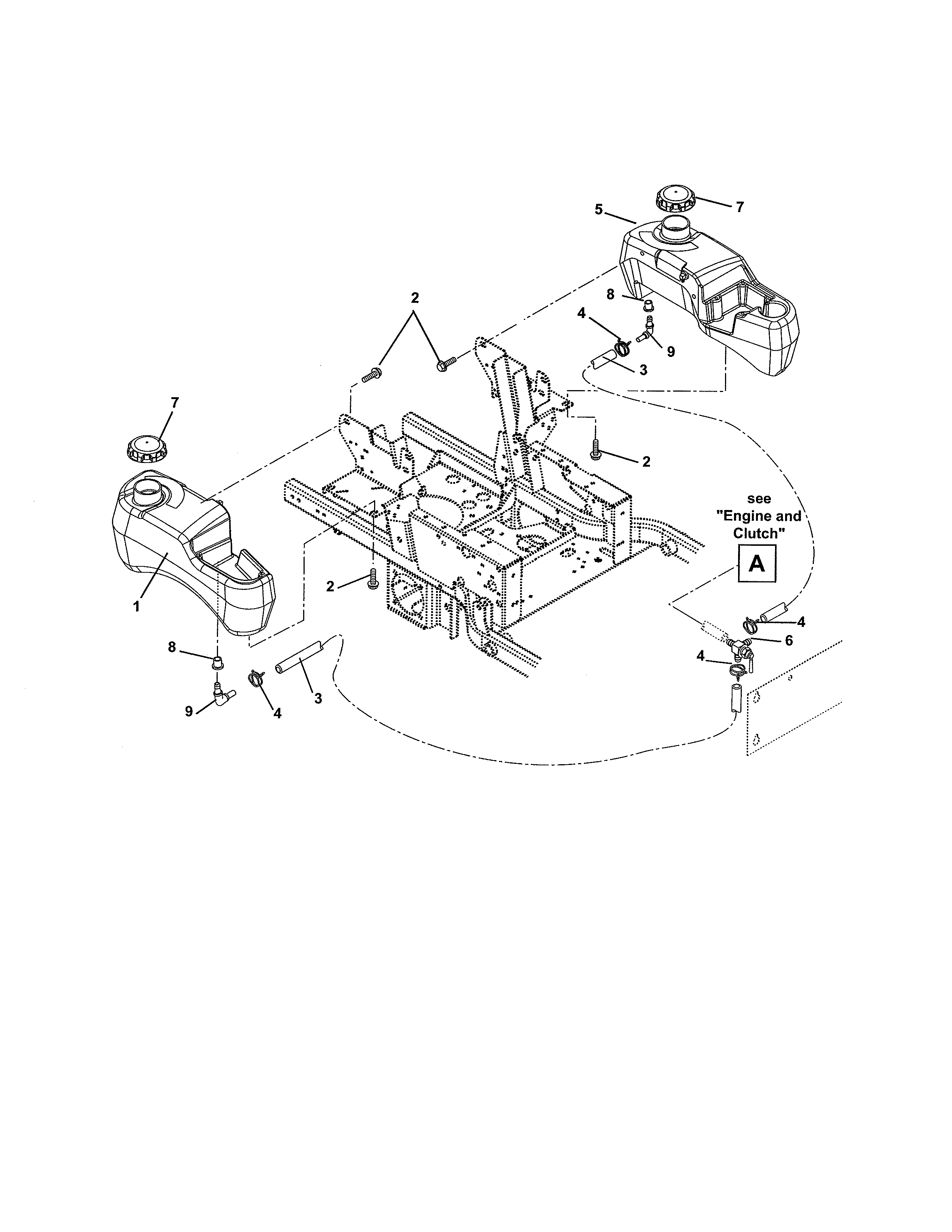

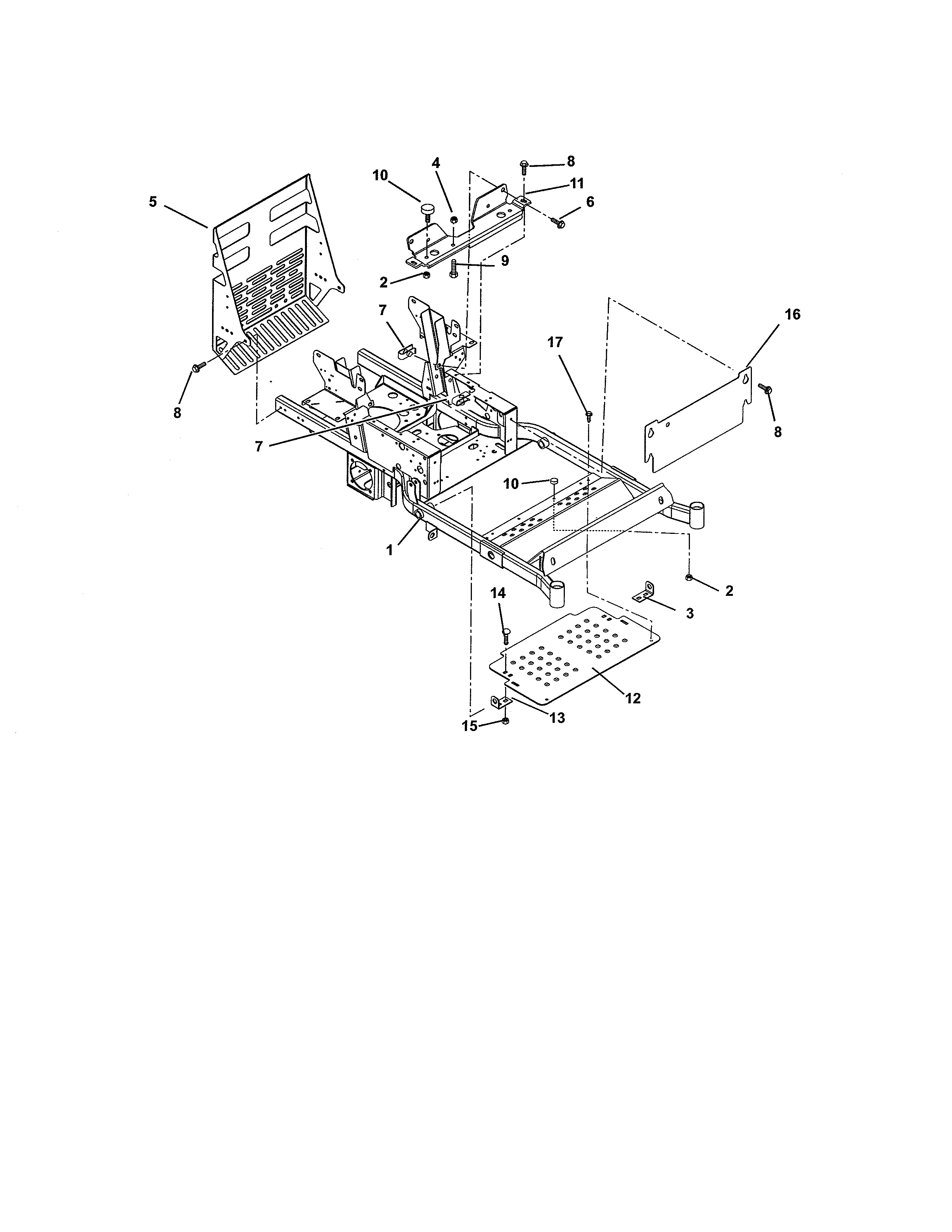

Model # 99231200 (101-999) Official Ariens riding lawn mower
Here are the diagrams and repair parts for Official Ariens 99231200 (101-999) riding lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for

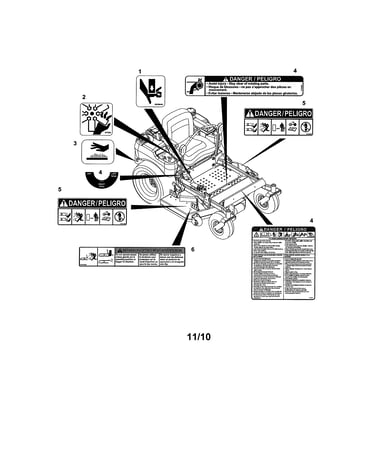

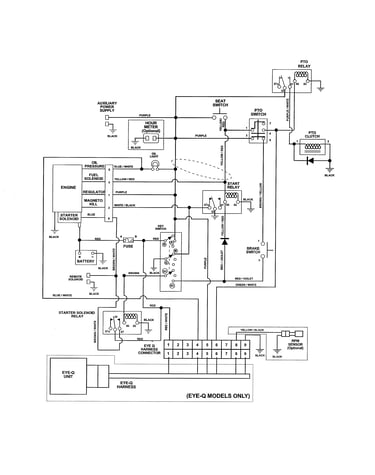

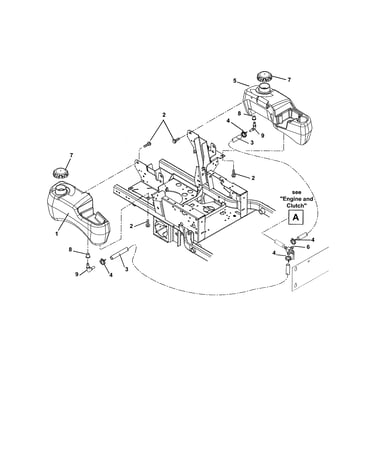

99231200 (101-999) Riding Mowers & Tractors
#7

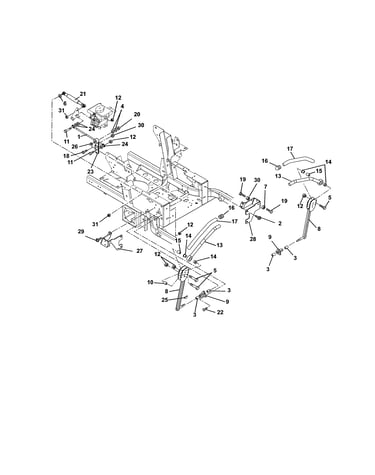

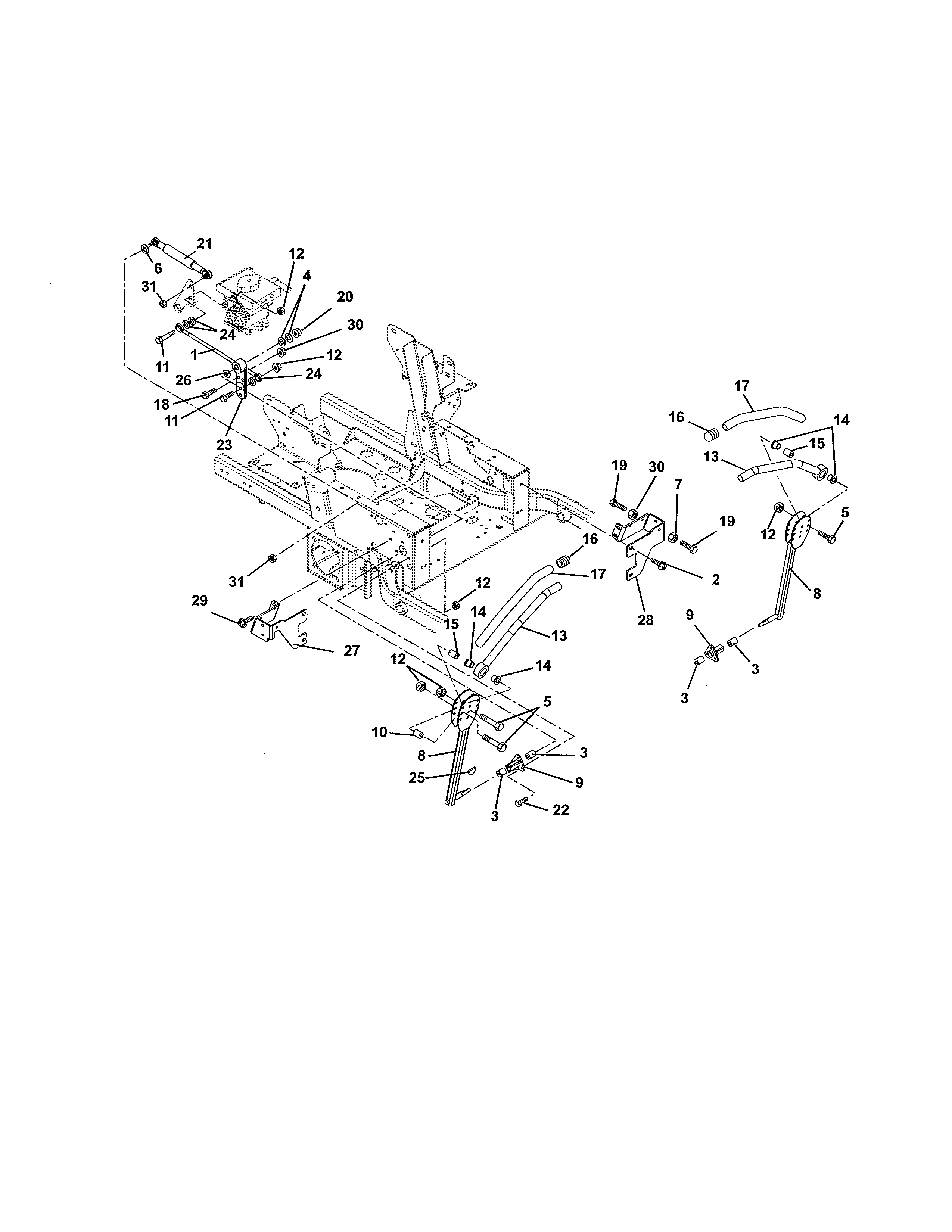

Steering controls diagram
Craftsman hex jam nut
Part #06535900
This item is not returnable
$2.16
In Stock
#15

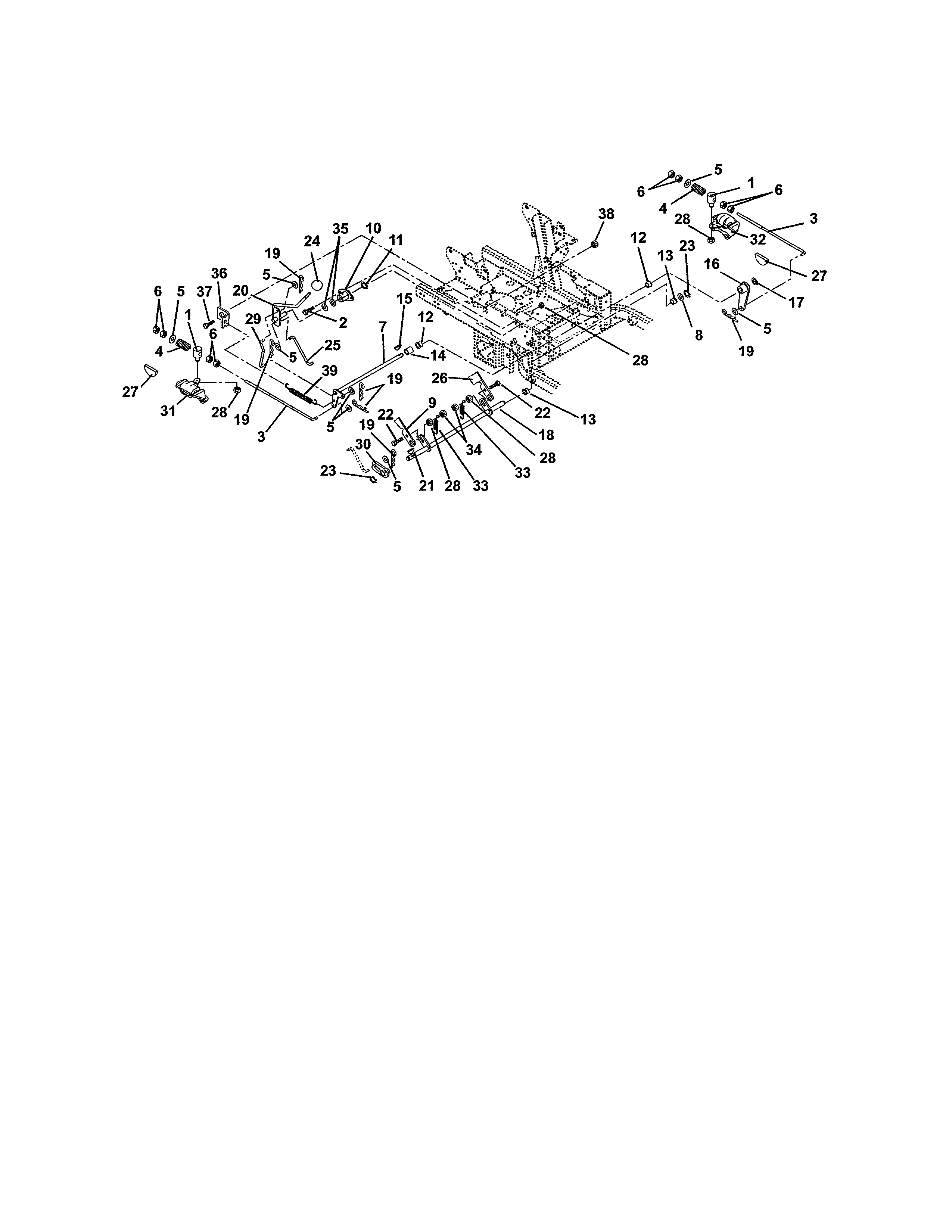

Brakes diagram

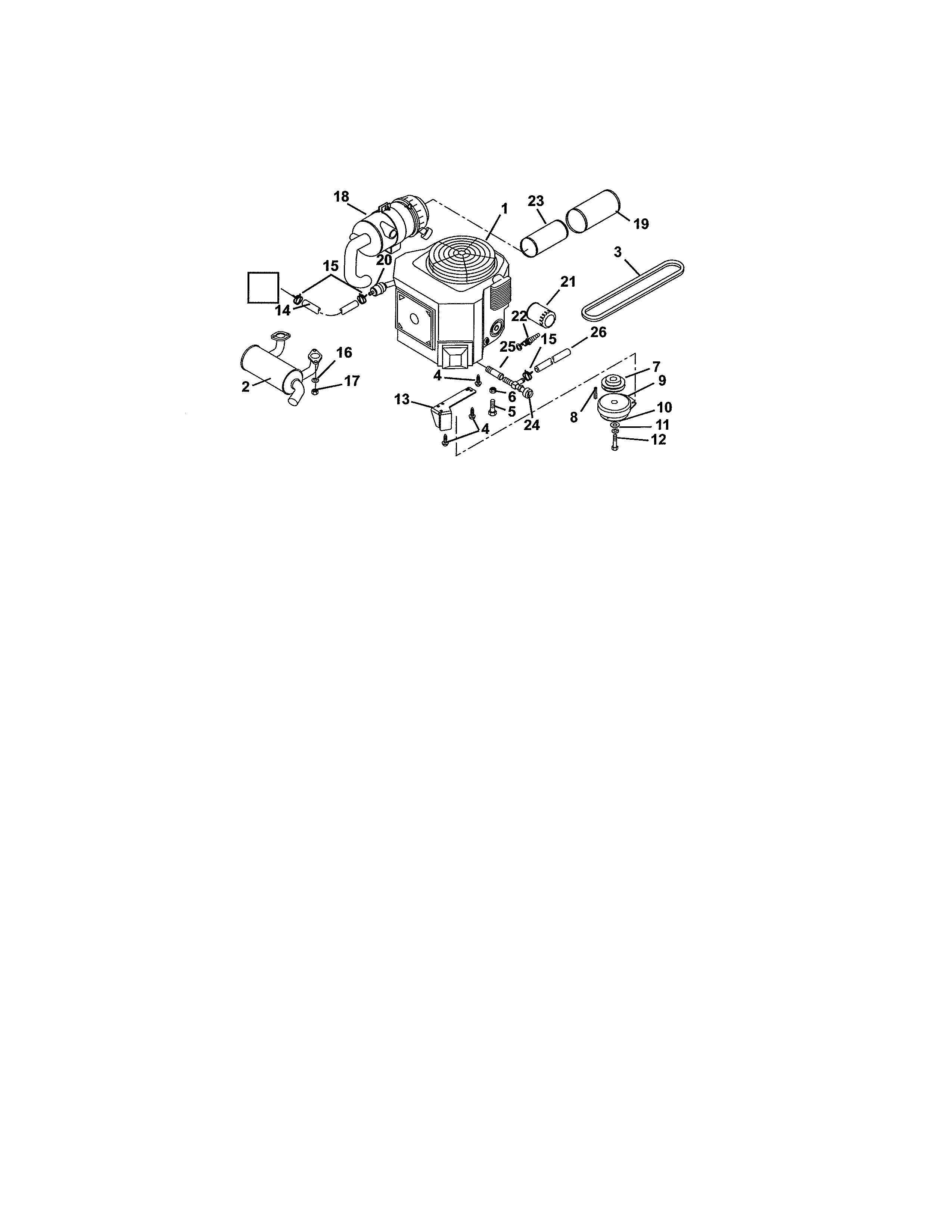

Lawn tractor engine woodruff key
Part #06608700
This item is not returnable
$6.46
In Stock

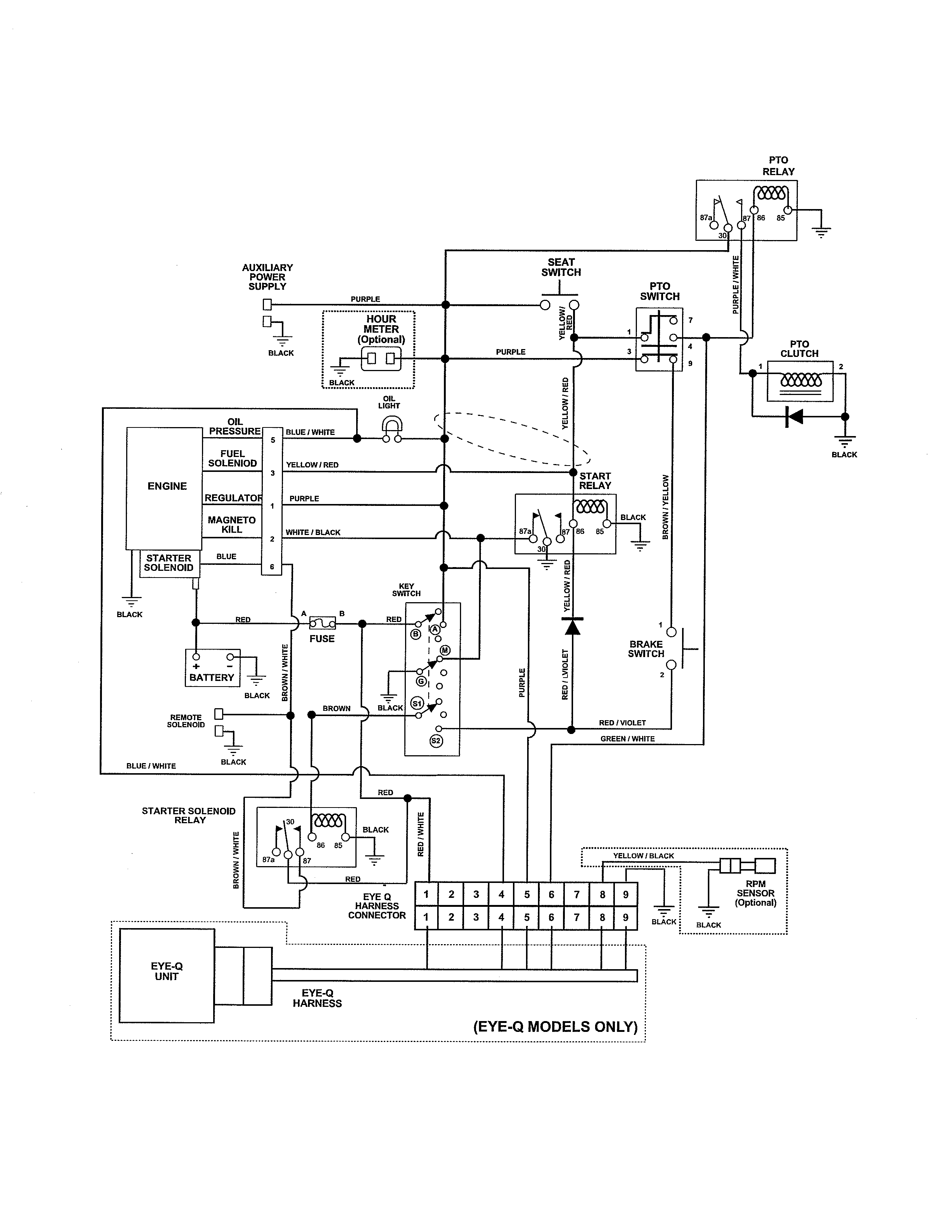

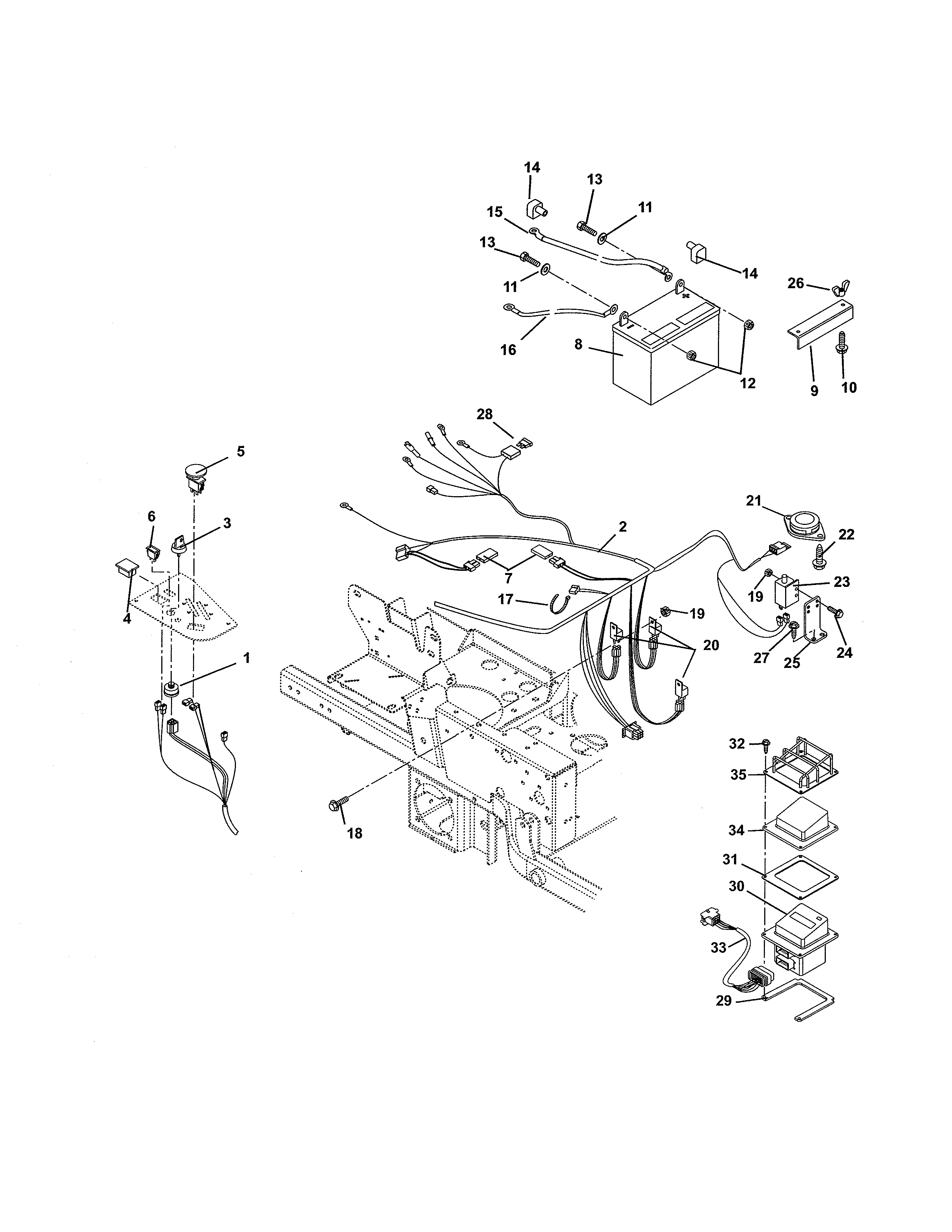

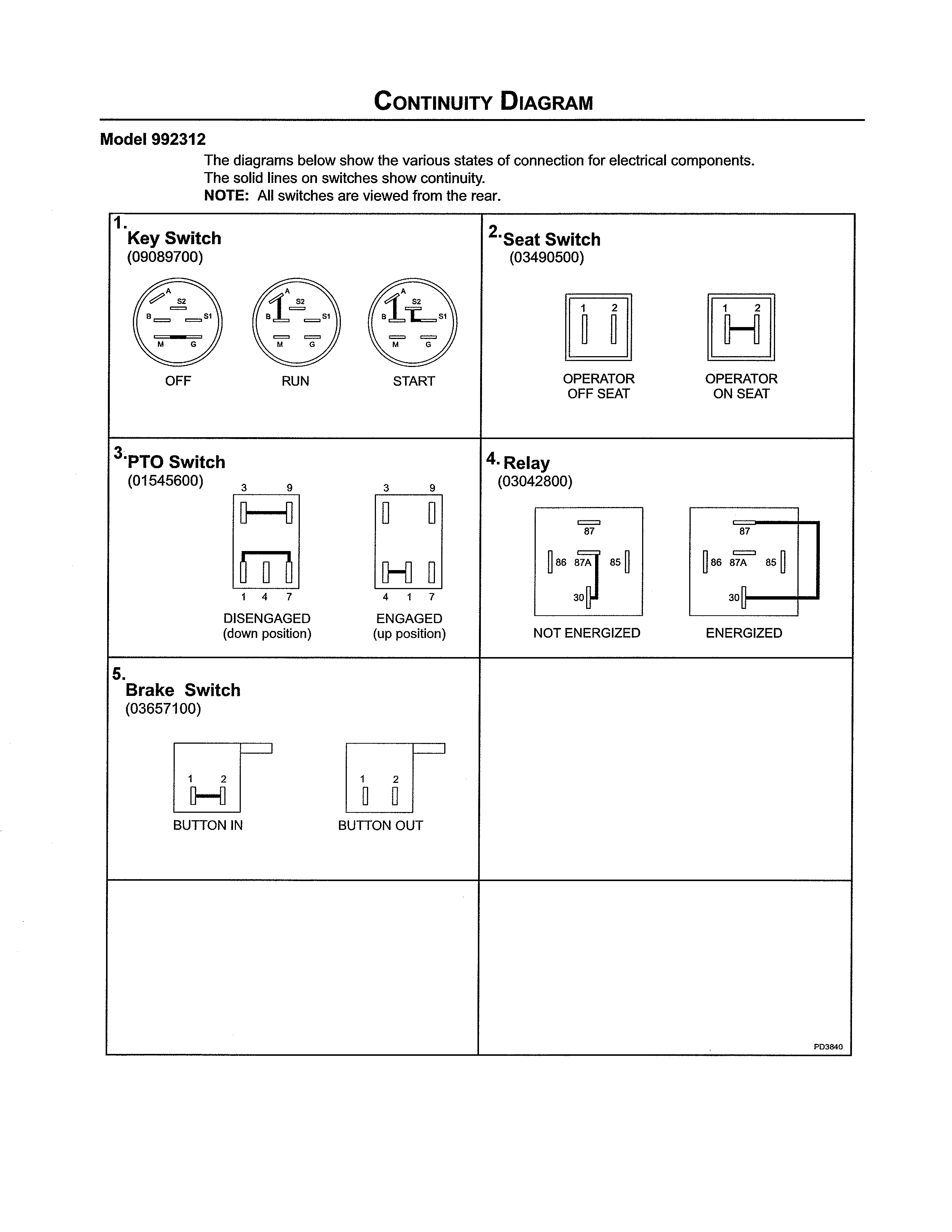

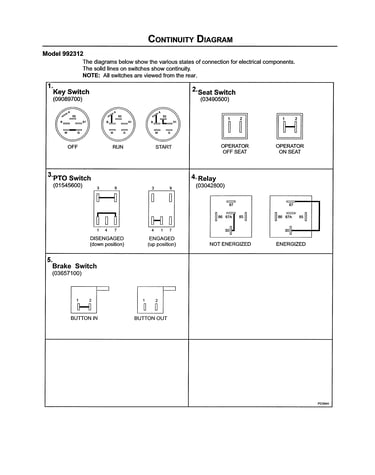

Craftsman lawn tractor pto switch
Part #01545600
$40.91
In Stock
#26
Steering controls diagram
Wave washer
Part #03704900
This item is not returnable
$4.54
In Stock
#14

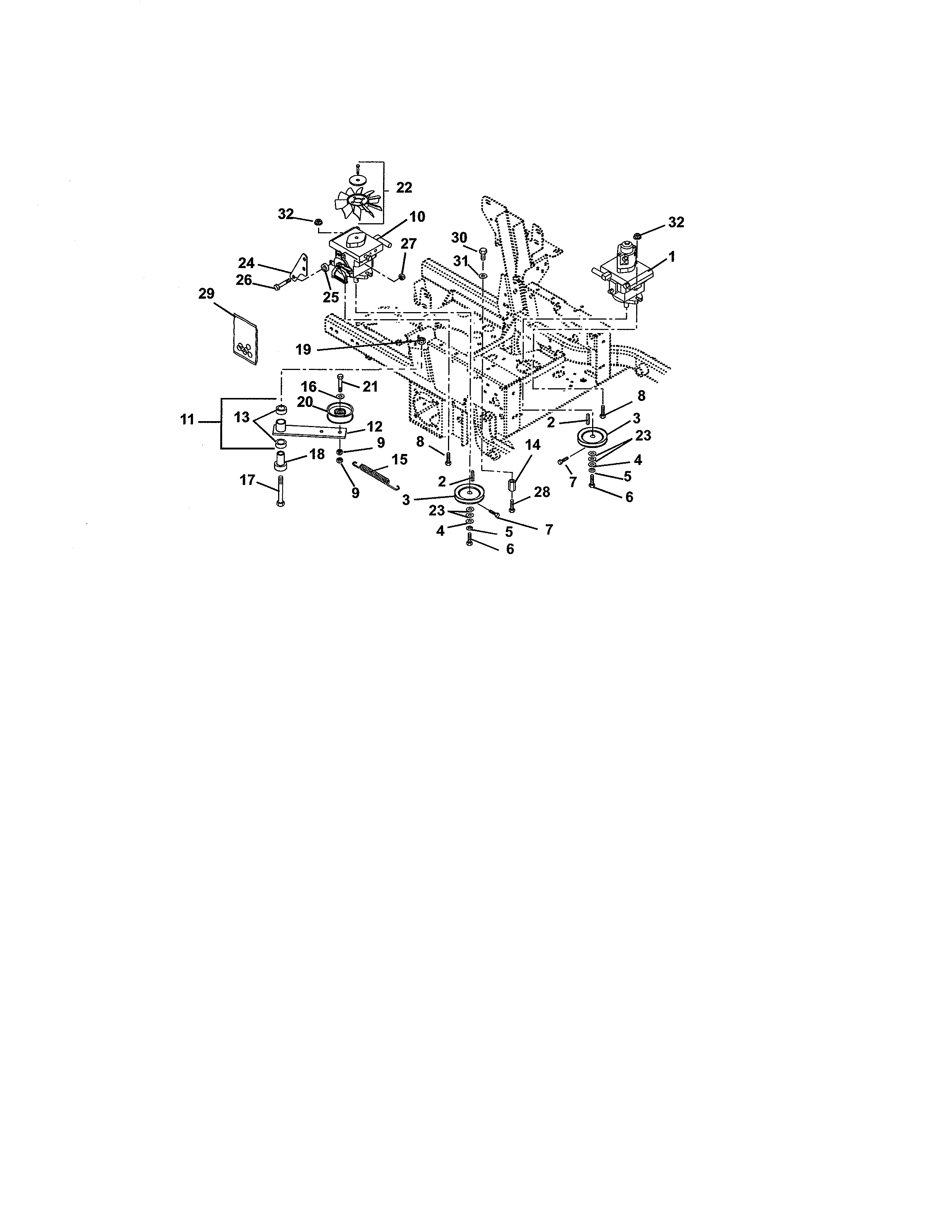

Transmission diagram
Nut coupling
Part #06533500
$8.40
In Stock
#11

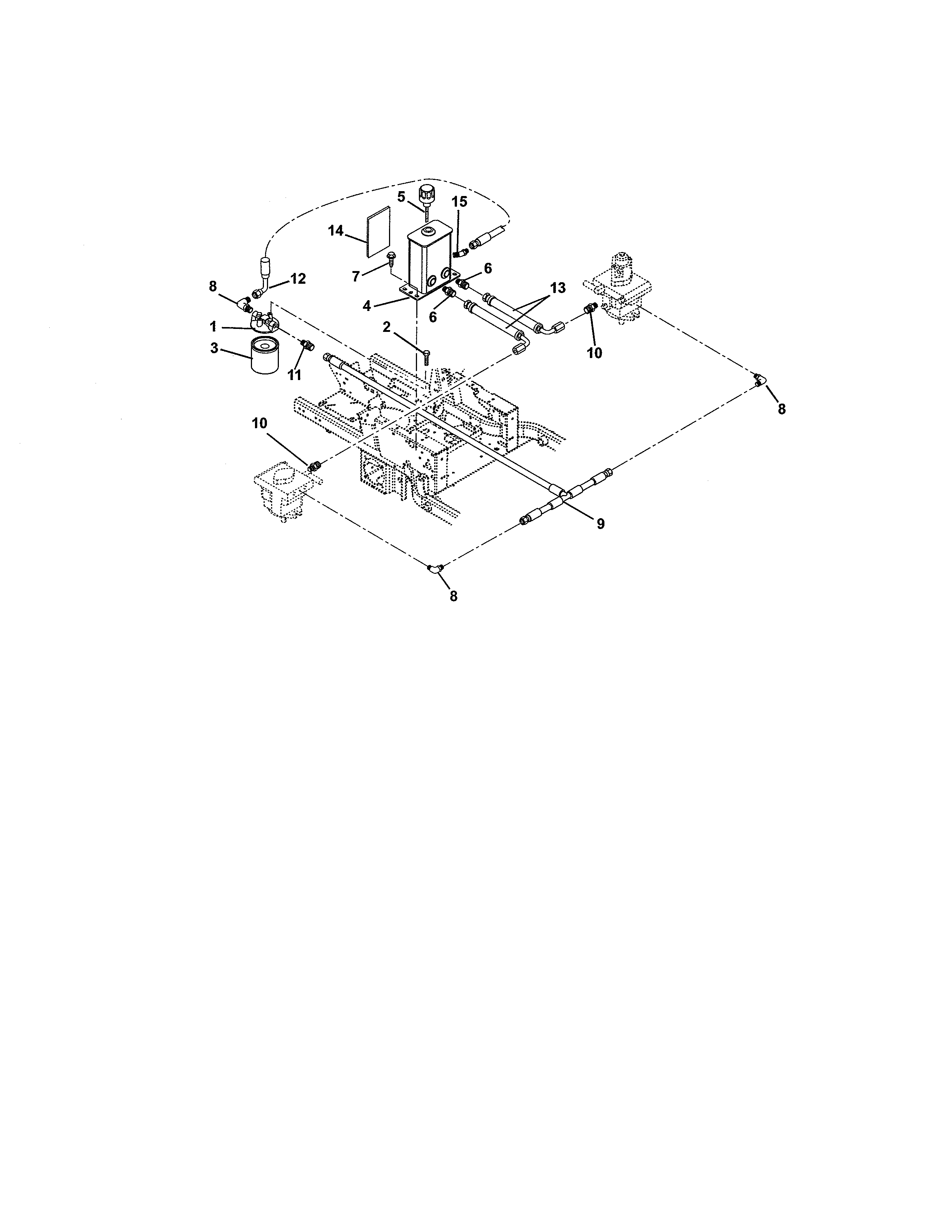

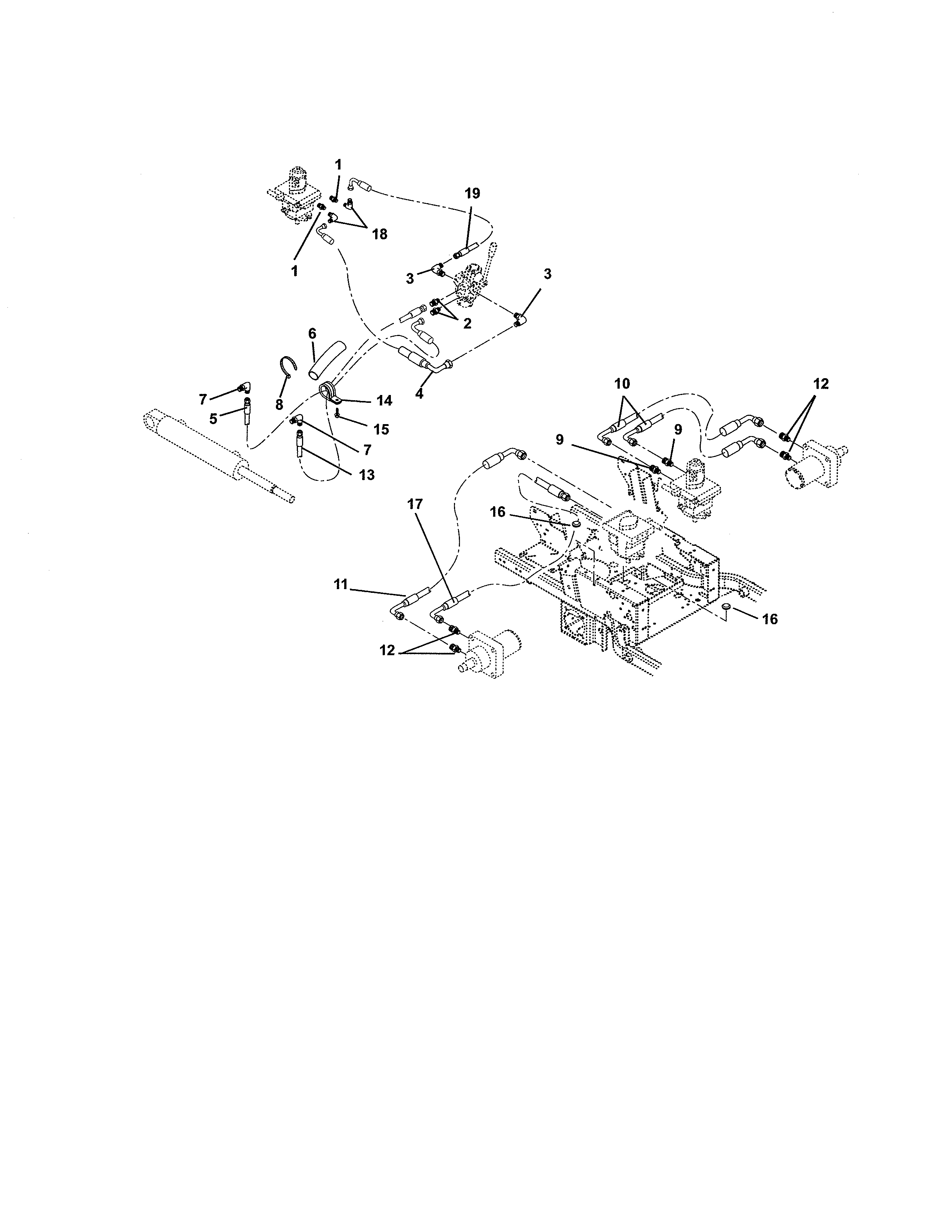

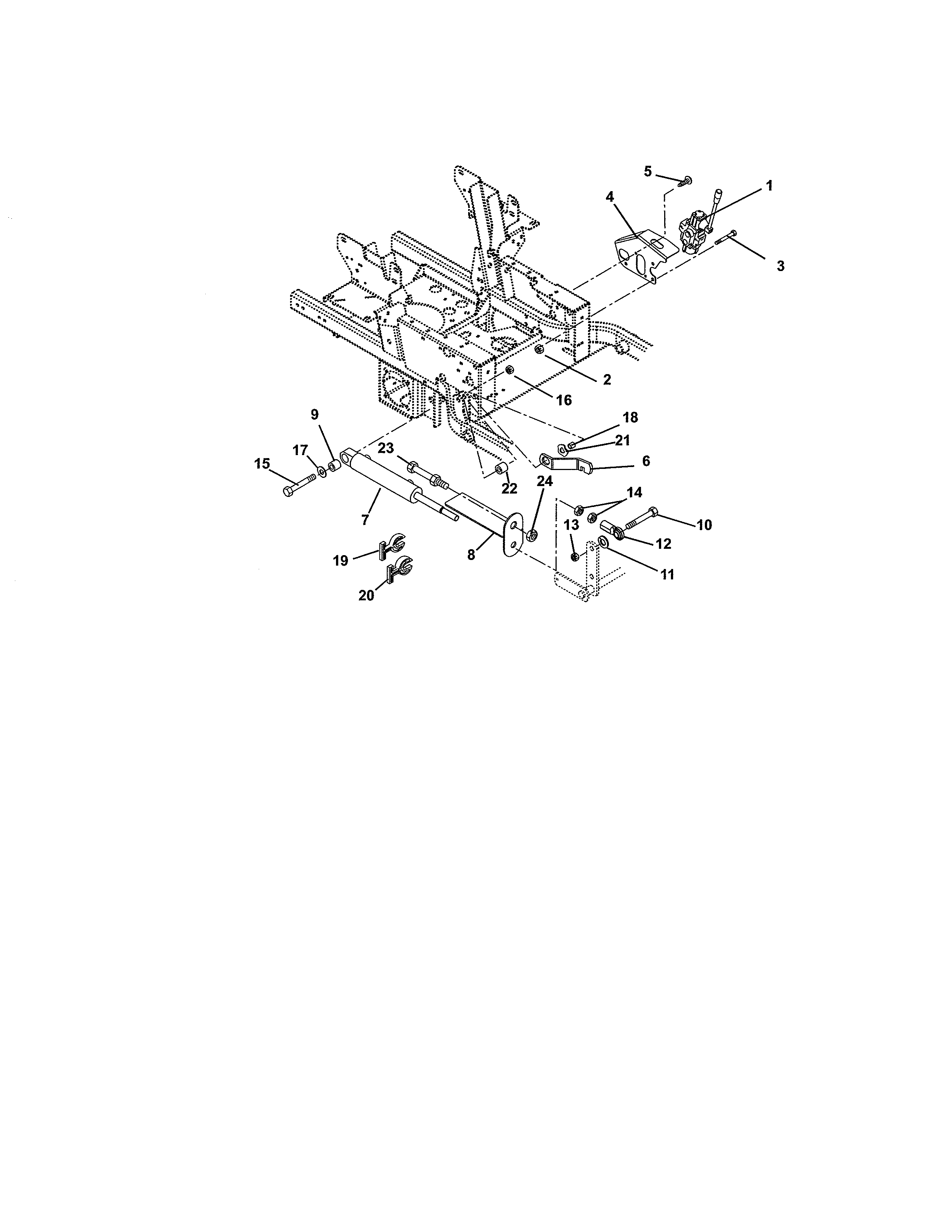

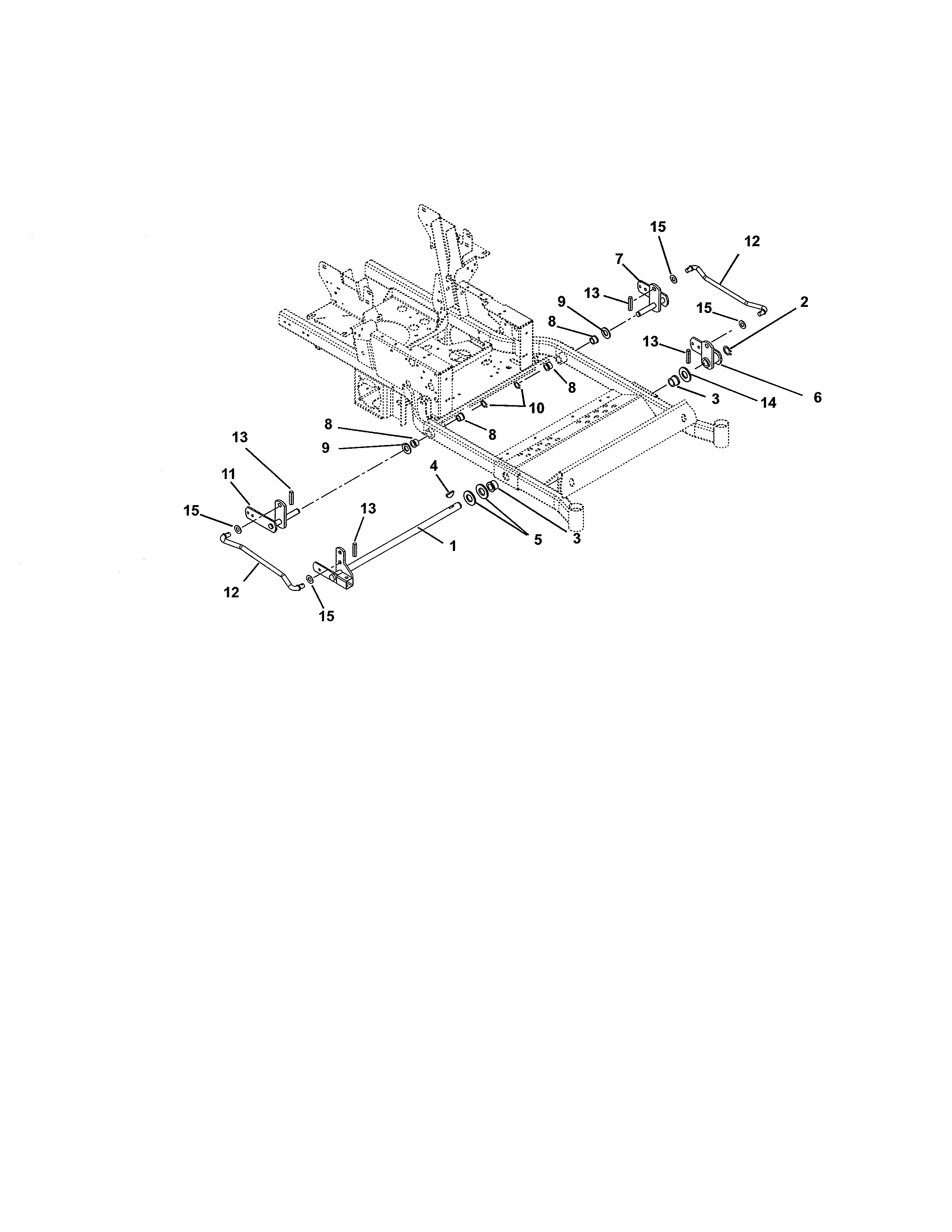

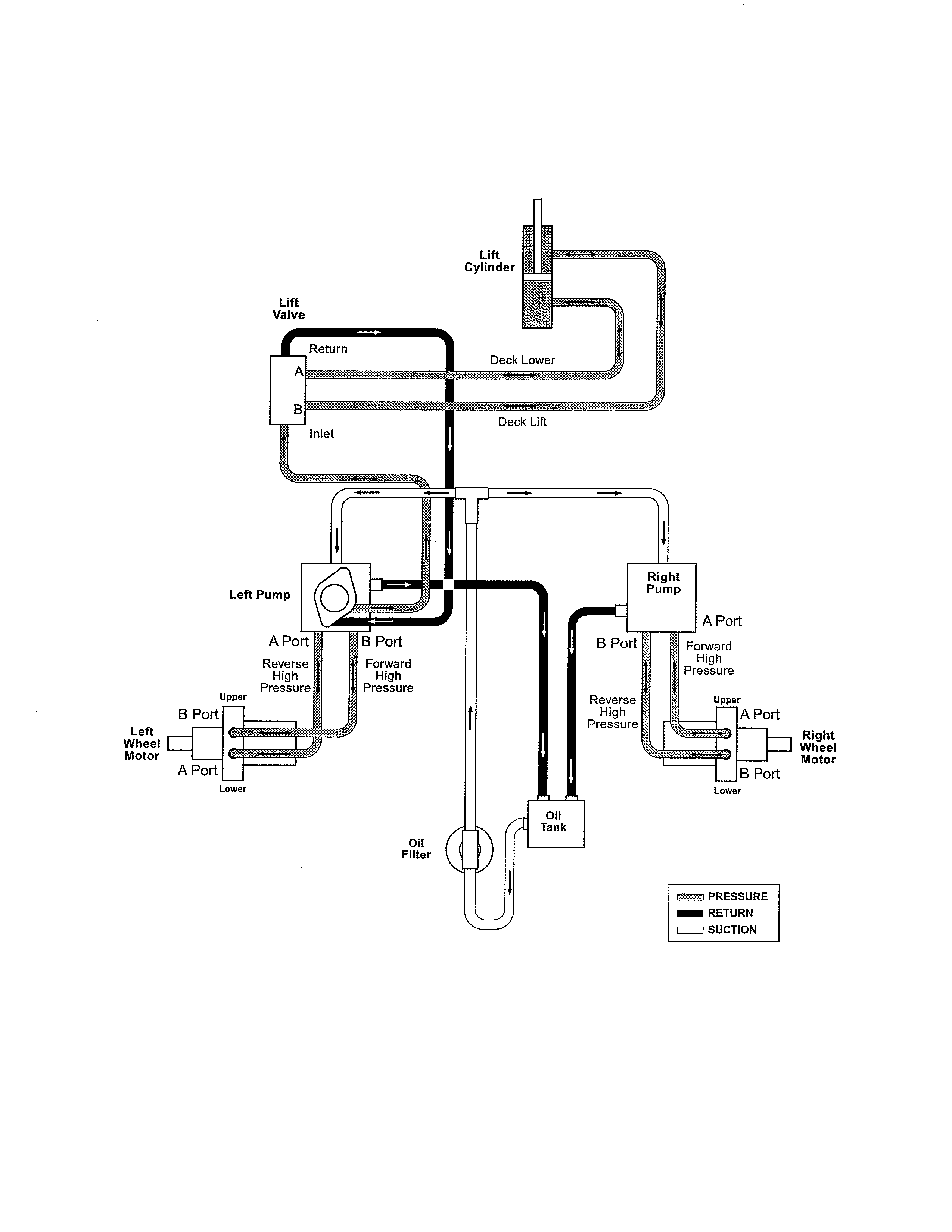

Deck lift/motors/pump circuits diagram
Hose-hyd .
Part #09281700
$221.64
In Stock
#14

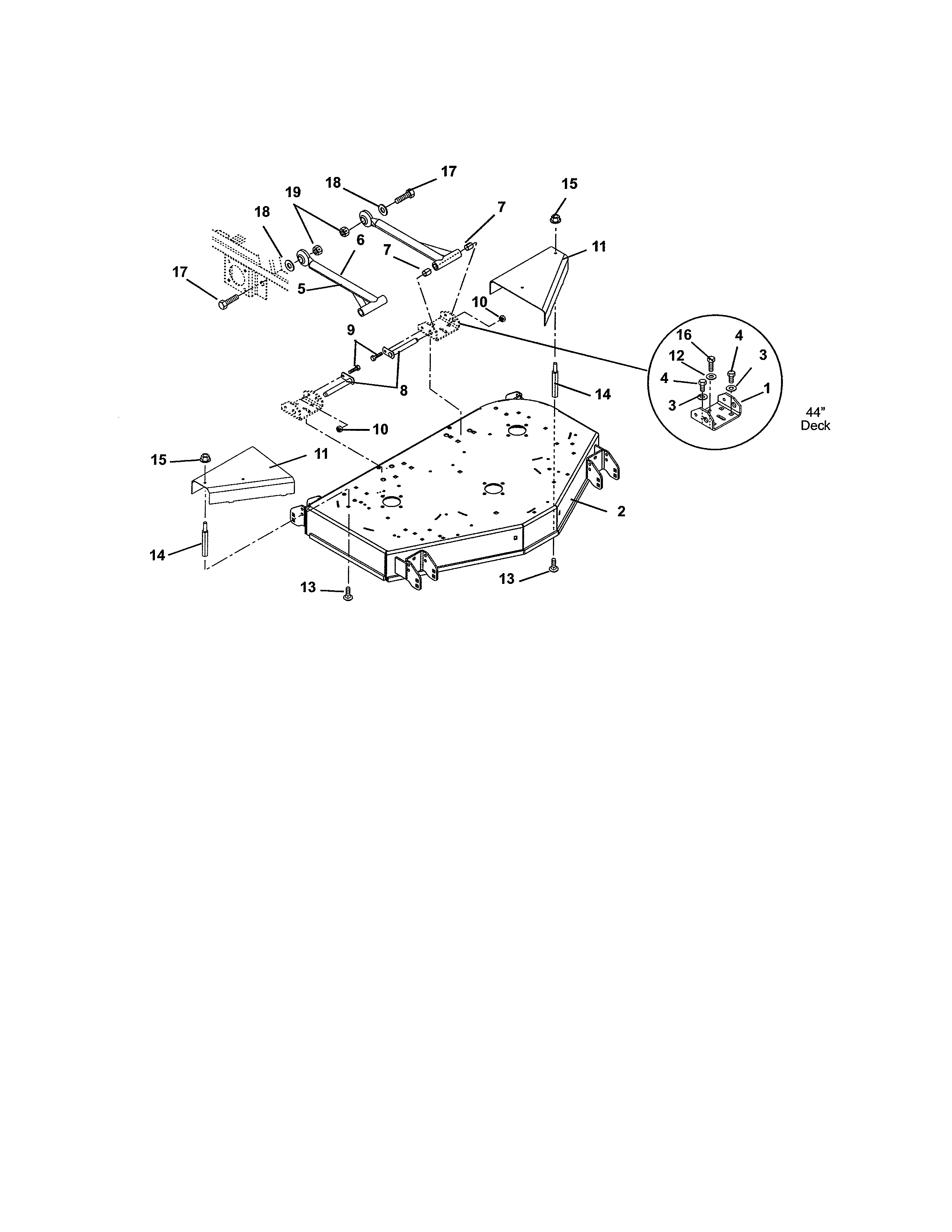

Deck/mounting arms/belt guards diagram
Ariens standoff
Part #00271200
$64.42
In Stock
#20

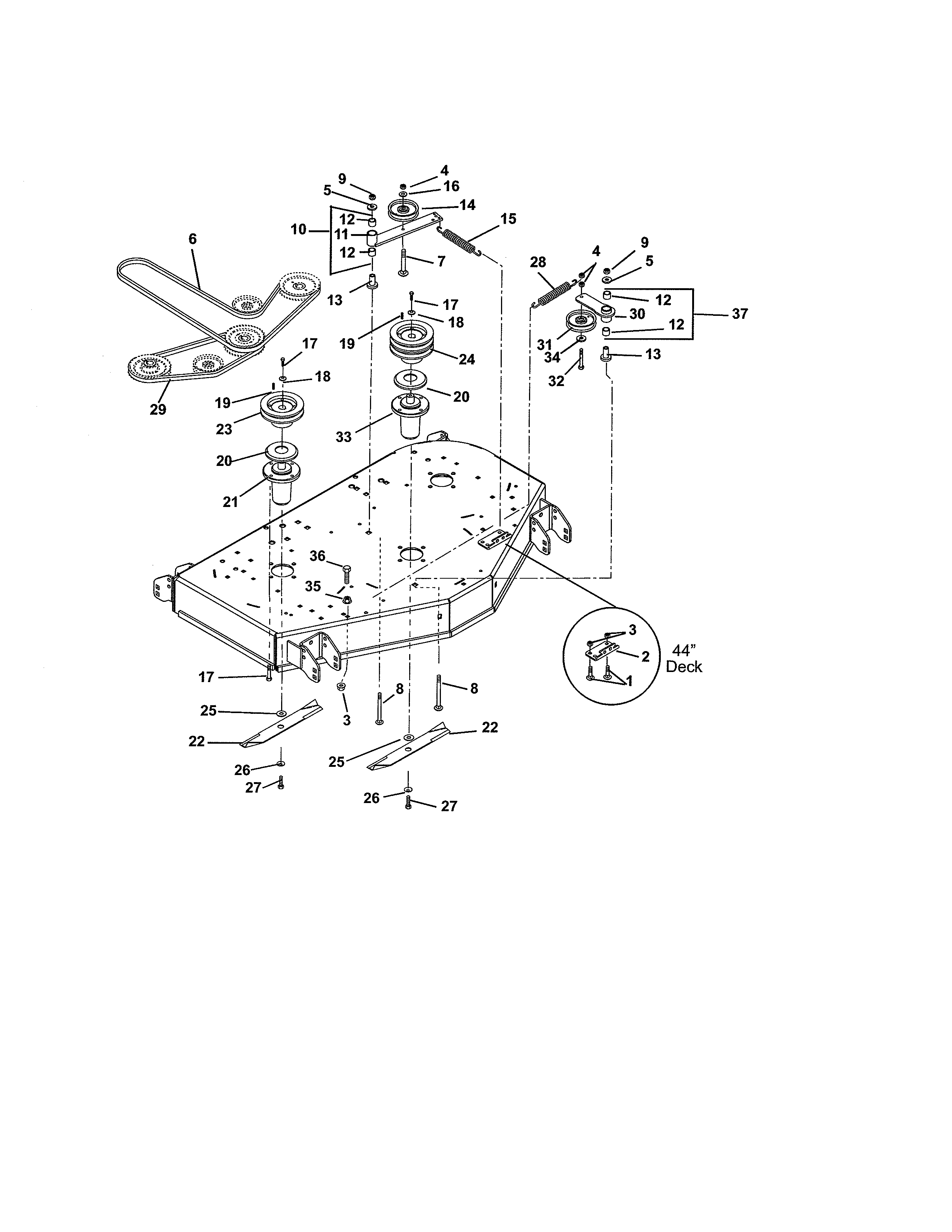

Belts/spindles/idlers/blades diagram
Slinger
Part #09238200
$32.16
In Stock
#1

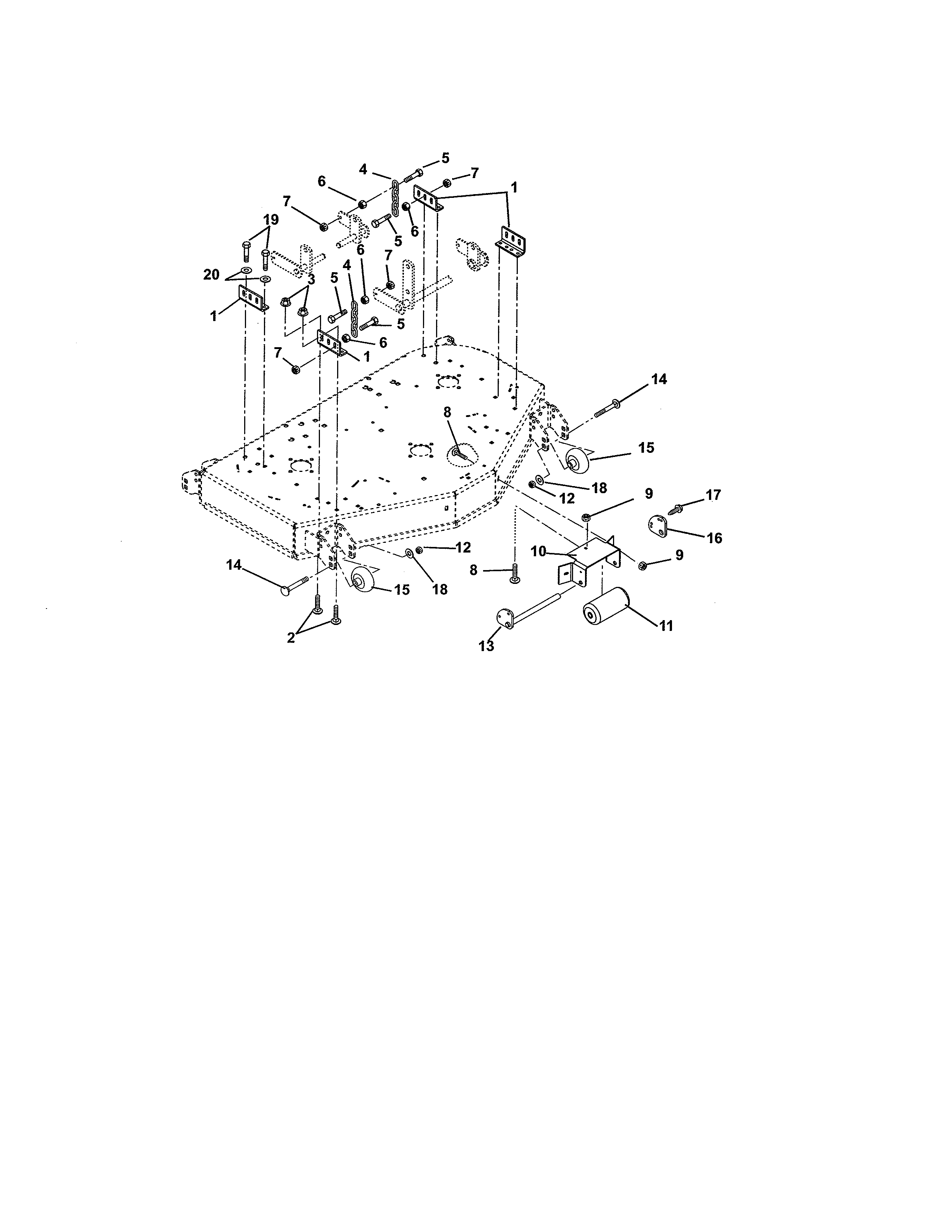

Mounting brackets/rollers diagram
Ariens bracket, mower mounting (4)
Part #09290153
$47.99
In Stock
#31
Steering controls diagram
Ariens lock nut
Part #06541700
This item is not returnable
$2.16
In Stock
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: faulty battery, bad alternator…
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Main causes: clogged carburetor, damaged flywheel key, dirty spark plug, stale fuel, improper valve lash, engine needs a…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
