Hotpoint
Top-Mount Refrigerator

Model # CTFM15VBFR Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTFM15VBFR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Refrigerator Ice Maker WR30X199
#820

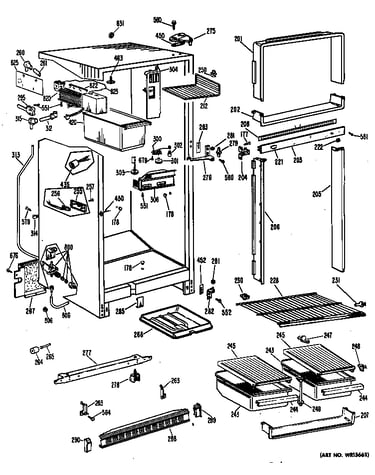

Chassis diagram

Refrigerator ice maker

Part #WR30X199

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X199. Substitute parts can look different from the original.
BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Light Switch WR23X193
#609

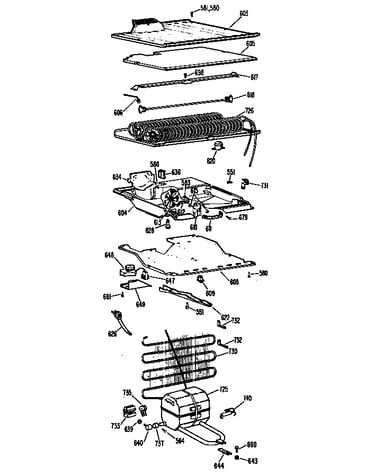

Unit diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Water Line WR17X1059
#806

Chassis diagram

Refrigerator water line

Part #WR17X1059

Replaced by #WR17X1948

?
Manufacturer substitution
This part replaces WR17X1059. Substitute parts can look different from the original.
This item is not returnable
$10.84 |
16% OFF Phone Price : $12.84
In Stock
Power Cord WR23X108
#626B

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Washer Su WR2X7099
#644A

Unit diagram

Washer su

Part #WR2X7099

This item is not returnable
$2.16
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
#613B

Unit diagram

Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Water Tube Nut, 1/4-in WR57X57

#NI

All parts diagram

Refrigerator water tube nut, 1/4-in

Part #WR57X57

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Refrigerator Ice Maker Water Supply Tube Clamp WR2X4039

#NI

All parts diagram

Refrigerator ice maker water supply tube clamp

Part #WR2X4039

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Clamp Fill Tube WR1X5223

#NI

All parts diagram

Refrigerator clamp fill tube

Part #WR1X5223

Replaced by #WR2X4754

?
Manufacturer substitution
This part replaces WR1X5223. Substitute parts can look different from the original.
$7.87 |
11% OFF Phone Price : $8.87
In Stock
