Model # AJCH10ACBW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCH10ACBW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

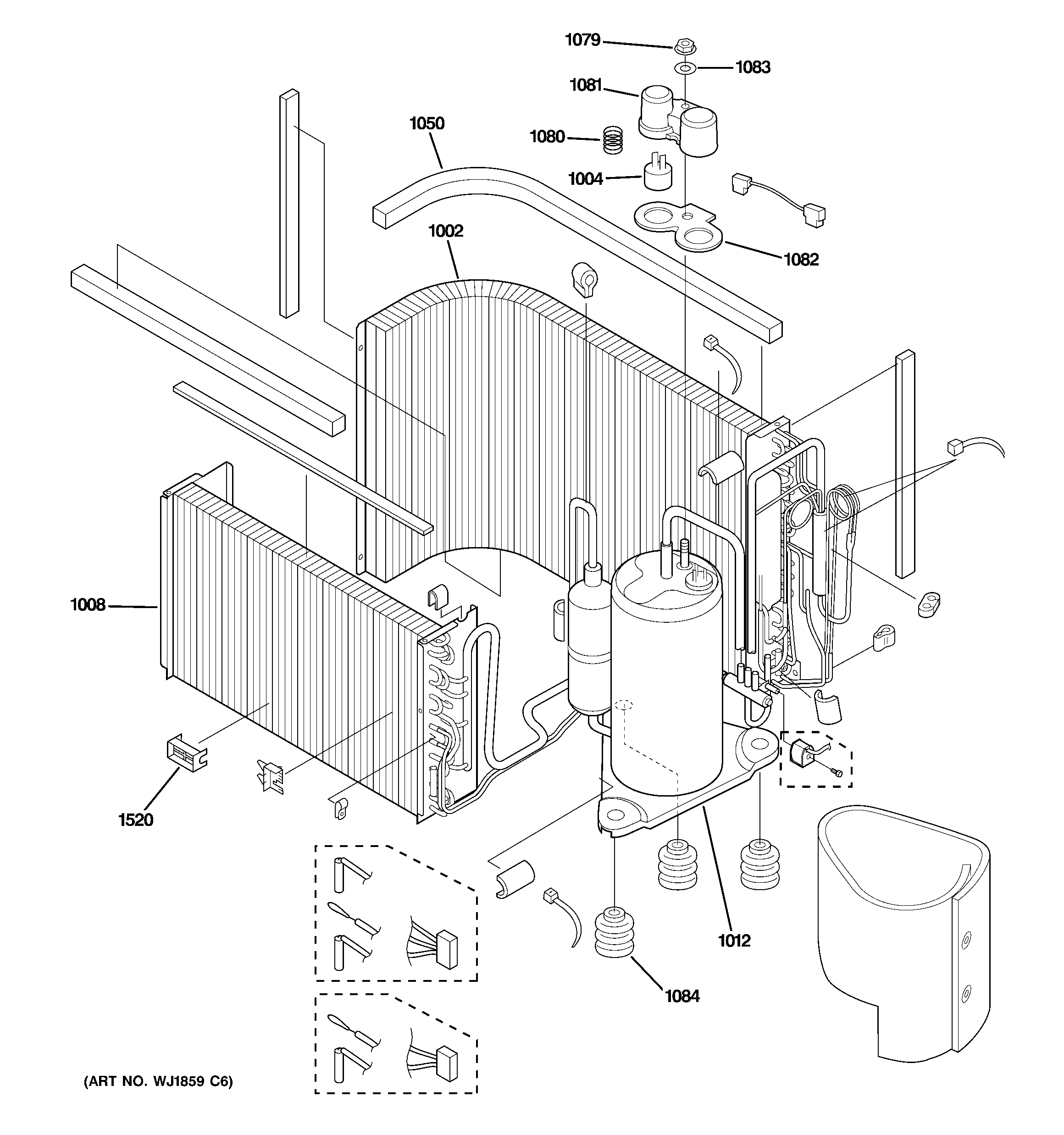

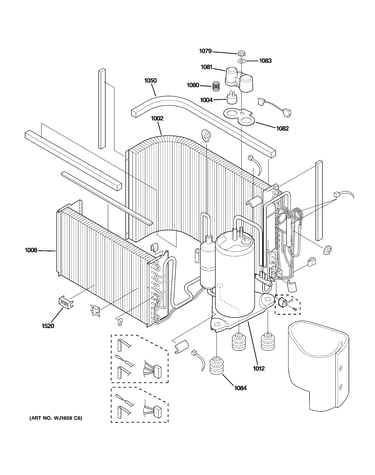

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Special Screw WP01X10021
#1440

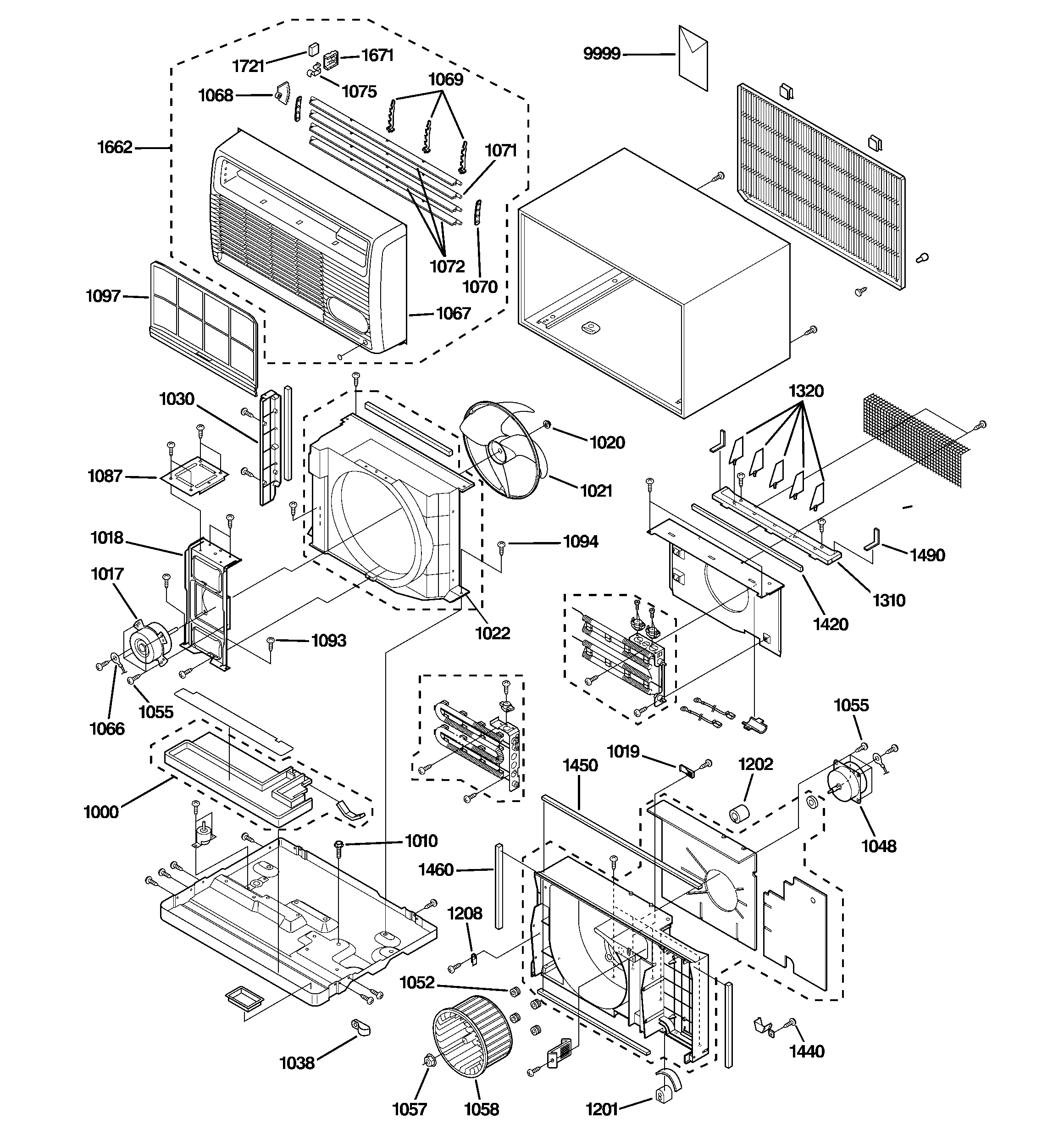

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

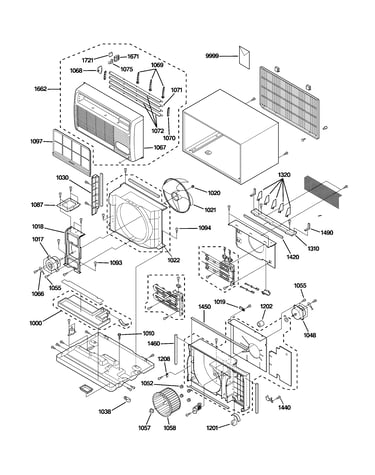

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Room Air Conditioner Control Knob WJ12X10072
#1086

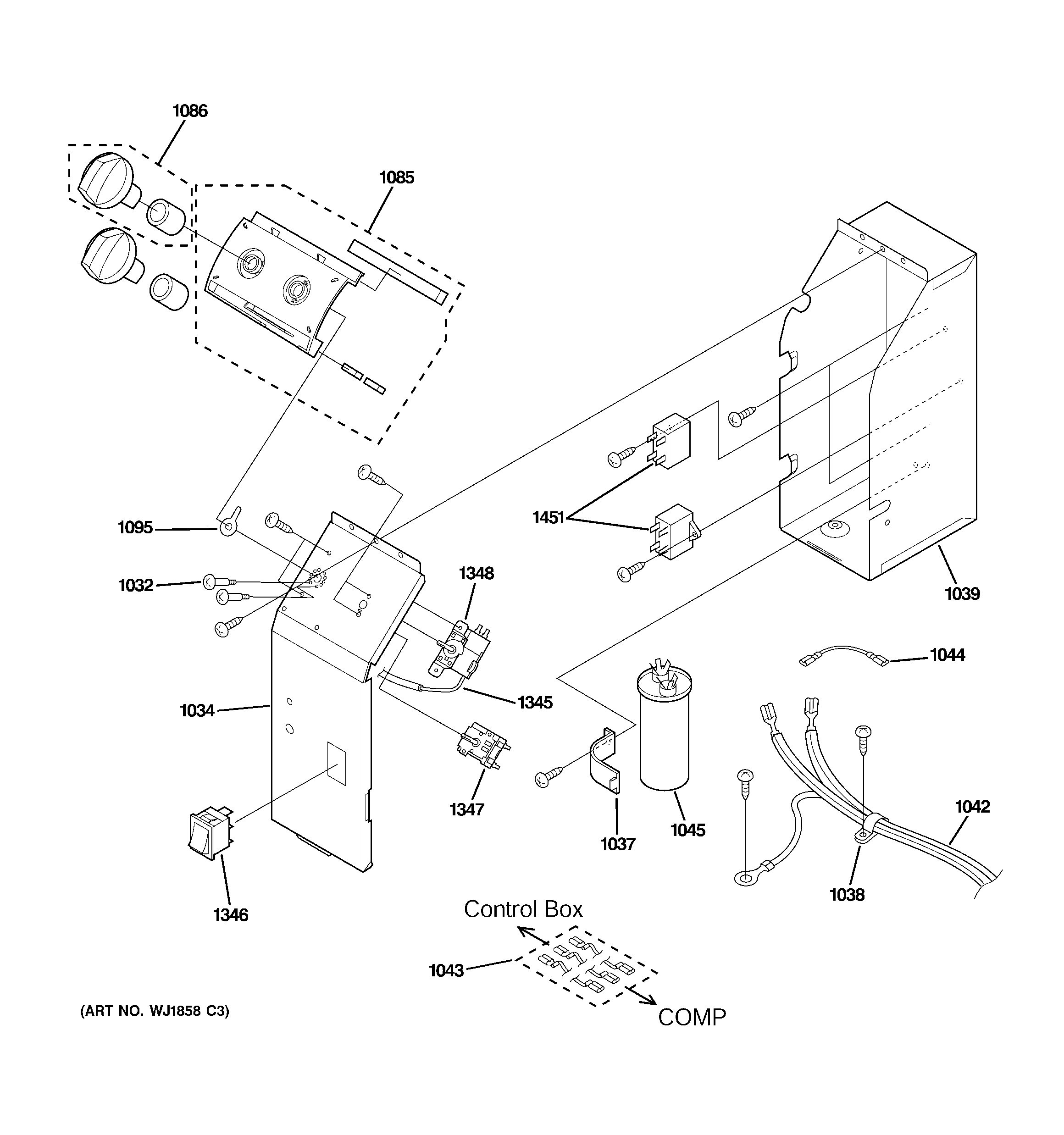

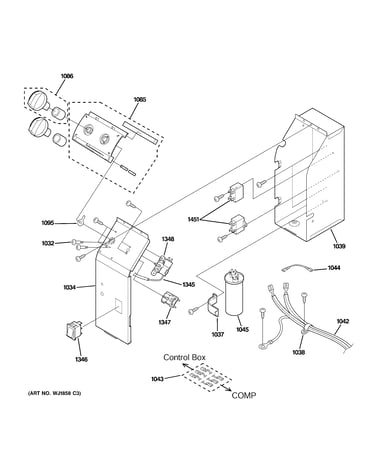

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Ge "j" Model 49-7512
#9999

Cabinet & components diagram

Ge "j" model

Part #49-7512

Replaced by #49-7535

?
Manufacturer substitution
This part replaces 49-7512. Substitute parts can look different from the original.
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Indoor Fan Motor WJ94X10227
#1048

Cabinet & components diagram

Indoor fan motor

Part #WJ94X10227

The manufacturer no longer makes this part, and there's no substitute part

Control Box WJ76X10174
#1039

Control parts diagram

Control box

Part #WJ76X10174

The manufacturer no longer makes this part, and there's no substitute part

Control Box WJ79X10061
#1034

Control parts diagram

Control box

Part #WJ79X10061

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire WJ37X10001
#1066

Cabinet & components diagram

Lead wire

Part #WJ37X10001

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Condenser Fan Blade WJ73X10123
#1021

Cabinet & components diagram

Room air conditioner condenser fan blade

Part #WJ73X10123

The manufacturer no longer makes this part, and there's no substitute part

Motor Cushion WP01X10012
#1052

Cabinet & components diagram

Motor cushion

Part #WP01X10012

The manufacturer no longer makes this part, and there's no substitute part
