Panasonic
Countertop Microwave

Model # NN-T990SA Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-T990SA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

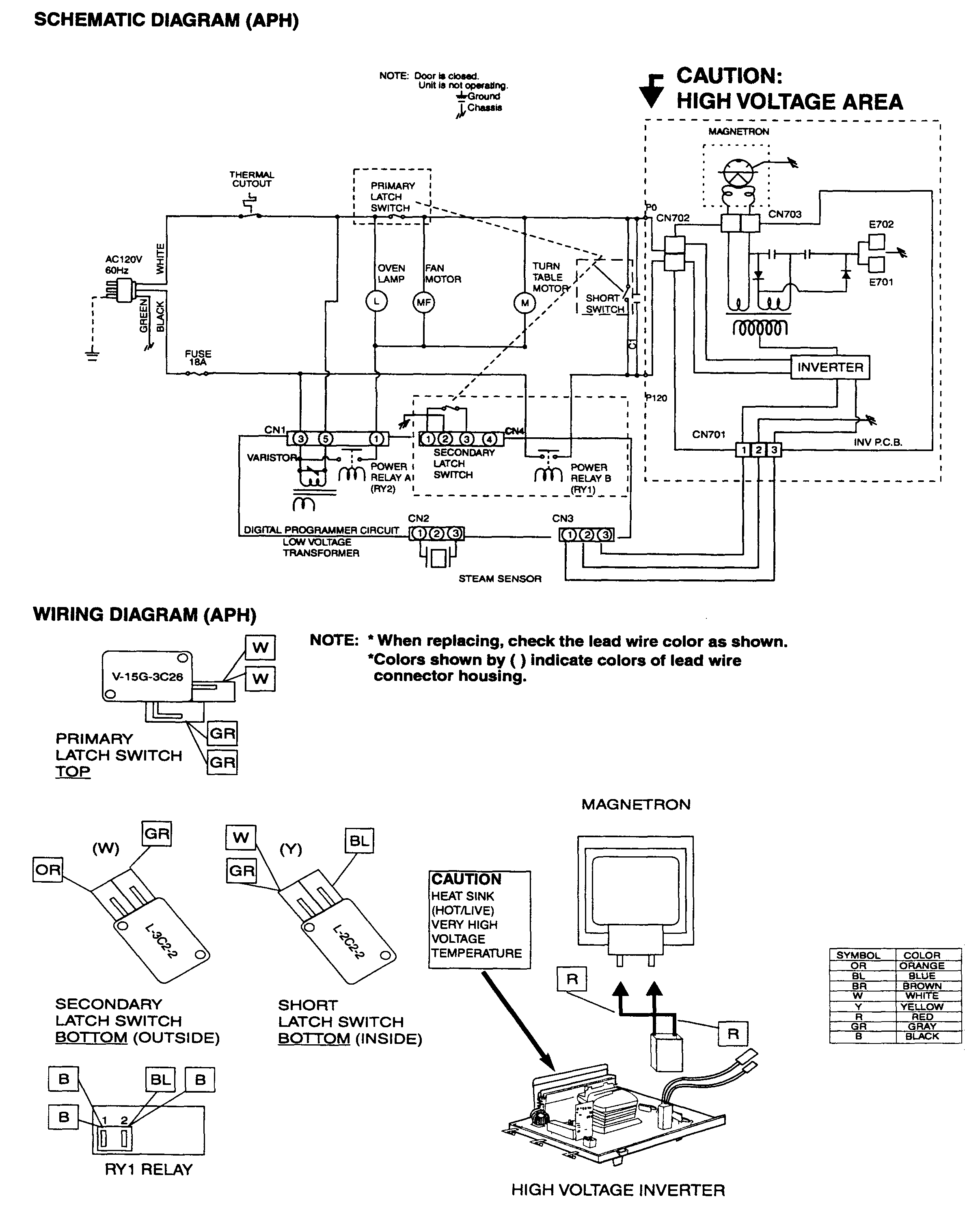

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Roller Ring B290D4M00AP
#12

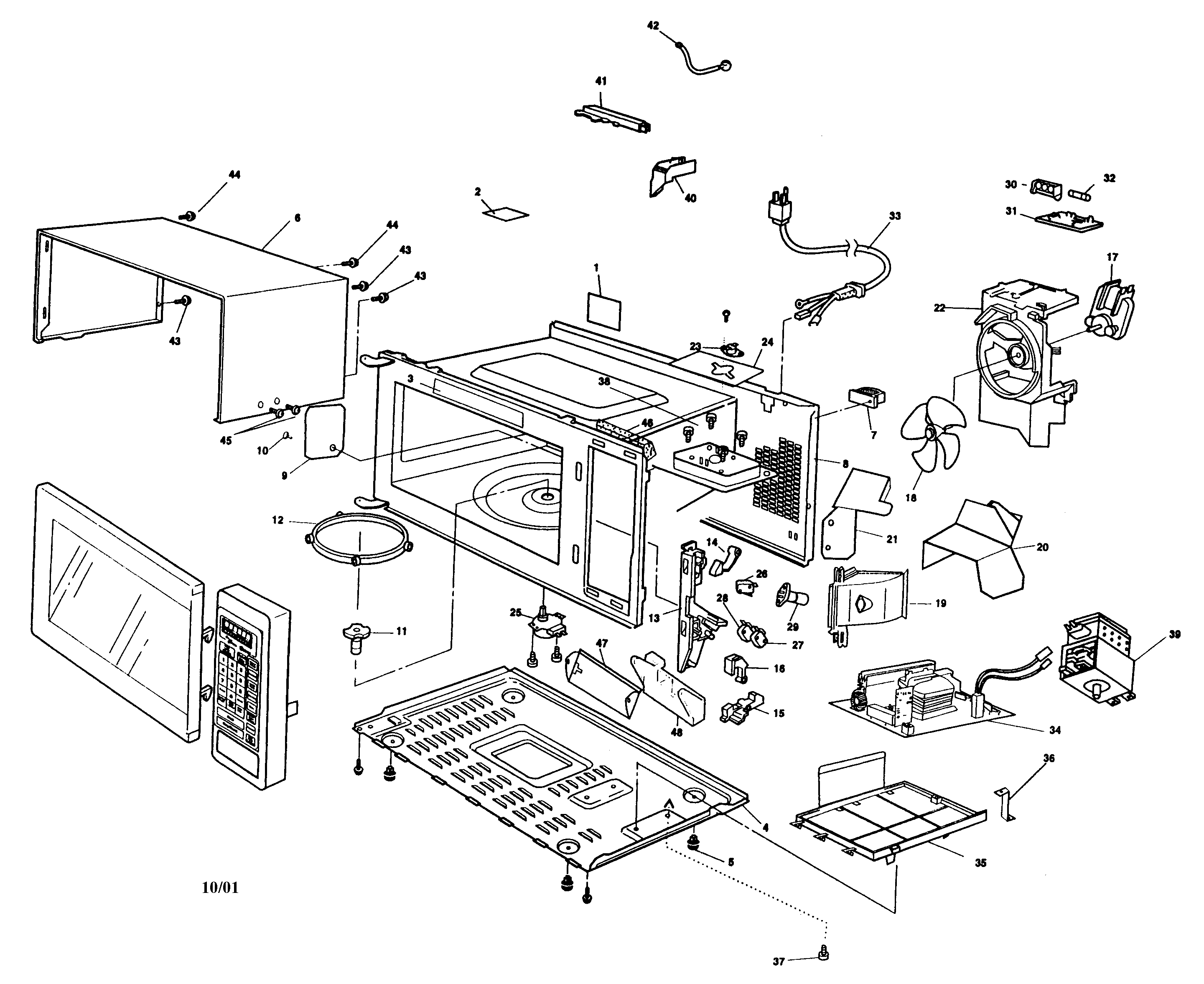

Cabinet parts diagram

Roller ring

Part #B290D4M00AP

Replaced by #F290D9330AP

?
Manufacturer substitution
This part replaces B290D4M00AP. Substitute parts can look different from the original.
$15.79 |
11% OFF Phone Price : $17.79
In Stock
Panasonic Inverter A606Y4T00AP
#34

Cabinet parts diagram

Panasonic inverter

Part #A606Y4T00AP

$199.39 |
6% OFF Phone Price : $211.39
In Stock
Cooking Tray A06014W00AP
#NI

Cabinet parts diagram

Cooking tray

Part #A06014W00AP

Replaced by #F06014M00AP

?
Manufacturer substitution
This part replaces A06014W00AP. Substitute parts can look different from the original.
$63.09 |
9% OFF Phone Price : $69.09
In Stock
Lever B82567630AP
#E6

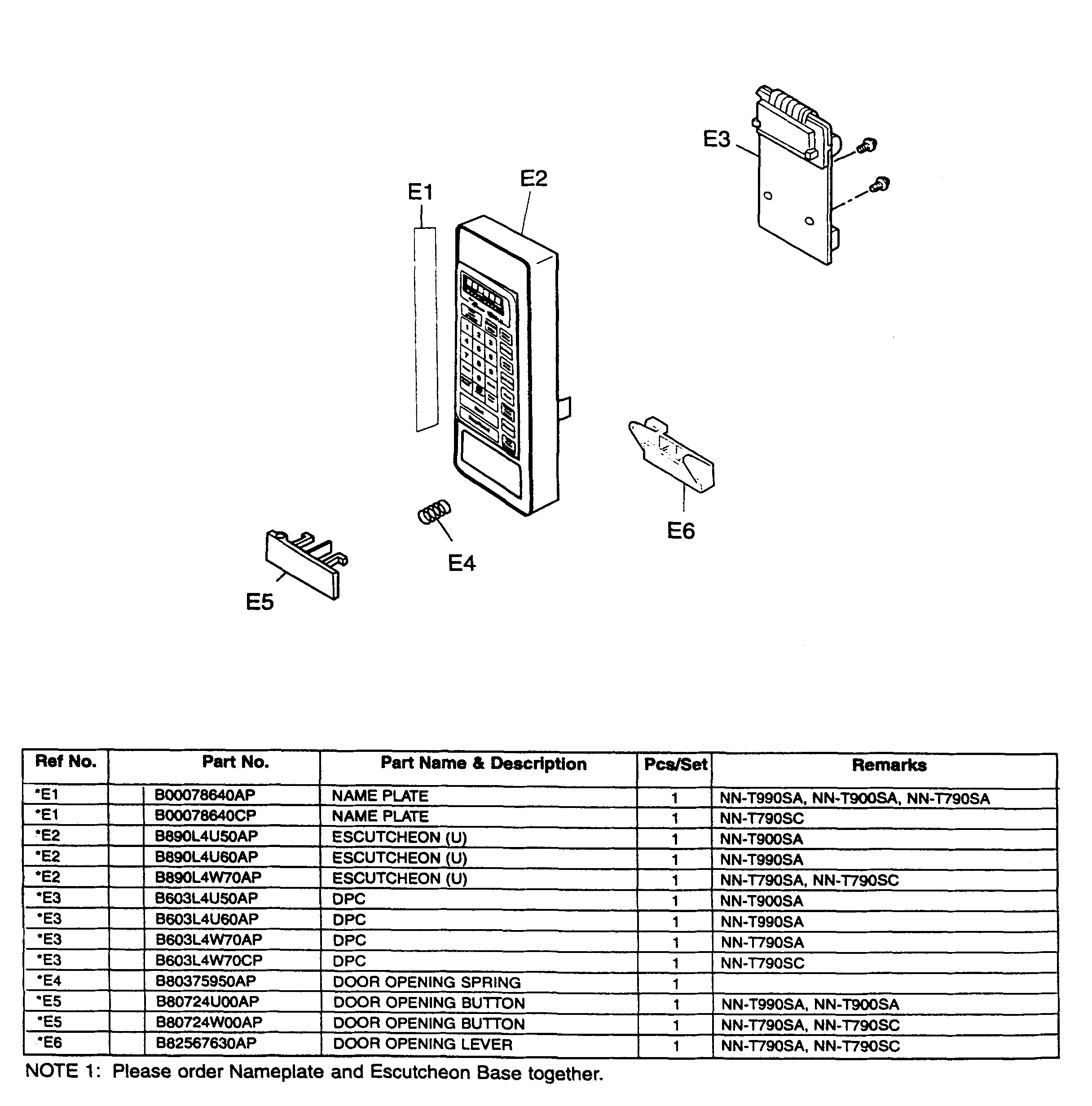

Escutcheon base assy diagram

Lever

Part #B82567630AP

Replaced by #F82564W00AP

?
Manufacturer substitution
This part replaces B82567630AP. Substitute parts can look different from the original.
This item is not returnable
$7.95
In Stock
Switch A61785180AP
#28

Cabinet parts diagram

Switch

Part #A61785180AP

Replaced by #501213

?
Manufacturer substitution
This part replaces A61785180AP. Substitute parts can look different from the original.
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Panasonic Door E B302K4U00AP
#D4

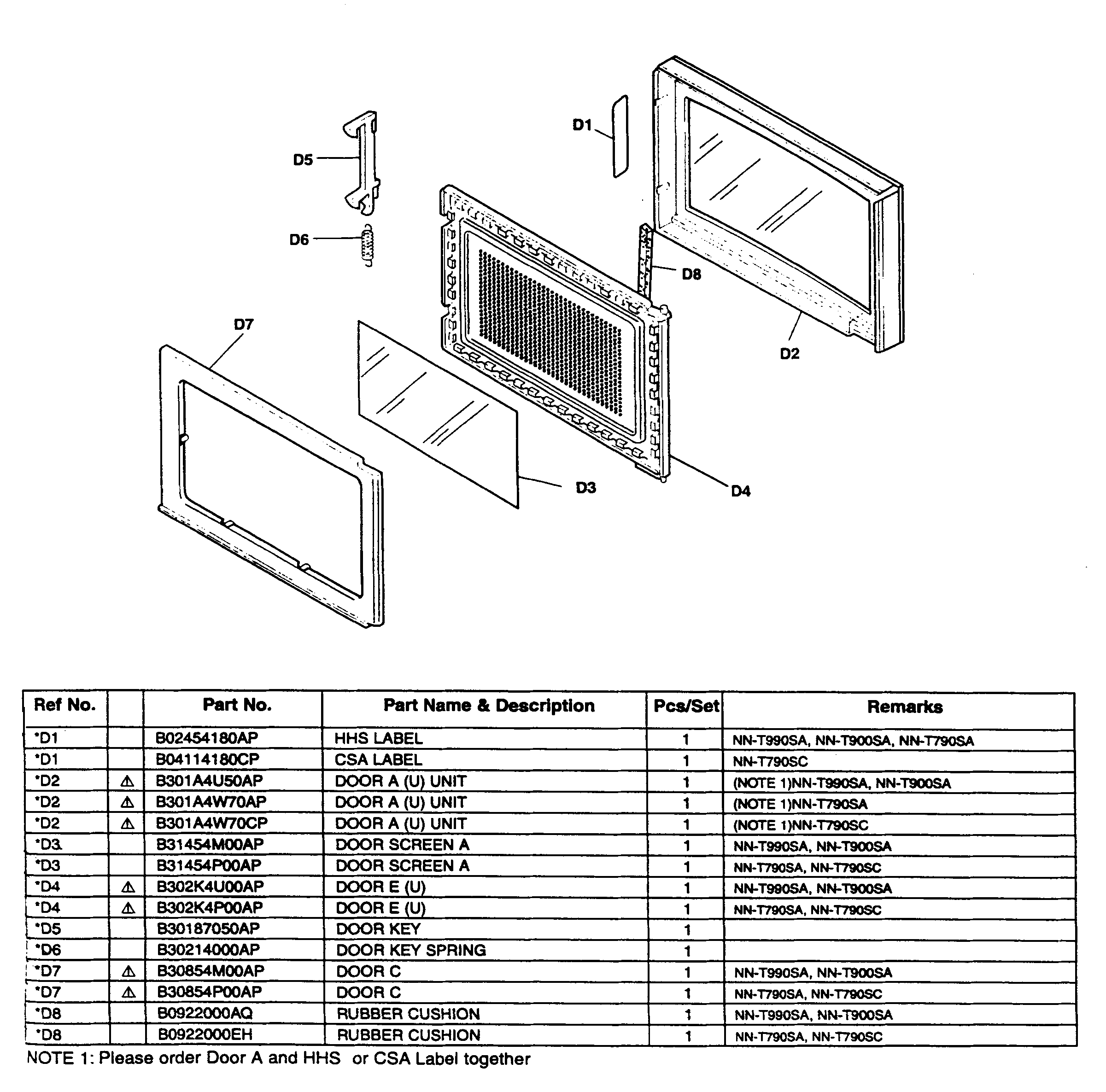

Door assy diagram

Panasonic door e

Part #B302K4U00AP

$73.49
In Stock
Panasonic Grnd Plate B66624U00AP
#36

Cabinet parts diagram

Panasonic grnd plate

Part #B66624U00AP

This item is not returnable
$2.99
In Stock
Panasonic Sensor A607S4M00AP
#42

Cabinet parts diagram

Panasonic sensor

Part #A607S4M00AP

$24.17
In Stock
Panasonic Door C B30854P00AP
#D7A

Door assy diagram

Panasonic door c

Part #B30854P00AP

$20.57
In Stock
Panasonic Cover B20554U00AP
#9

Cabinet parts diagram

Panasonic cover

Part #B20554U00AP

$15.42
In Stock
