LG
Side-By-Side Refrigerator

Model # LRSPC2031BS Official LG side-by-side refrigerator

Here are the diagrams and repair parts for Official LG LRSPC2031BS side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

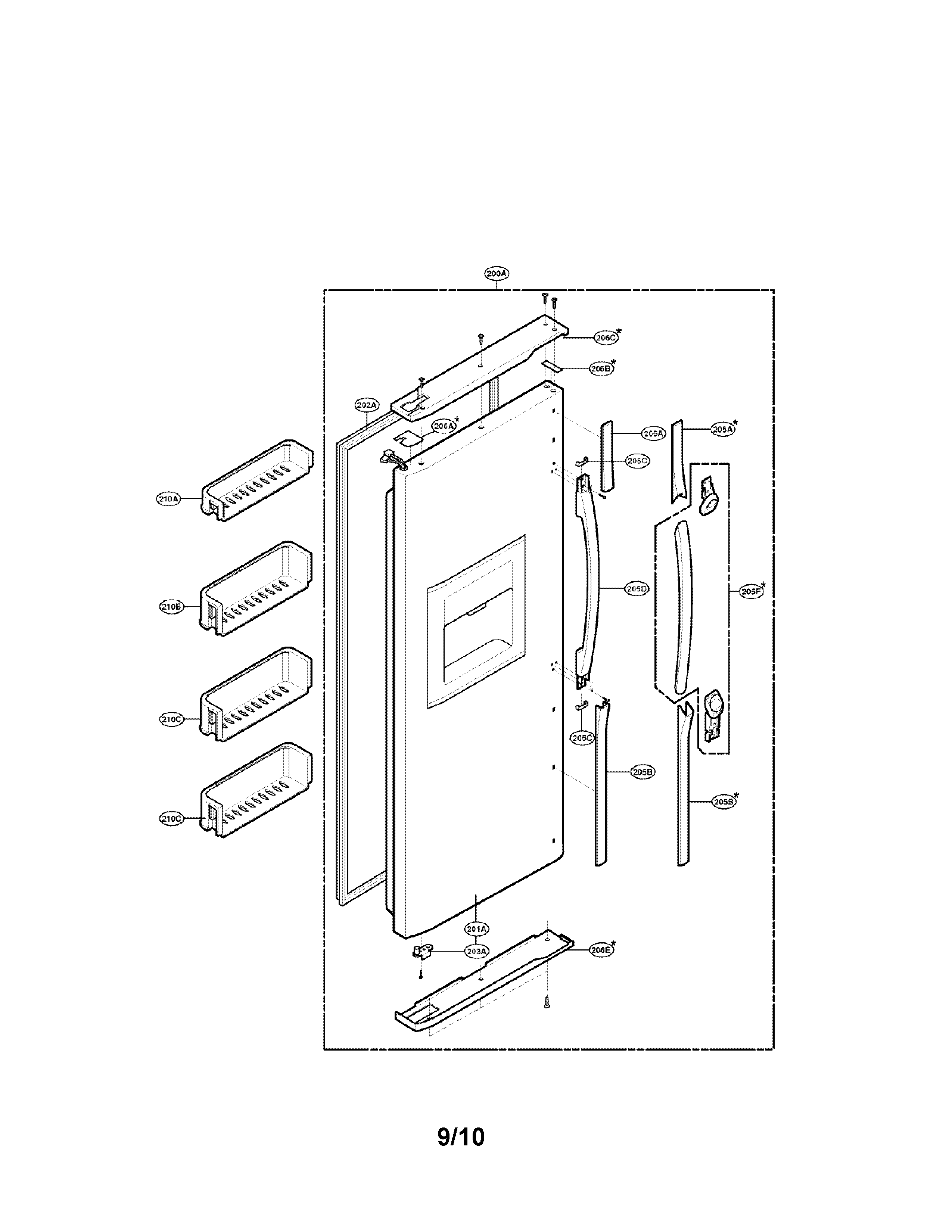

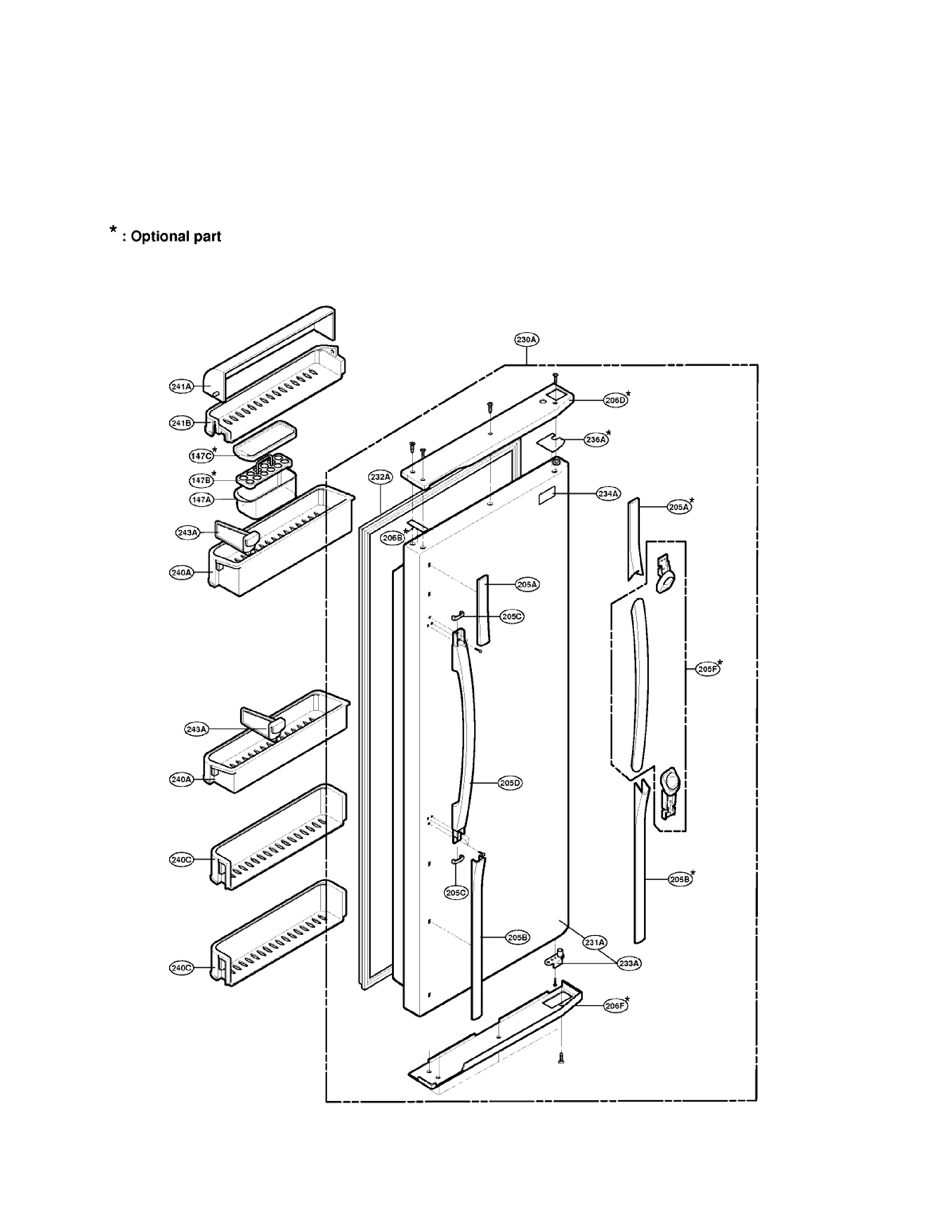

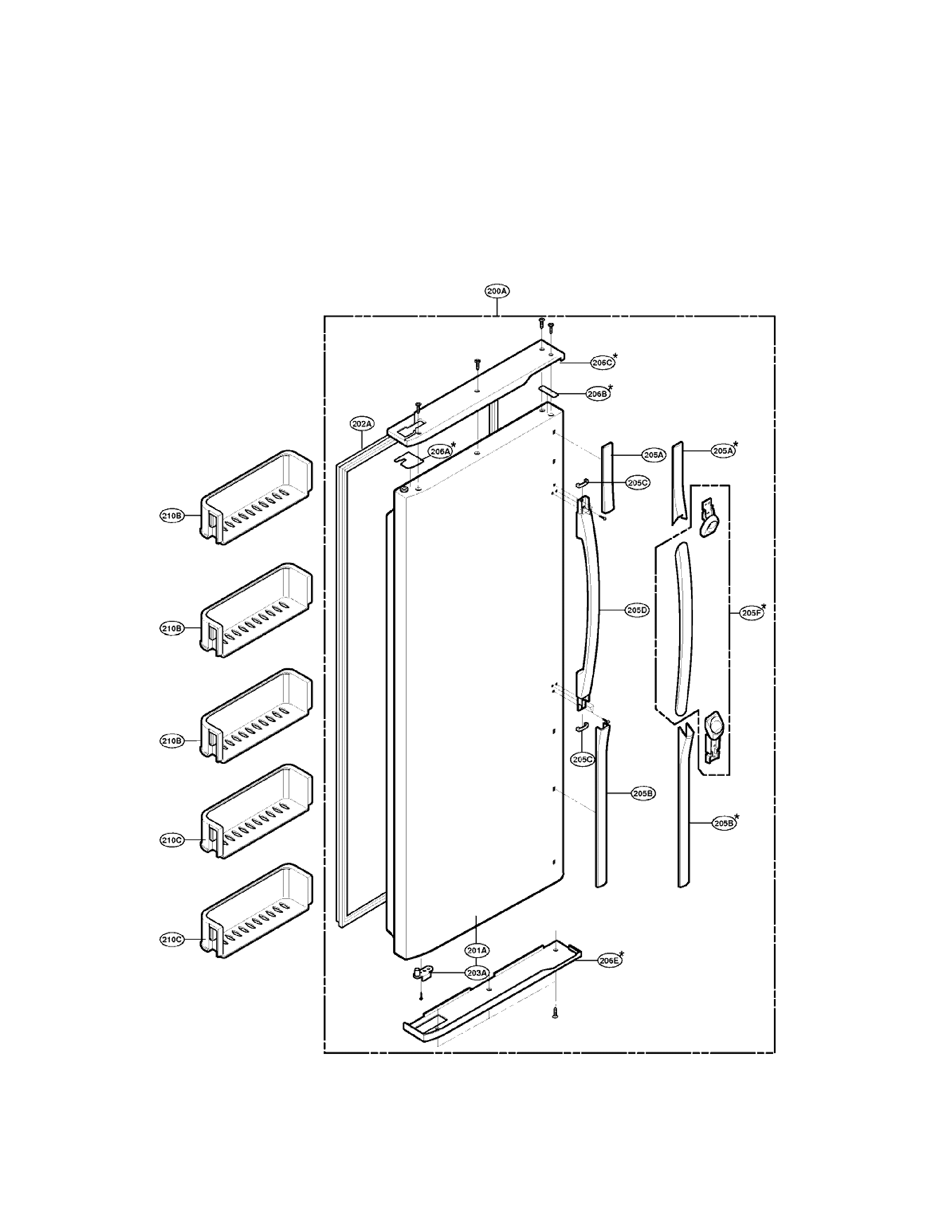

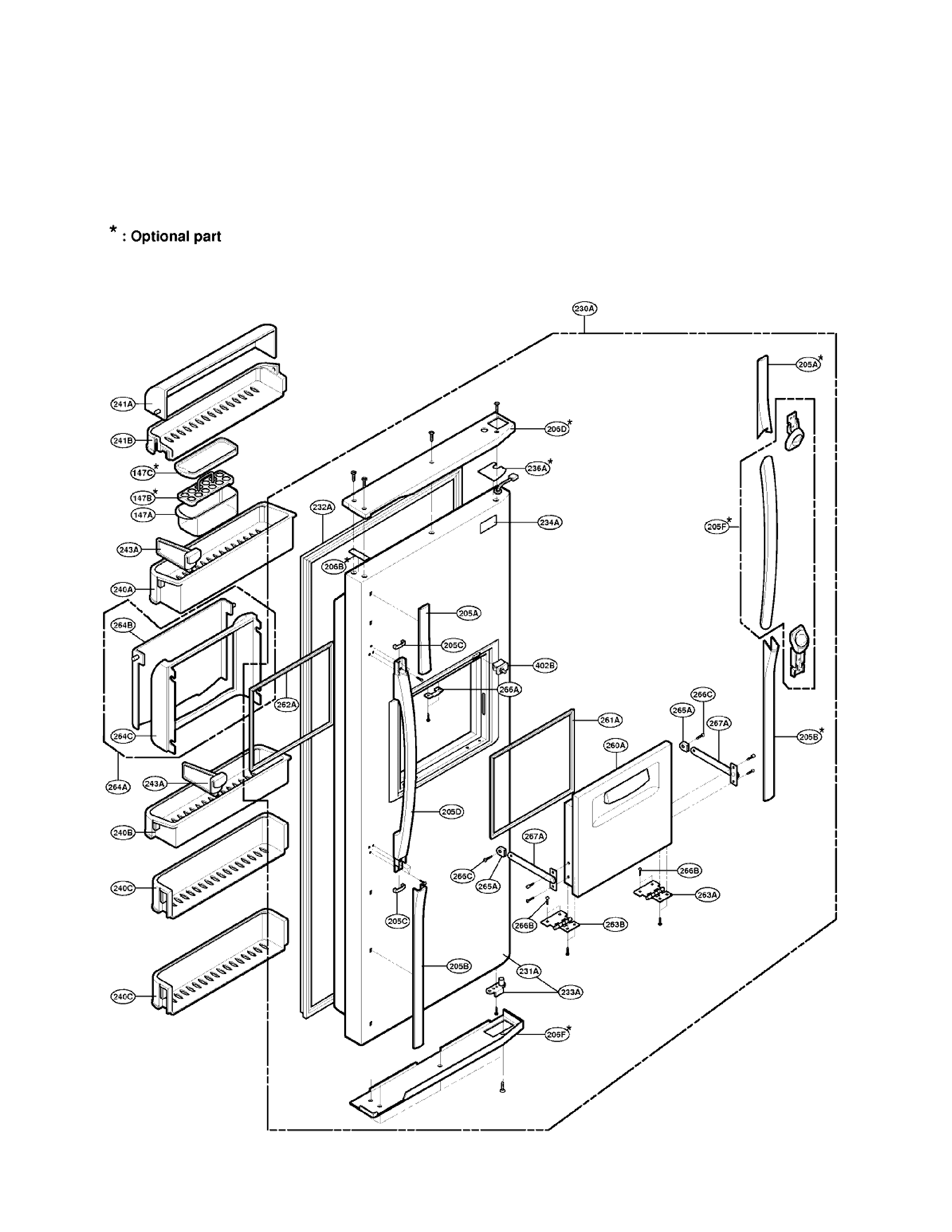

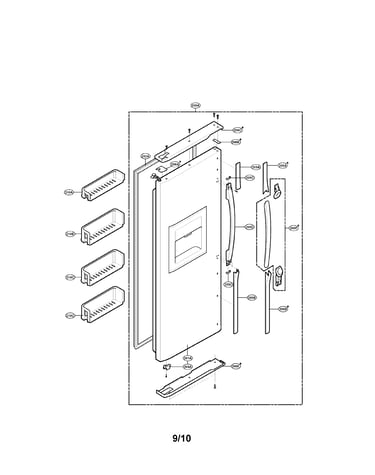

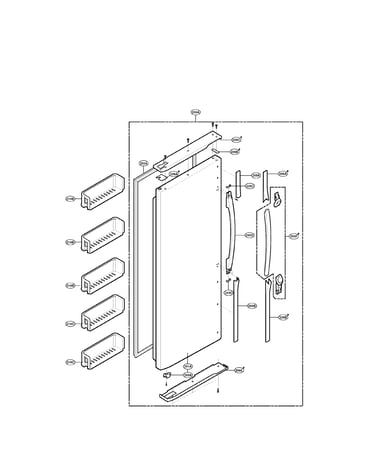

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Refrigerator Drier Assembly 5851JA2003B
#317A

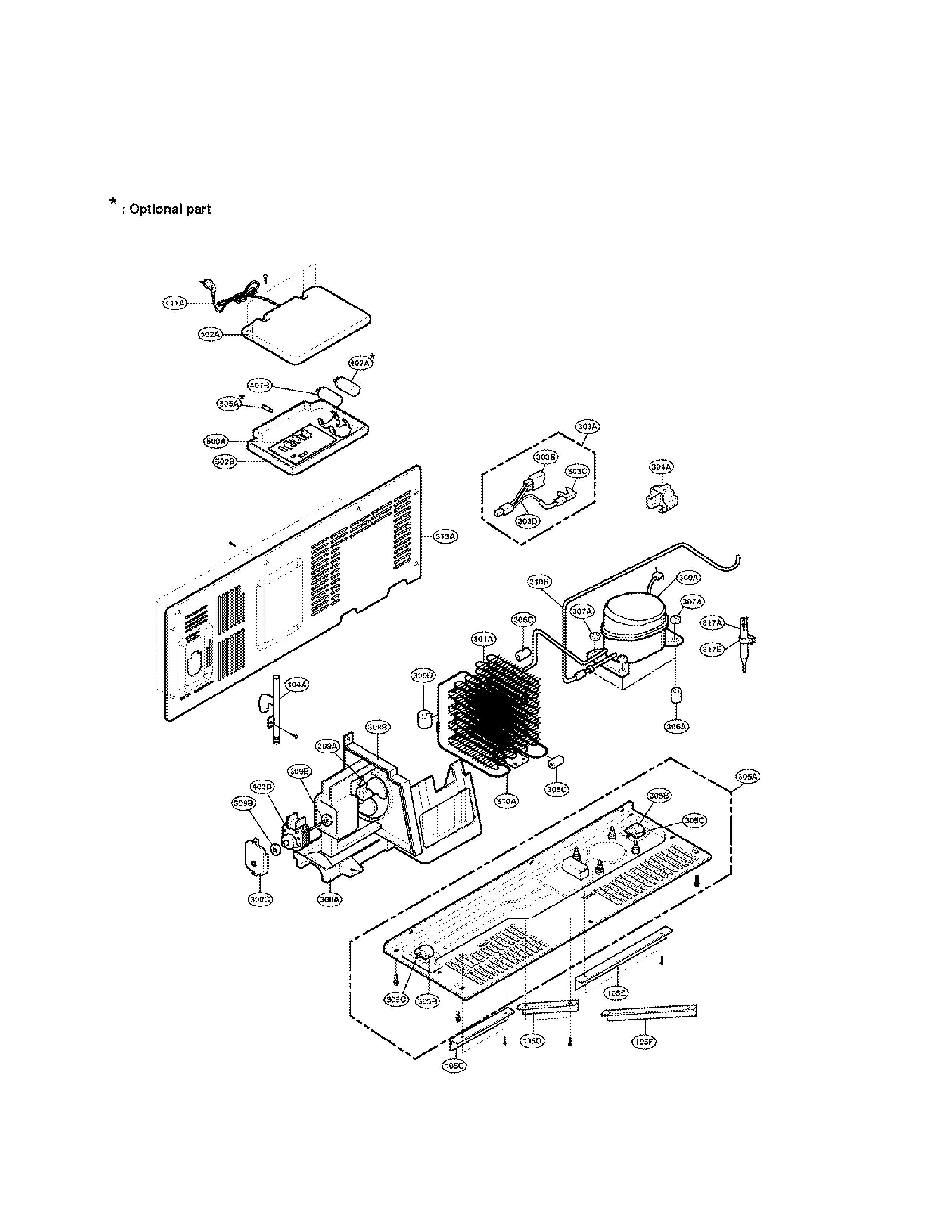

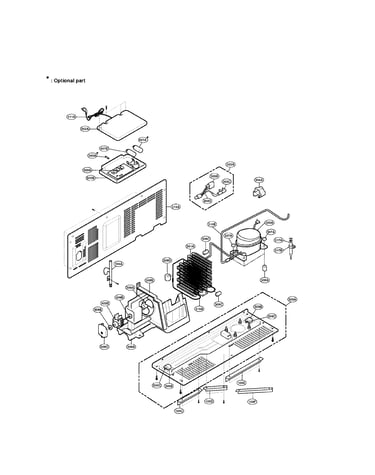

Machine compartment diagram

Refrigerator drier assembly

Part #5851JA2003B

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2003B. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Refrigerator Door Push-button Switch 6600JB1004A
#402A

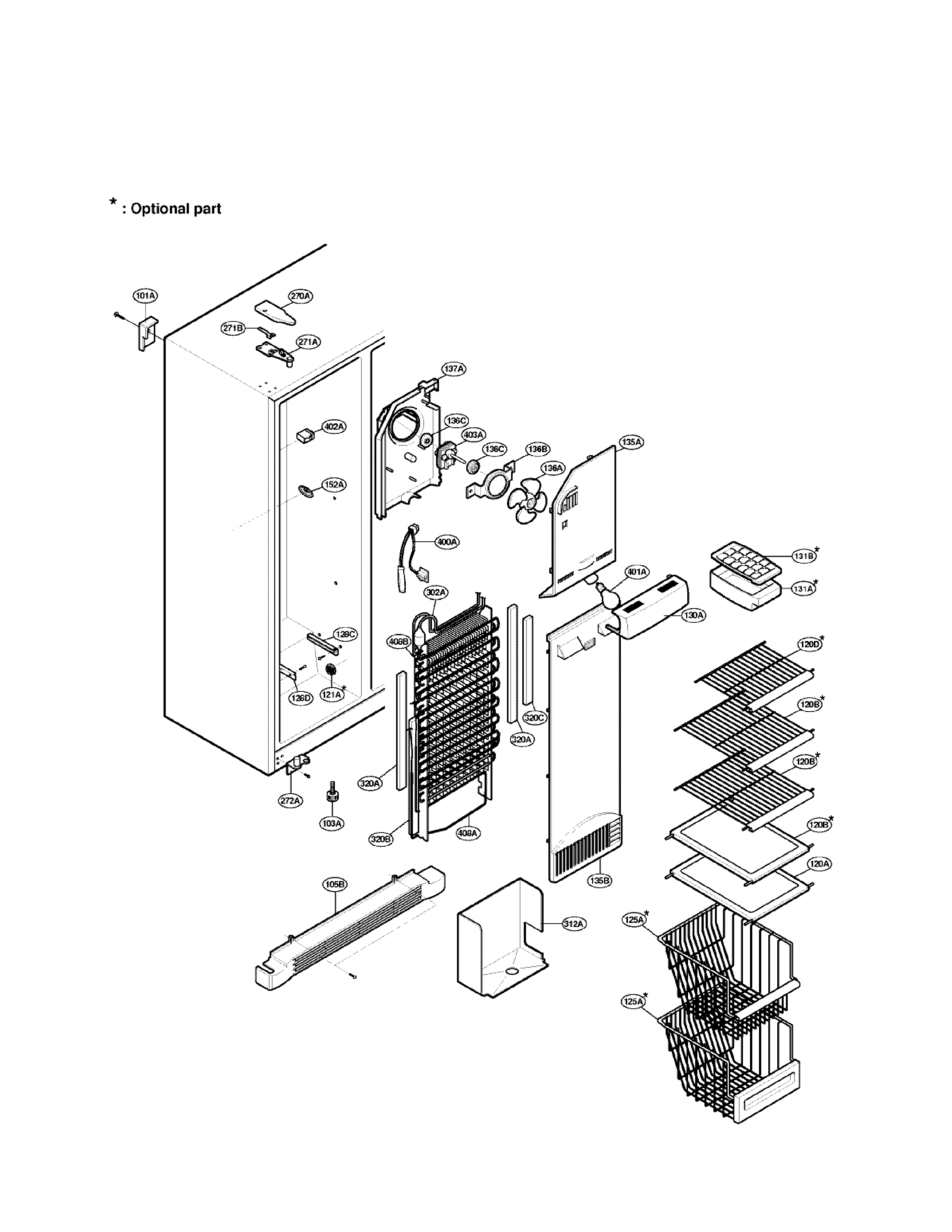

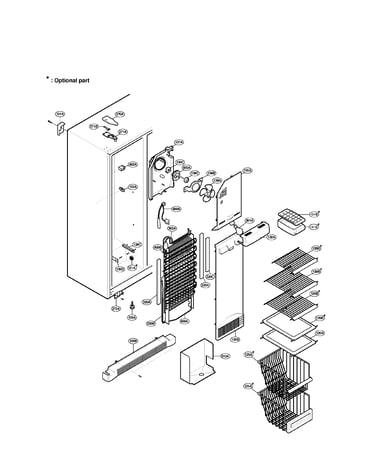

Freezer compartment diagram

Refrigerator door push-button switch

Part #6600JB1004A

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1004A. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Switch,mic 6600JB3001B
#NI

Machine compartment diagram

Switch,mic

Part #6600JB3001B

Replaced by #6600JB3001C

?
Manufacturer substitution
This part replaces 6600JB3001B. Substitute parts can look different from the original.
BEST SELLER
$33.22 |
15% OFF Phone Price : $39.22
In Stock
Refrigerator Bracket 4810JA1015A
#602A

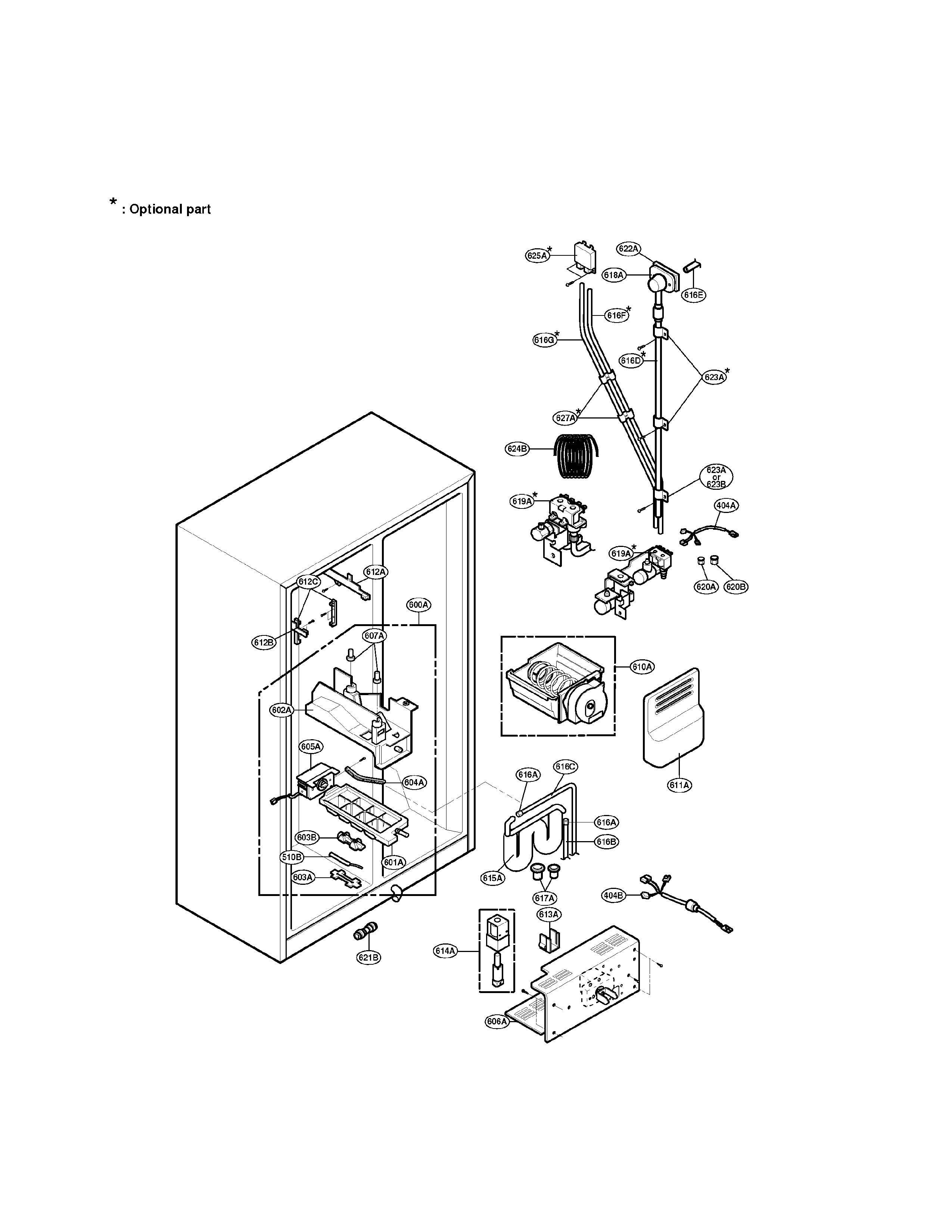

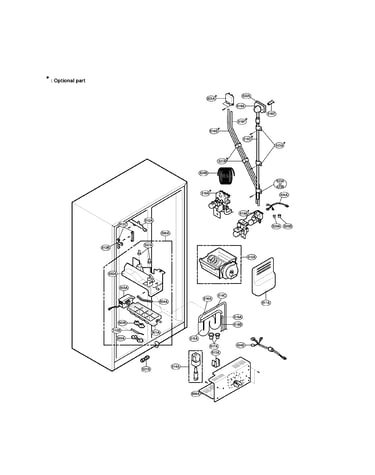

Ice & water part diagram

Refrigerator bracket

Part #4810JA1015A

Replaced by #5989JA1002D

?
Manufacturer substitution
This part replaces 4810JA1015A. Substitute parts can look different from the original.
BEST SELLER
$85.13 |
7% OFF Phone Price : $91.13
In Stock
Refrigerator Insulation 5410JA3011A
#603B

Ice & water part diagram

Refrigerator insulation

Part #5410JA3011A

Replaced by #5989JA1002D

?
Manufacturer substitution
This part replaces 5410JA3011A. Substitute parts can look different from the original.
BEST SELLER
$85.13 |
7% OFF Phone Price : $91.13
In Stock
Refrigerator Water Tube Fitting (replaces 4932ja3009h, Mcd62426801) 4932JA3009A
#626B

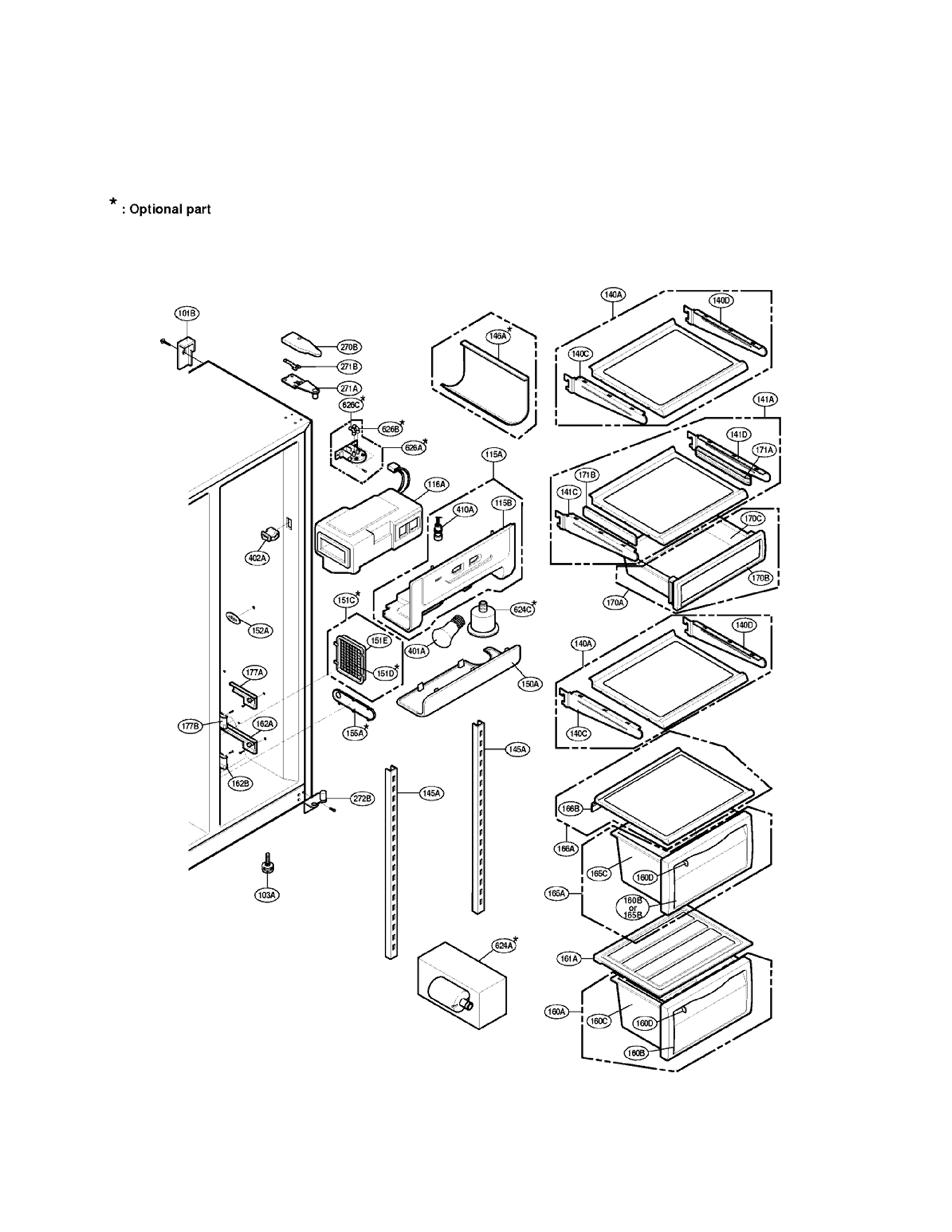

Refrigerator compartment diagram

Refrigerator water tube fitting (replaces 4932ja3009h, mcd62426801)

Part #4932JA3009A

BEST SELLER
$17.14 |
10% OFF Phone Price : $19.14
In Stock
Refrigerator Motor Support Damper 5040JA2009B
#136C

Freezer compartment diagram

Refrigerator motor support damper

Part #5040JA2009B

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Dispenser Lever Bracket 4930JA3043A
#NI

Machine compartment diagram

Refrigerator dispenser lever bracket

Part #4930JA3043A

This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Water Tube Fitting 4932JA3012A
#621B

Ice & water part diagram

Refrigerator water tube fitting

Part #4932JA3012A

Replaced by #4932JA3002A

?
Manufacturer substitution
This part replaces 4932JA3012A. Substitute parts can look different from the original.
This item is not returnable
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Water Tubing (replaces 5210ja3005t, Mju39256404) 5210JA3005A
#616D

Ice & water part diagram

Refrigerator water tubing (replaces 5210ja3005t, mju39256404)

Part #5210JA3005A

This item is not returnable
$11.11 |
15% OFF Phone Price : $13.11
In Stock
