Whirlpool
Electric Range

Model # RM973PXLT0 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RM973PXLT0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

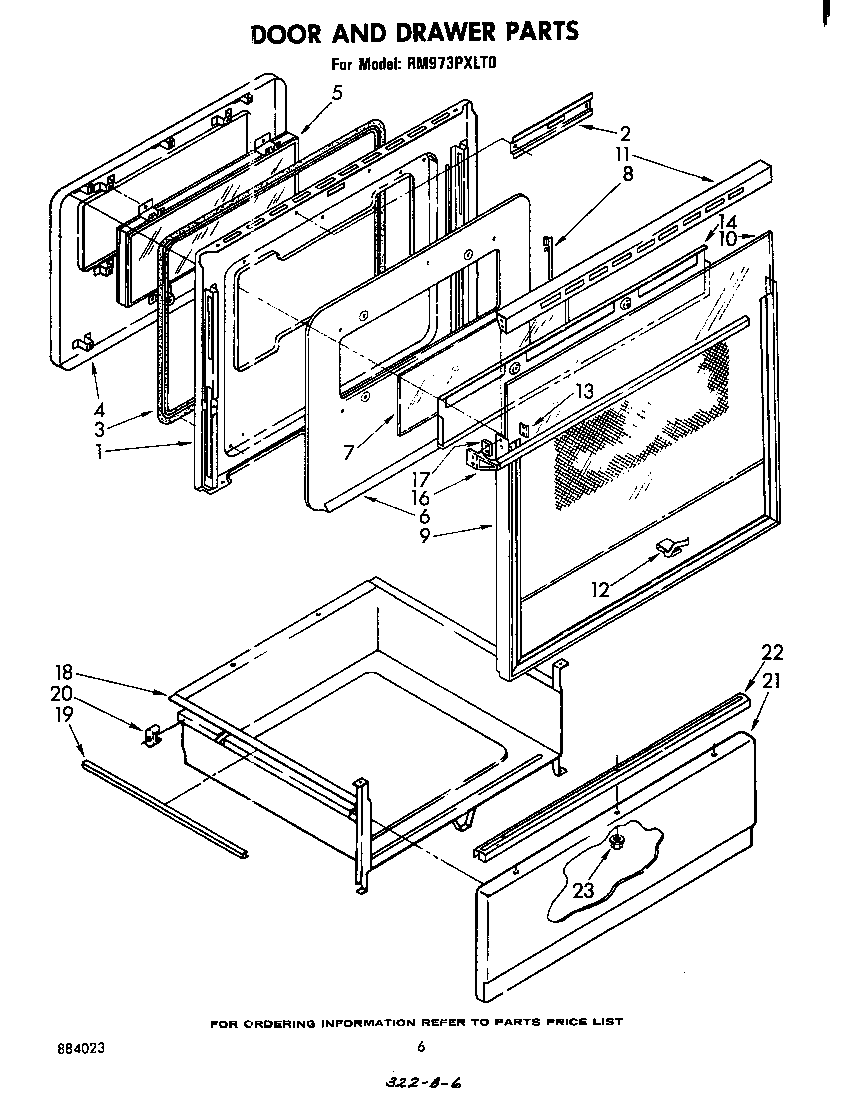

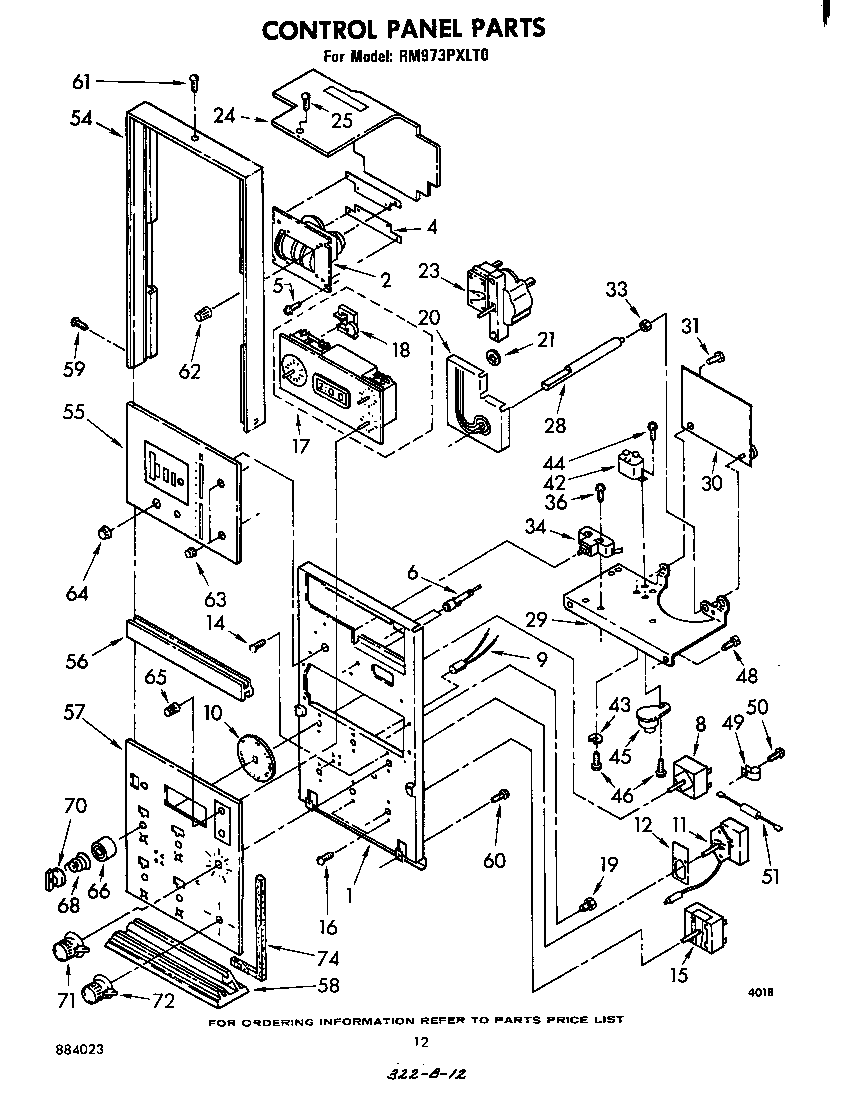

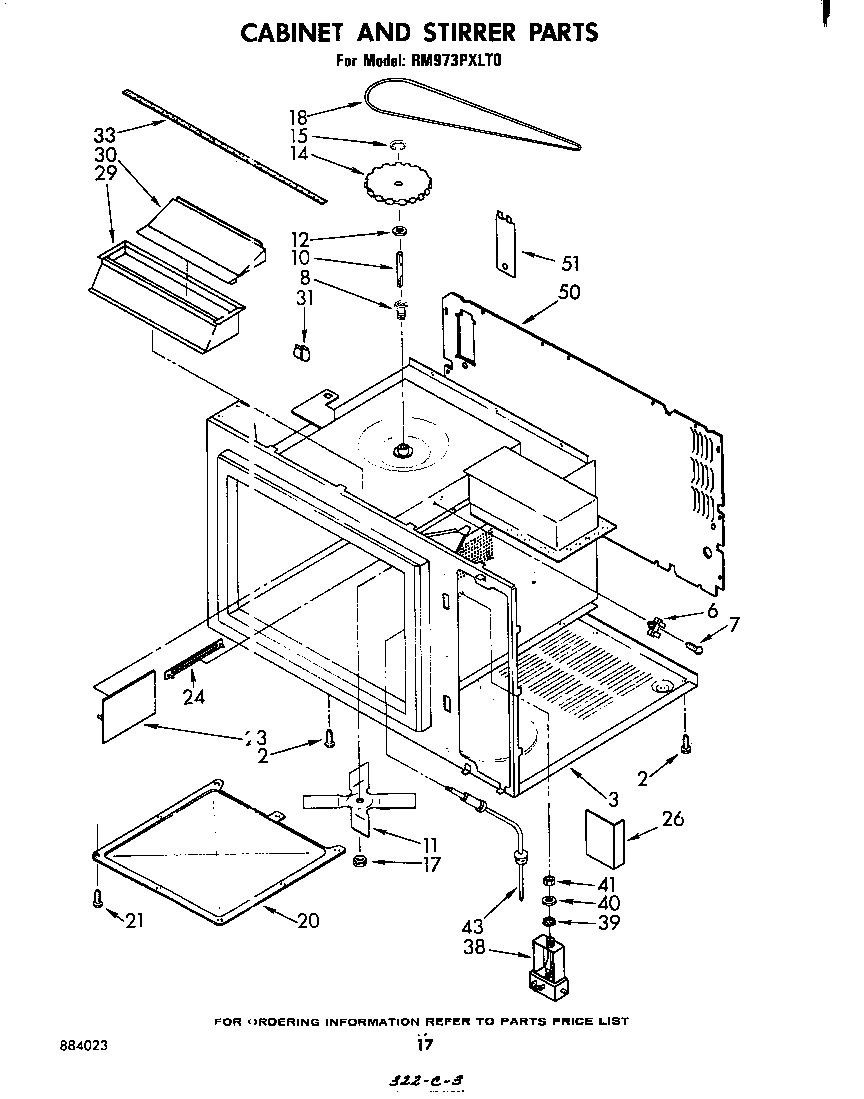

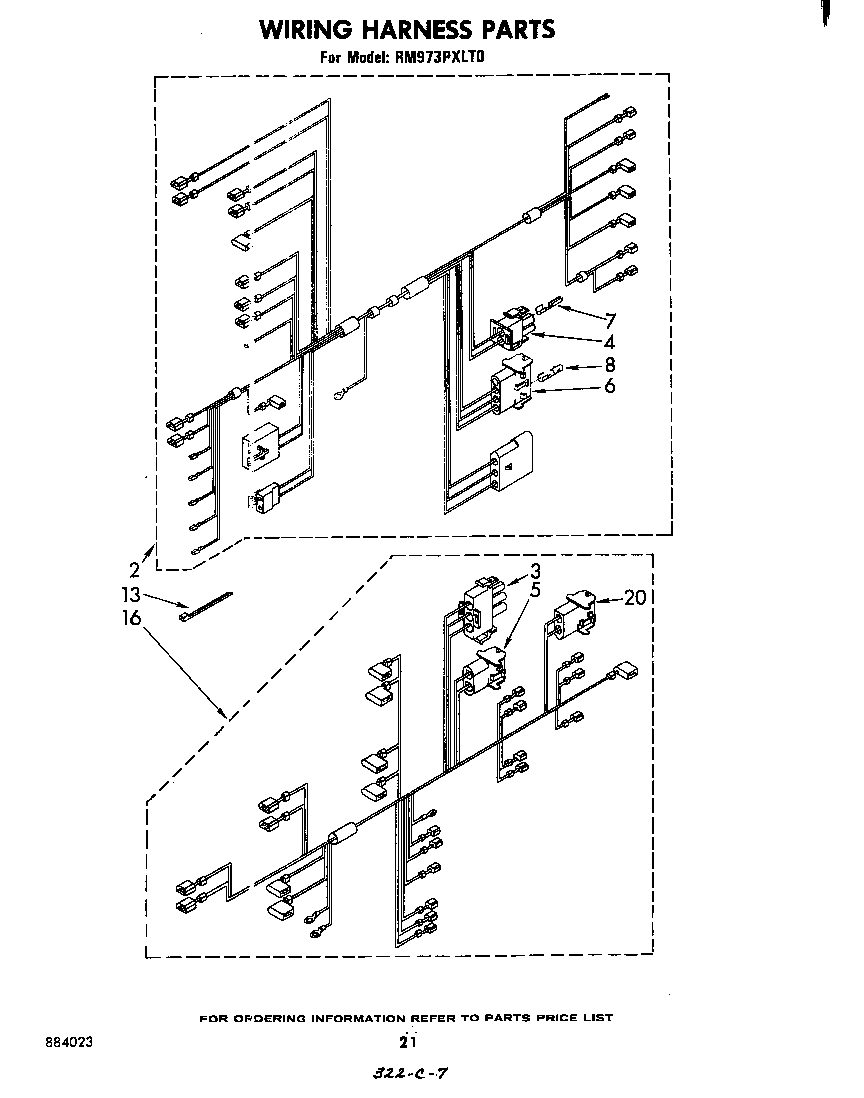

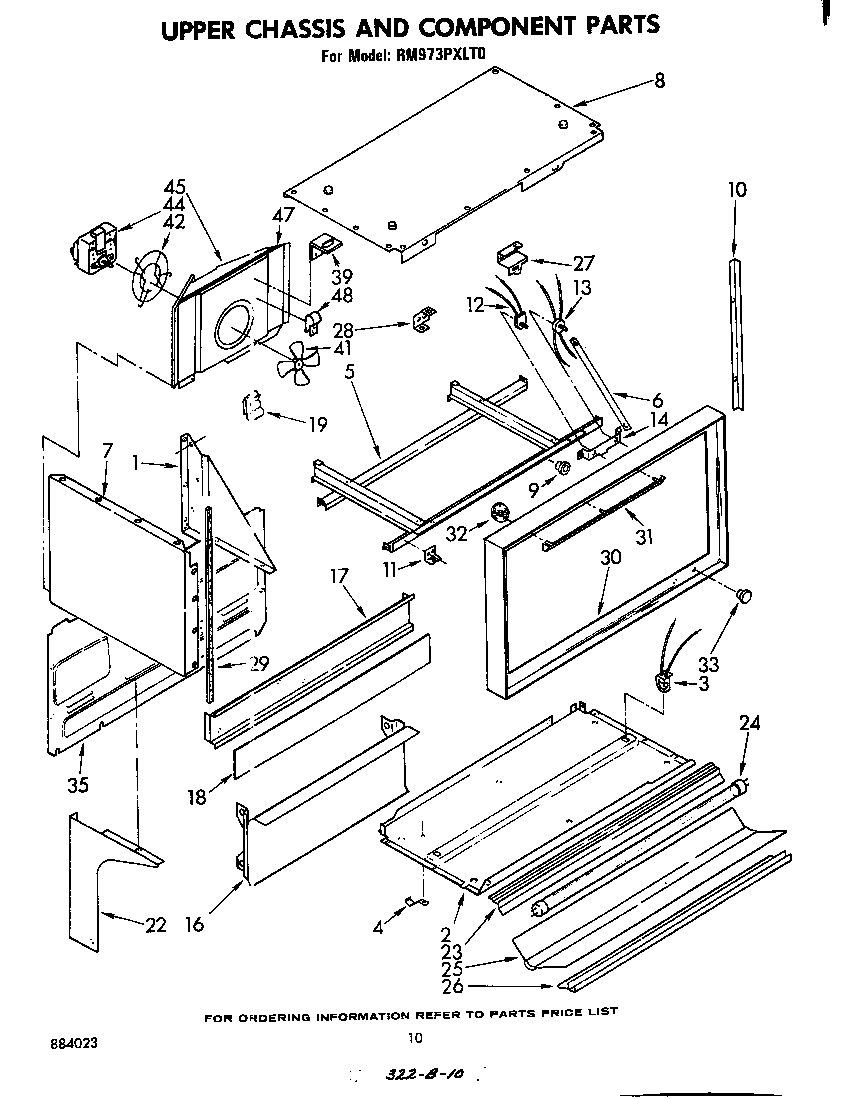

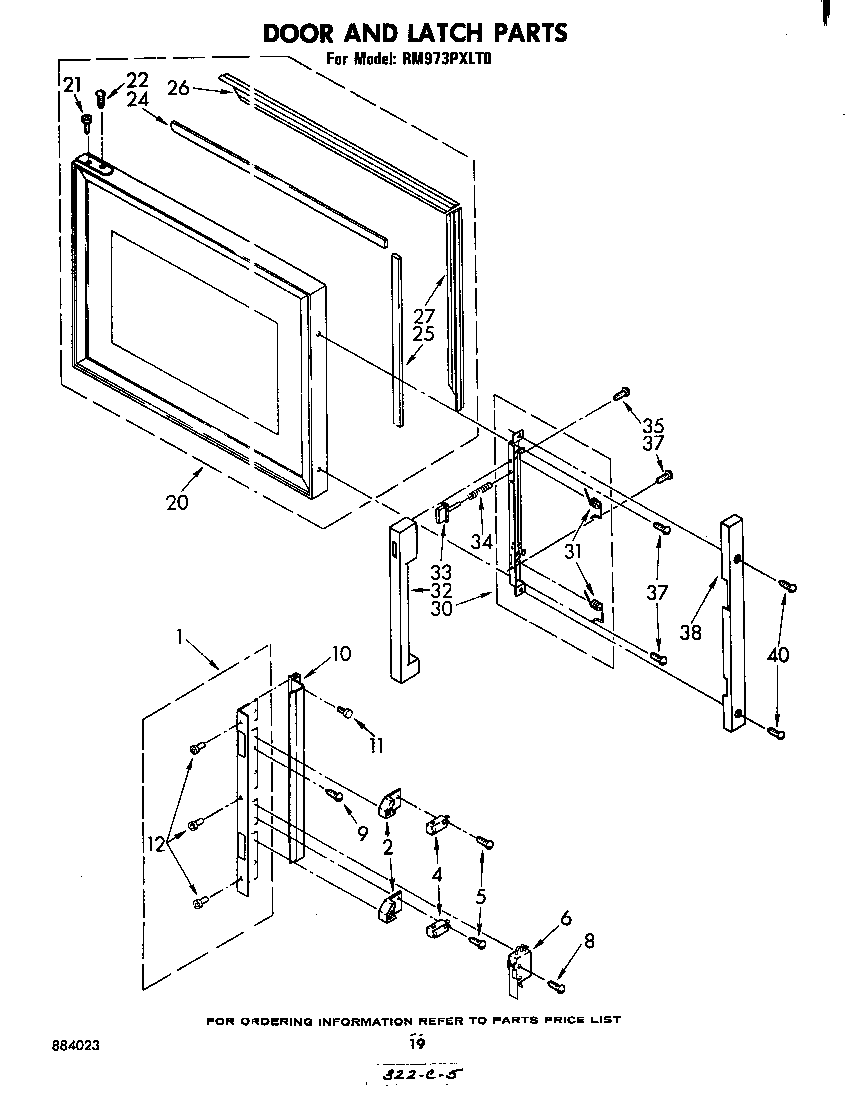

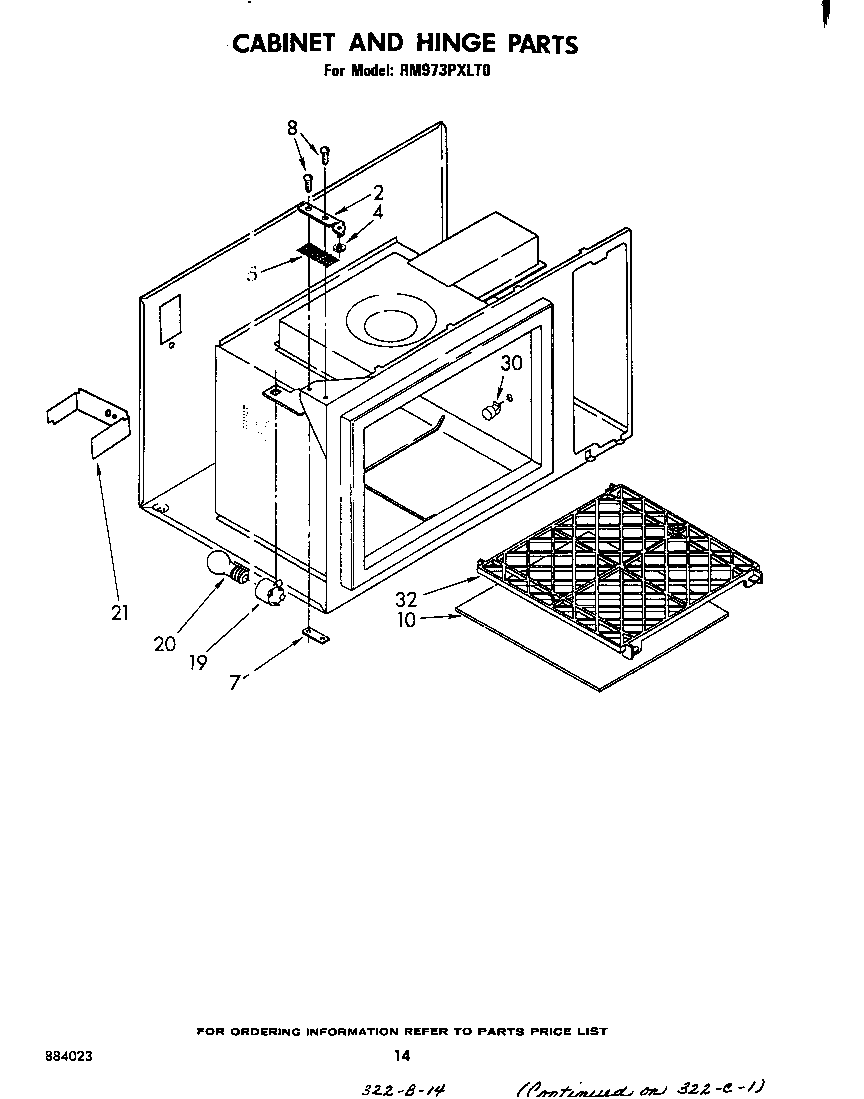

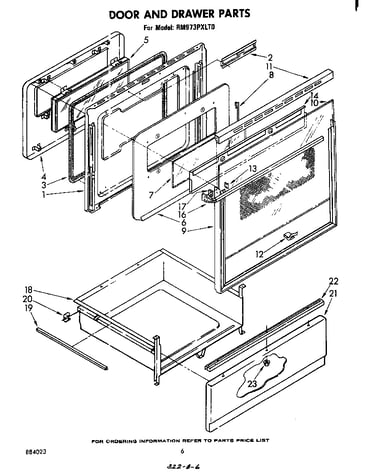

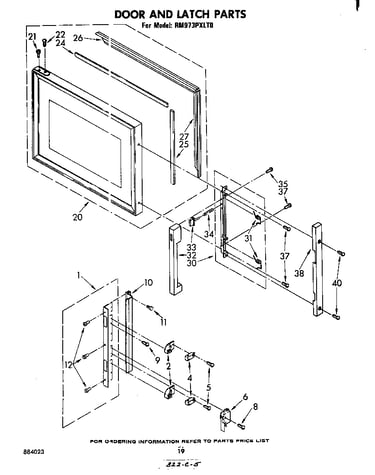

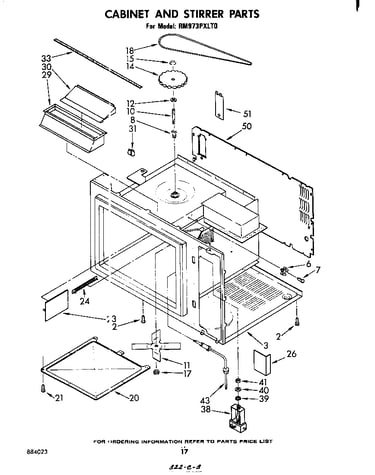

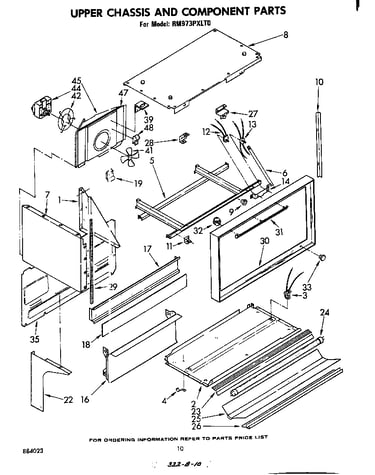

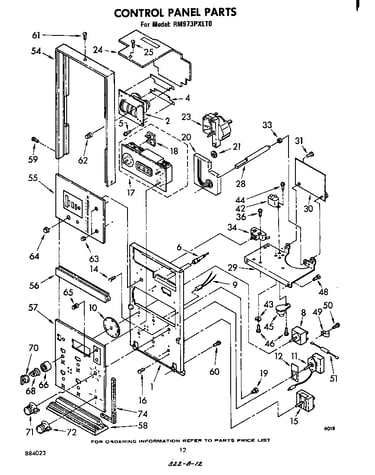

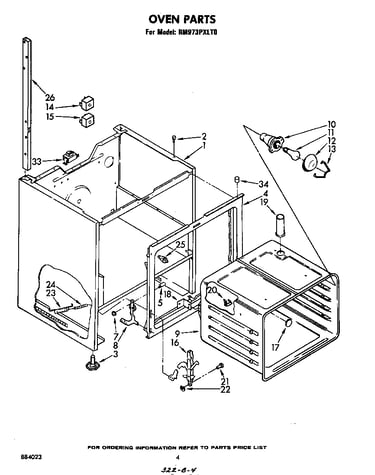

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 388 parts  |
Light Bulb 311255
Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Bake Element 308180
#4

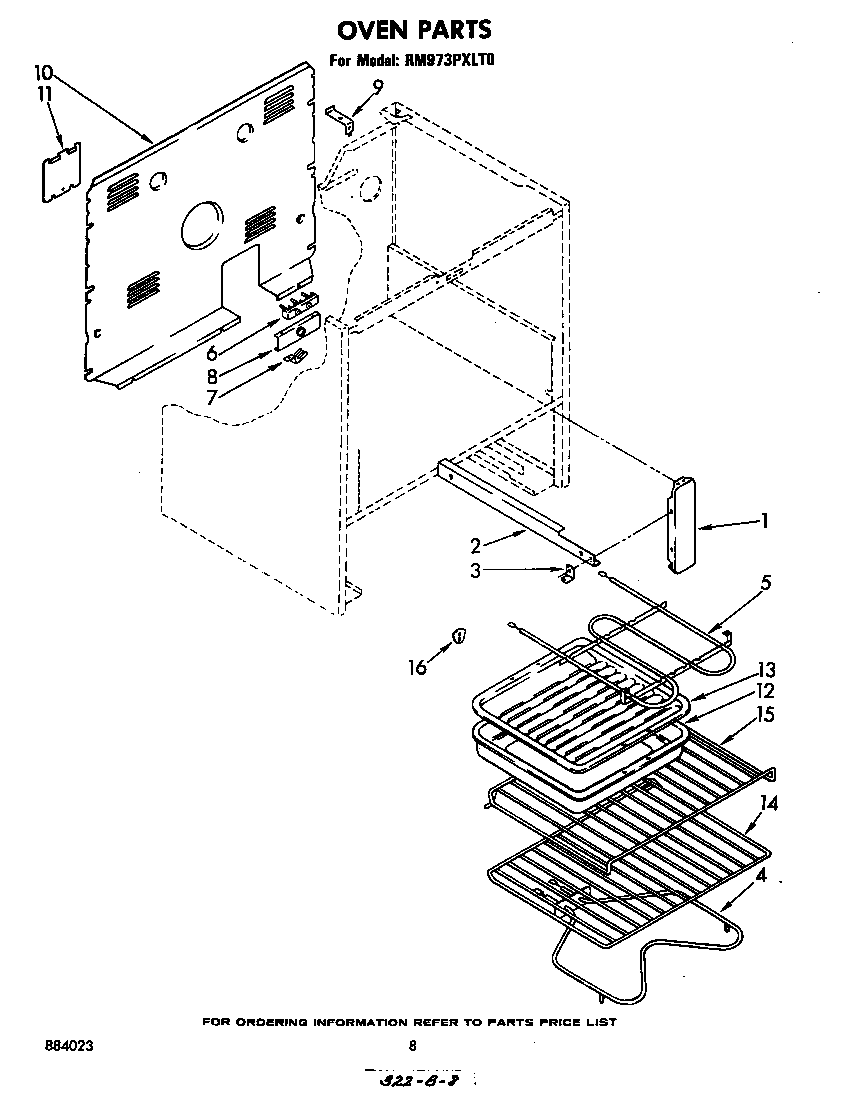

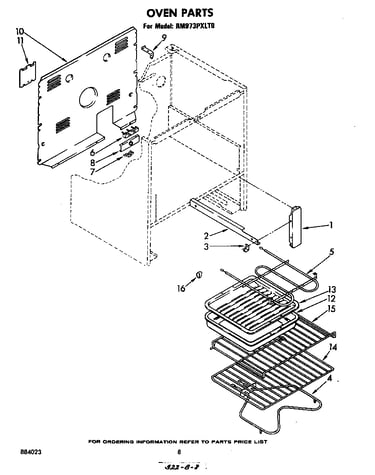

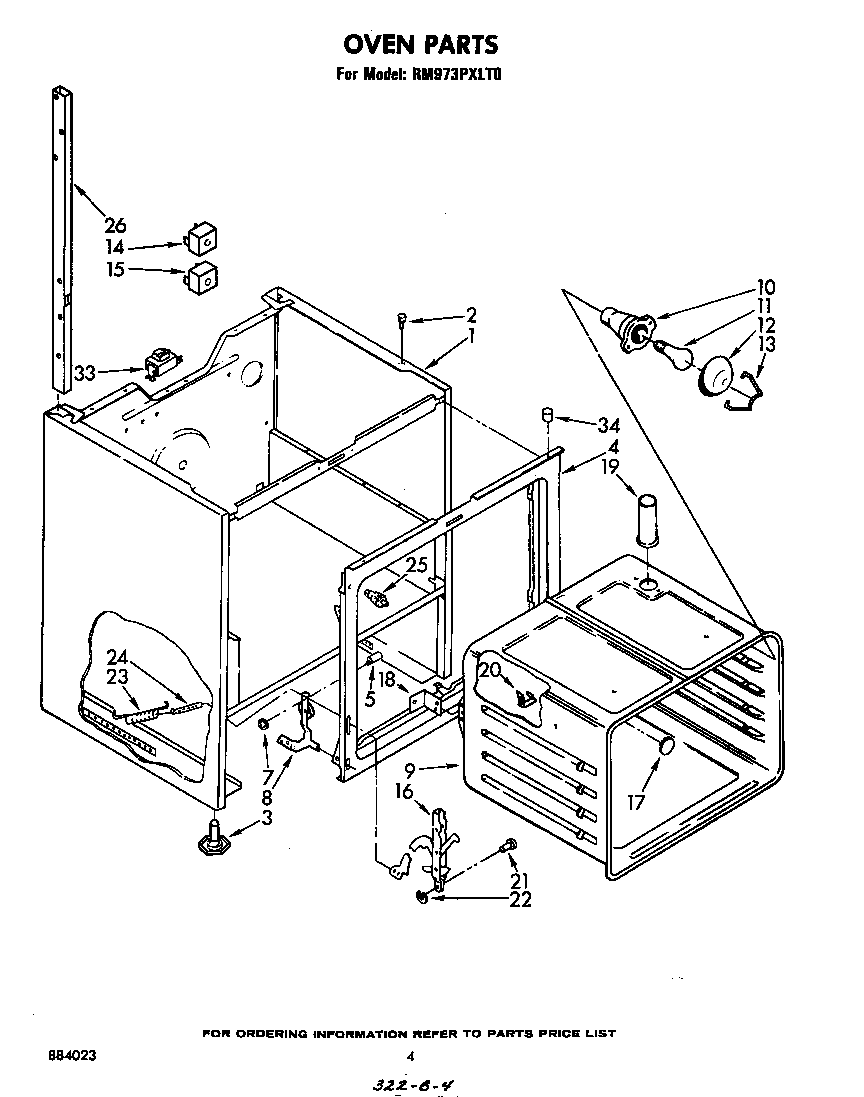

Oven (continued) diagram

Range bake element

Part #308180

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 308180. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Magnetron 311993
#26B

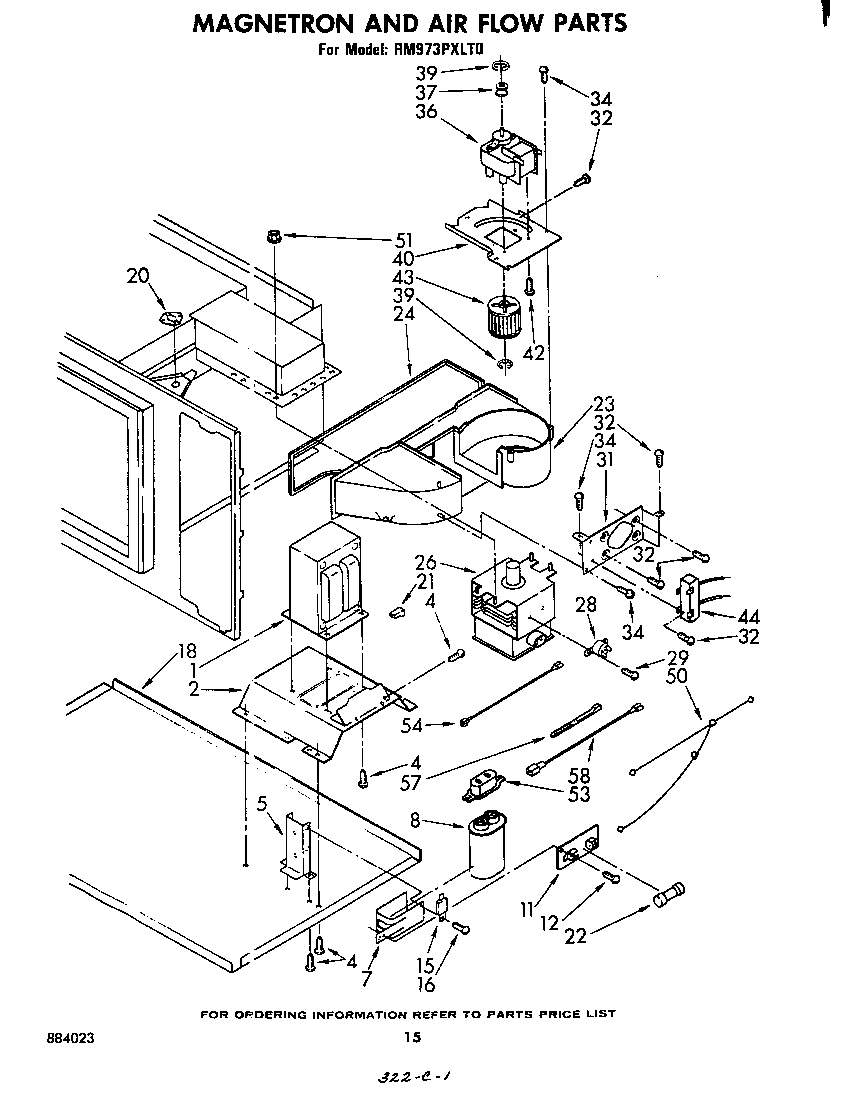

Magnetron and air flow diagram

Magnetron

Part #311993

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311994
#26C

Magnetron and air flow diagram

Magnetron

Part #311994

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311992
#26A

Magnetron and air flow diagram

Magnetron

Part #311992

The manufacturer no longer makes this part, and there's no substitute part

Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Receptacle Element 258858
#18

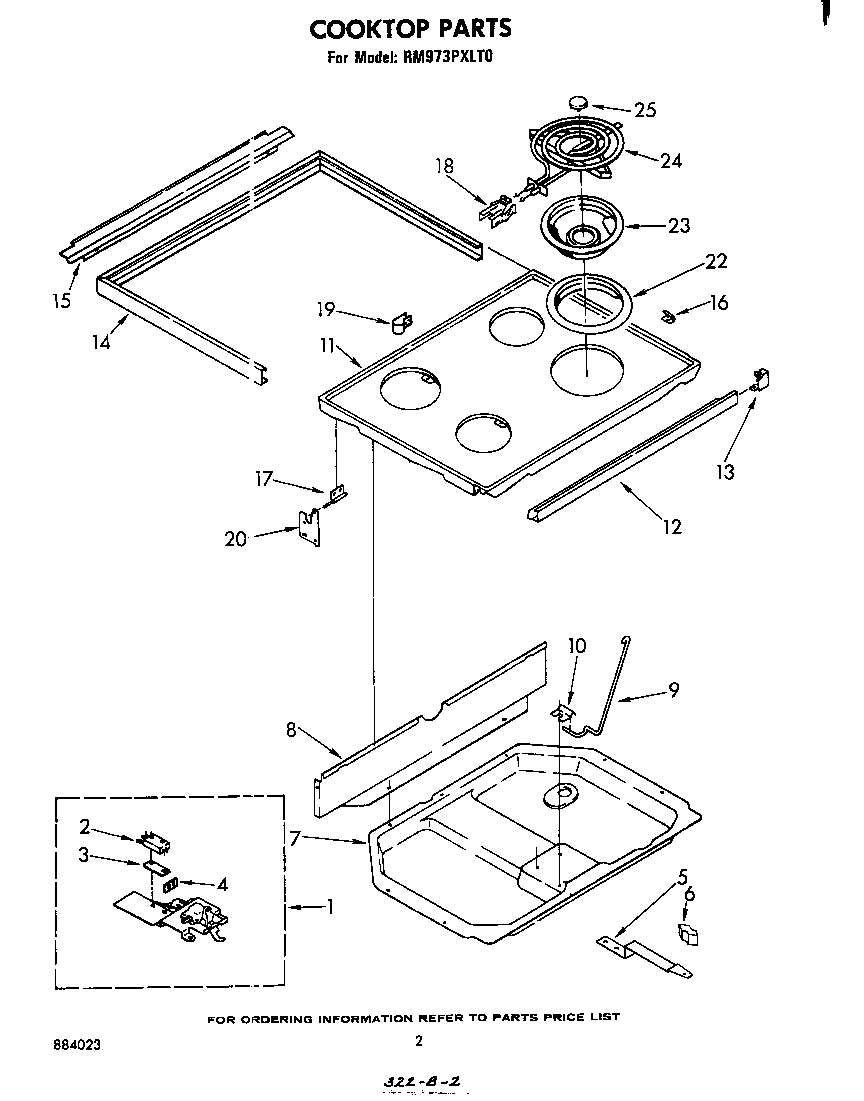

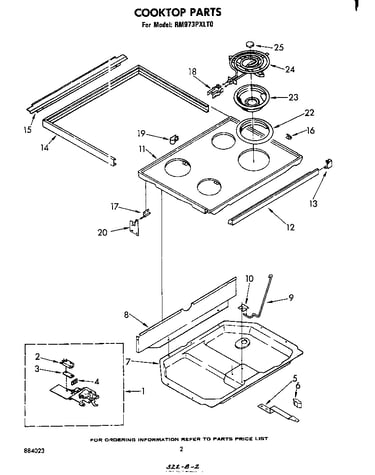

Cooktop diagram

Receptacle element

Part #258858

Replaced by #330031

?
Manufacturer substitution
This part replaces 258858. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Screw 253549
Screw

Part #253549

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 253549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Spray W 799343

#NI

All parts diagram

Spray w

Part #799343

Replaced by #350930

?
Manufacturer substitution
This part replaces 799343. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
