Kenmore Elite
Wall Oven/Microwave Combo

Model # 79048902000 Official Kenmore Elite wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore Elite 79048902000 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

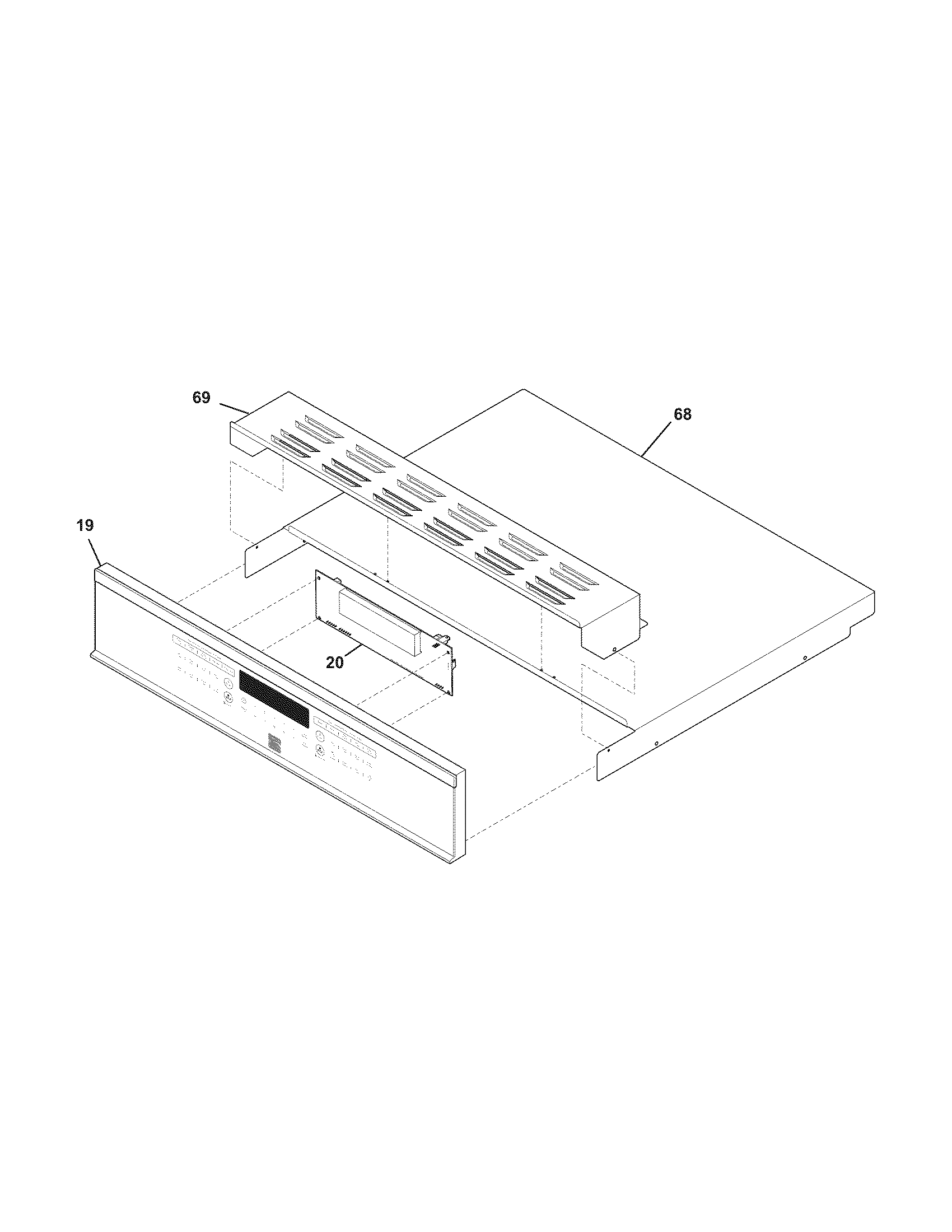

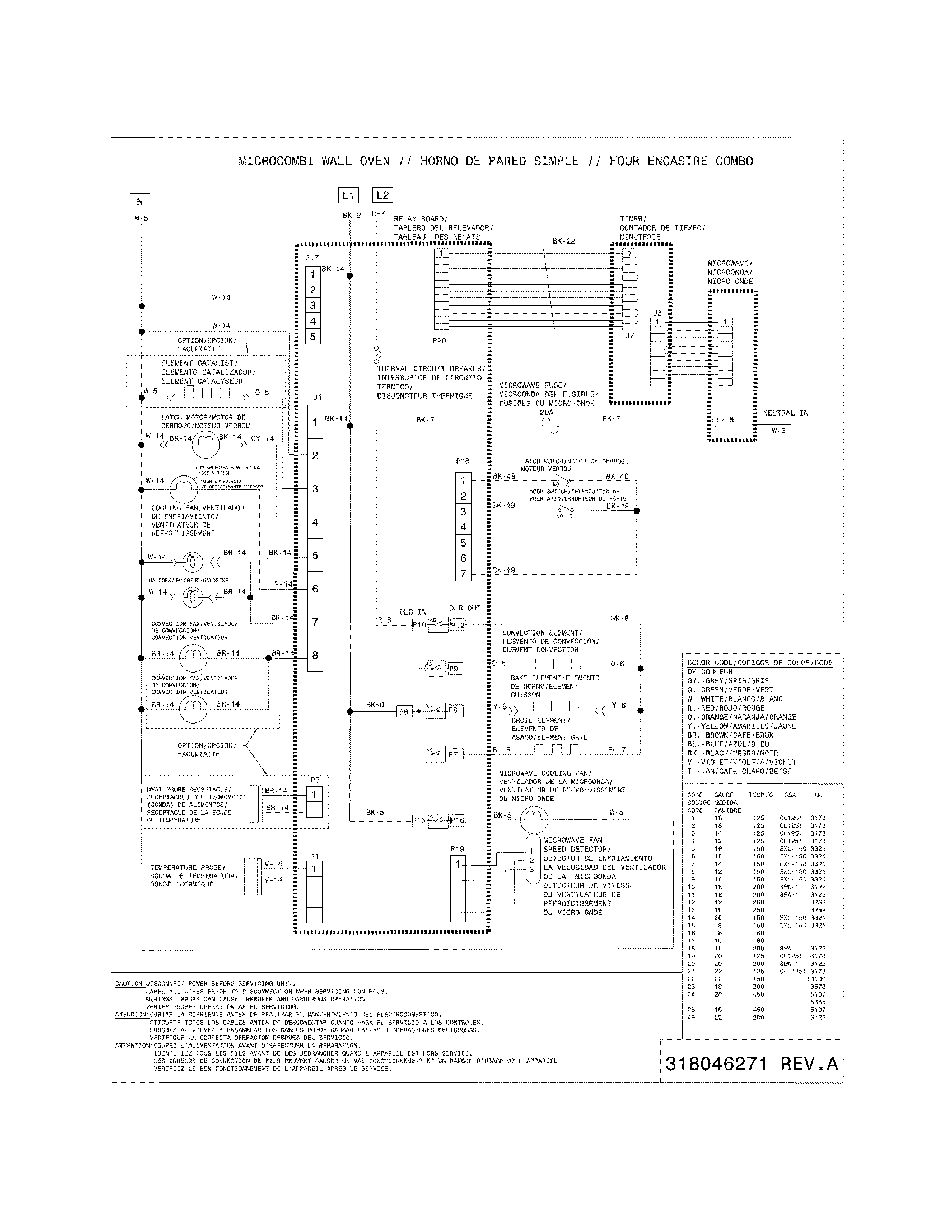

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Range Oven Temperature Sensor 318562500
#37

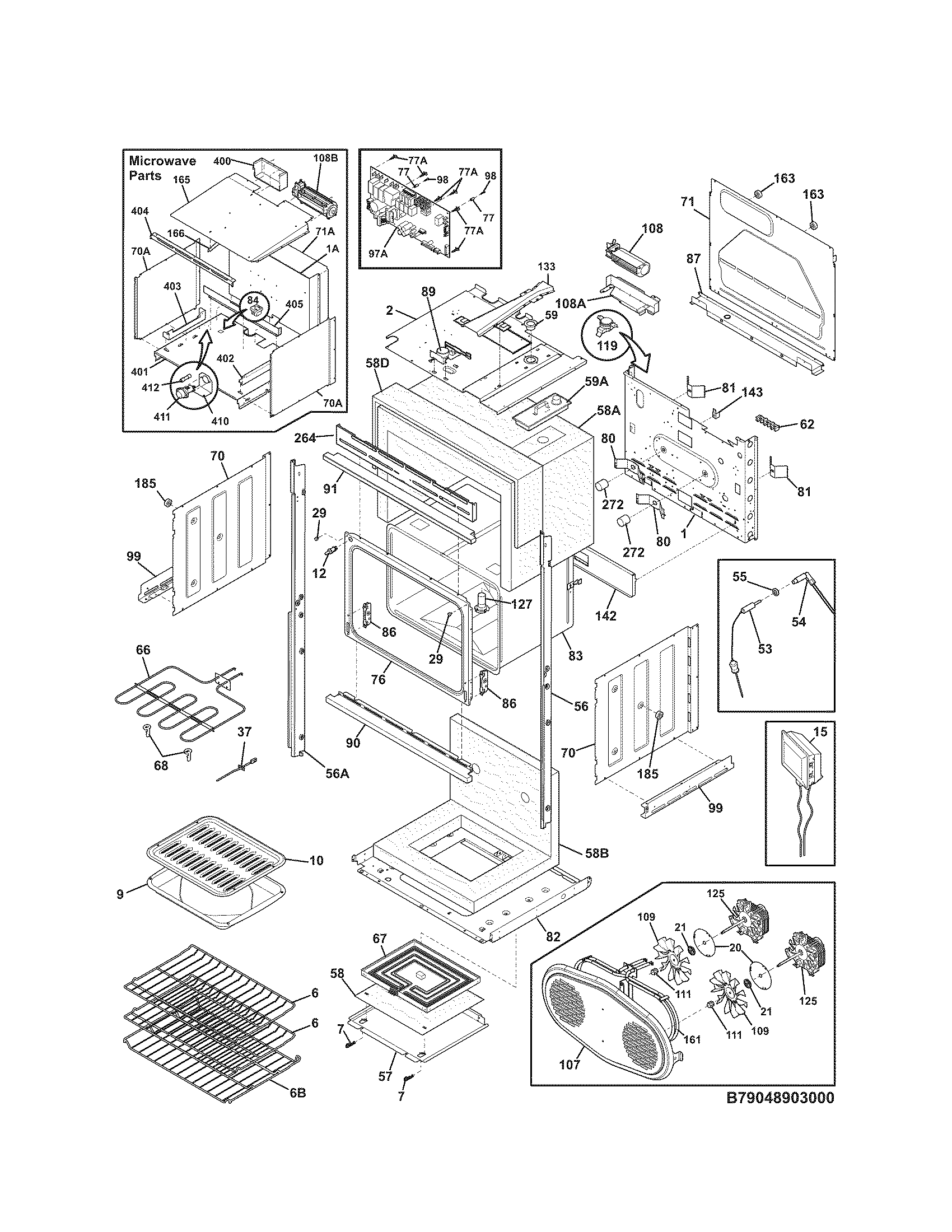

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Oven Door Inner Glass 316117500
#8

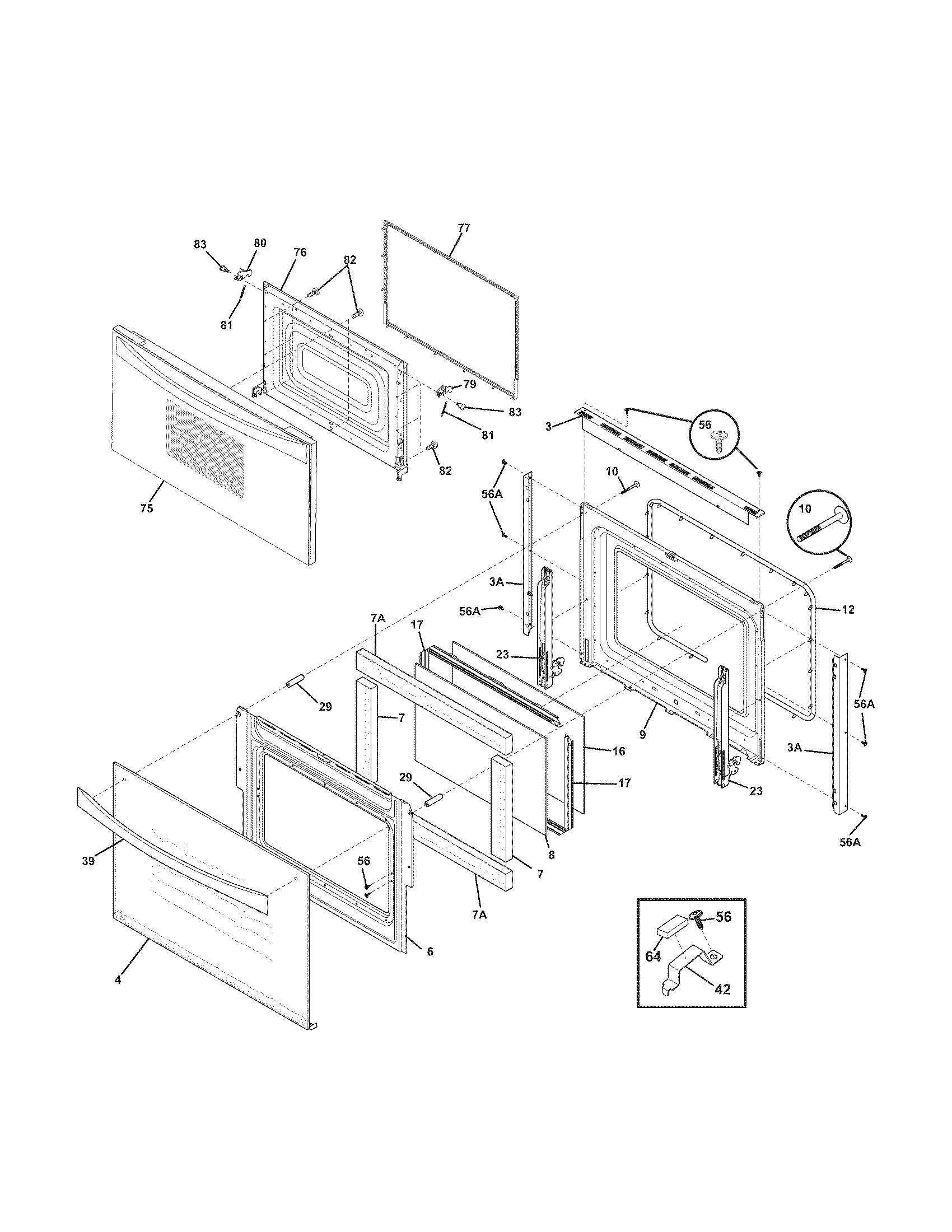

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Oven Element 318601601
#67

Lower oven diagram

Oven element

Part #318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 318601601. Substitute parts can look different from the original.
BEST SELLER
$197.10 |
6% OFF Phone Price : $209.10
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Holder 318576200
#411

Lower oven diagram

Holder

Part #318576200

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576200. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Switch 5304440027
#2

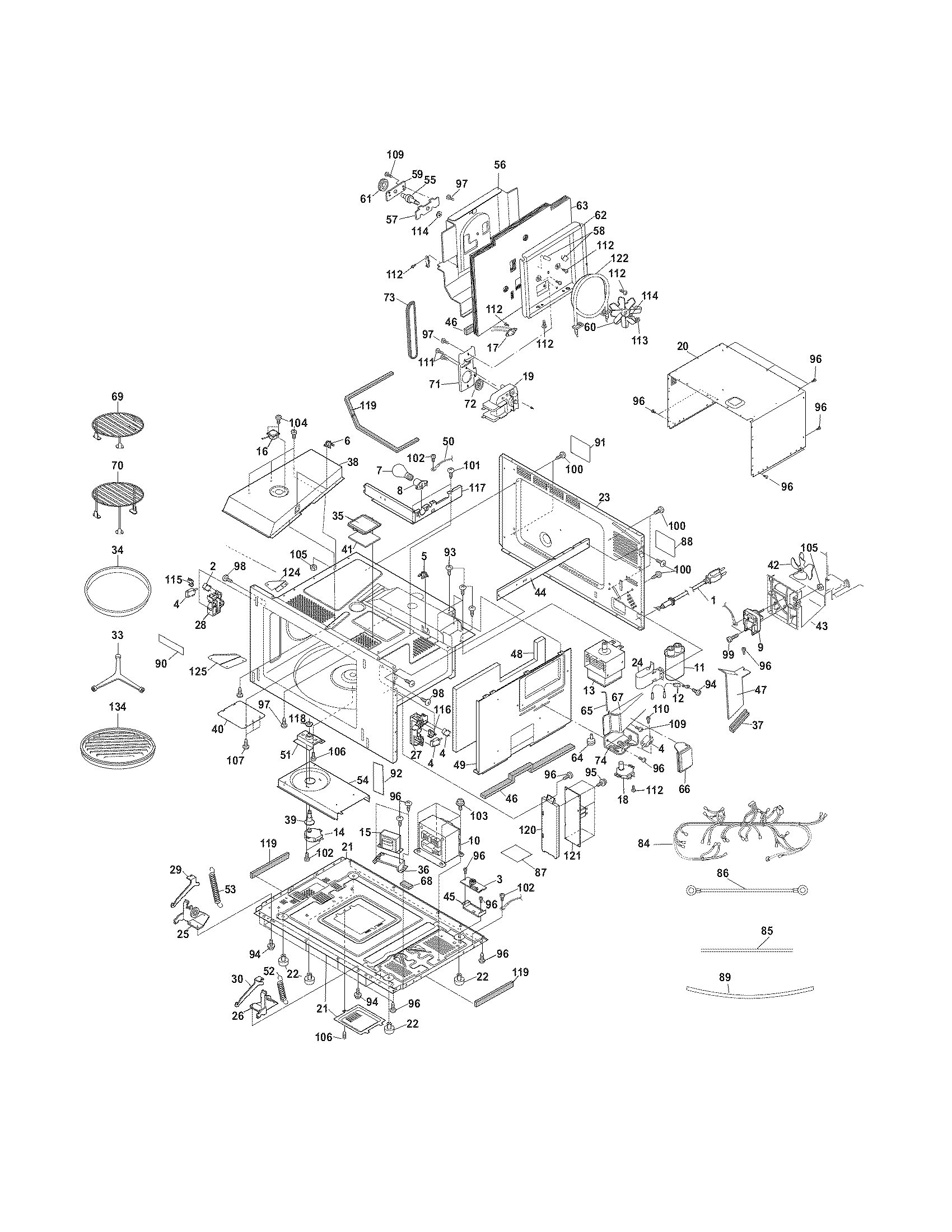

Microwave diagram

Switch

Part #5304440027

Replaced by #5304468224

?
Manufacturer substitution
This part replaces 5304440027. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Microwave High-voltage Capacitor (replaces 5303319549, 75304470539) 5304470539
#11

Microwave diagram

Microwave high-voltage capacitor (replaces 5303319549, 75304470539)

Part #5304470539

BEST SELLER
$115.12 |
9% OFF Phone Price : $127.12
In Stock
Oven Element 318255800
#66

Lower oven diagram

Oven element

Part #318255800

Replaced by #318255807

?
Manufacturer substitution
This part replaces 318255800. Substitute parts can look different from the original.
BEST SELLER
$195.27 |
6% OFF Phone Price : $207.27
In Stock
Microwave Latch Body (replaces 75304470548) 5304470548
#28

Microwave diagram

Microwave latch body (replaces 75304470548)

Part #5304470548

BEST SELLER
This item is not returnable
$35.60 |
14% OFF Phone Price : $41.60
In Stock
Microwave Door Latch Hook (replaces 75304470547) 5304470547
#27

Microwave diagram

Microwave door latch hook (replaces 75304470547)

Part #5304470547

$37.10 |
14% OFF Phone Price : $43.10
In Stock
