Model # RLN385UL/P1143501NL Official Caloric gas range

Here are the diagrams and repair parts for Official Caloric RLN385UL-P1143501NL gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Lamp A0282806
#29

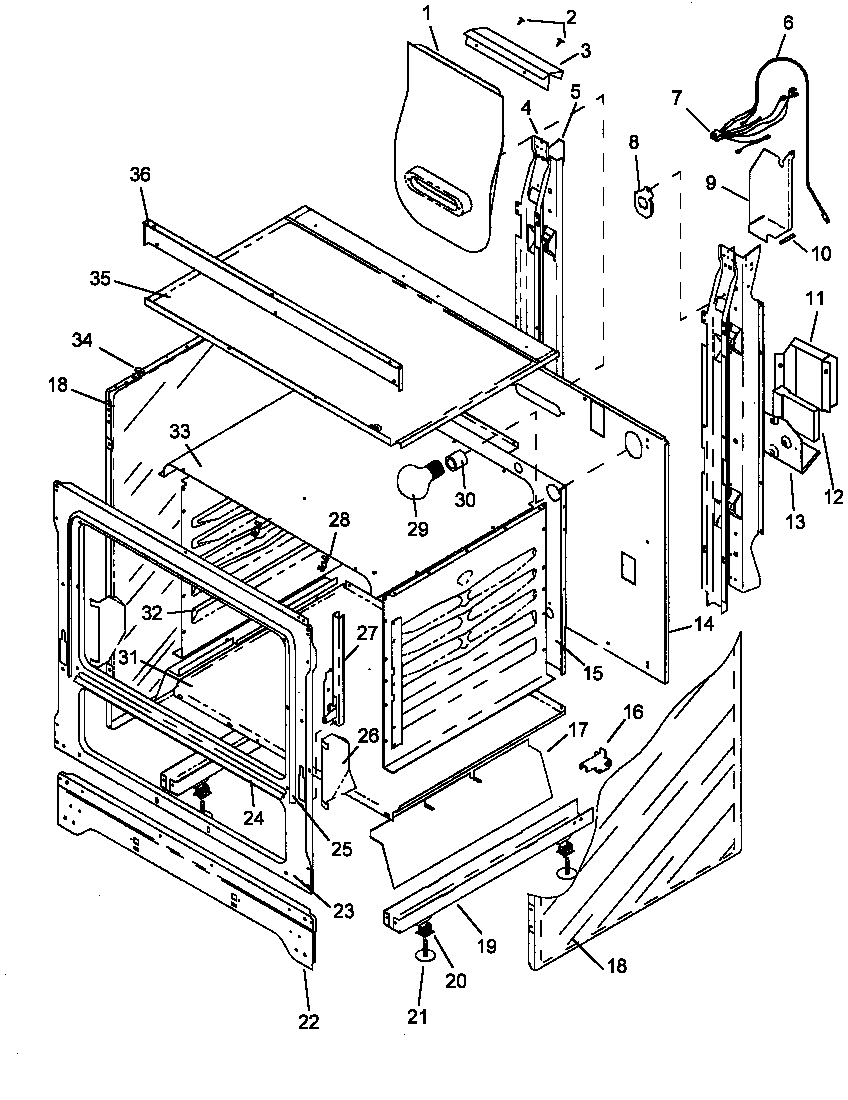

Cabinet assembly diagram

Lamp

Part #A0282806

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282806. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Nut M0282009

#NI

All parts diagram

Nut

Part #M0282009

$12.49
In Stock
Flue Box 06564800
#1

Cabinet assembly diagram

Flue box

Part #06564800

The manufacturer no longer makes this part, and there's no substitute part

"t" Nut 0088571
#20

Cabinet assembly diagram

"t" nut

Part #0088571

The manufacturer no longer makes this part, and there's no substitute part

Cover - Rear 06559600
#3

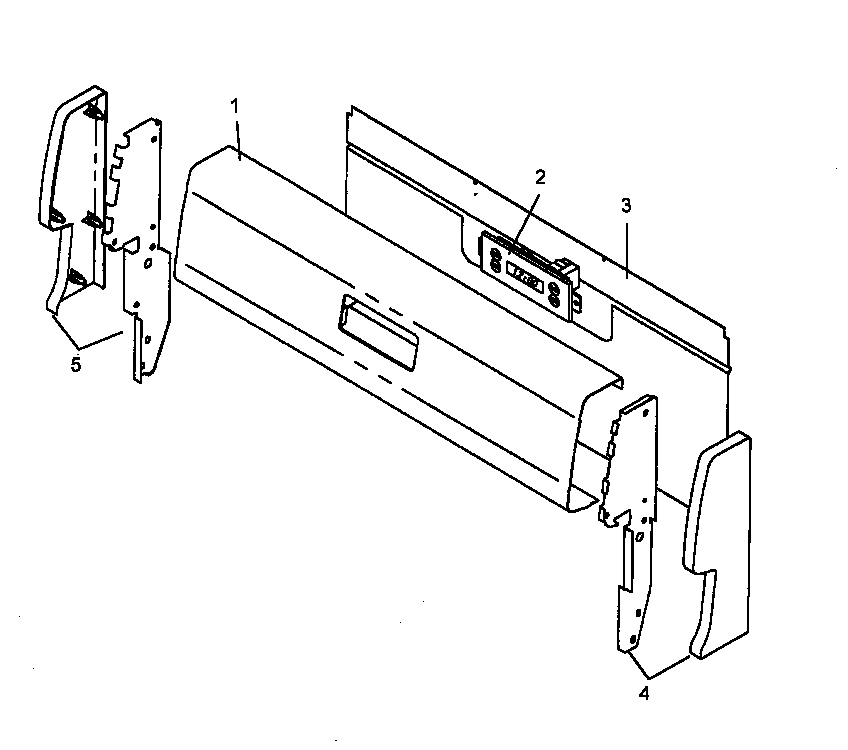

Backguard assembly diagram

Cover - rear

Part #06559600

The manufacturer no longer makes this part, and there's no substitute part

Shield, Hinge 0310064
Shield, hinge

Part #0310064

The manufacturer no longer makes this part, and there's no substitute part

Rubber Bumper 0087002
#34

Cabinet assembly diagram

Rubber bumper

Part #0087002

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Oven Door, Window 06511800
#5

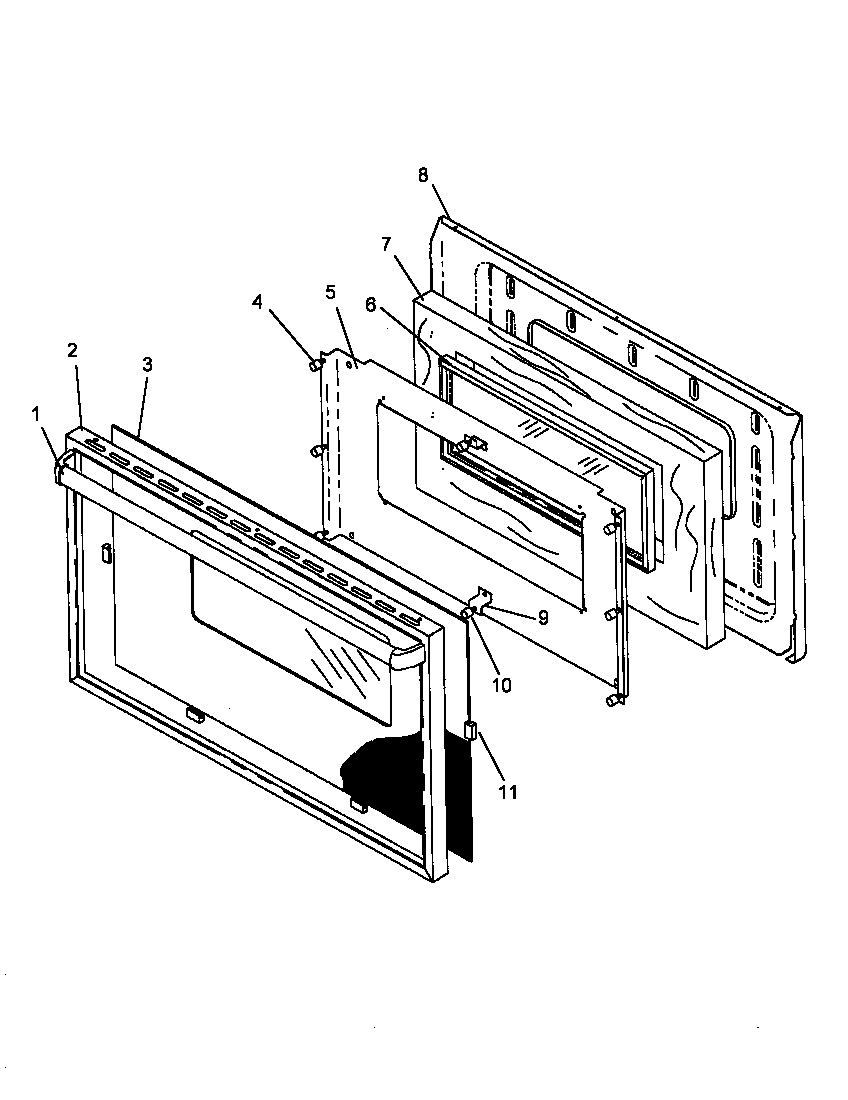

Oven door assembly diagram

Baffle, oven door, window

Part #06511800

The manufacturer no longer makes this part, and there's no substitute part

Door Handle Mounting Screw 0311884

#NI

All parts diagram

Door handle mounting screw

Part #0311884

The manufacturer no longer makes this part, and there's no substitute part

Venturi, Rear, Right 0314968
#10

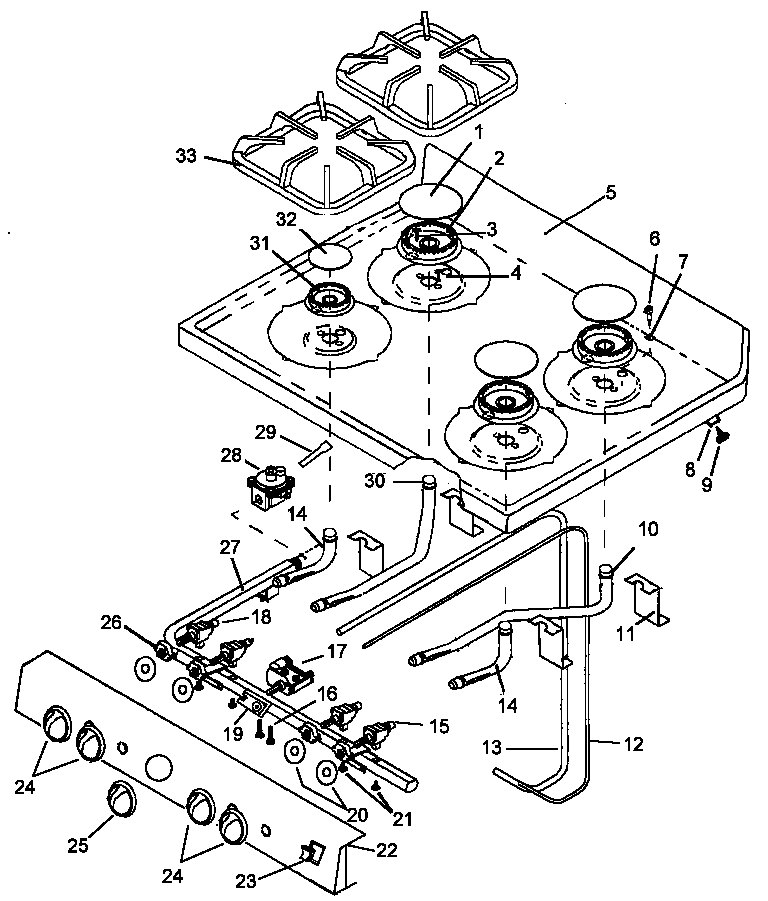

Main top assembly - sealed burners diagram

Venturi, rear, right

Part #0314968

The manufacturer no longer makes this part, and there's no substitute part
