Model # R-331 Official Ryobi router

Here are the diagrams and repair parts for Official Ryobi R-331 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Brush Holder 6570097
#9

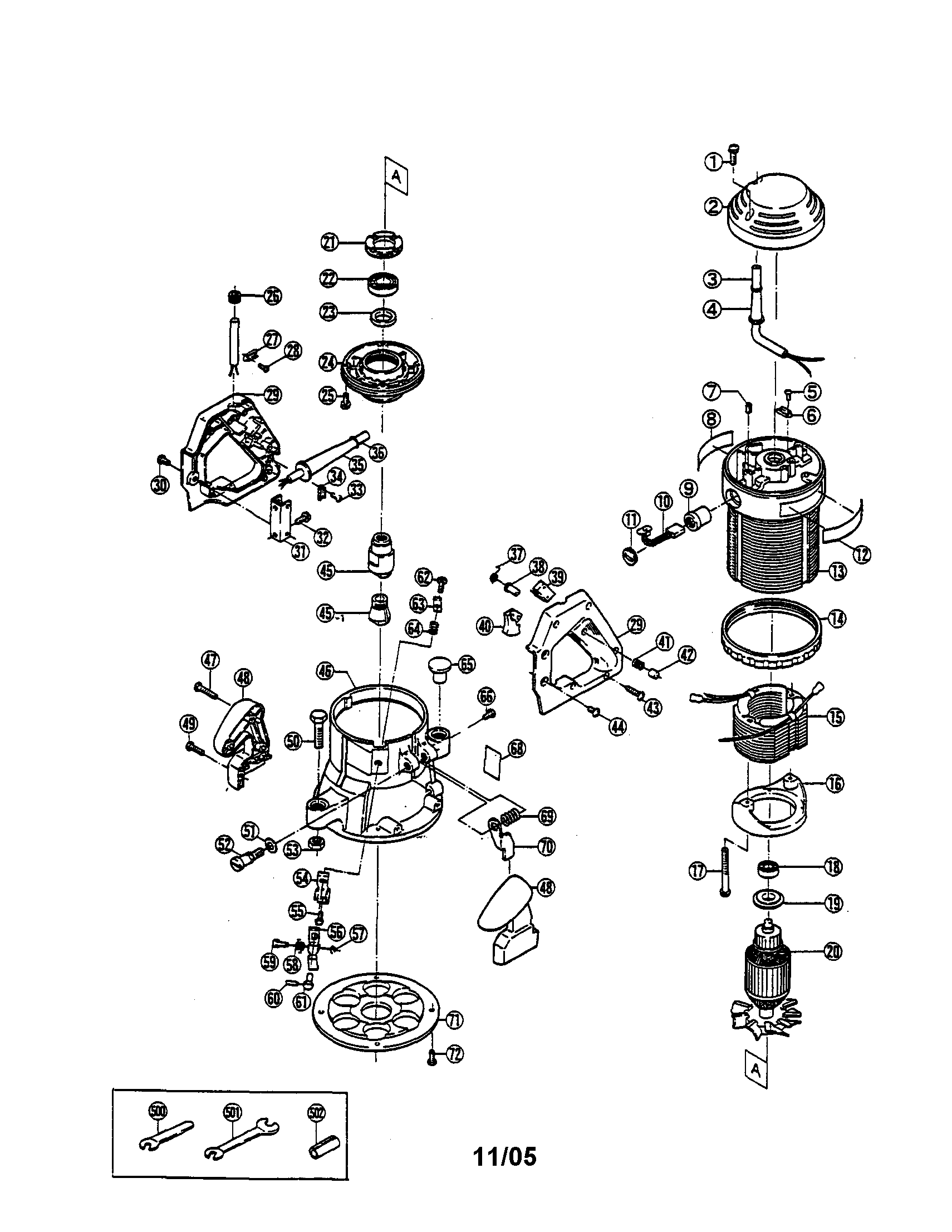

Router diagram

Brush holder

Part #6570097

The manufacturer no longer makes this part, and there's no substitute part

Clamp Screw 9280506
#7

Router diagram

Clamp screw

Part #9280506

The manufacturer no longer makes this part, and there's no substitute part

Phillips Pan Screw M5 X 16 (2) 9020516
#1

Router diagram

Phillips pan screw m5 x 16 (2)

Part #9020516

The manufacturer no longer makes this part, and there's no substitute part

Bit Adapter 6072213
#502A

Router diagram

Bit adapter

Part #6072213

The manufacturer no longer makes this part, and there's no substitute part

Collet 6940118
#45-1

Router diagram

Collet

Part #6940118

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 6570107
#11

Router diagram

Brush cap

Part #6570107

The manufacturer no longer makes this part, and there's no substitute part

Terminal 6560026

#NI04

All parts diagram

Terminal

Part #6560026

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt M10 X 35 9191035
#50

Router diagram

Hex head bolt m10 x 35

Part #9191035

The manufacturer no longer makes this part, and there's no substitute part

Connector 6530209

#NI01

All parts diagram

Connector

Part #6530209

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly Awg #16 X 3 X 2 6520233
#36

Router diagram

Cord assembly awg #16 x 3 x 2

Part #6520233

The manufacturer no longer makes this part, and there's no substitute part
