Model # AS130W Official Jenn-Air range accessories

Here are the diagrams and repair parts for Official Jenn-Air AS130W range accessories, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AS130W Ranges
Screw 708955
#12

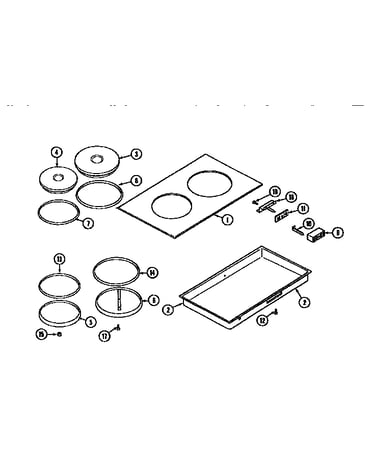

Solid element cartridge diagram

Screw

Part #708955

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 708955. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cont Spade 708572
#10

Solid element cartridge diagram

Cont spade

Part #708572

Replaced by #Y708572

?
Manufacturer substitution
This part replaces 708572. Substitute parts can look different from the original.
This item is not returnable
$9.09 |
10% OFF Phone Price : $10.09
In Stock
Insulator 708834
#11

Solid element cartridge diagram

Insulator

Part #708834

Replaced by #708834

?
Manufacturer substitution
This part replaces 708834. Substitute parts can look different from the original.
$14.29
In Stock
Screw 708861
#16

Solid element cartridge diagram

Screw

Part #708861

Replaced by #708861

?
Manufacturer substitution
This part replaces 708861. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Terminal Block 708730
#9

Solid element cartridge diagram

Terminal block

Part #708730

The manufacturer no longer makes this part, and there's no substitute part

Element Sm 04000002
#4

Solid element cartridge diagram

Element sm

Part #04000002

Replaced by #WP3147131

?
Manufacturer substitution
This part replaces 04000002. Substitute parts can look different from the original.
$117.95 |
9% OFF Phone Price : $129.95
In Stock
Element 04000001
#3

Solid element cartridge diagram

Element

Part #04000001

The manufacturer no longer makes this part, and there's no substitute part

Nut 04100076
#17A

Solid element cartridge diagram

Nut

Part #04100076

The manufacturer no longer makes this part, and there's no substitute part

Bracket 04100060
#18

Solid element cartridge diagram

Bracket

Part #04100060

The manufacturer no longer makes this part, and there's no substitute part

Wire 04100078
#14B

Solid element cartridge diagram

Wire

Part #04100078

The manufacturer no longer makes this part, and there's no substitute part
