Here are the diagrams and repair parts for Official KitchenAid KSGG700EBL0 gas range, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

Error Codes

By Schematic

By Part

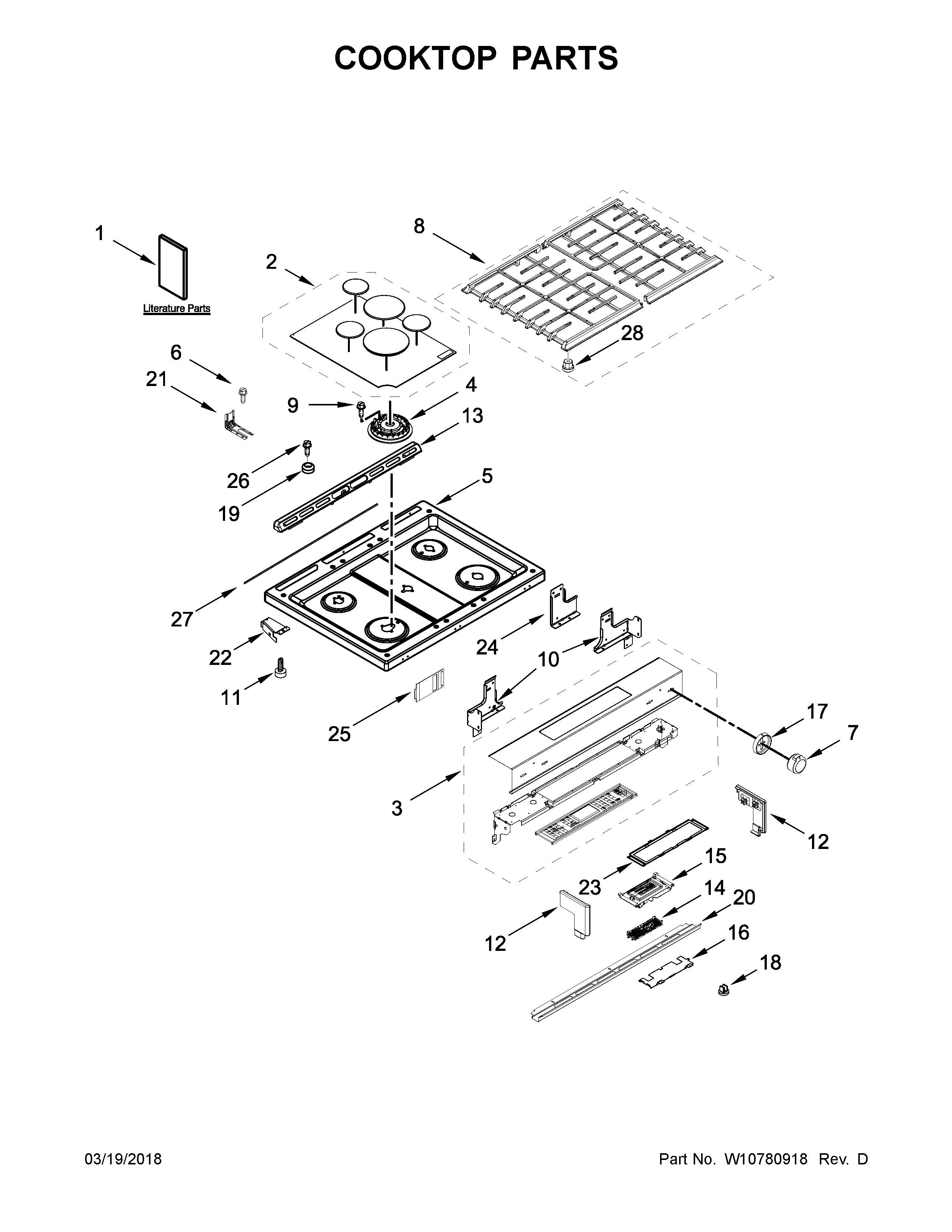

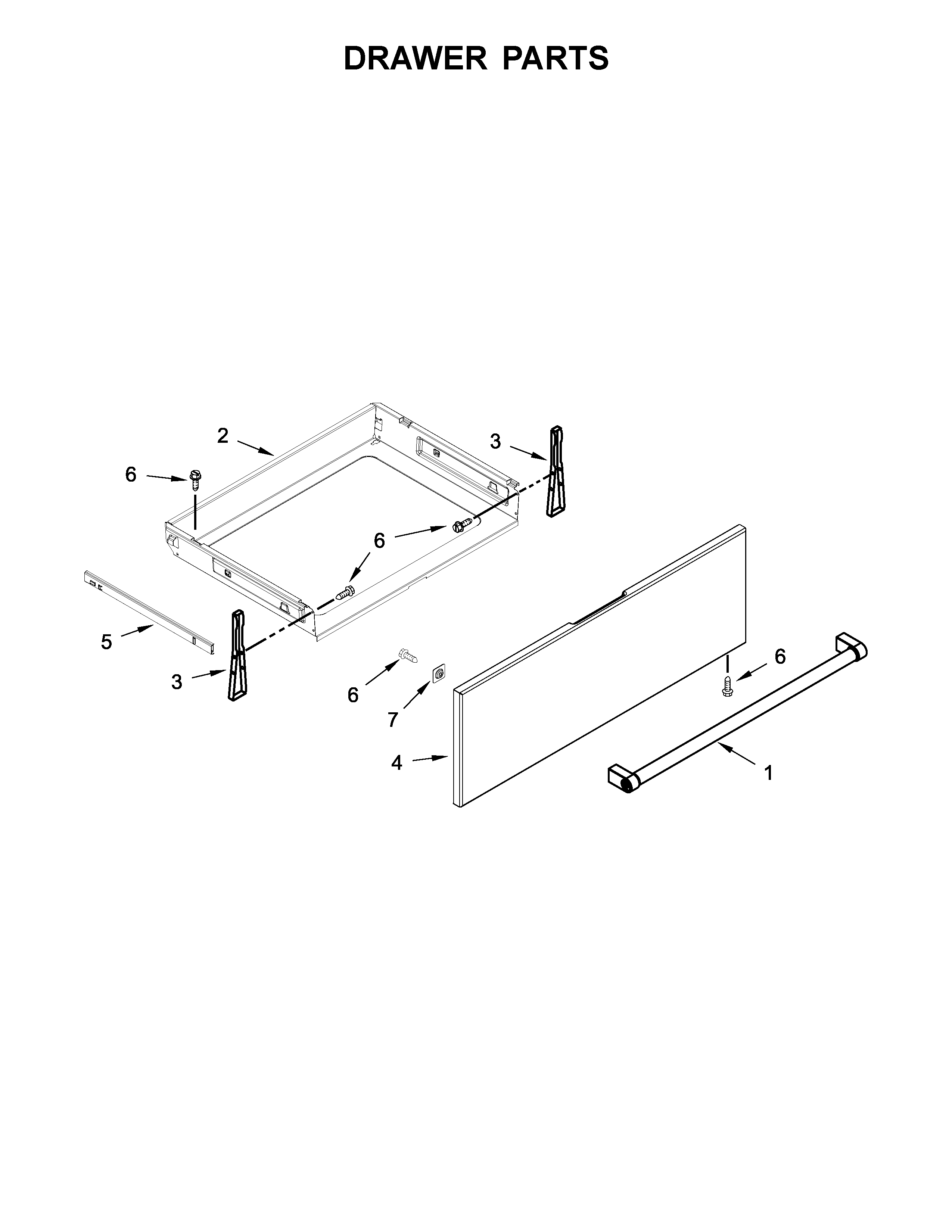

SELECT DIAGRAM

Browse Parts forKSGG700EBL0 Ranges

#29

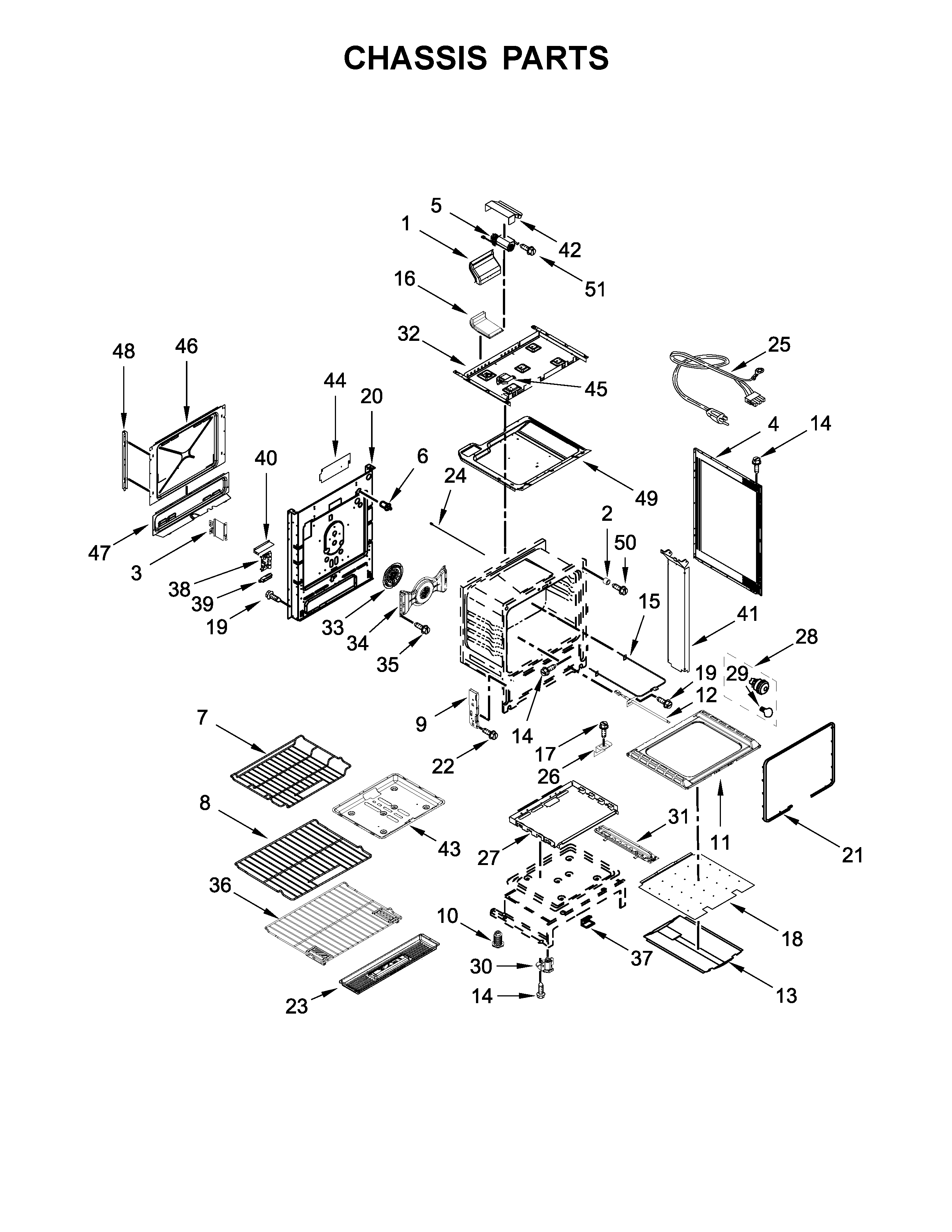

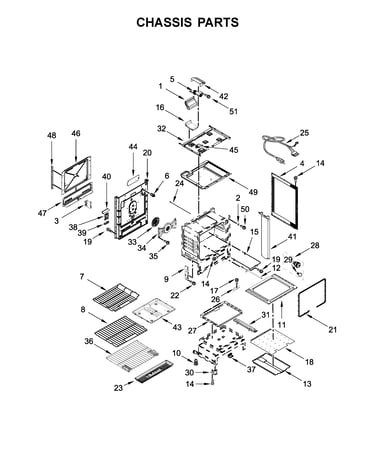

Chassis parts diagram
Light bulb, a-15, 40-watt
Part #STD398091
The manufacturer no longer makes this part, and there's no substitute part
#NI
Optional parts (not included) diagram
Affresh cooktop cleaner
Part #W10355051
This item is not returnable
Get free shipping with Automatic Reorder
$10.88 |
16% OFF Phone Price : $12.88
In Stock
Qty
#12
Chassis parts diagram
Oven sensor
Part #W10586204
Replaced by #W10833885
?
Manufacturer substitution
This part replaces W10586204. Substitute parts can look different from the original.
5 (1)
$98.40 |
11% OFF Phone Price : $110.40
In Stock
Qty
#5
Chassis parts diagram
Cooling fan assembly
Part #W10877642
Replaced by #W11107275
?
Manufacturer substitution
This part replaces W10877642. Substitute parts can look different from the original.
3.6 (5)
$109.04 |
10% OFF Phone Price : $121.04
In Stock
Qty
#13

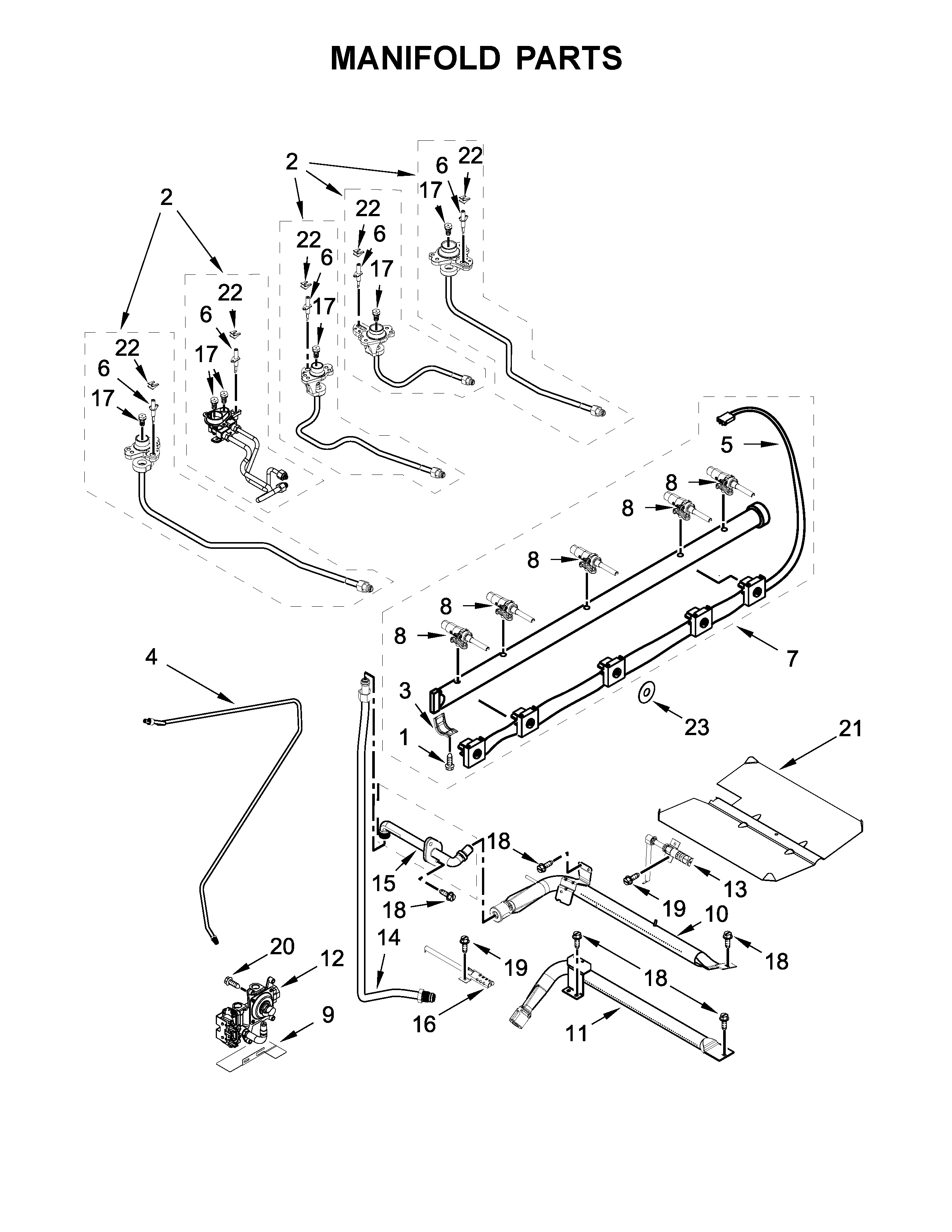

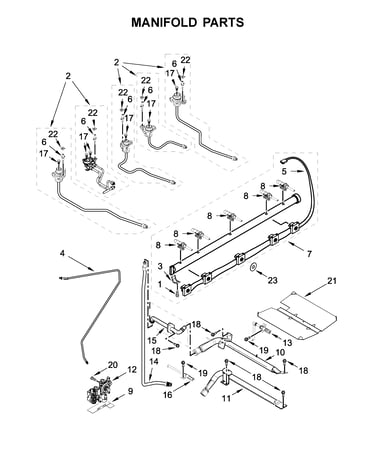

Manifold parts diagram
Range oven igniter
Part #W10324262
Replaced by #WPW10324262
?
Manufacturer substitution
This part replaces W10324262. Substitute parts can look different from the original.
5 (3)
$64.45 |
9% OFF Phone Price : $70.45
In Stock
Qty
#NI
Optional parts (not included) diagram
Spray w
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
5 (2)
This item is not returnable
$10.16 |
35% OFF Was : $15.69
In Stock
Qty
#NI
Optional parts (not included) diagram
Appliance touch-up paint
Part #72017
Replaced by #72017
?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
3.25 (4)
$7.13 |
14% OFF Was : $8.29
In Stock
Qty
#3B

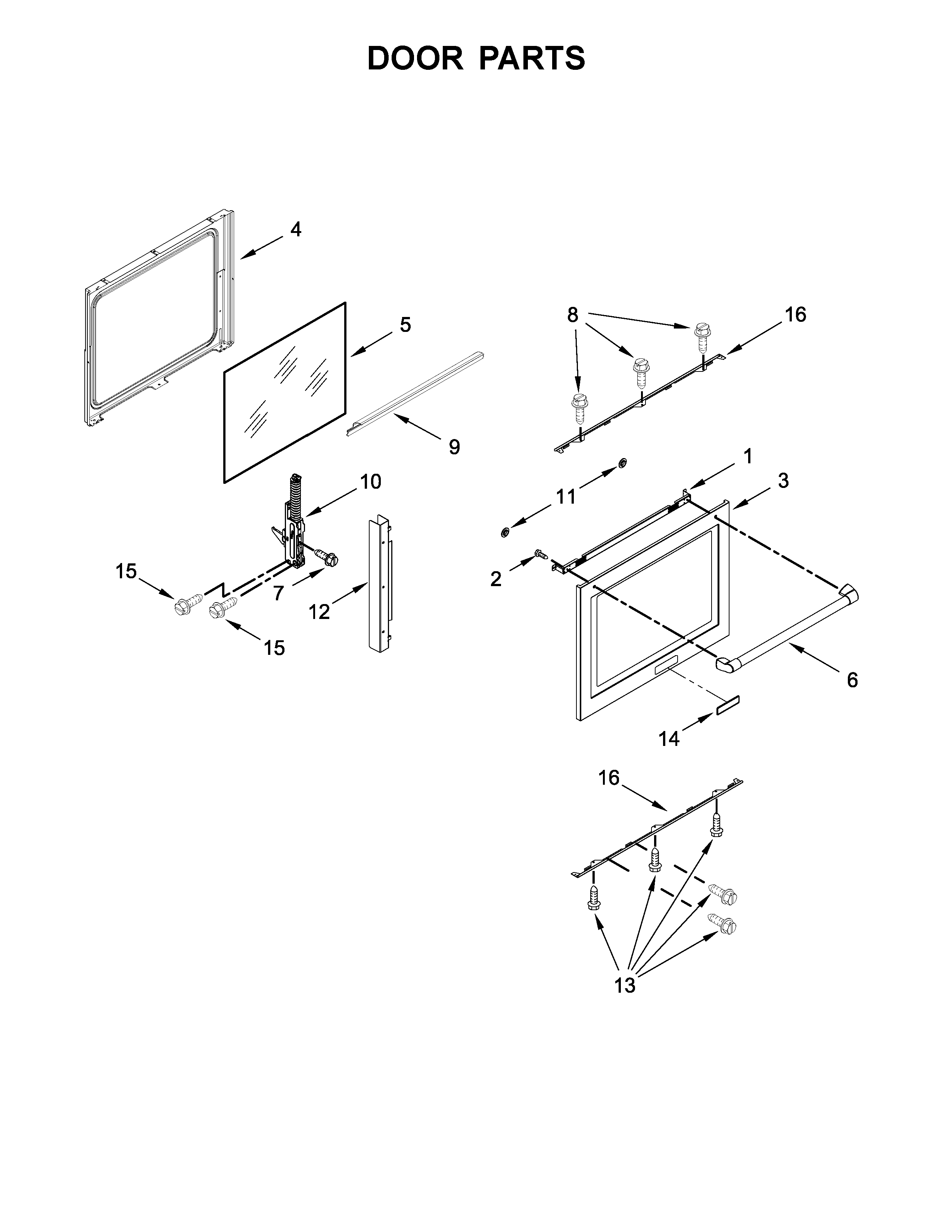

Door parts diagram
Range oven door outer panel (stainless)
Part #W10634271
Replaced by #WPW10634271
?
Manufacturer substitution
This part replaces W10634271. Substitute parts can look different from the original.
1 (1)
$246.97 |
5% OFF Phone Price : $258.97
In Stock
Qty
#39
Chassis parts diagram
Spark module (red)
Part #W10475149
Replaced by #WPW10475149
?
Manufacturer substitution
This part replaces W10475149. Substitute parts can look different from the original.
5 (1)
$122.05 |
9% OFF Phone Price : $134.05
In Stock
Qty
#NI
Optional parts (not included) diagram
Cooktop scraper
Part #WA906B
5 (1)
This item is not returnable
Get free shipping with Automatic Reorder
$6.29 |
14% OFF Phone Price : $7.29
In Stock
Qty
