Model # ASQ24DAS1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ASQ24DAS1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

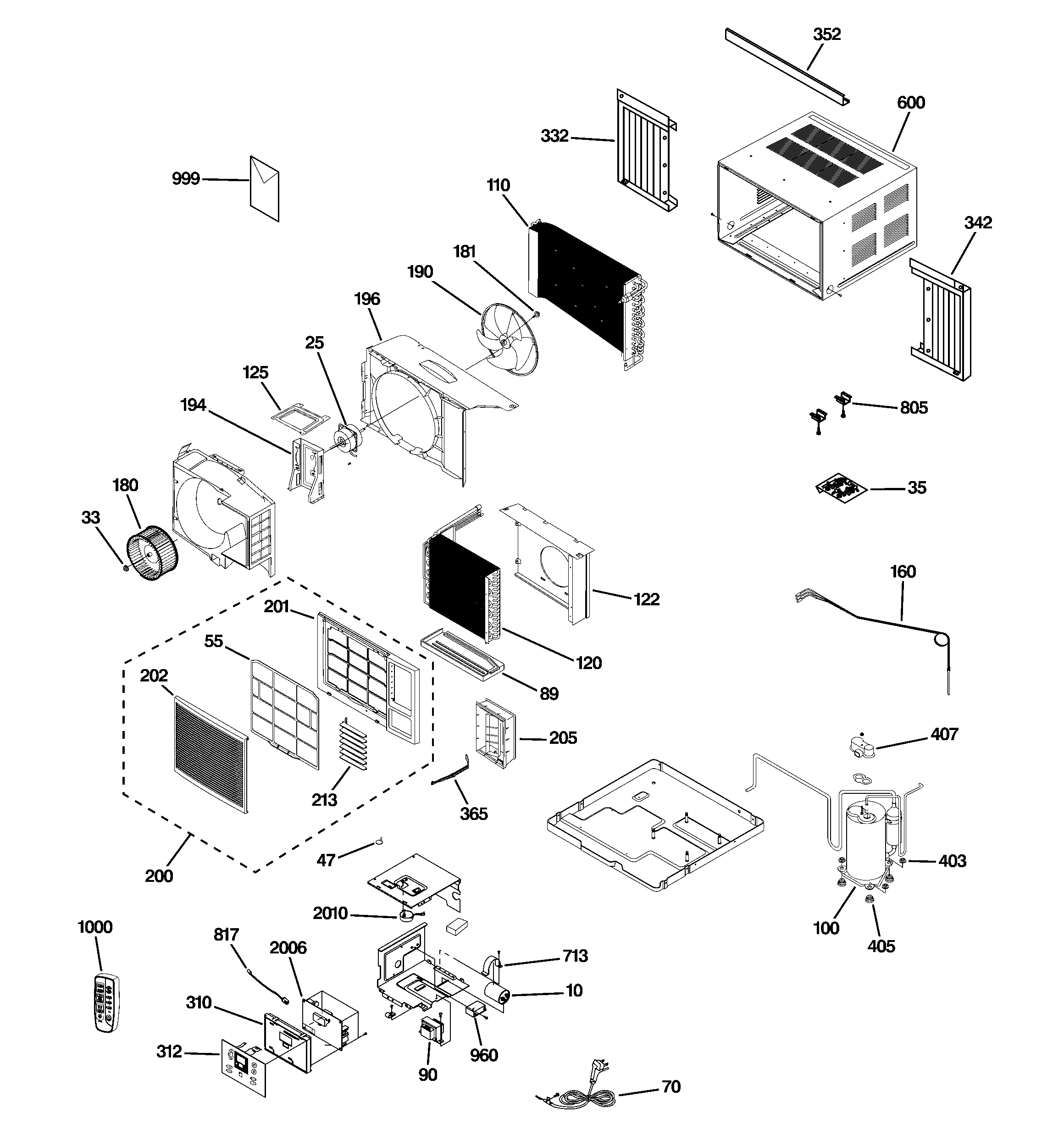

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Capillary Tube WJ53X10121
#160

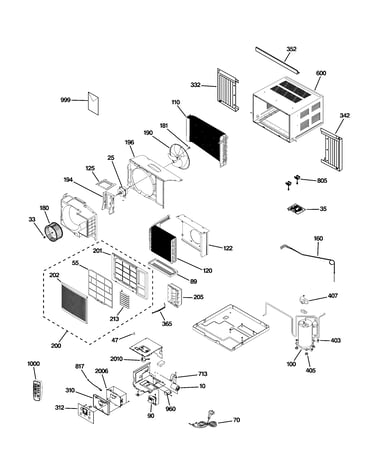

Room air conditioner diagram

Capillary tube

Part #WJ53X10121

$81.49
In Stock
U&c/ii Asw1 49-7473
#999

Room air conditioner diagram

U&c/ii asw1

Part #49-7473

$17.99
In Stock
Air Conditioner Blower WJ73X10043
#180

Room air conditioner diagram

Air conditioner blower

Part #WJ73X10043

The manufacturer no longer makes this part, and there's no substitute part

Capacitor(40 WJ20X10076
#10

Room air conditioner diagram

Capacitor(40

Part #WJ20X10076

The manufacturer no longer makes this part, and there's no substitute part

Grommet Isolator WJ01X10182
#405

Room air conditioner diagram

Grommet isolator

Part #WJ01X10182

The manufacturer no longer makes this part, and there's no substitute part

Frame Blade WJ71X10441
#205

Room air conditioner diagram

Frame blade

Part #WJ71X10441

The manufacturer no longer makes this part, and there's no substitute part

Grille-air I WJ85X10120
#202

Room air conditioner diagram

Grille-air i

Part #WJ85X10120

The manufacturer no longer makes this part, and there's no substitute part

Fan Propeller WJ73X10028
#190

Room air conditioner diagram

Fan propeller

Part #WJ73X10028

The manufacturer no longer makes this part, and there's no substitute part

Remote Control WJ26X10087
#1000

Room air conditioner diagram

Remote control

Part #WJ26X10087

The manufacturer no longer makes this part, and there's no substitute part

Blade WJ71X10440
#213

Room air conditioner diagram

Blade

Part #WJ71X10440

The manufacturer no longer makes this part, and there's no substitute part
