Craftsman
Front-Engine Lawn Tractor

Model # 917257460 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917257460 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

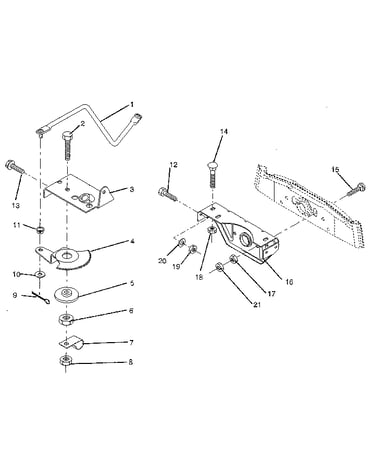

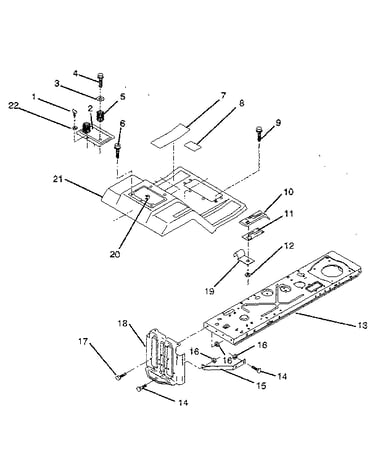

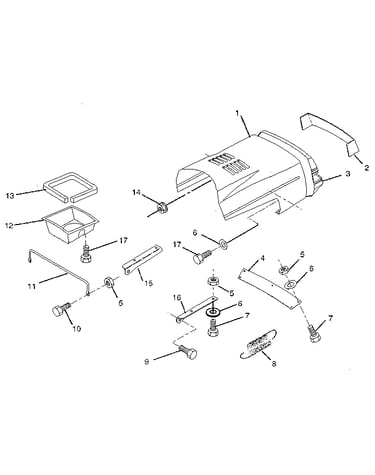

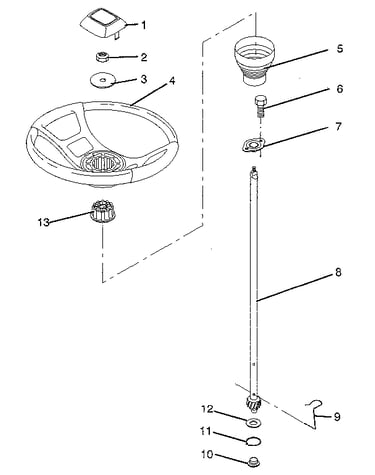

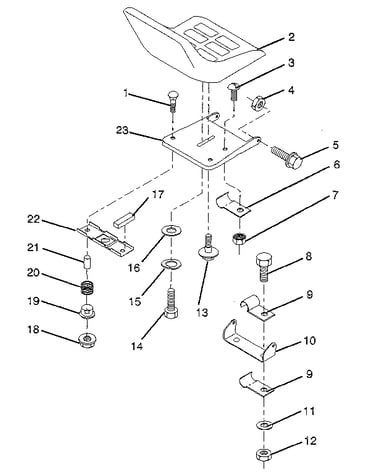

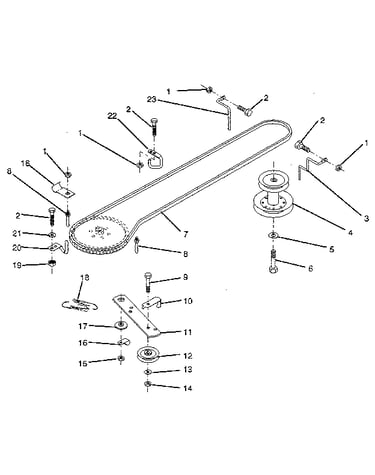

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 415 parts  |
Hub Cap 104757X
Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Engine Gasket 125593X
#7

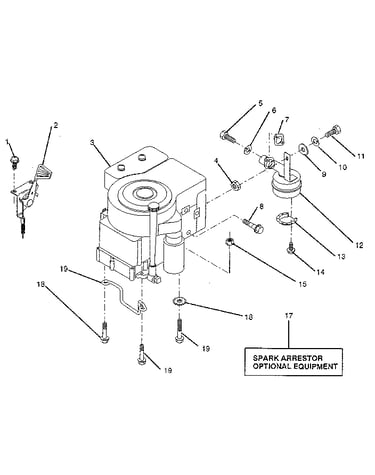

Engine/throttle diagram

Engine gasket

Part #125593X

Replaced by #692236

?
Manufacturer substitution
This part replaces 125593X. Substitute parts can look different from the original.
BEST SELLER
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Spring Retainer 3146R
#5

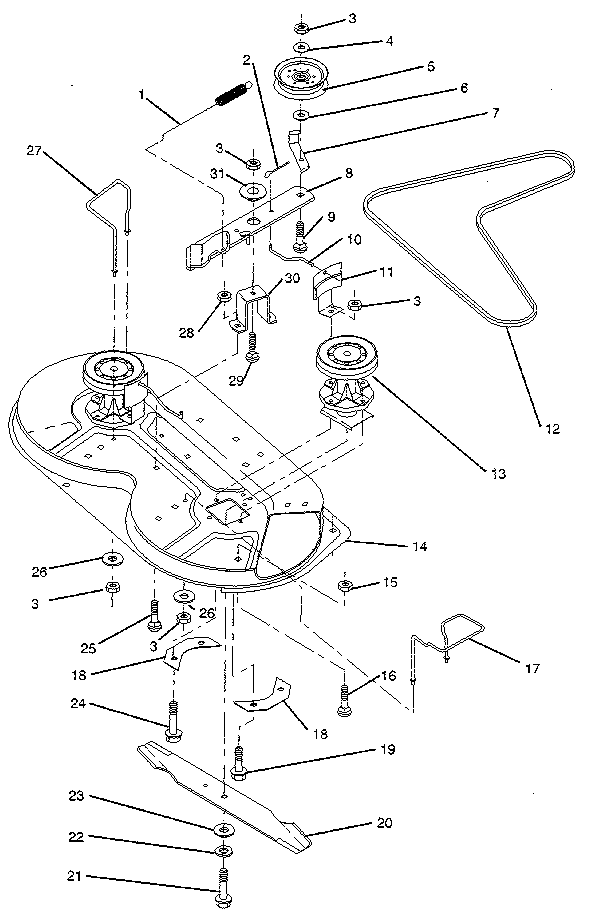

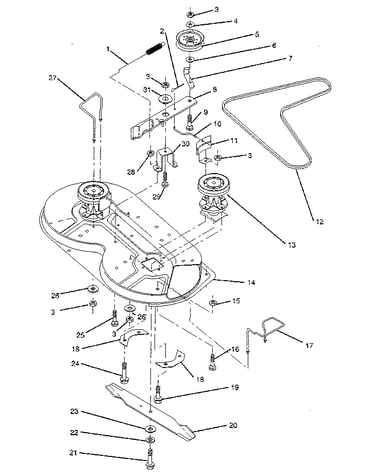

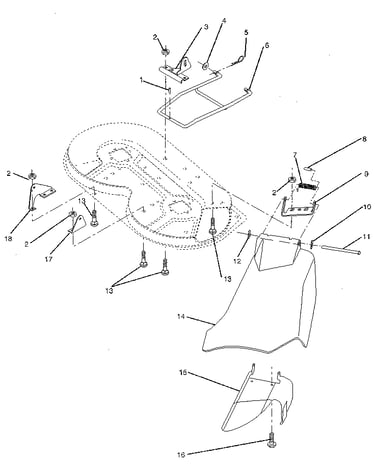

Mower deck diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Hardened Race Thrust Bearing 6266H
#6

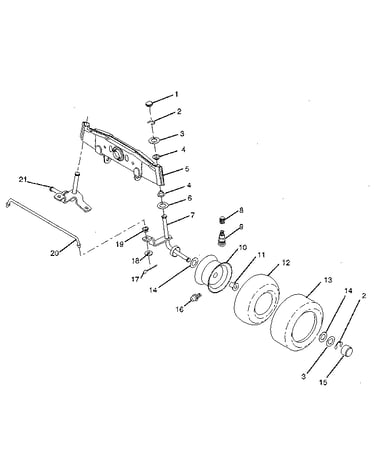

Front axle diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Fuel Cap 122015X
#1

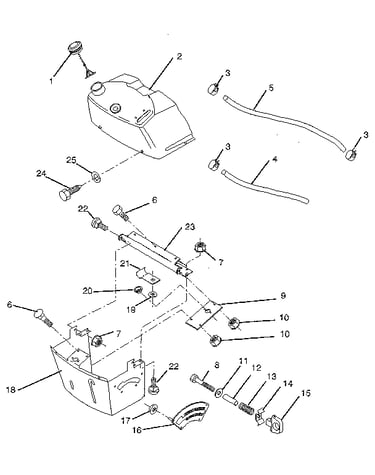

Dash diagram

Fuel cap

Part #122015X

Replaced by #581075501

?
Manufacturer substitution
This part replaces 122015X. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
E-ring STD581075
#15

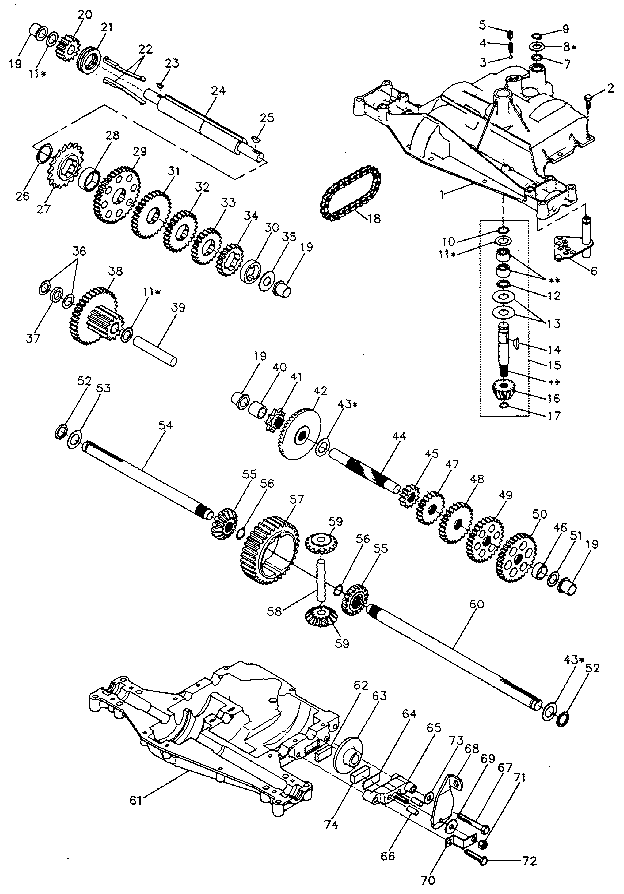

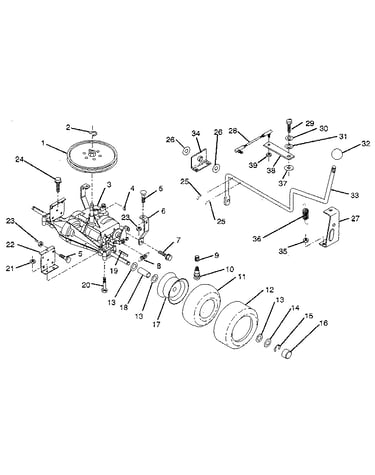

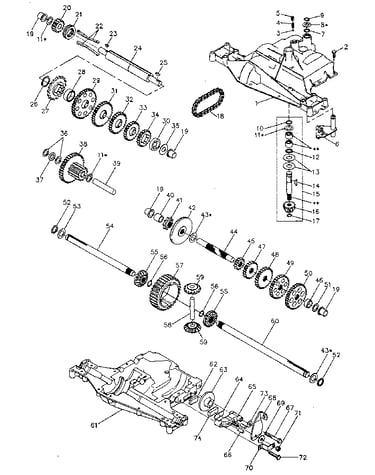

Transaxle diagram

E-ring

Part #STD581075

Replaced by #812000029

?
Manufacturer substitution
This part replaces STD581075. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Lawn & Garden Equipment E-ring, 2-pack 12000034
#13

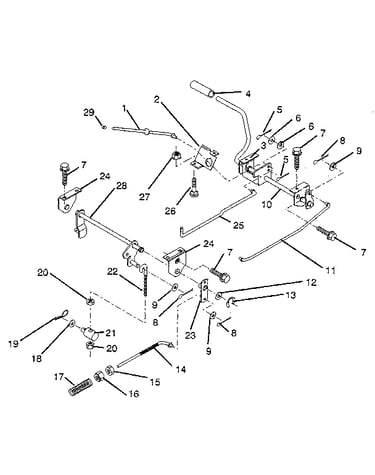

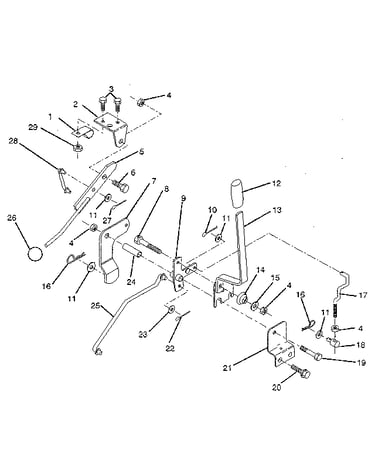

Parking brake/rear mower lift assembly diagram

Lawn & garden equipment e-ring, 2-pack

Part #12000034

Replaced by #812000029

?
Manufacturer substitution
This part replaces 12000034. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Lawn Tractor Ignition Switch STD365402
#10

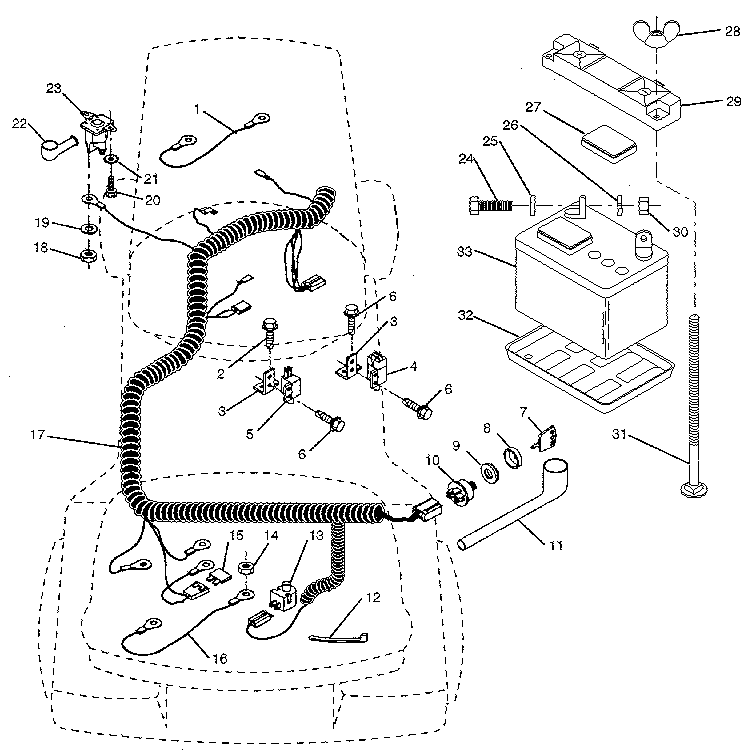

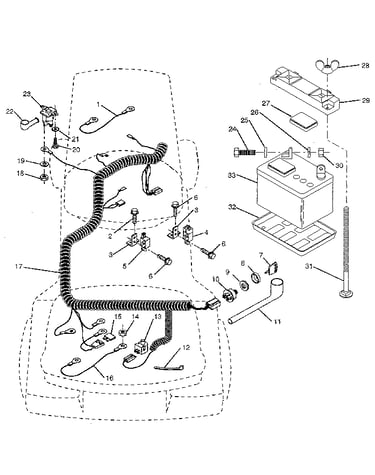

Electrical diagram

Lawn tractor ignition switch

Part #STD365402

Replaced by #532365402

?
Manufacturer substitution
This part replaces STD365402. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Screw 71070512
#5

Engine/throttle diagram

Screw

Part #71070512

Replaced by #596134201

?
Manufacturer substitution
This part replaces 71070512. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Spring 110422X
#8

Transaxle diagram

Spring

Part #110422X

Replaced by #532146682

?
Manufacturer substitution
This part replaces 110422X. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
