Model # JMV8186AAB Official Jenn-Air microwave
Here are the diagrams and repair parts for Official Jenn-Air JMV8186AAB microwave, as well as links to manuals and error code tables, if available.
By Schematic

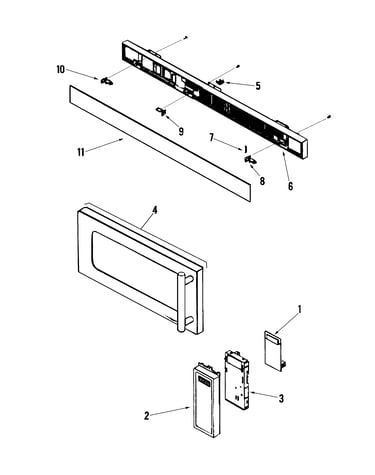

SELECT DIAGRAM
Browse Parts for
JMV8186AAB Microwave
#2

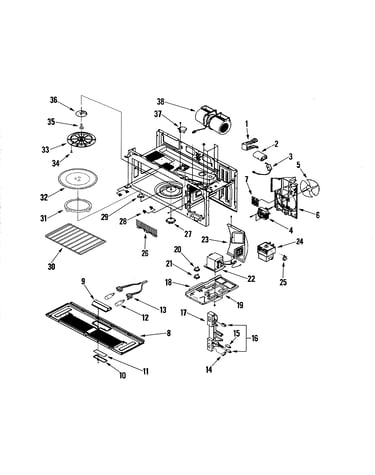

Base/cavity/internal controls diagram
Microwave high-voltage capacitor
Part #2501-001011
Replaced by #2501-001011
?
Manufacturer substitution
This part replaces 2501-001011. Substitute parts can look different from the original.
$65.83 |
8% OFF Phone Price : $71.83
In Stock
#25
Base/cavity/internal controls diagram
Thermostat
Part #DE47-20007A
Replaced by #DE47-20007B
?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Light cavity
Part #4713-001165
Replaced by #4713-001165
?
Manufacturer substitution
This part replaces 4713-001165. Substitute parts can look different from the original.
$27.07 |
18% OFF Phone Price : $33.07
In Stock
Thermostat
Part #DE47-20059A
Replaced by #DE47-20059B
?
Manufacturer substitution
This part replaces DE47-20059A. Substitute parts can look different from the original.
$28.07 |
18% OFF Phone Price : $34.07
In Stock
#7
Base/cavity/internal controls diagram
Filter assembly
Part #DE96-00400B
Replaced by #DE96-00400B
?
Manufacturer substitution
This part replaces DE96-00400B. Substitute parts can look different from the original.
$57.83 |
9% OFF Phone Price : $63.83
In Stock
#3

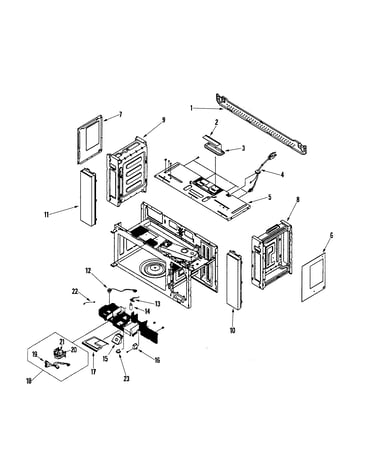

Body/upper duct diagram
Microwave vent damper
Part #DE72-40022A
Replaced by #DE72-40022A
?
Manufacturer substitution
This part replaces DE72-40022A. Substitute parts can look different from the original.
This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
#14
Base/cavity/internal controls diagram
Microwave door interlock switch lever (replaces de66-90106a)
Part #DE66-90106B
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#37
Base/cavity/internal controls diagram
Drive motor
Part #DE31-10173A
Replaced by #DE31-10173A
?
Manufacturer substitution
This part replaces DE31-10173A. Substitute parts can look different from the original.
$35.56 |
14% OFF Phone Price : $41.56
In Stock
#29
Base/cavity/internal controls diagram
Microwave turntable motor coupler
Part #DE67-00179A
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
#32
Base/cavity/internal controls diagram
Microwave glass turntable tray
Part #DE74-20002A
Replaced by #DE74-20002A
?
Manufacturer substitution
This part replaces DE74-20002A. Substitute parts can look different from the original.
$57.58 |
9% OFF Phone Price : $63.58
