Electric Range

Model # CRE650 Official Maytag electric range

Here are the diagrams and repair parts for Official Maytag CRE650 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

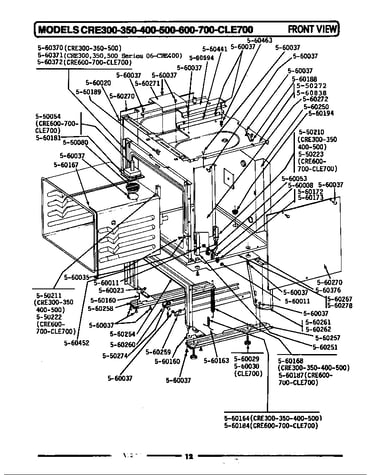

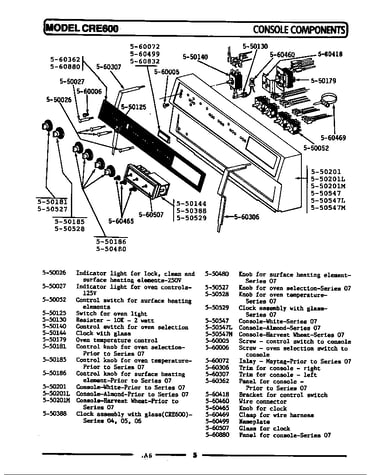

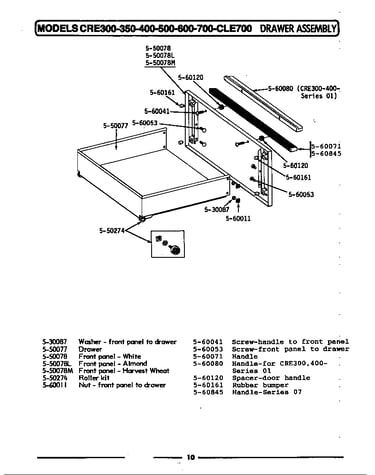

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Terminal Block 550044
#3

Rear view diagram

Terminal block

Part #550044

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 550044. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Receptacle 550226
#3

Top assembly diagram

Receptacle

Part #550226

Replaced by #330031

?
Manufacturer substitution
This part replaces 550226. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Reflector Pa 560215
#8

Top assembly diagram

Reflector pa

Part #560215

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 560215. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Screw 560001
#5

Latch assembly diagram

Screw

Part #560001

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 560001. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 560036
#11

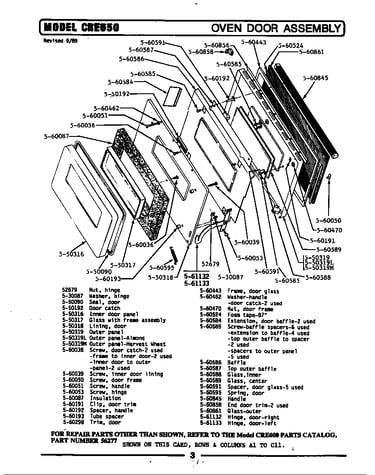

Oven door assembly diagram

Screw

Part #560036

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 560036. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 560037
Screw

Part #560037

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 560037. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Reflector Pa 560255
#10

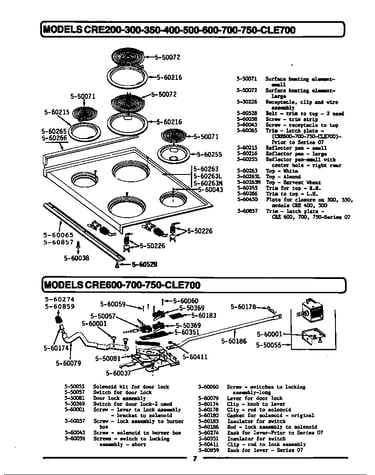

Top assembly diagram

Reflector pa

Part #560255

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces 560255. Substitute parts can look different from the original.
$7.46 |
12% OFF Phone Price : $8.46
In Stock
Screw 560043
Screw

Part #560043

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 560043. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Broiler Pan 560329
#14

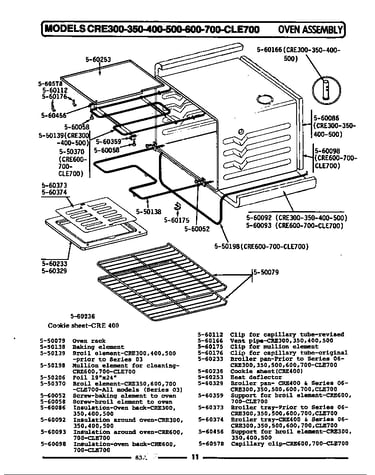

Oven assembly diagram

Oven broiler pan

Part #560329

Replaced by #4396923

?
Manufacturer substitution
This part replaces 560329. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Trim For End 560264
#41

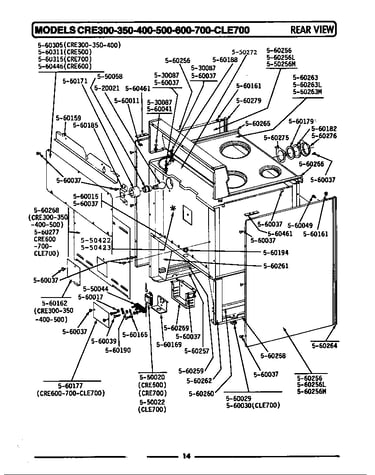

Rear view diagram

Trim for end

Part #560264

Replaced by #7746P005-60

?
Manufacturer substitution
This part replaces 560264. Substitute parts can look different from the original.
$8.47
In Stock
