GE
Wine & Beverage Cooler

Model # PCR06WATBSS Official GE beverage center

Here are the diagrams and repair parts for Official GE PCR06WATBSS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Dryer Filter WR86X0096
#35

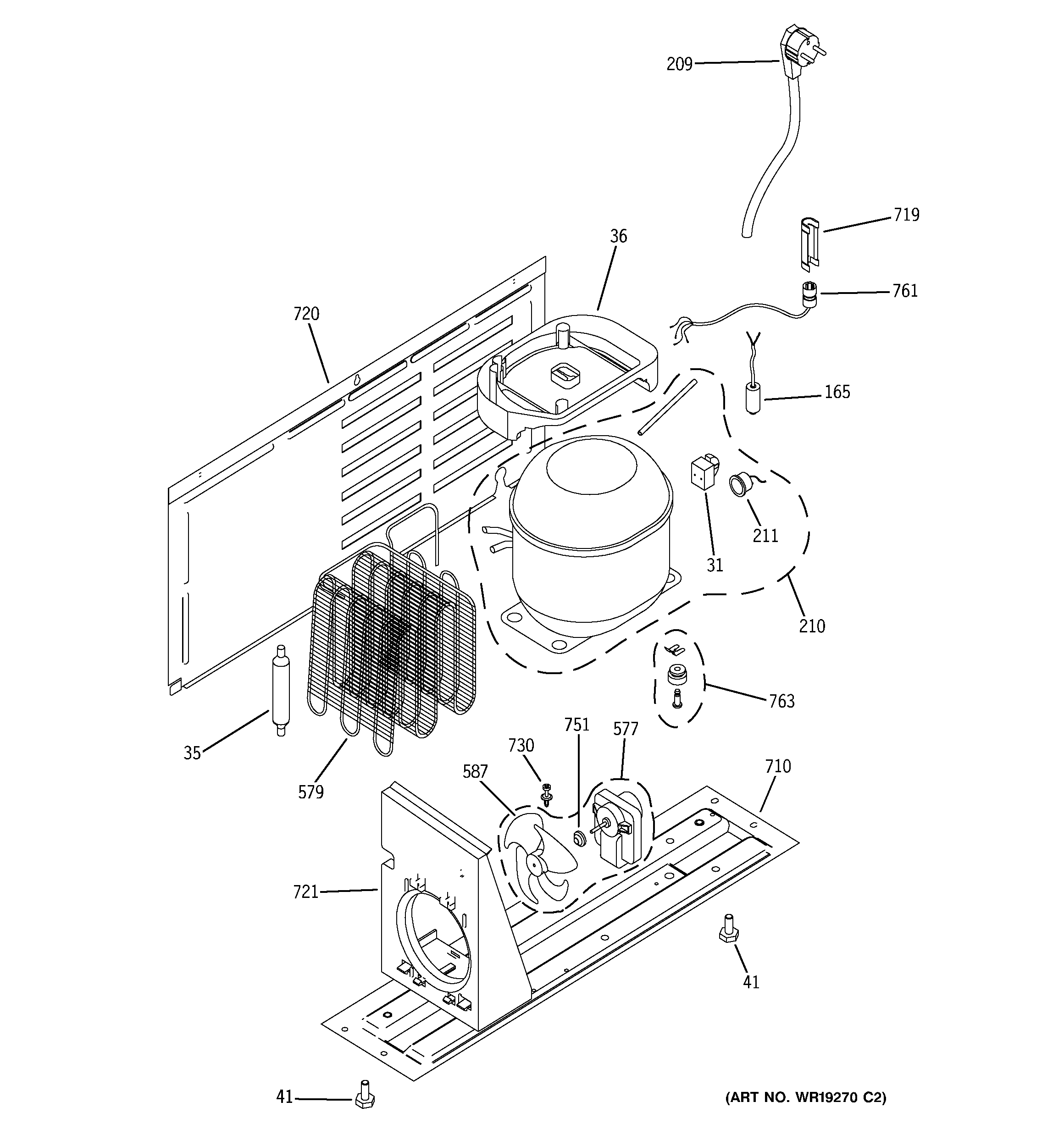

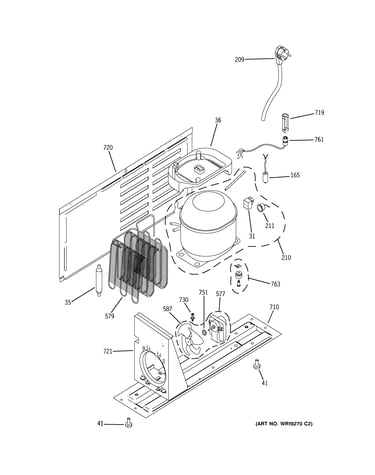

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Magnetic Gas WR24X10123
#336

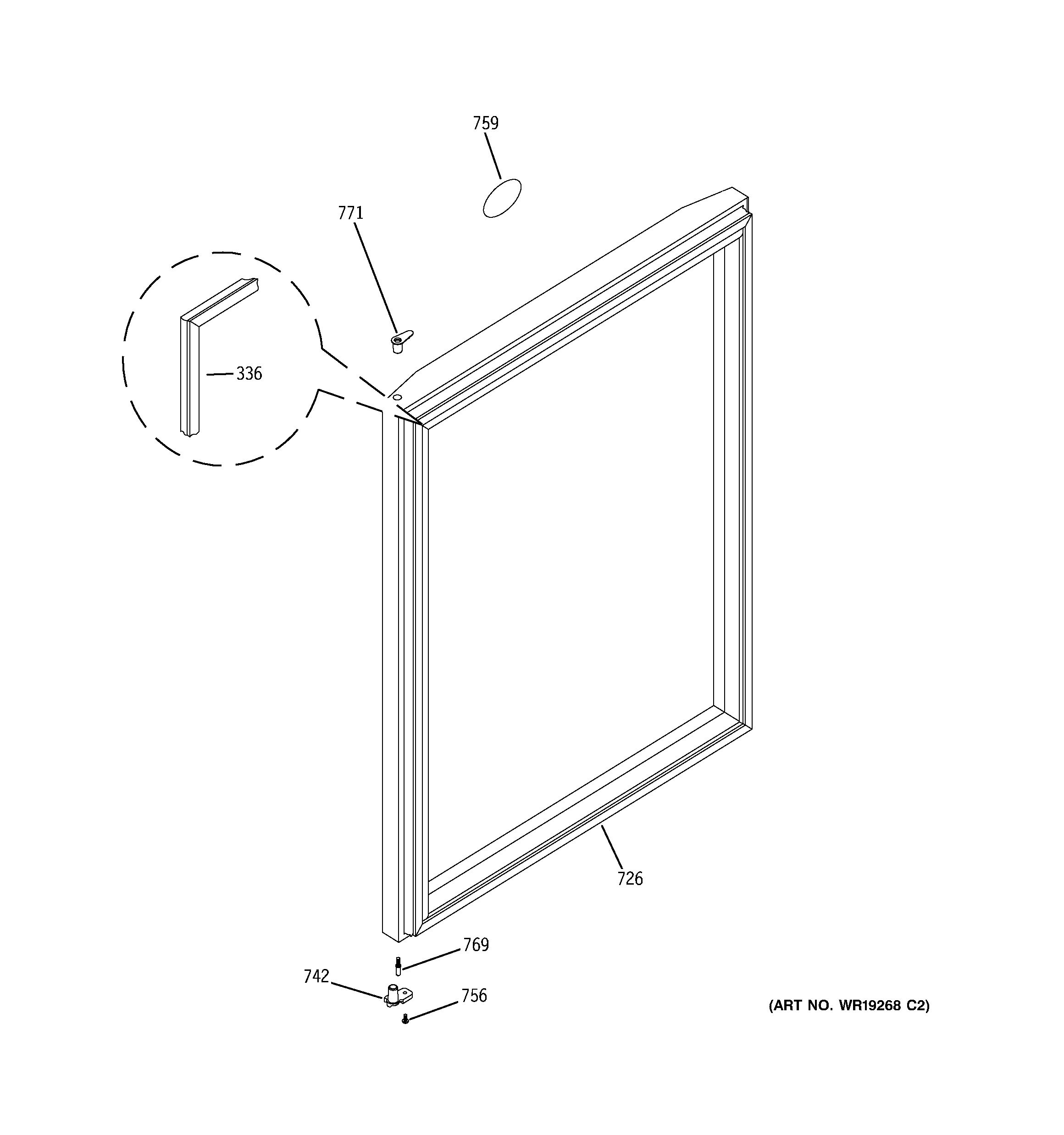

Door diagram

Magnetic gas

Part #WR24X10123

Replaced by #WR24X10161

?
Manufacturer substitution
This part replaces WR24X10123. Substitute parts can look different from the original.
$117.45 |
9% OFF Phone Price : $129.45
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Unit parts diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
11% OFF Phone Price : $108.54
In Stock
Condenser Motor WR60X10183
#577

Unit parts diagram

Condenser motor

Part #WR60X10183

Replaced by #WR60X10118

?
Manufacturer substitution
This part replaces WR60X10183. Substitute parts can look different from the original.
$123.92 |
9% OFF Phone Price : $135.92
In Stock
Compressor WR87X10245
#210

Unit parts diagram

Compressor

Part #WR87X10245

Replaced by #WR87X10076

?
Manufacturer substitution
This part replaces WR87X10245. Substitute parts can look different from the original.
$548.74 |
$12.00 OFF Phone Price : $560.74
In Stock
Beverage Cooler Temperature Control Thermostat WR09X10093
#32

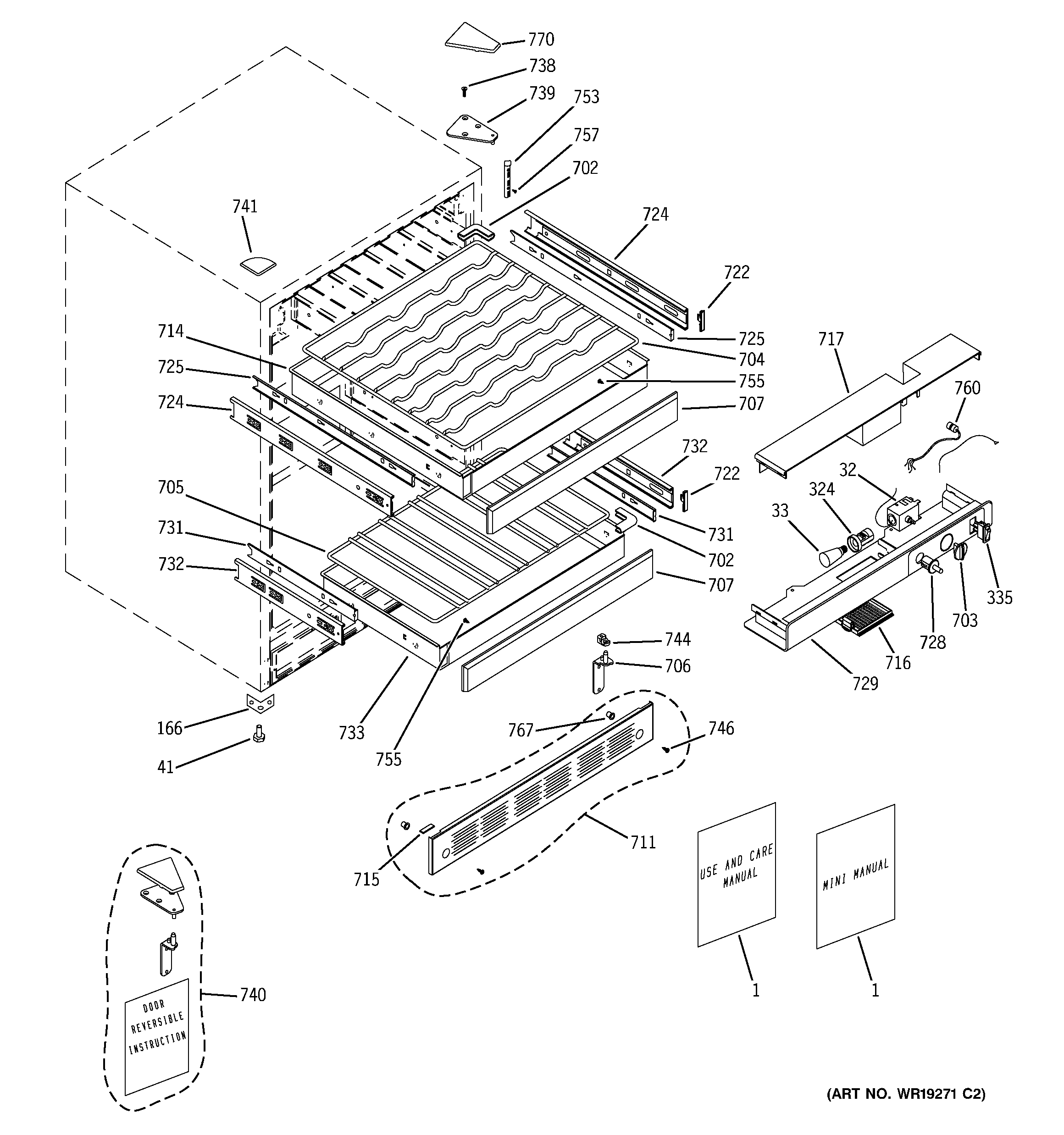

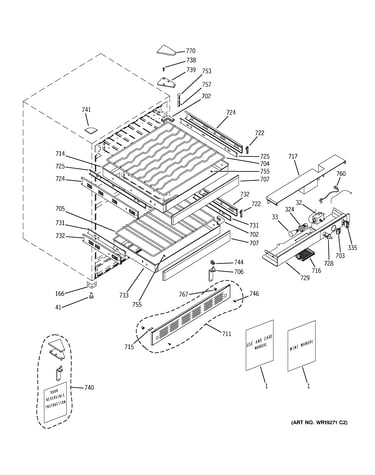

Cabinet & shelves diagram

Beverage cooler temperature control thermostat

Part #WR09X10093

$78.09 |
7% OFF Phone Price : $84.09
In Stock
Wine Cooler Toe Grille (stainless) WR79X10030
#711

Cabinet & shelves diagram

Wine cooler toe grille (stainless)

Part #WR79X10030

$125.86 |
9% OFF Phone Price : $137.86
In Stock
Wine Cooler Door Hinge, Upper WR13X10276
#739

Cabinet & shelves diagram

Wine cooler door hinge, upper

Part #WR13X10276

$38.53 |
13% OFF Phone Price : $44.53
In Stock
Compressor Support WR02X11960
#710

Unit parts diagram

Compressor support

Part #WR02X11960

$76.76
In Stock
Condenser WR84X10045
#579

Unit parts diagram

Condenser

Part #WR84X10045

$112.98
In Stock
