Model # 163A Official Eureka stick vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 163A stick vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 8 of 8 parts |

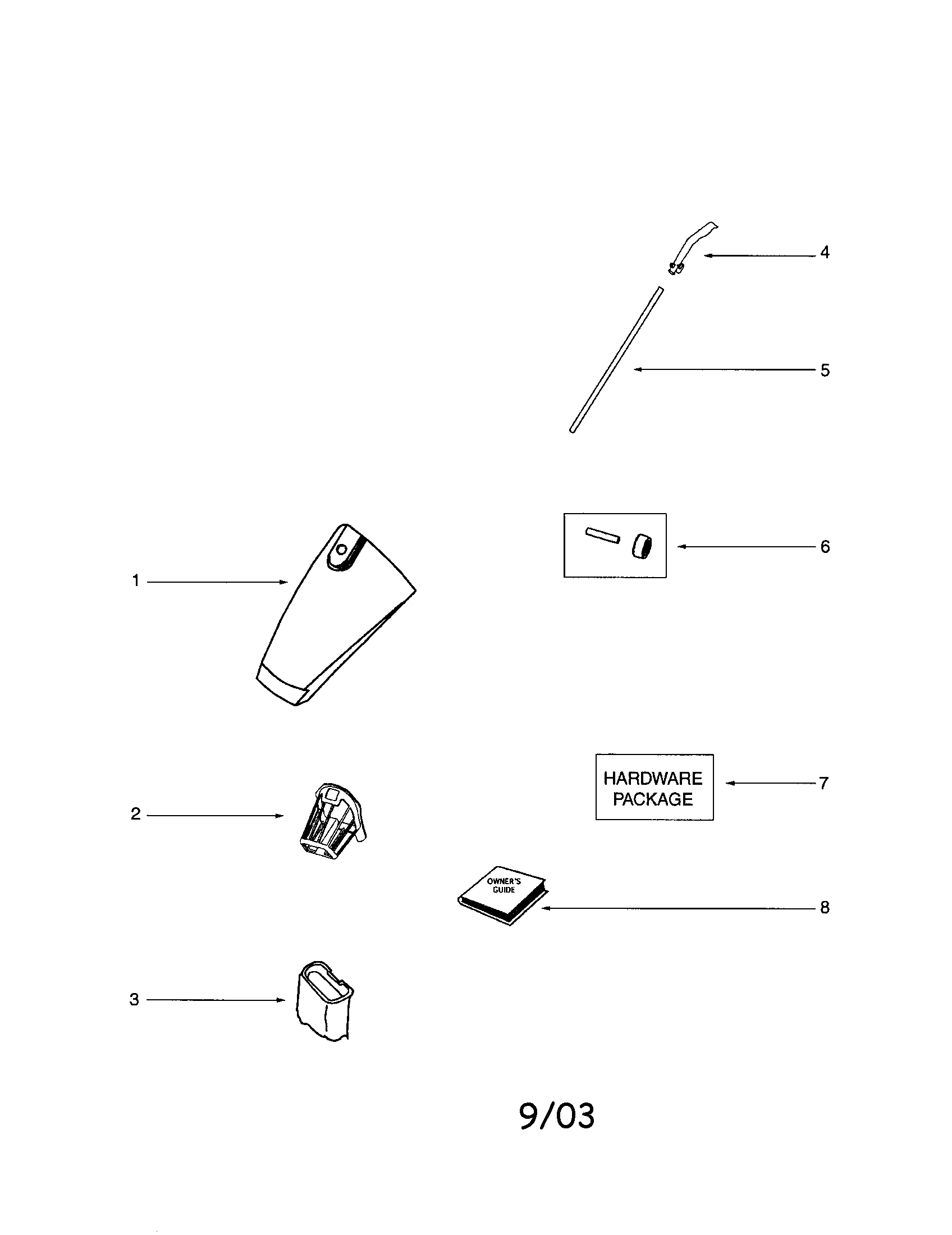

Stick vac assembly diagram

Vacuum filter cage

Part #61676

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Hrdwre pack

Part #60911

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Dust cup

Part #61547-5

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Vacuum handle assembly

Part #60906-1

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Filter, 1-pack

Part #61544

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Grip

Part #60854-1

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Owner's manual

Part #59806A

The manufacturer no longer makes this part, and there's no substitute part

Stick vac assembly diagram

Wheel and axle

Part #53252

The manufacturer no longer makes this part, and there's no substitute part
