Model # S5684-035 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover S5684-035 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Seal-12 Pk 34122014
#15

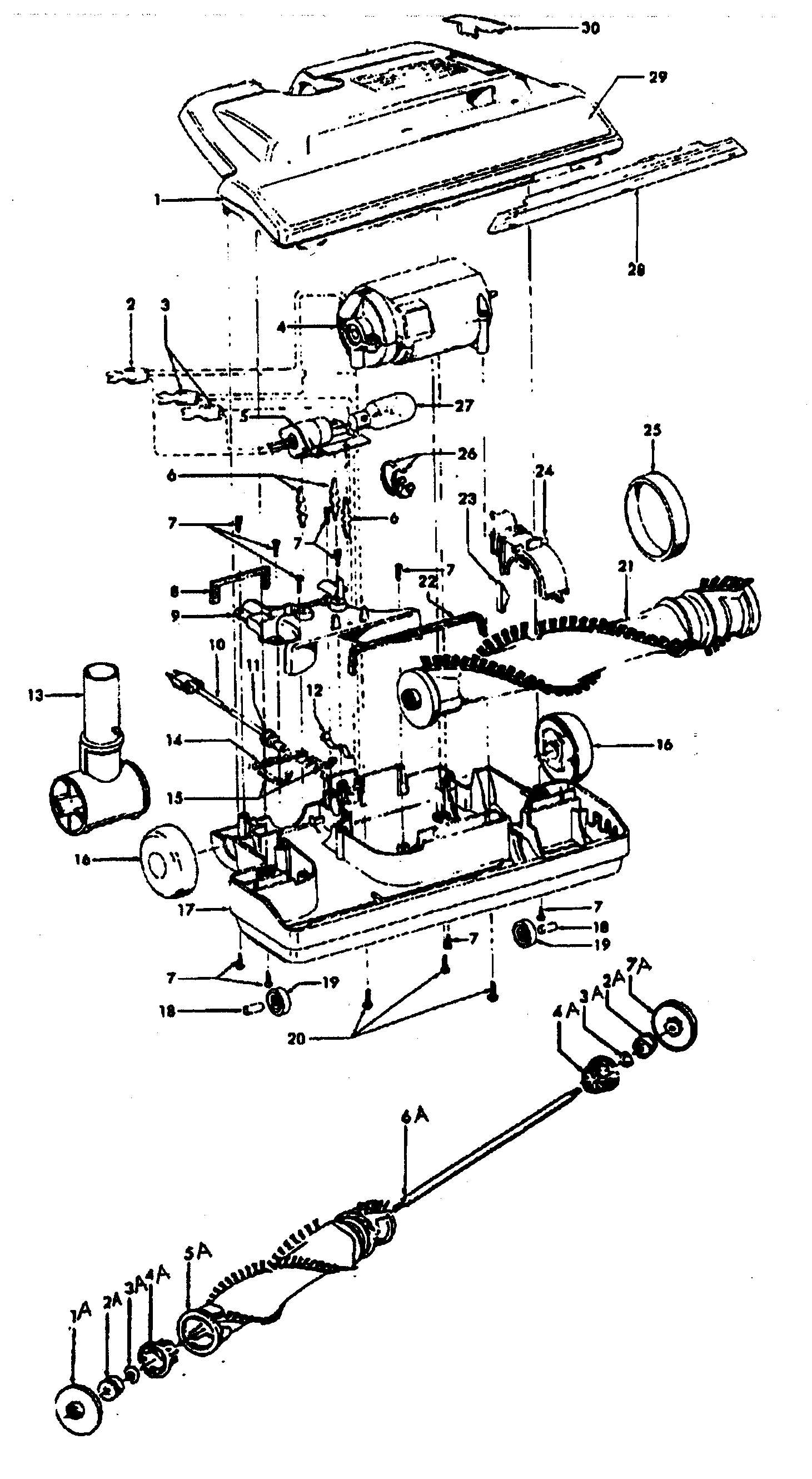

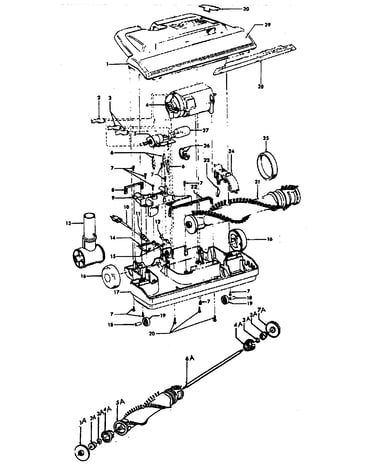

Base assy diagram

Seal-12 pk

Part #34122014

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 59132014
#3

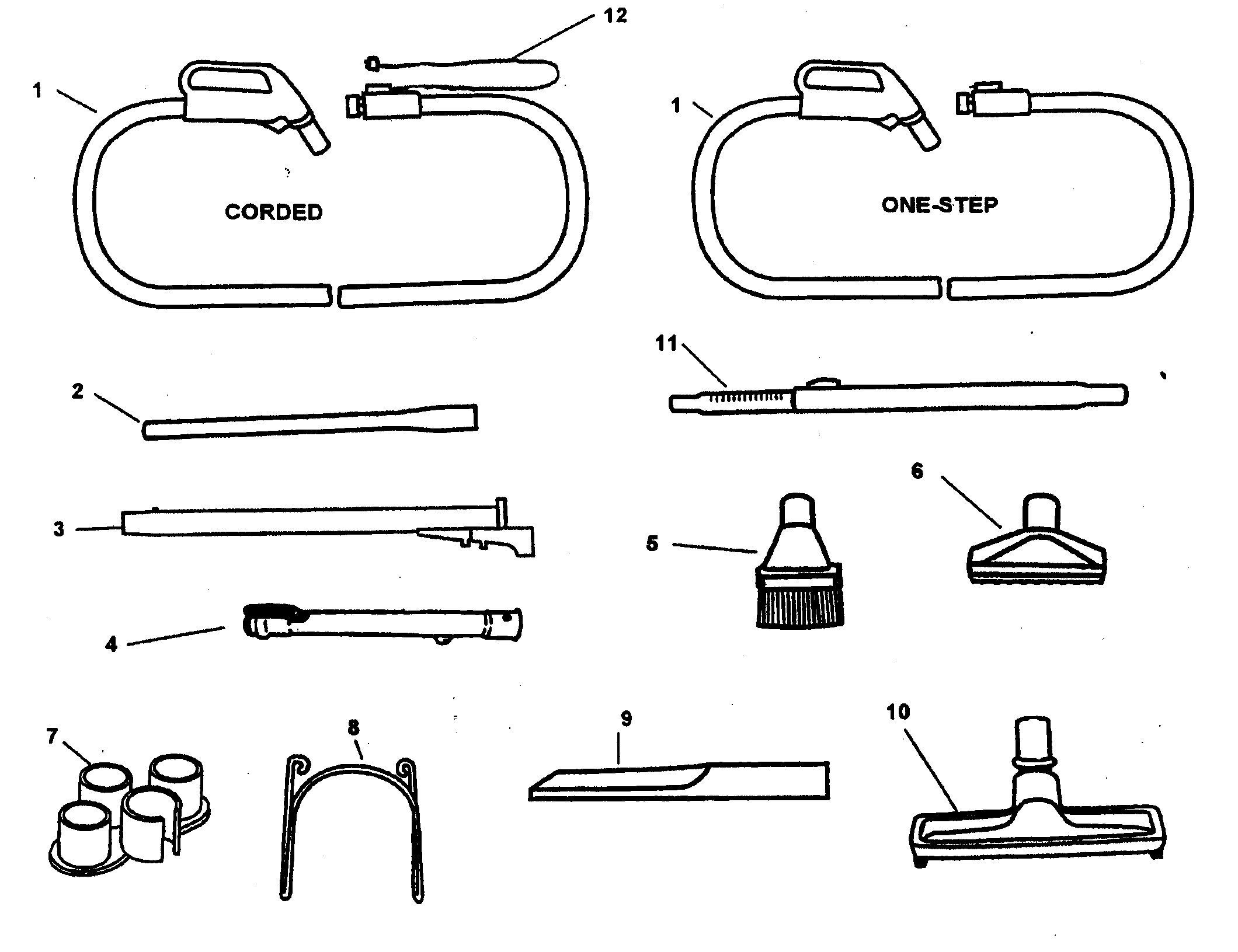

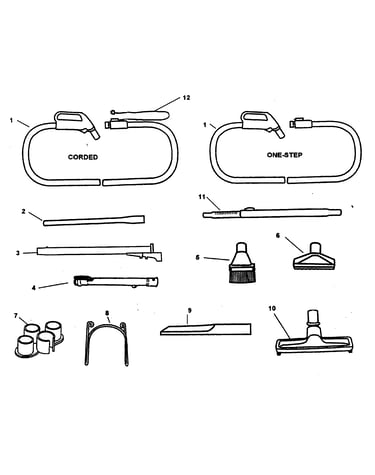

Accessorys diagram

Extension tube

Part #59132014

The manufacturer no longer makes this part, and there's no substitute part

Cord 59132027
#12

Accessorys diagram

Cord

Part #59132027

The manufacturer no longer makes this part, and there's no substitute part

Wand 59132015
#11

Accessorys diagram

Wand

Part #59132015

The manufacturer no longer makes this part, and there's no substitute part

Cvs Hose 59132018
#1

Accessorys diagram

Cvs hose

Part #59132018

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Crevice Tool 38617024
#9

Accessorys diagram

Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Hoover Power Nozzle 48438271
#NI

Accessorys diagram

Hoover power nozzle

Part #48438271

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Beater Bar Belt 38528011
#25

Base assy diagram

Kenmore vacuum beater bar belt

Part #38528011

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie 27479307
#26

Base assy diagram

Wire tie

Part #27479307

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing 43267002
#2A

Base assy diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part
