Maytag
Dryer

Model # MDGT446AWW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag MDGT446AWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

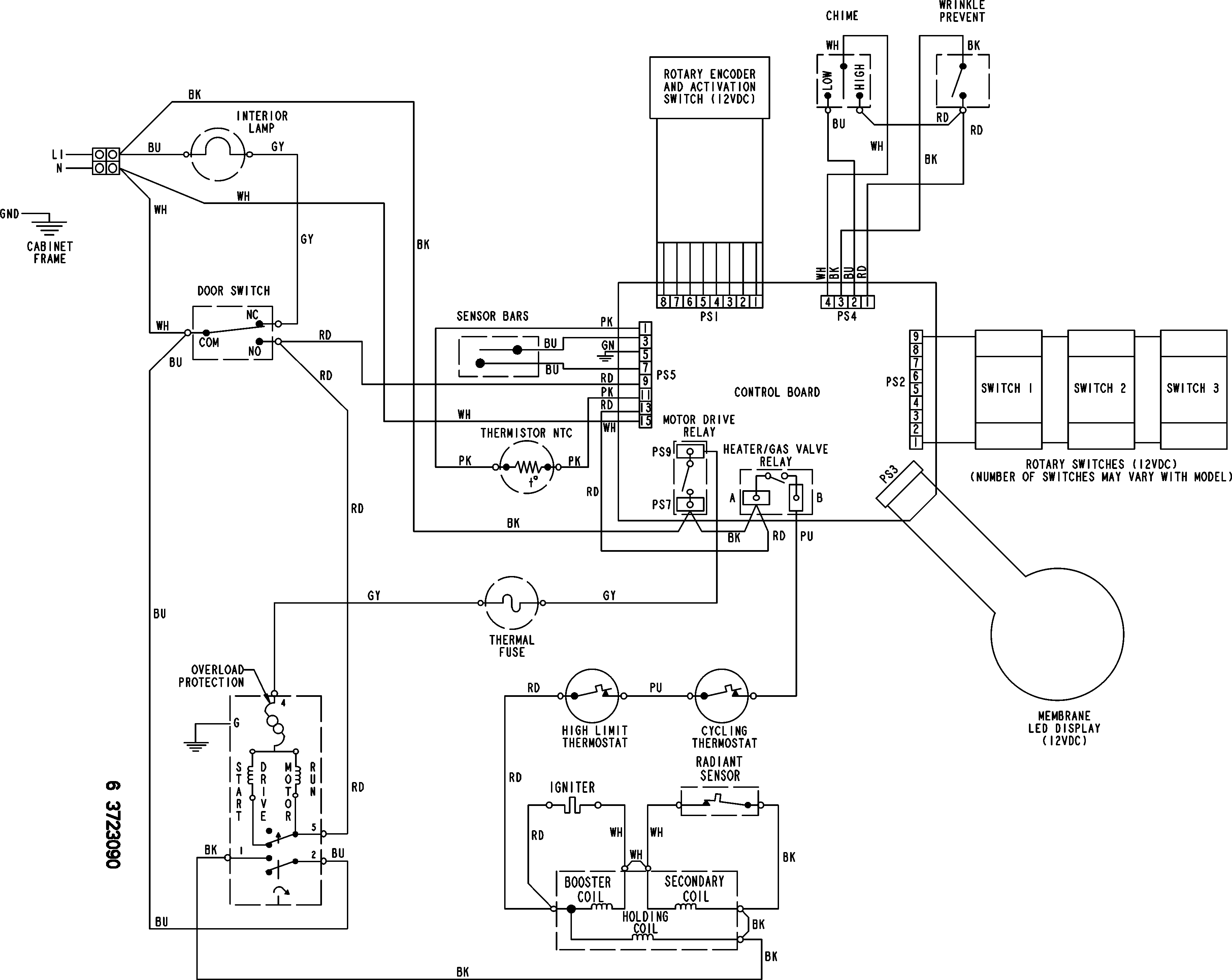

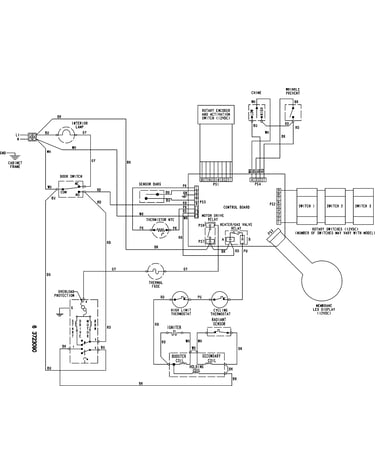

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Flame Sensor 56231
#13

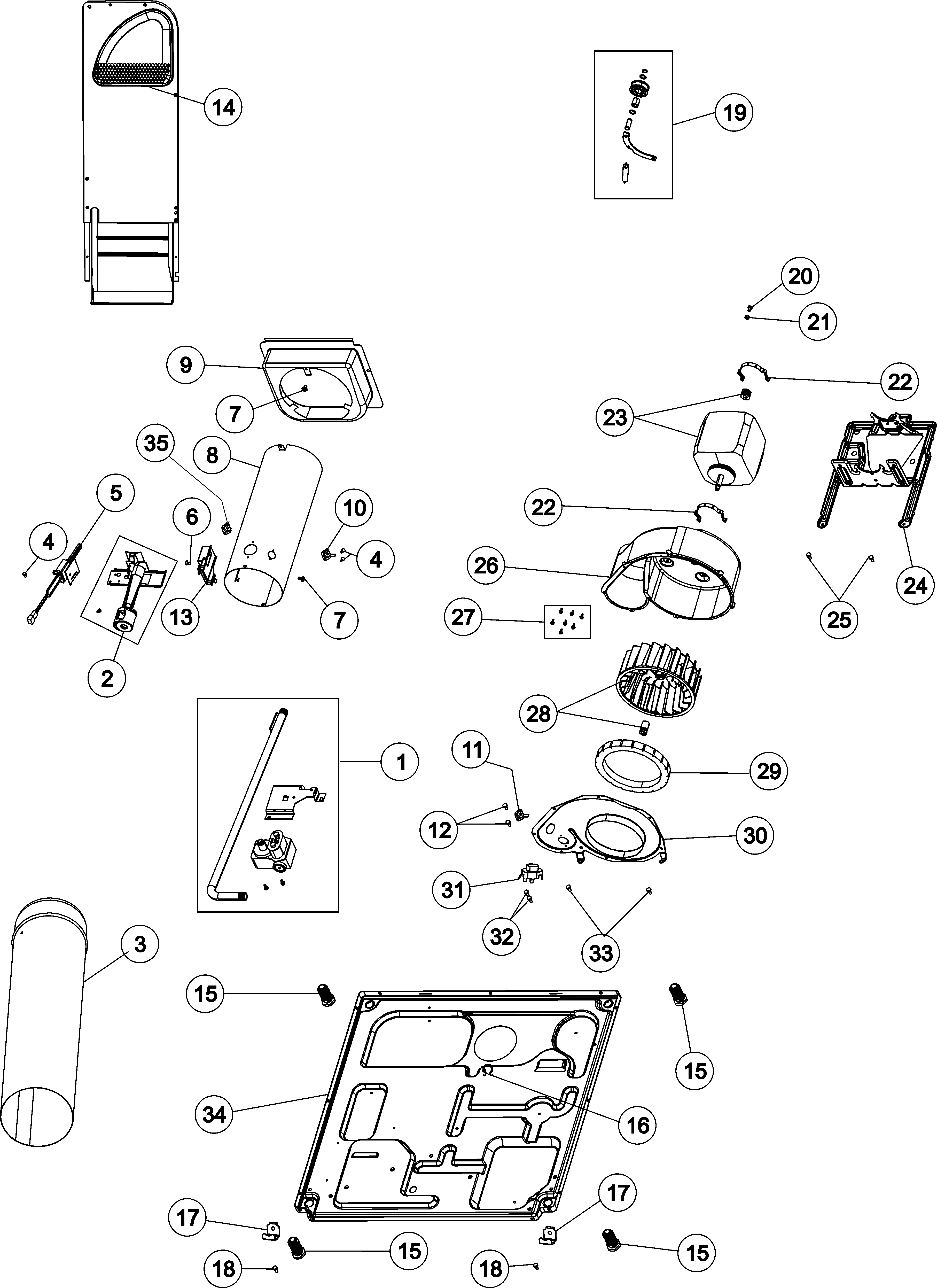

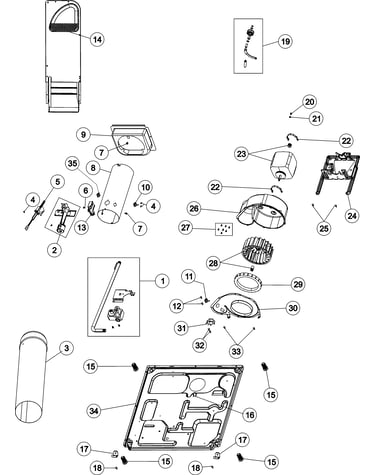

Base, heating & motor diagram

Flame sensor

Part #56231

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 56231. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Dryer Drum Support Roller 37001042
#17

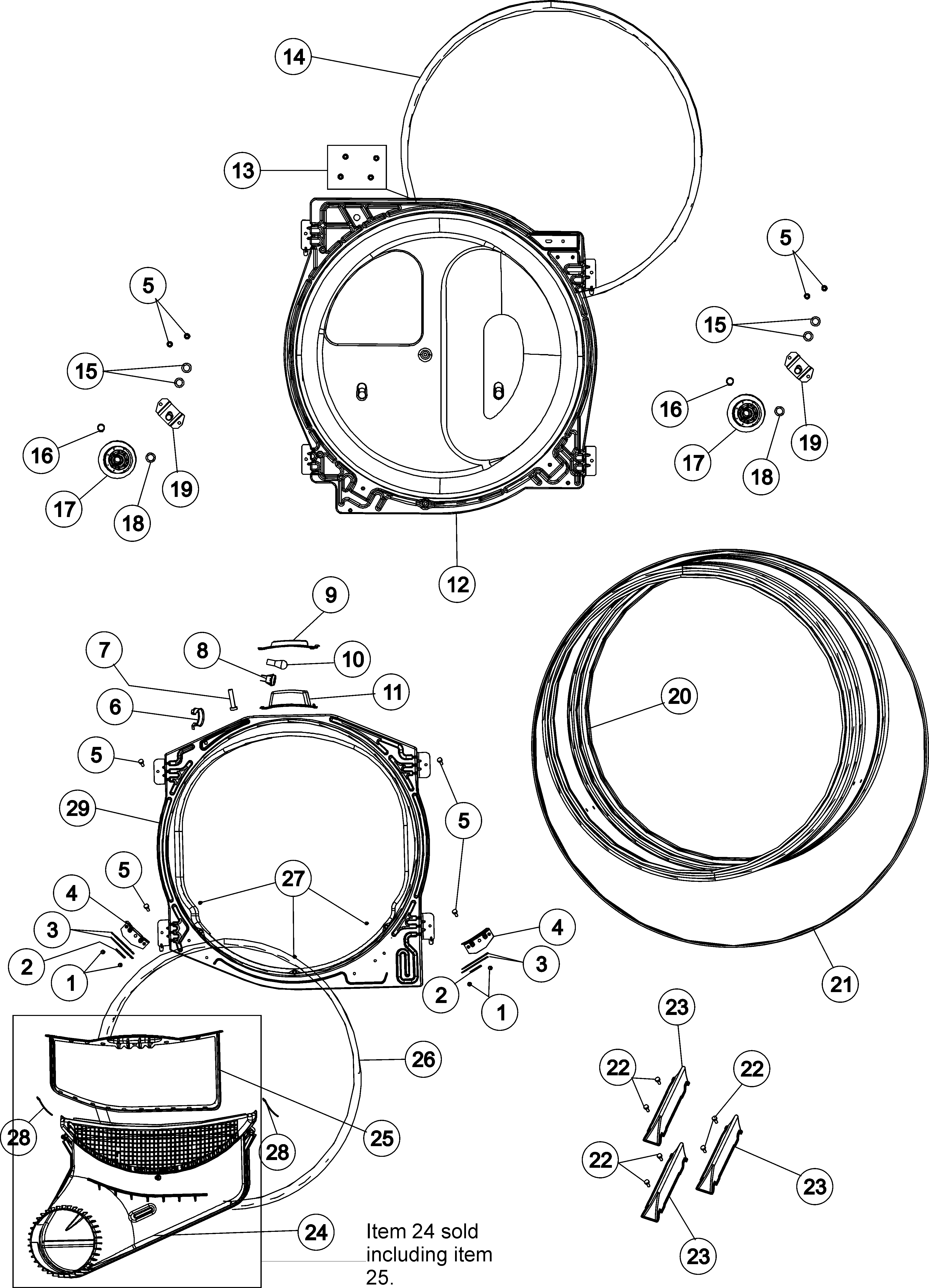

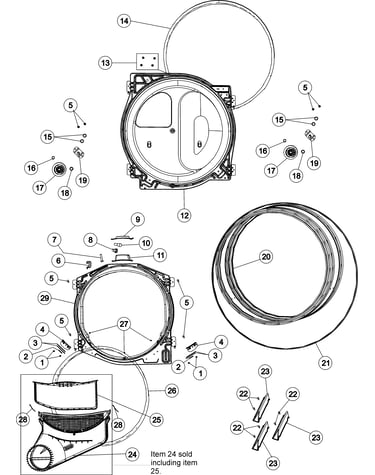

Tumbler diagram

Dryer drum support roller

Part #37001042

Replaced by #WP37001042

?
Manufacturer substitution
This part replaces 37001042. Substitute parts can look different from the original.
BEST SELLER
$16.20 |
11% OFF Phone Price : $18.20
In Stock
Motor Pulley 40048501
#23

Base, heating & motor diagram

Motor pulley

Part #40048501

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 40048501. Substitute parts can look different from the original.
BEST SELLER
$128.05 |
9% OFF Phone Price : $140.05
In Stock
Speed Queen Dryer Blower Wheel (replaces 510139p, 56000p) 56000
#28

Base, heating & motor diagram

Speed queen dryer blower wheel (replaces 510139p, 56000p)

Part #56000

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Dryer Thermal Fuse, 352-degree F 40113801
#35

Base, heating & motor diagram

Dryer thermal fuse, 352-degree f

Part #40113801

Replaced by #WP40113801

?
Manufacturer substitution
This part replaces 40113801. Substitute parts can look different from the original.
BEST SELLER
$14.01 |
12% OFF Phone Price : $16.01
In Stock
Drive Switch 504570
#20

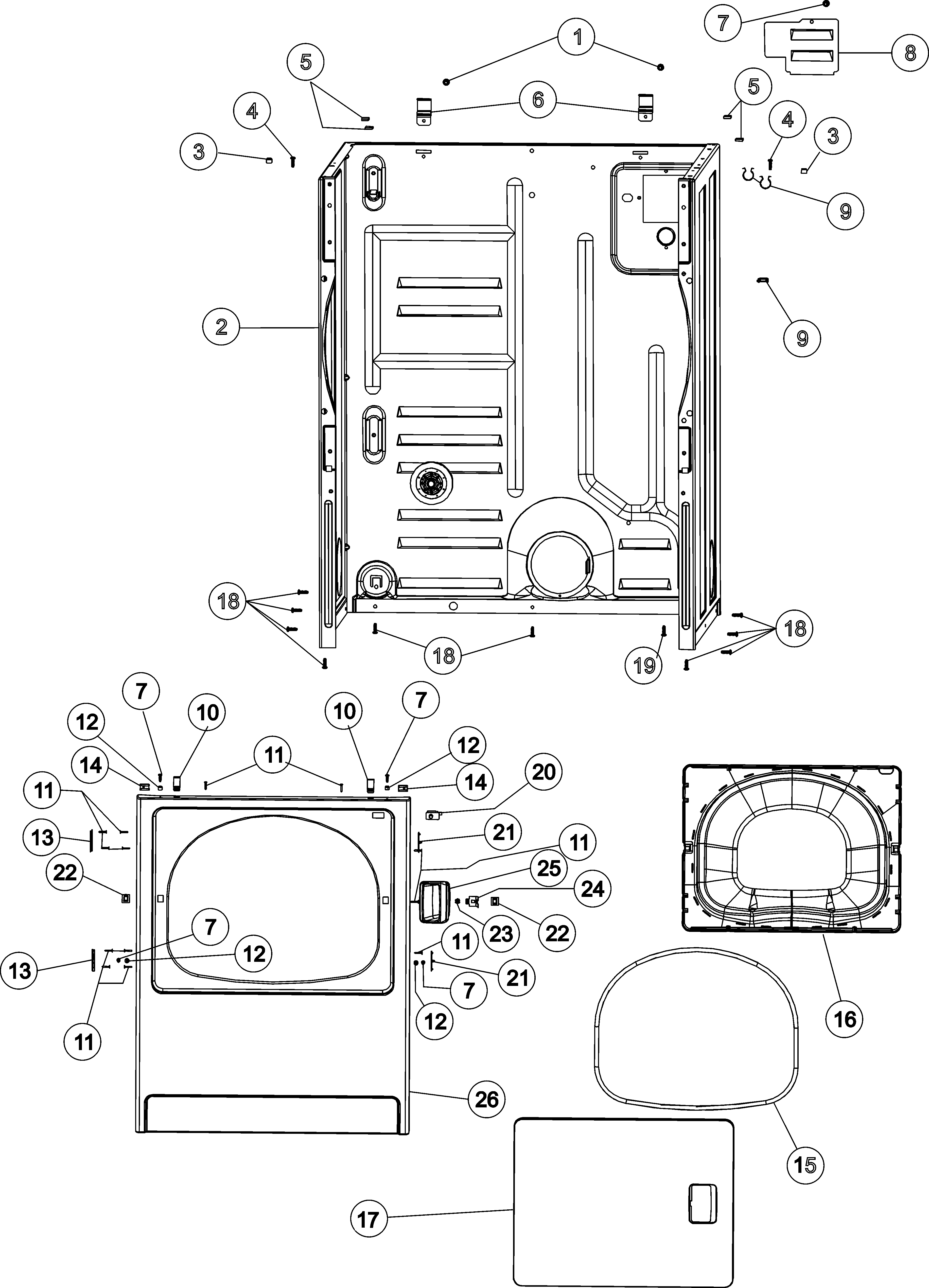

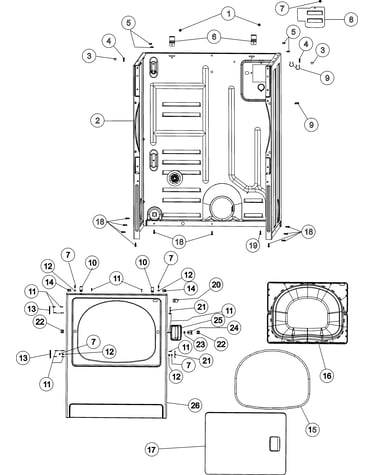

Cabinet & front panel diagram

Drive switch

Part #504570

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 504570. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Laundry Appliance Retaining Ring 23748
#16

Tumbler diagram

Laundry appliance retaining ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Dryer Drum Support Roller 40113601
#19

Tumbler diagram

Dryer drum support roller

Part #40113601

Replaced by #WP40113601

?
Manufacturer substitution
This part replaces 40113601. Substitute parts can look different from the original.
$38.50 |
13% OFF Phone Price : $44.50
In Stock
Felt Complete Pad 500121
Felt complete pad

Part #500121

Replaced by #WP500121

?
Manufacturer substitution
This part replaces 500121. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dryer Drum Glide Bracket 37001036
#4

Tumbler diagram

Dryer drum glide bracket

Part #37001036

Replaced by #WP37001036

?
Manufacturer substitution
This part replaces 37001036. Substitute parts can look different from the original.
$36.15 |
14% OFF Phone Price : $42.15
In Stock
