Model # 91725490 Official Craftsman 8-hp custom tractor
Here are the diagrams and repair parts for Official Craftsman 91725490 8-hp custom tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
91725490 Riding Mowers & Tractors
#39

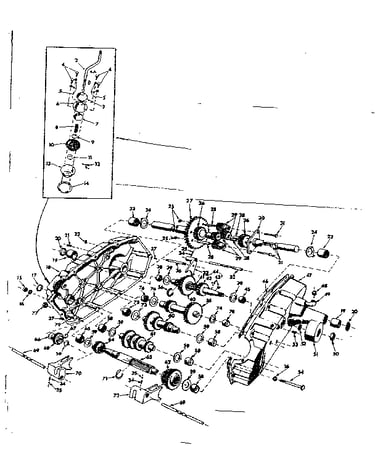

Transaxle diagram
Hardened race thrust bearing
Part #6266H
Replaced by #532006266
?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
$9.44 |
10% OFF Phone Price : $10.44
In Stock
#25
Transaxle diagram
Gripco nut
Part #7810H
Replaced by #596322601
?
Manufacturer substitution
This part replaces 7810H. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
#90

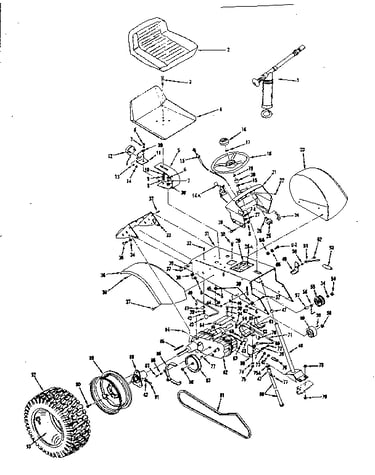

Drive assembly diagram
Hub bolt
Part #1304H
Replaced by #596218701
?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#77

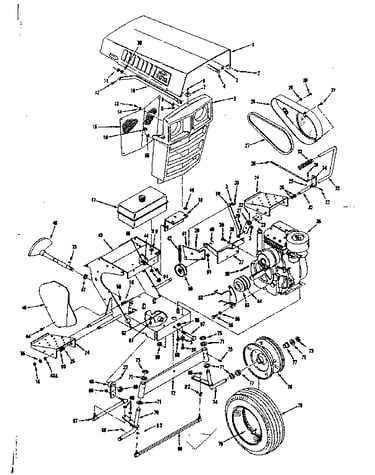

Engine and front axel diagram
Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)
Part #9040H
Replaced by #532009040
?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
#58
Transaxle diagram
Needle brg
Part #4895H
Replaced by #532004895
?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
This item is not returnable
$14.42 |
12% OFF Phone Price : $16.42
In Stock
#35
Transaxle diagram
Ball
Part #7392M
Replaced by #532100482
?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Washer
Part #19252016
Replaced by #532121749
?
Manufacturer substitution
This part replaces 19252016. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
#13

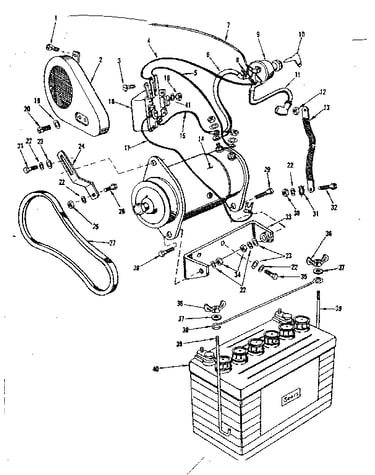

Electrical system diagram
Ground strap
Part #5114H
Replaced by #532004207
?
Manufacturer substitution
This part replaces 5114H. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
#28
Electrical system diagram
Bolt
Part #180081
Replaced by #532441417
?
Manufacturer substitution
This part replaces 180081. Substitute parts can look different from the original.
$209.02 |
5% OFF Phone Price : $221.02
In Stock
#33
Engine and front axel diagram
Foot pedal
Part #4382H
Replaced by #510089501
?
Manufacturer substitution
This part replaces 4382H. Substitute parts can look different from the original.
$11.11
In Stock
