Electric Cooktop

Model # JP960BA1BB Official GE counter unit

Here are the diagrams and repair parts for Official GE JP960BA1BB counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

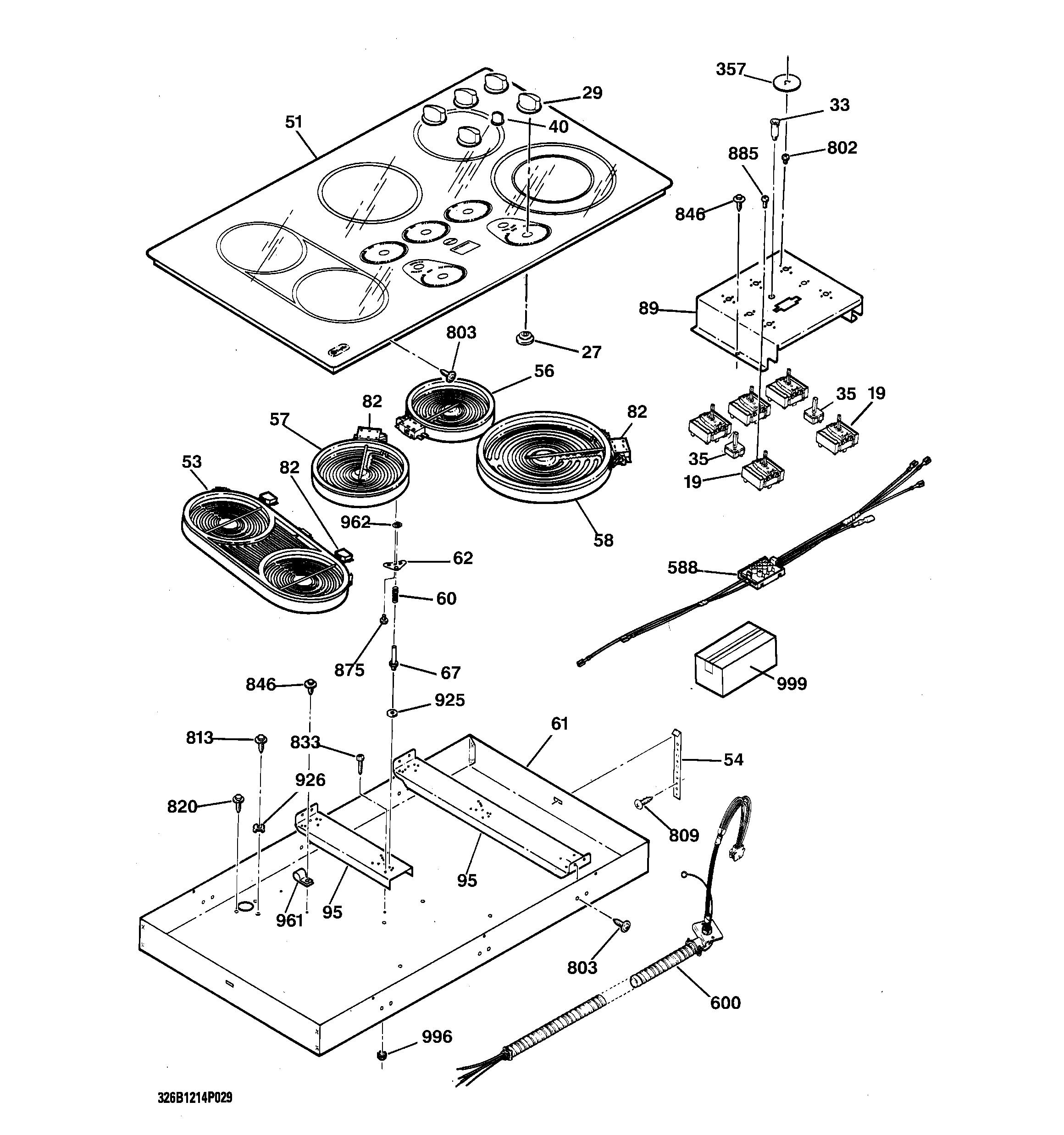

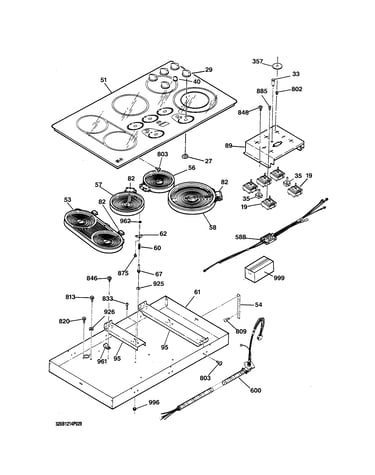

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Range Oven Selector Switch Knob (replaces Wb03x10322, Wb3t10035) WB03T10035
#40

No image title found diagram

Range oven selector switch knob (replaces wb03x10322, wb3t10035)

Part #WB03T10035

BEST SELLER
This item is not returnable
$7.69
12% OFF Phone Price : $8.69
In Stock
Cooktop Element Control Switch, 3,000-watt WB23K5052
#19

No image title found diagram

Cooktop element control switch, 3,000-watt

Part #WB23K5052

Replaced by #WB24X29364

?
Manufacturer substitution
This part replaces WB23K5052. Substitute parts can look different from the original.
BEST SELLER
$69.51
8% OFF Phone Price : $75.51
In Stock
Selector Switch WB24X0449
#35

No image title found diagram

Selector switch

Part #WB24X0449

Replaced by #WB24X449

?
Manufacturer substitution
This part replaces WB24X0449. Substitute parts can look different from the original.
$71.47
8% OFF Phone Price : $77.47
In Stock
Cooktop Radiant Bridge Element WB30T10014
#53

No image title found diagram

Cooktop radiant bridge element

Part #WB30T10014

Replaced by #WB30X43560

?
Manufacturer substitution
This part replaces WB30T10014. Substitute parts can look different from the original.
In Stock
Brkt Hold Dn WB02K5328
#54

No image title found diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51
13% OFF Phone Price : $7.51
In Stock
Rzr Bld Scrp WB06K5036
#999

No image title found diagram

Rzr bld scrp

Part #WB06K5036

Replaced by #WX10X302

?
Manufacturer substitution
This part replaces WB06K5036. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$18.63
10% OFF Phone Price : $20.63
In Stock
Cooktop Burner Knob (replaces Wb3t10028) WB03T10028
#29

No image title found diagram

Cooktop burner knob (replaces wb3t10028)

Part #WB03T10028

This item is not returnable
$19.69
9% OFF Phone Price : $21.69
In Stock
Thermal Switch WB24T10017
#82

No image title found diagram

Thermal switch

Part #WB24T10017

$56.89
10% OFF Phone Price : $62.89
In Stock
Washer WB01K5117
#925

No image title found diagram

Washer

Part #WB01K5117

Replaced by #WB1K5117

?
Manufacturer substitution
This part replaces WB01K5117. Substitute parts can look different from the original.
In Stock
Radiant Heater Bracket WB02K5318
#62

No image title found diagram

Radiant heater bracket

Part #WB02K5318

Replaced by #WB2K5318

?
Manufacturer substitution
This part replaces WB02K5318. Substitute parts can look different from the original.
In Stock
