GE
Gas Cooktop

Model # ZGU48N4GH3SS Official GE counter unit

Here are the diagrams and repair parts for Official GE ZGU48N4GH3SS counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

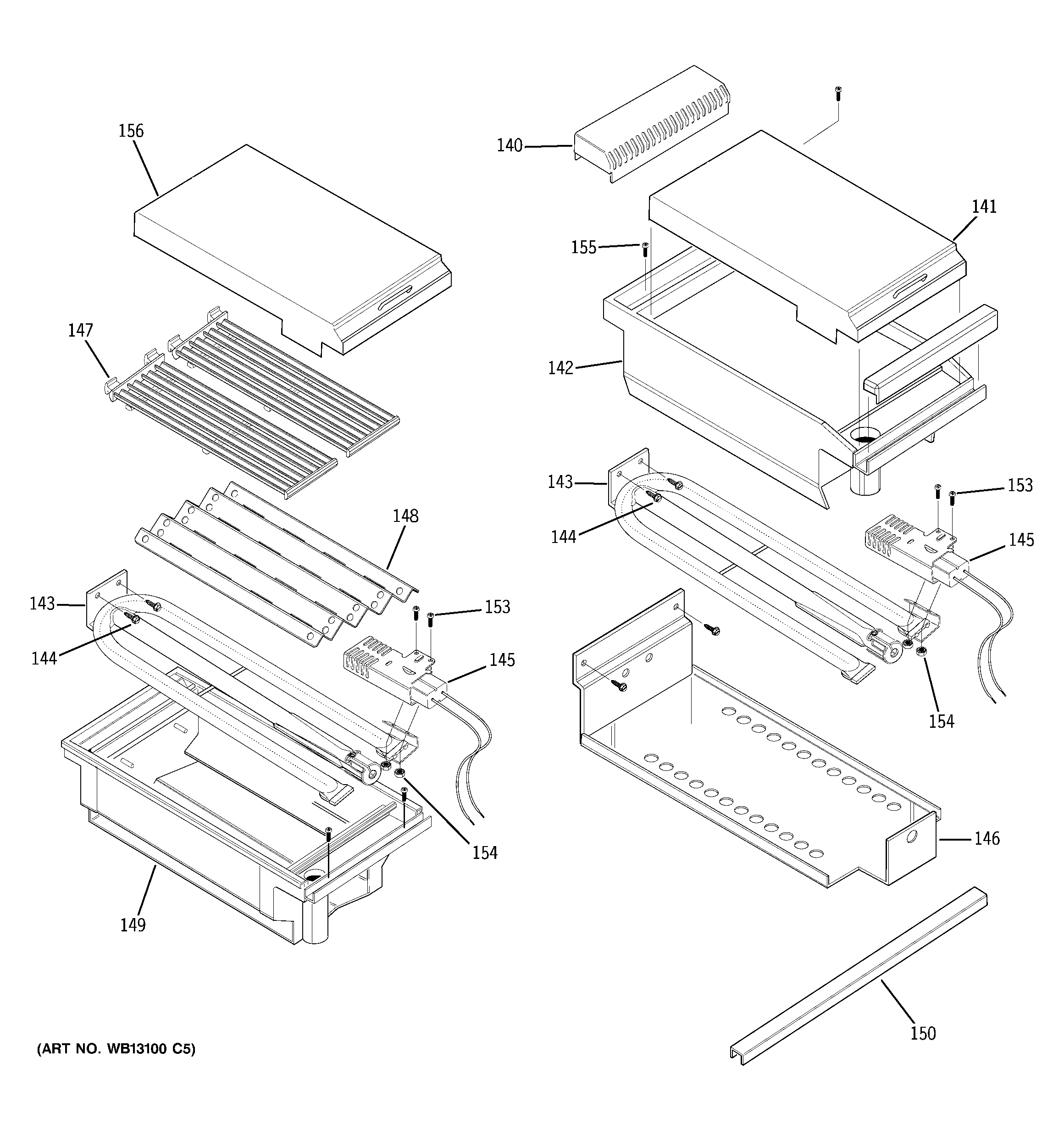

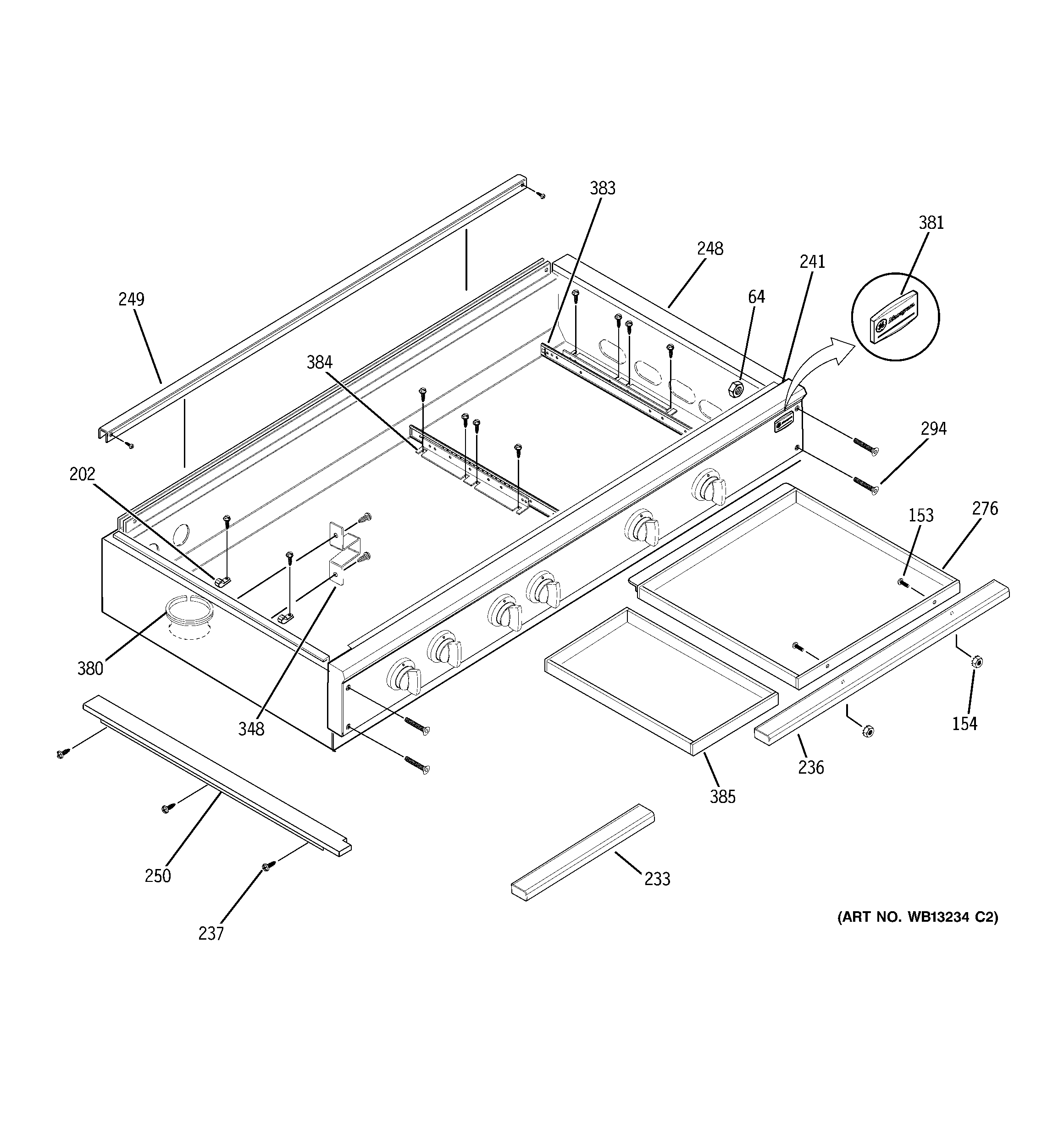

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |

Igniter Switch WB24X10089
#305

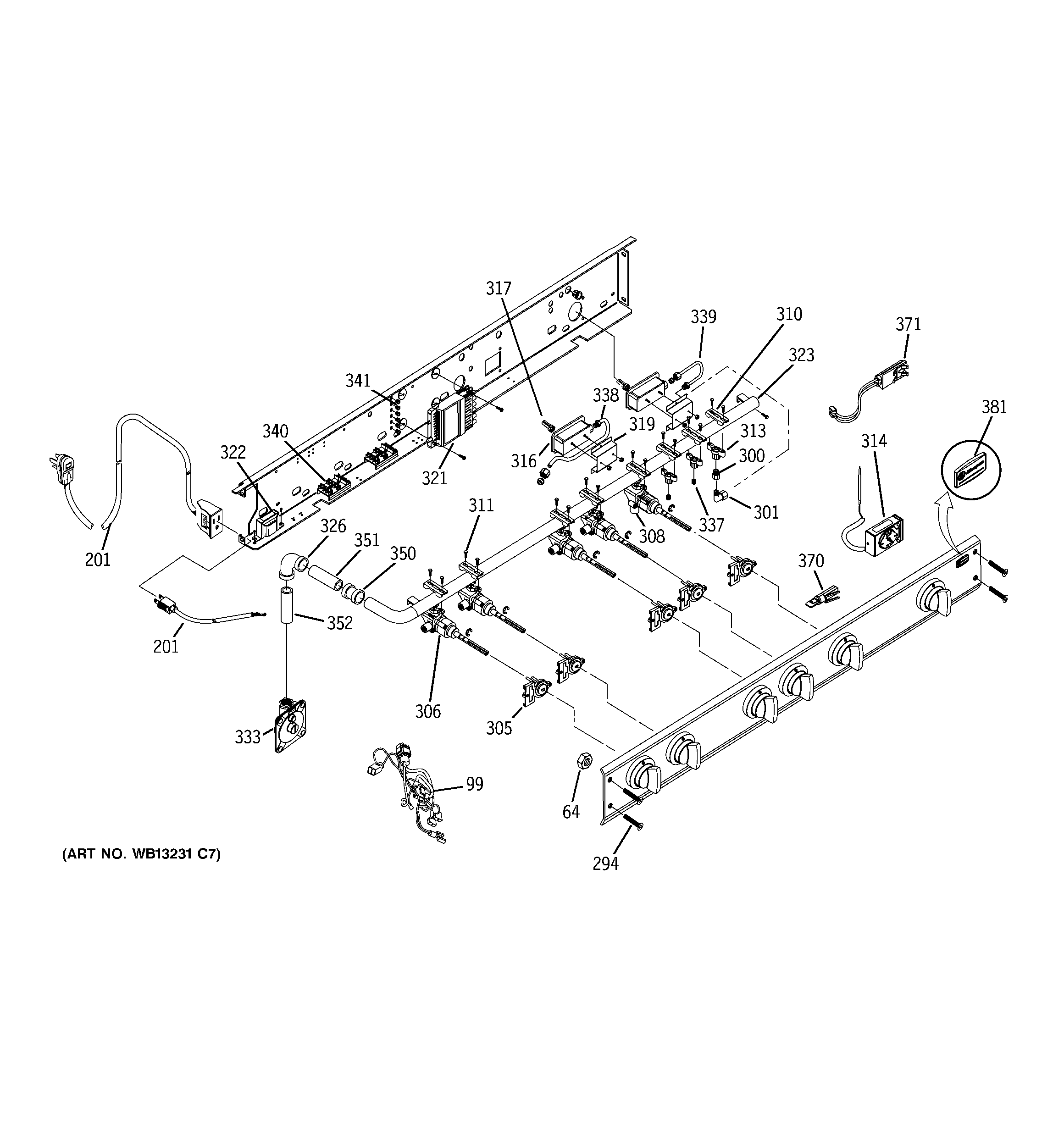

Manifold assembly diagram

Igniter switch

Part #WB24X10089

Replaced by #WB24X10091

?
Manufacturer substitution
This part replaces WB24X10089. Substitute parts can look different from the original.
$32.99
15% OFF Phone Price : $38.99
In Stock
Igniter WB02X10780
#259

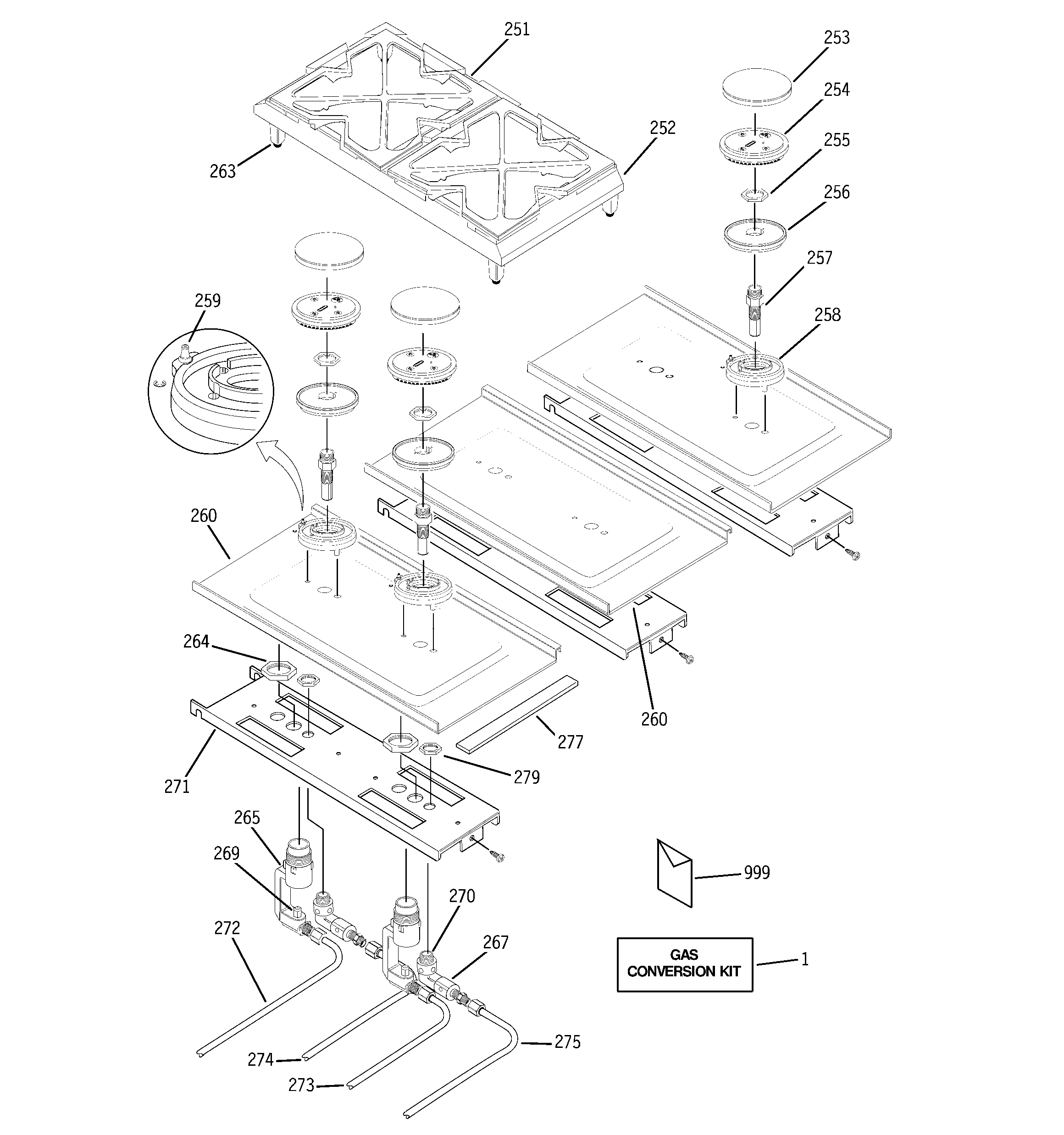

Gas & burner parts diagram

Igniter

Part #WB02X10780

Replaced by #WB02X10822

?
Manufacturer substitution
This part replaces WB02X10780. Substitute parts can look different from the original.
$118.89
9% OFF Phone Price : $130.89
In Stock
Range Surface Burner Cap WB32X10047
#254

Gas & burner parts diagram

Range surface burner cap

Part #WB32X10047

Replaced by #WB16X27935

?
Manufacturer substitution
This part replaces WB32X10047. Substitute parts can look different from the original.
$91.96
6% OFF Phone Price : $97.96
In Stock
Range Oven Control Knob Screw WB01X10322
#377

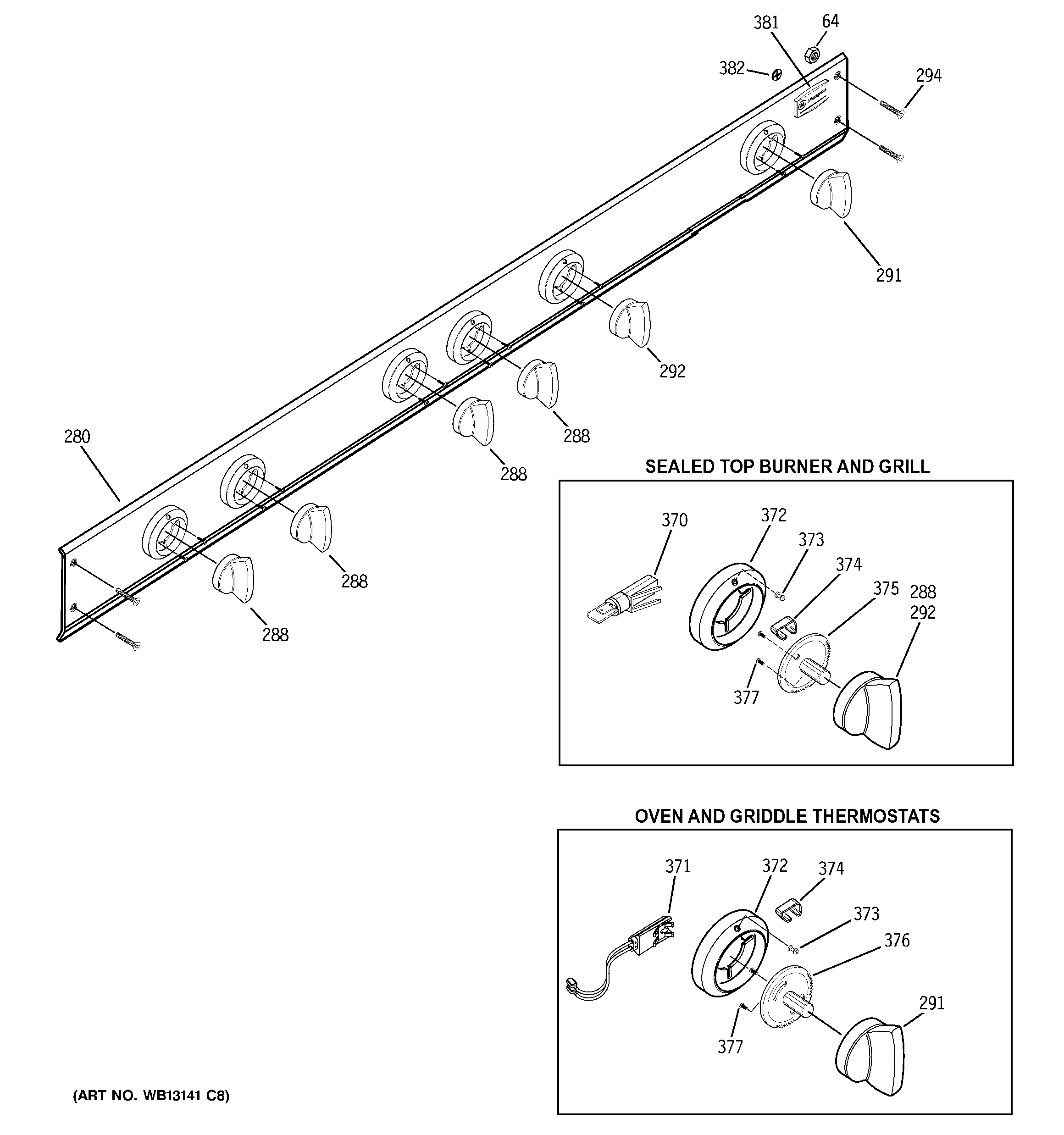

Control panel diagram

Range oven control knob screw

Part #WB01X10322

This item is not returnable
In Stock
Lp/nat Conve WB49X10133
#1

Gas & burner parts diagram

Lp/nat conve

Part #WB49X10133

In Stock
Clip Logo WR01X10300
#382

Control panel diagram

Clip logo

Part #WR01X10300

This item is not returnable
In Stock
Range Surface Burner Venturi Nozzle WB38X10080
#257

Gas & burner parts diagram

Range surface burner venturi nozzle

Part #WB38X10080

This item is not returnable
$32.67
16% OFF Phone Price : $38.67
In Stock
Range Surface Burner Supply Tube, Front WB28X10065
#273

Gas & burner parts diagram

Range surface burner supply tube, front

Part #WB28X10065

$46.73
11% OFF Phone Price : $52.73
In Stock
Range Surface Burner Transformer WB27X10905
#322

Manifold assembly diagram

Range surface burner transformer

Part #WB27X10905

$103.92
10% OFF Phone Price : $115.92
In Stock
Burner Bracket WB02X11077
#271

Gas & burner parts diagram

Burner bracket

Part #WB02X11077

In Stock
