Model # WFG710H0AH0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool WFG710H0AH0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

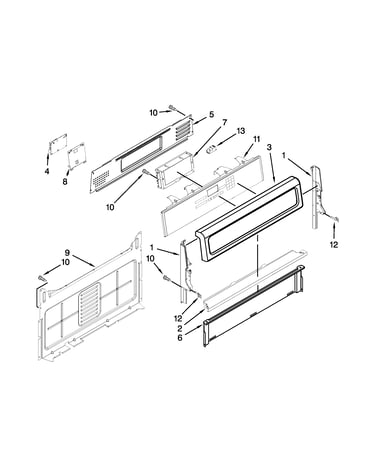

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Light Bulb 311255
#29

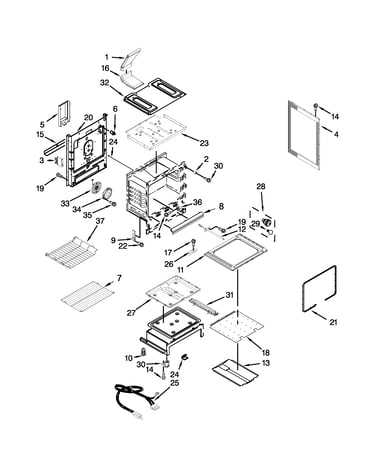

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Oven Temperature Sensor W10181986
#12

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$65.03 |
8% OFF Phone Price : $71.03
In Stock
Range Oven Igniter W10324262
#13

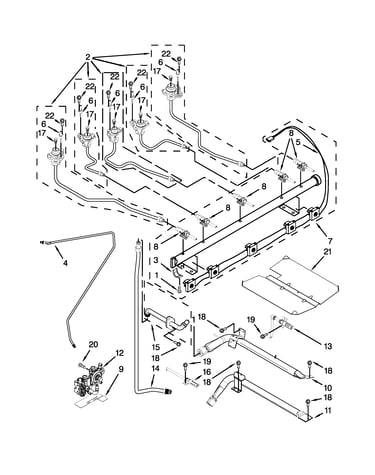

Manifold parts diagram

Range oven igniter

Part #W10324262

Replaced by #WPW10324262

?
Manufacturer substitution
This part replaces W10324262. Substitute parts can look different from the original.
BEST SELLER
$56.78 |
10% OFF Phone Price : $62.78
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Burner Igniter W10333842
#16

Manifold parts diagram

Range oven burner igniter

Part #W10333842

Replaced by #WPW10333842

?
Manufacturer substitution
This part replaces W10333842. Substitute parts can look different from the original.
BEST SELLER
$64.90 |
8% OFF Phone Price : $70.90
In Stock
Range Burner Head W10406243
#4B

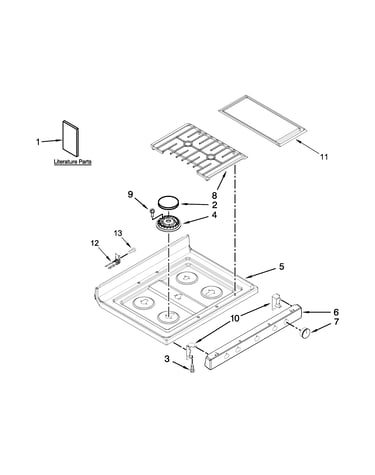

Cooktop parts diagram

Range burner head

Part #W10406243

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces W10406243. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Range Oven Door Handle End Cap W10410341
#15A

Door parts diagram

Range oven door handle end cap

Part #W10410341

Replaced by #WPW10410341

?
Manufacturer substitution
This part replaces W10410341. Substitute parts can look different from the original.
$31.20 |
16% OFF Phone Price : $37.20
In Stock
Range Oven Door Gasket W10162385
#21

Chassis parts diagram

Range oven door gasket

Part #W10162385

Replaced by #W11562931

?
Manufacturer substitution
This part replaces W10162385. Substitute parts can look different from the original.
$45.67
In Stock
Range Screw W10317886
#2

Door parts diagram

Range screw

Part #W10317886

Replaced by #WPW10317886

?
Manufacturer substitution
This part replaces W10317886. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
