Kenmore
Gas Range

Model # 1037566304 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037566304 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

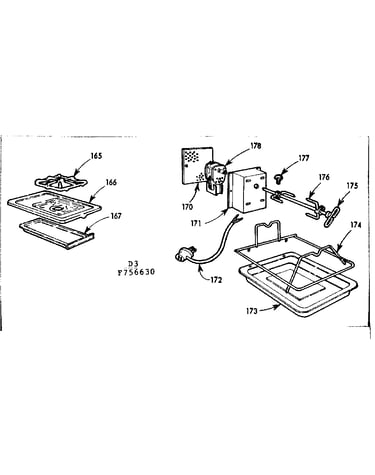

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Lamp Bulb 65973
#100A

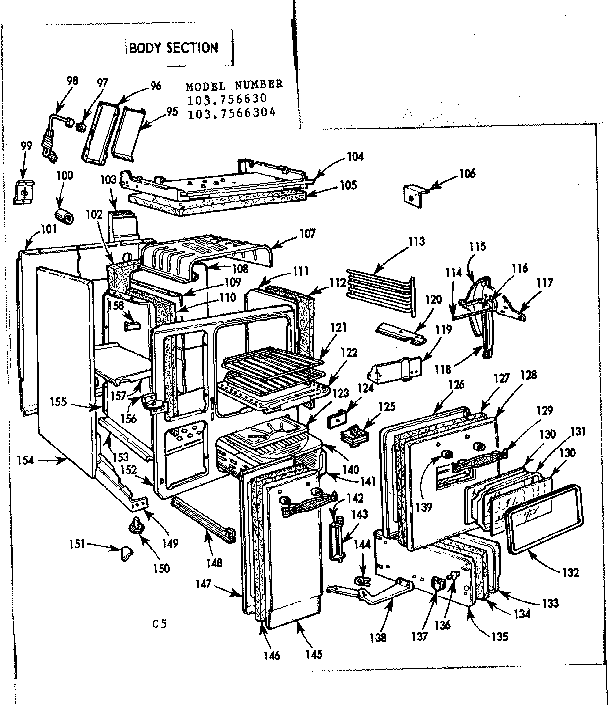

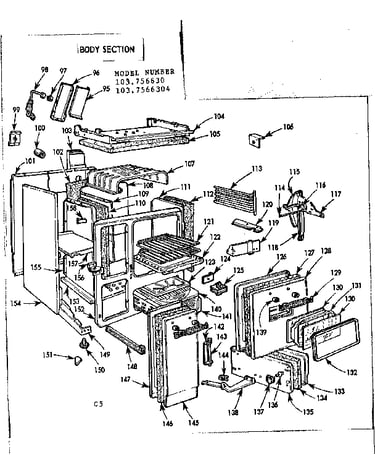

Body section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Drawer Guide 97820
#148A

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Loxit Nut 79719
#59

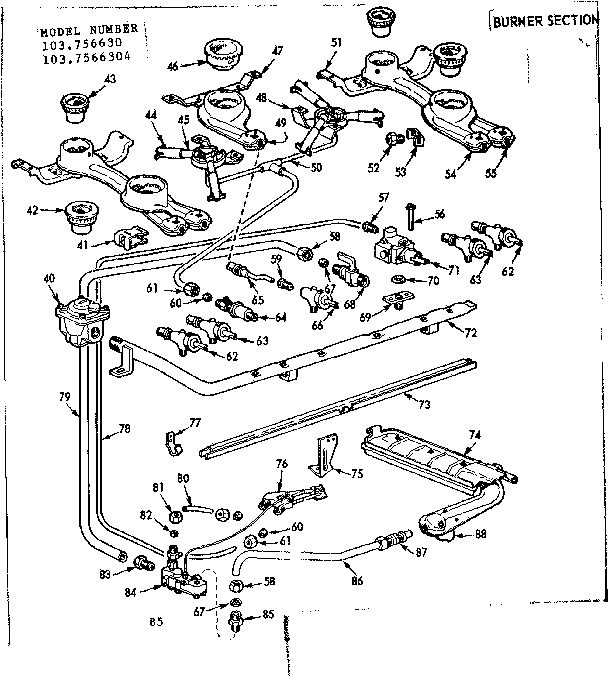

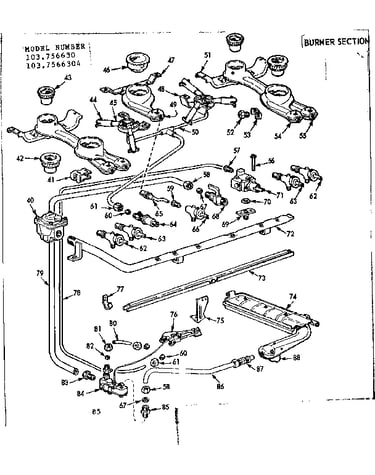

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Male Connection 24502
#85

Burner section diagram

Male connection

Part #24502

The manufacturer no longer makes this part, and there's no substitute part

Extension 98168
#65

Burner section diagram

Extension

Part #98168

The manufacturer no longer makes this part, and there's no substitute part

Insulation 102199
#110

Body section diagram

Insulation

Part #102199

The manufacturer no longer makes this part, and there's no substitute part

Drawer Broil 101032
#141

Body section diagram

Drawer broil

Part #101032

The manufacturer no longer makes this part, and there's no substitute part

Grease Pan 68801
#30

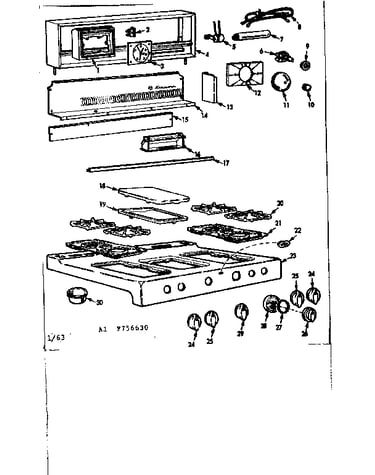

Backguard & maintop diagram

Grease pan

Part #68801

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 89980
#5

Backguard & maintop diagram

Lamp holder

Part #89980

The manufacturer no longer makes this part, and there's no substitute part

Insulation 102200
#112

Body section diagram

Insulation

Part #102200

The manufacturer no longer makes this part, and there's no substitute part
