Frigidaire
Top-Mount Refrigerator

Model # FFTR1425VW Official Frigidaire top-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR1425VW top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

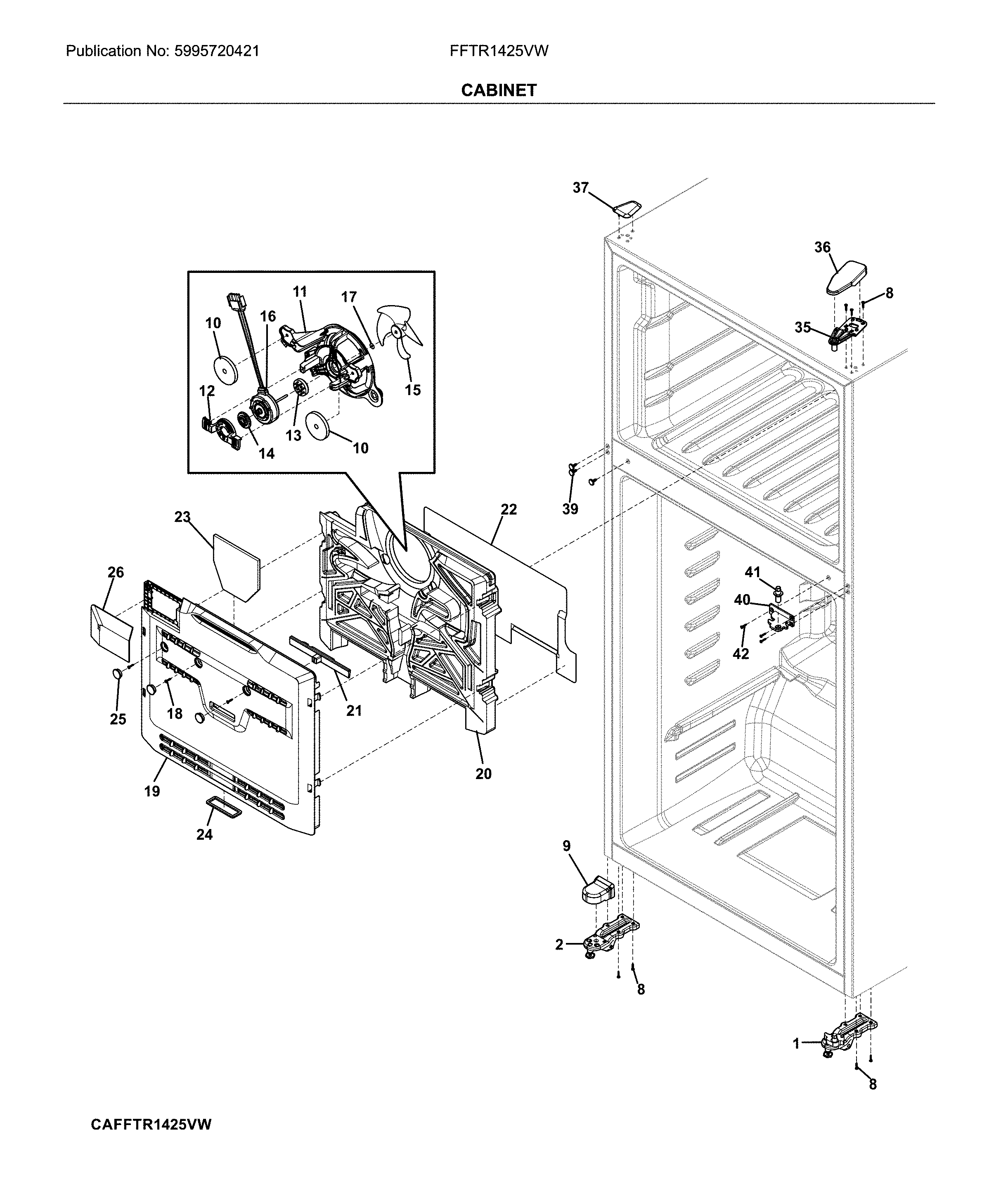

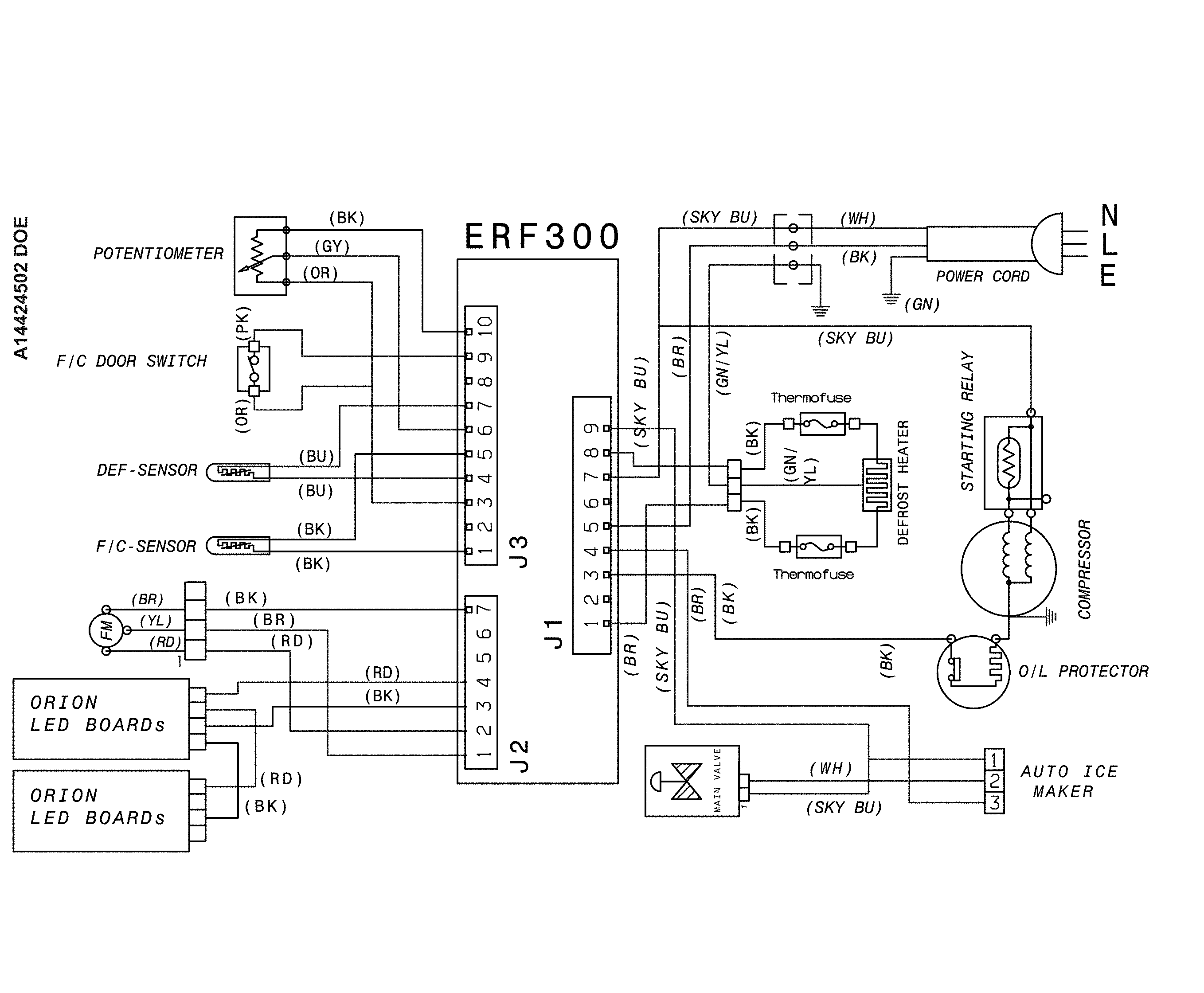

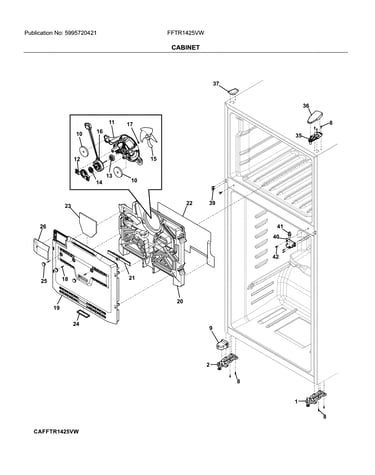

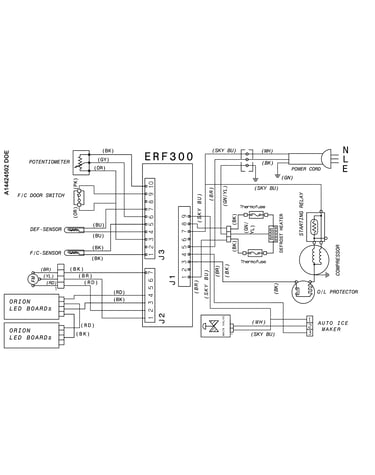

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Electrolux Refrigerator Door Switch 5304520495
#32

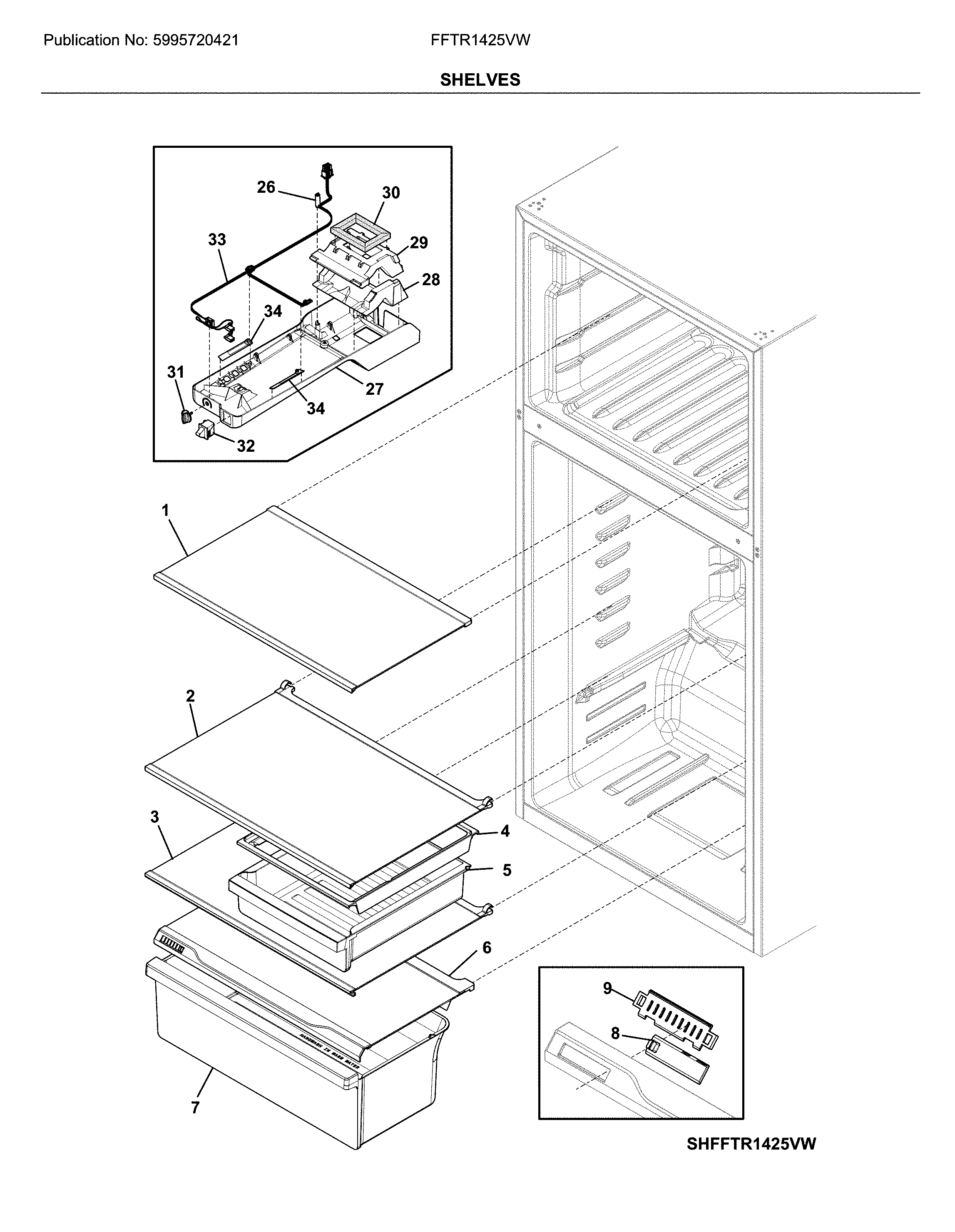

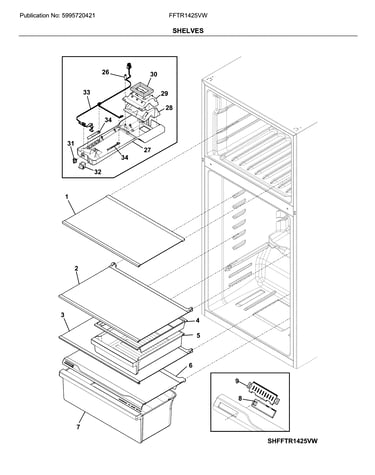

Shelves diagram

Electrolux refrigerator door switch

Part #5304520495

This item is not returnable
$21.09 |
22% OFF Phone Price : $27.09
In Stock
Refrigerator Deli Drawer Cover Frame 5304520484
#4

Shelves diagram

Refrigerator deli drawer cover frame

Part #5304520484

This item is not returnable
$25.63 |
19% OFF Phone Price : $31.63
In Stock
Refrigerator Defrost Drain Pan 5304520506
#27

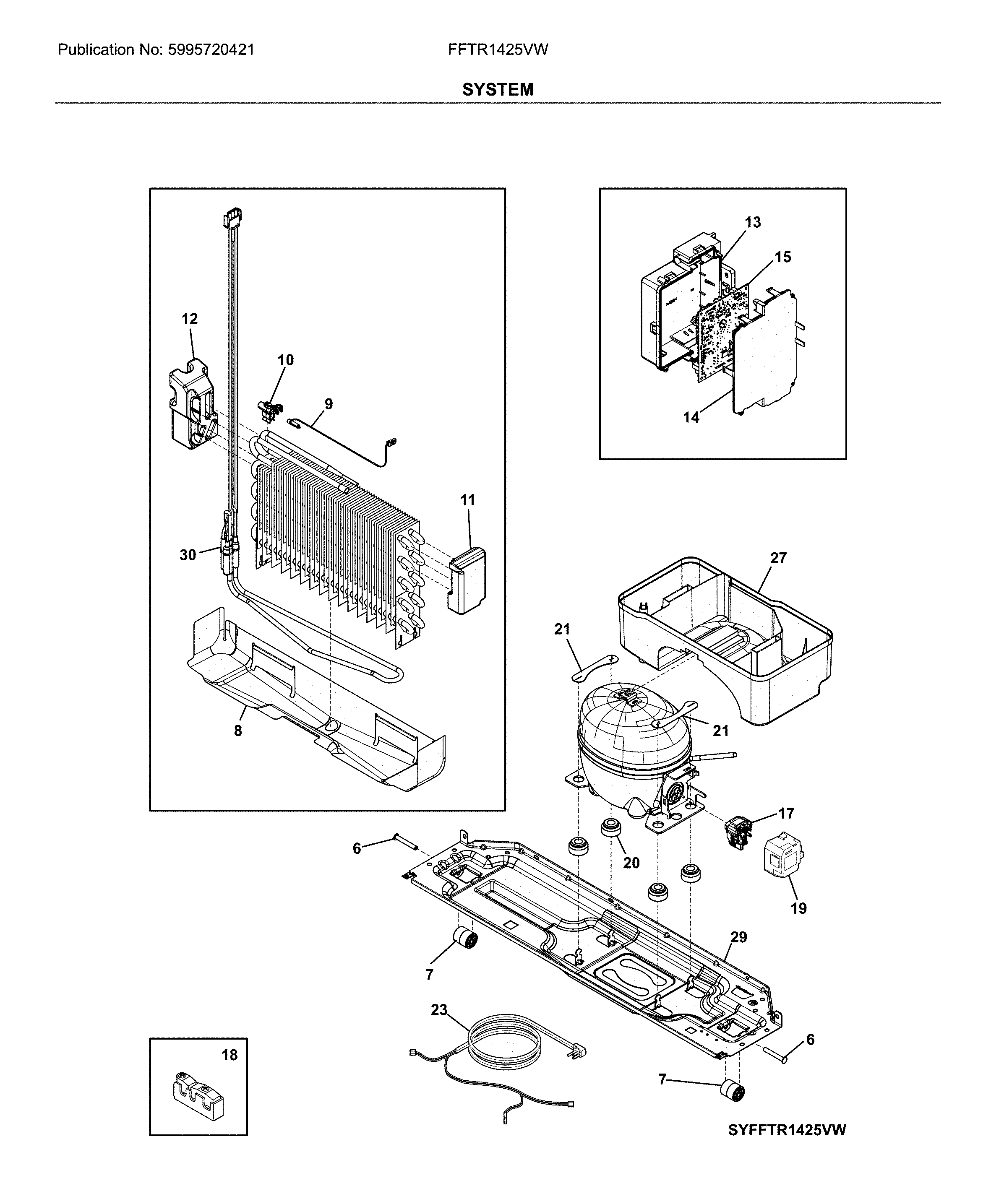

System diagram

Refrigerator defrost drain pan

Part #5304520506

$28.79 |
17% OFF Phone Price : $34.79
In Stock
Refrigerator Crisper Drawer 5304520487
#7

Shelves diagram

Refrigerator crisper drawer

Part #5304520487

$70.63 |
8% OFF Phone Price : $76.63
In Stock
Refrigerator Door Gasket 811988584
#3

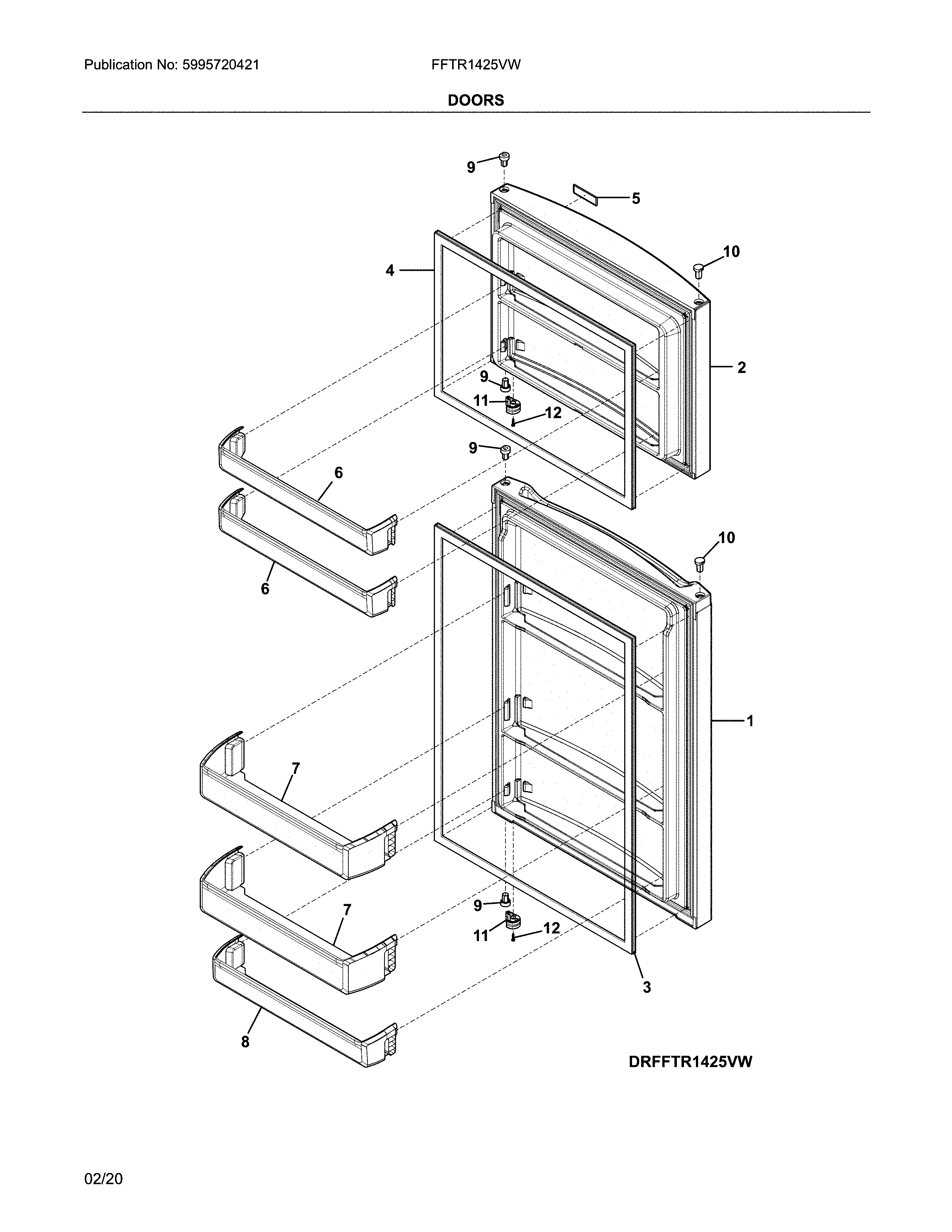

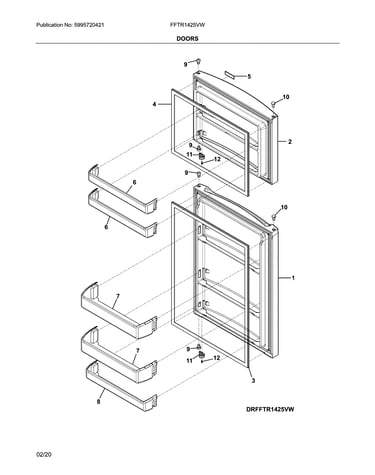

Doors diagram

Refrigerator door gasket

Part #811988584

$50.07
In Stock
Seal,air Duct ,top 5304520493
#30

Shelves diagram

Seal,air duct ,top

Part #5304520493

$16.80
In Stock
Refrigerator Freezer Door Bin 5304520457
#6

Doors diagram

Refrigerator freezer door bin

Part #5304520457

$27.76
In Stock
Refrigerator Glass Shelf Assembly 5304520483
#3

Shelves diagram

Refrigerator glass shelf assembly

Part #5304520483

$63.16
In Stock
Base Assembly,compressor 807822703
#29

System diagram

Base assembly,compressor

Part #807822703

$63.16
In Stock
Heater,defrost ,evaporator 5304520507
#30

System diagram

Heater,defrost ,evaporator

Part #5304520507

$103.44
In Stock
