Model # WF45M5500AP/A5-00 Official Samsung washer
Here are the diagrams and repair parts for Official Samsung WF45M5500AP/A5-00 washer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

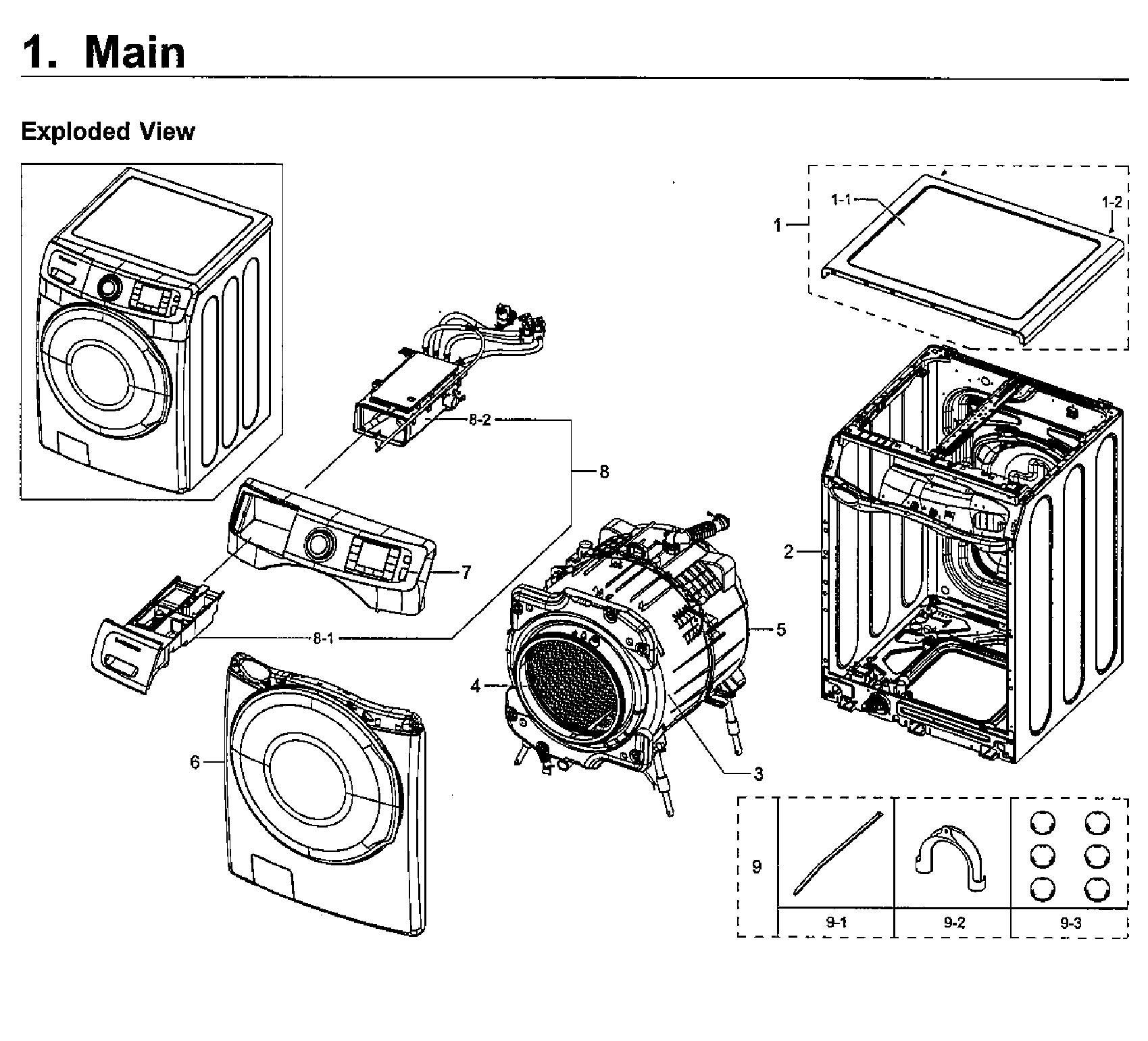

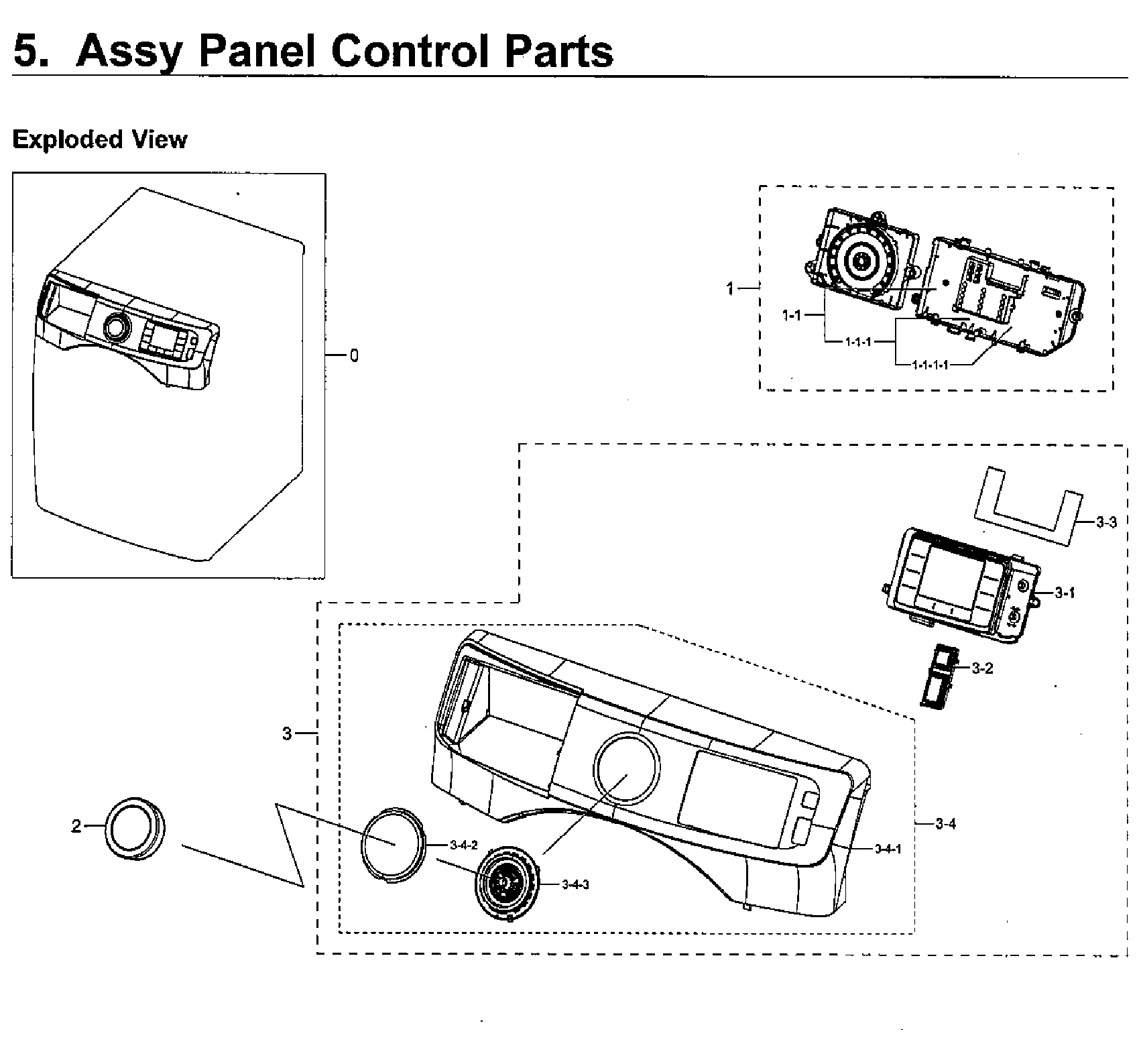

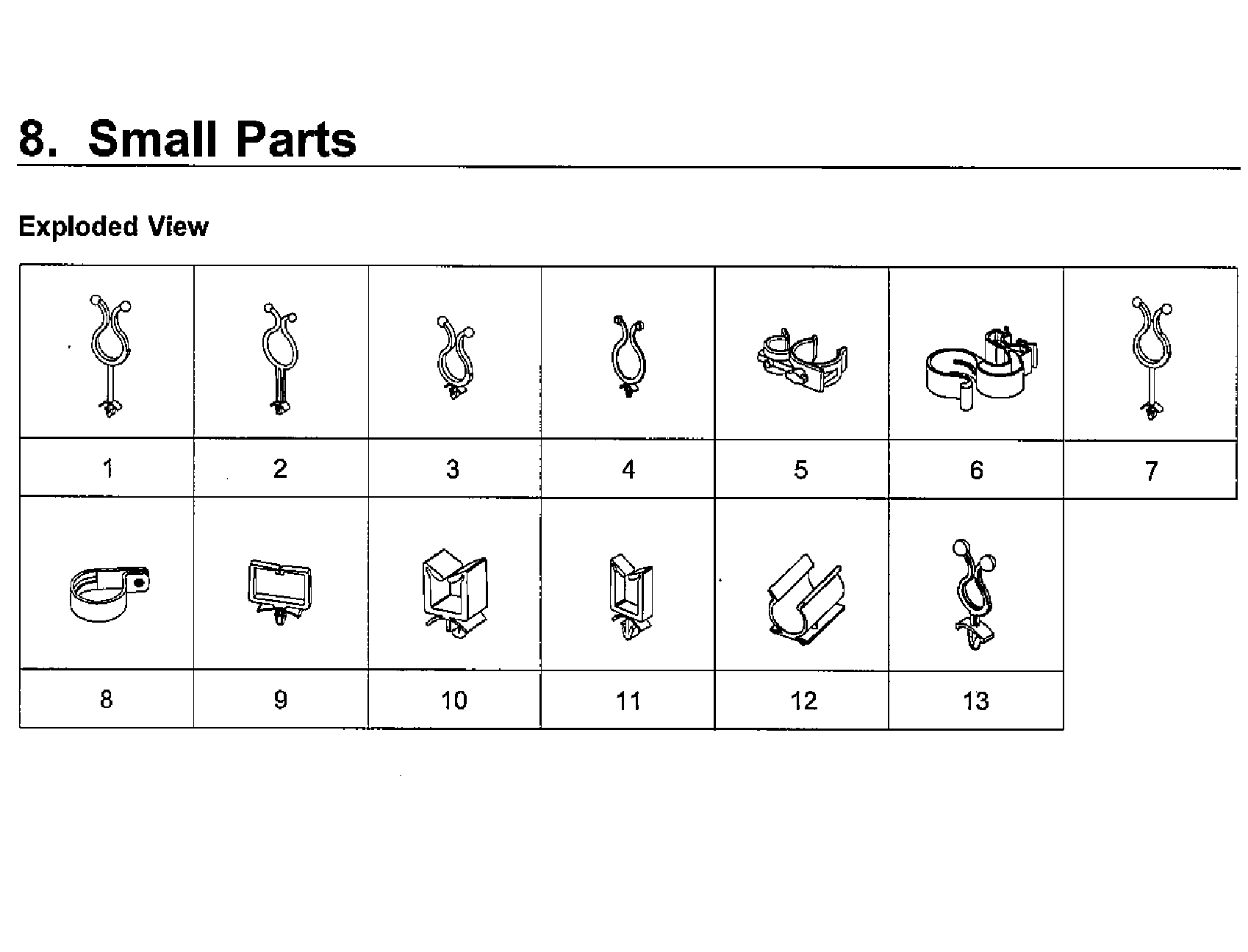

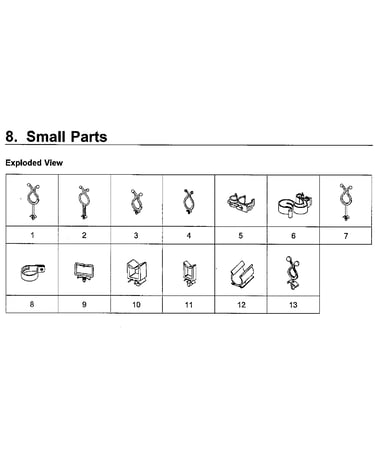

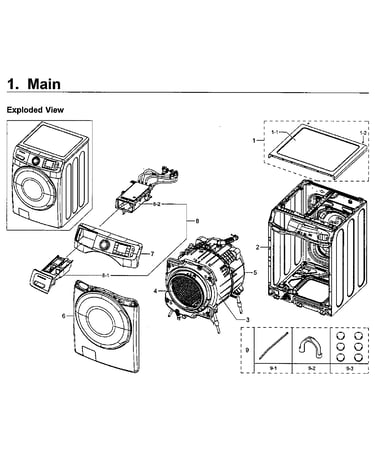

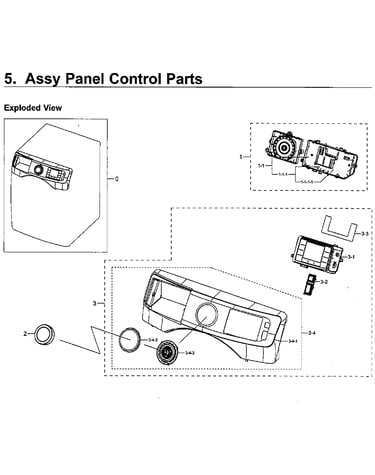

SELECT DIAGRAM
Browse Parts forWF45M5500AP/A5-00 Washer
- #11-1

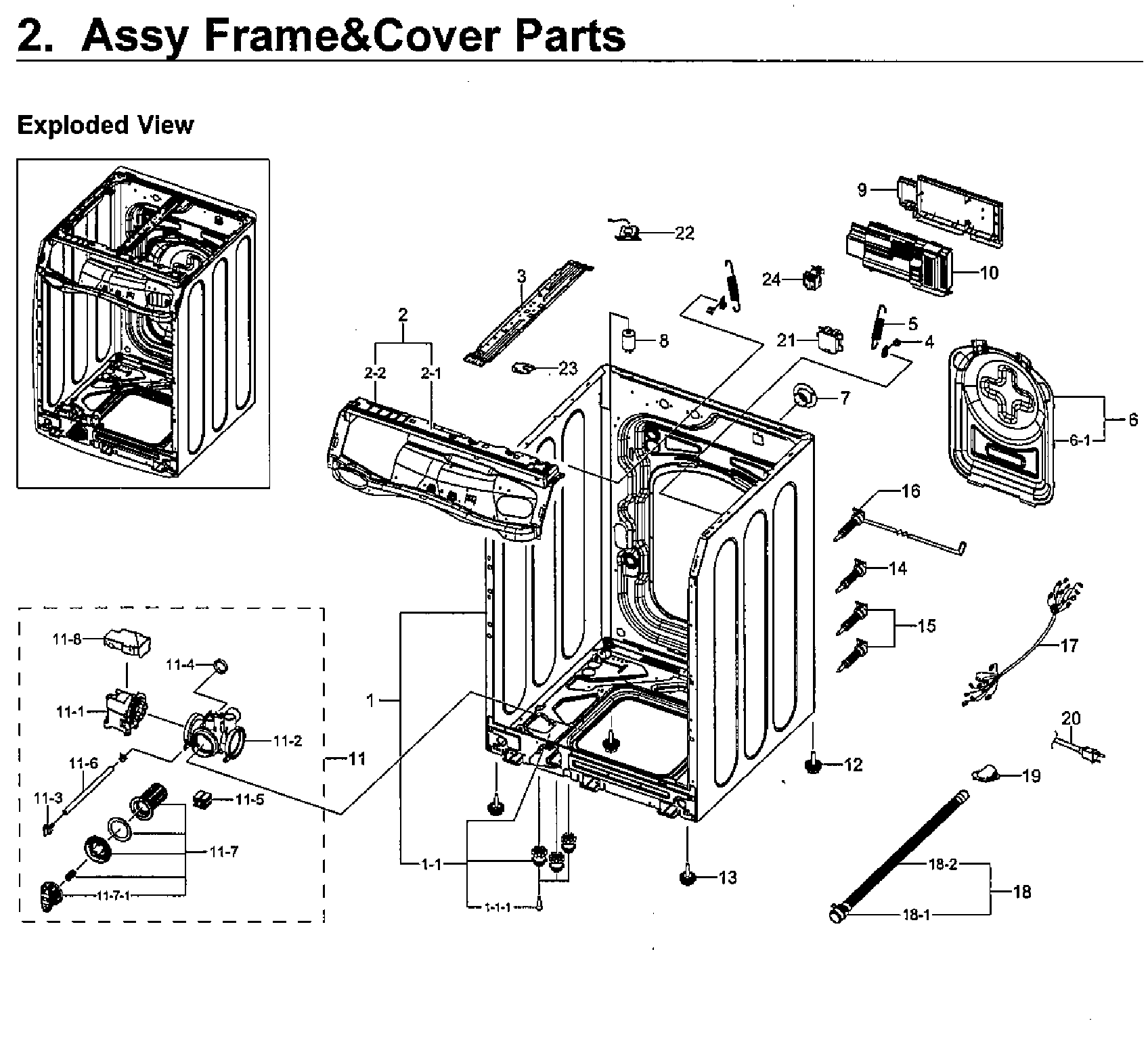

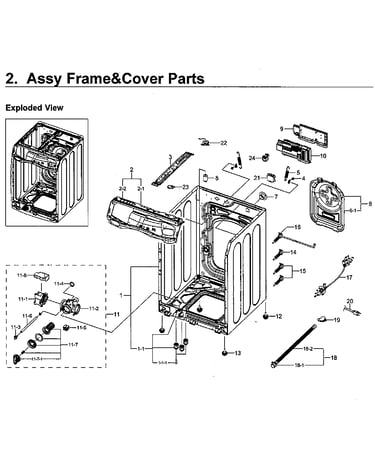

Cabinet diagram
Washer drain pump motorPart #DC31-00178D
Replaced by #DC31-00187A
?Manufacturer substitutionThis part replaces DC31-00178D. Substitute parts can look different from the original.$169.37 |7% OFF Phone Price : $181.37Back Order - #1-42

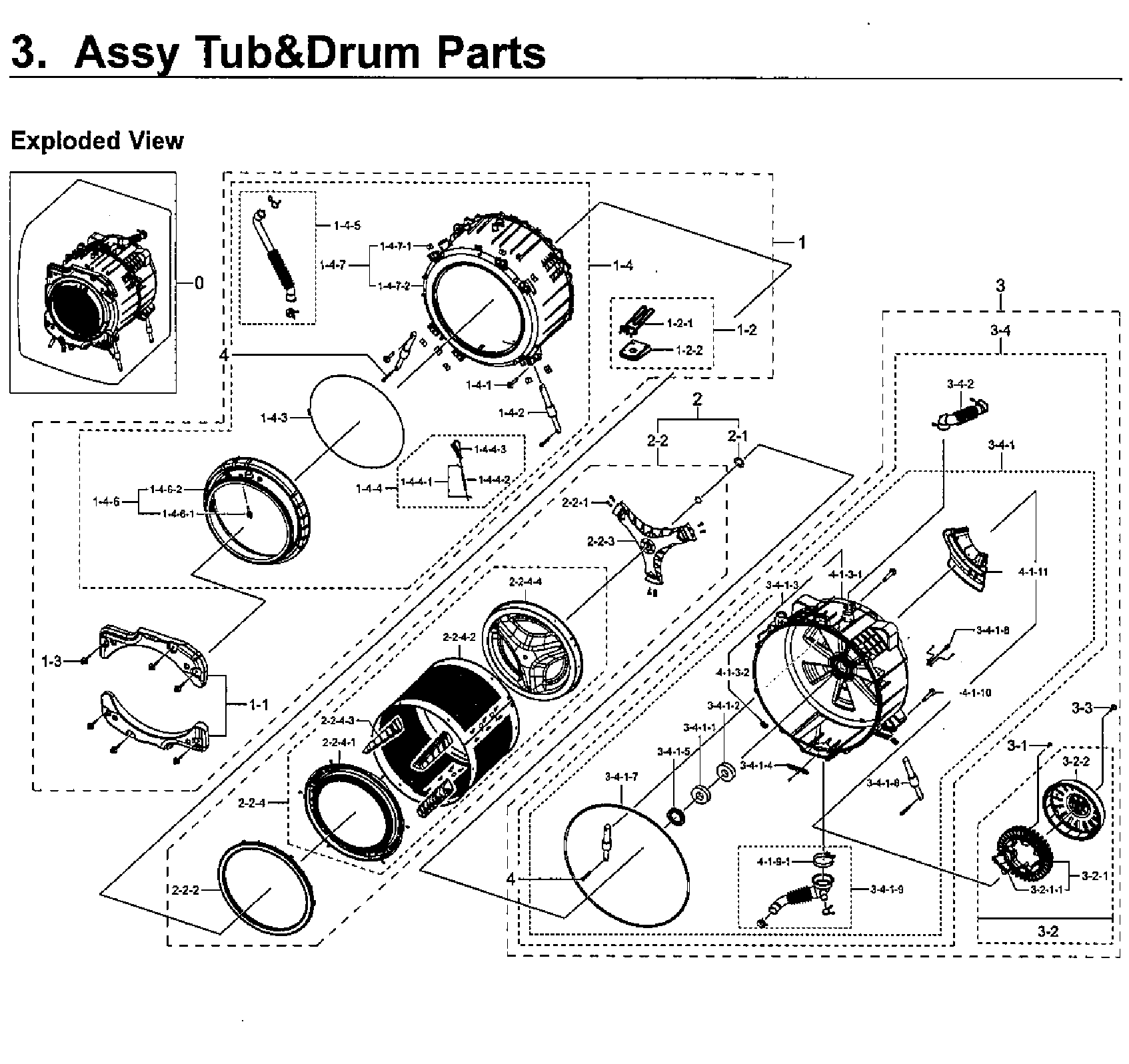

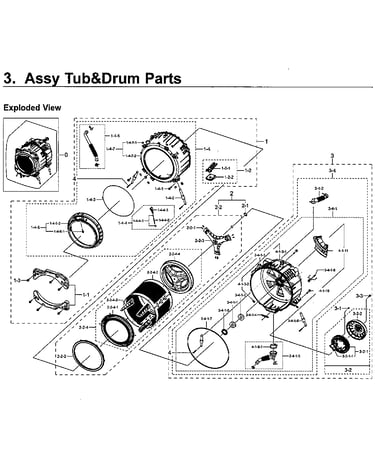

Tub/drum diagram
Samsung washer shock absorberPart #DC66-00470A
$56.07 |10% OFF Phone Price : $62.07In Stock - #3416
Tub/drum diagram
Samsung washer shock absorberPart #DC66-00470B
$32.53 |16% OFF Phone Price : $38.53In Stock - #5

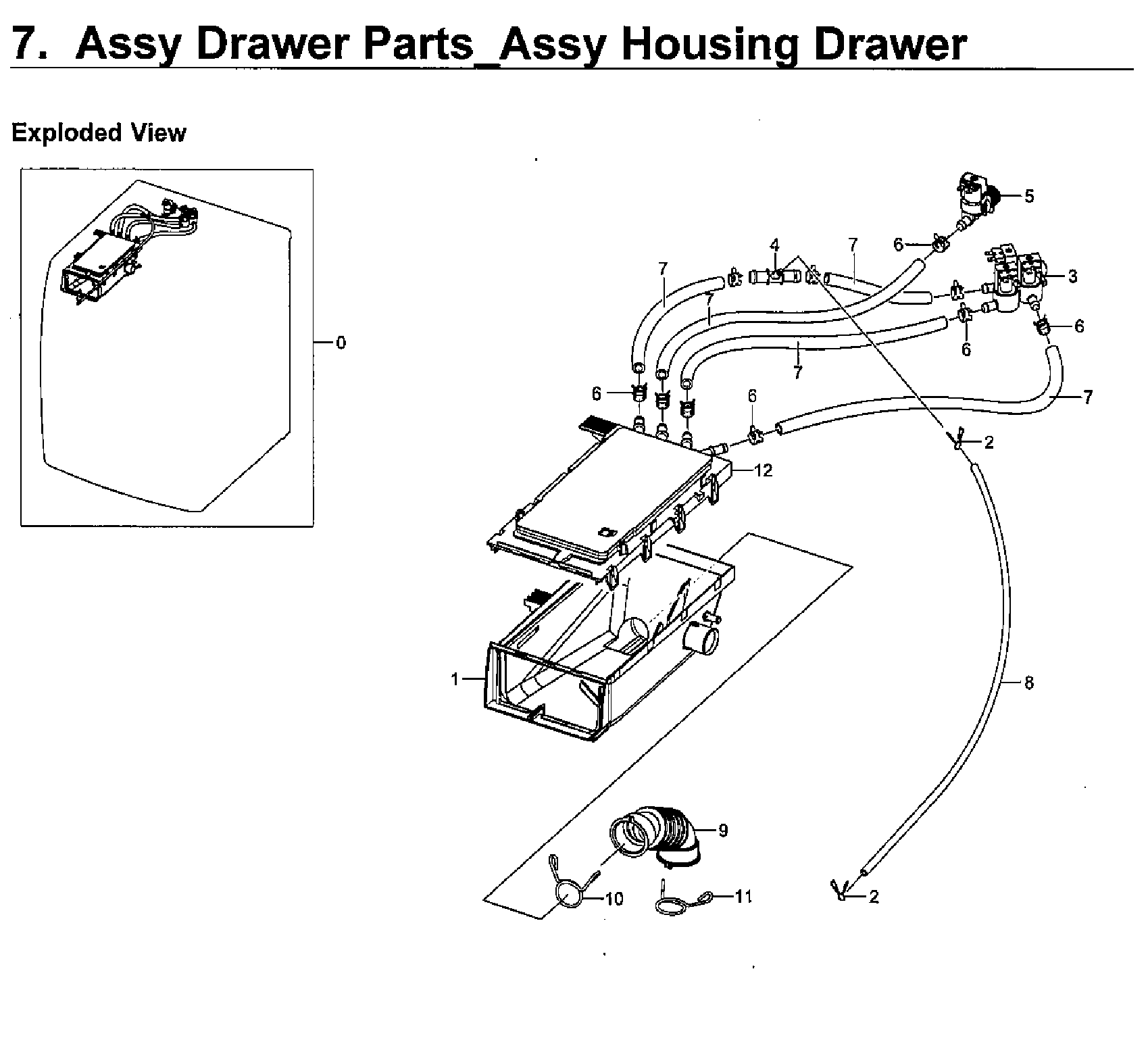

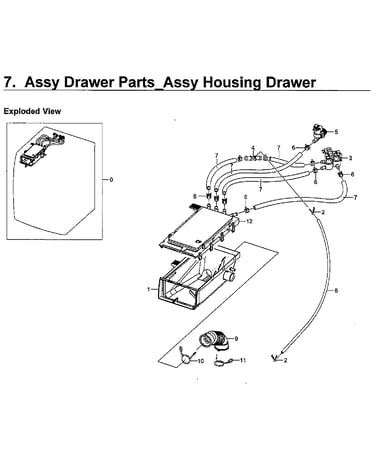

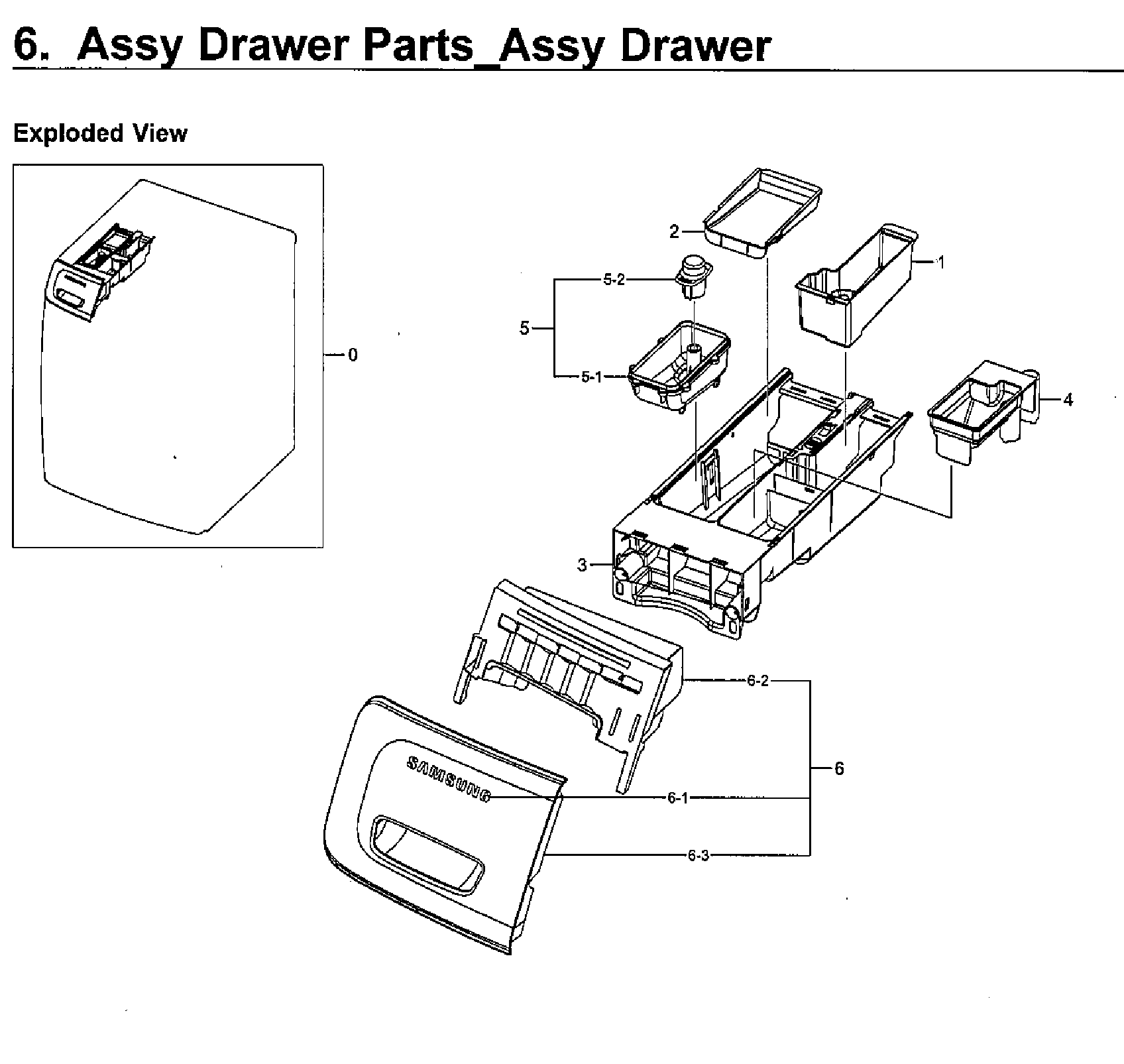

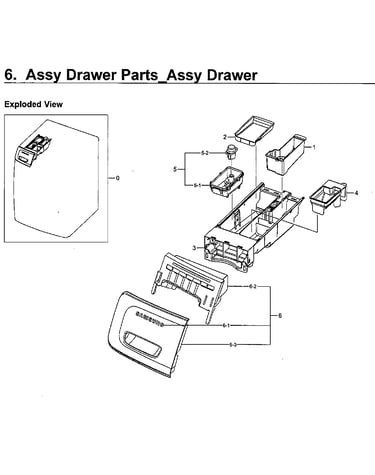

Drawer housing diagram
Washer water inlet valvePart #DC62-30314K
$76.86 |7% OFF Phone Price : $82.86In Stock - #3-21
Tub/drum diagram
Samsung kenmore washer drive motorPart #DC31-00111A
$243.26 |5% OFF Phone Price : $255.26In Stock - #1-3
Tub/drum diagram
Washer boltPart #DC97-02412A
$17.71 |10% OFF Phone Price : $19.71In Stock - #2244
Tub/drum diagram
DrumPart #DC66-00736A
Replaced by #DC97-17037E
?Manufacturer substitutionThis part replaces DC66-00736A. Substitute parts can look different from the original.This item is not returnable$338.37 |$12.00 OFF Phone Price : $350.37In Stock - #1-43
Tub/drum diagram
Washer door boot spring clampPart #DC97-04981F
$23.98 |20% OFF Phone Price : $29.98In Stock - #3

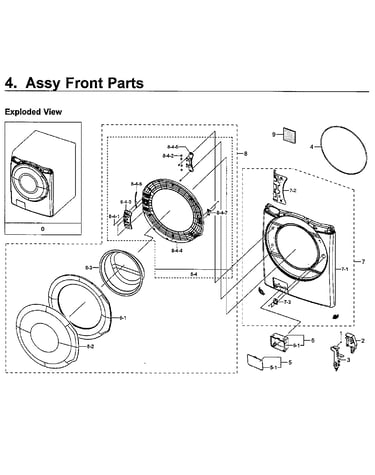

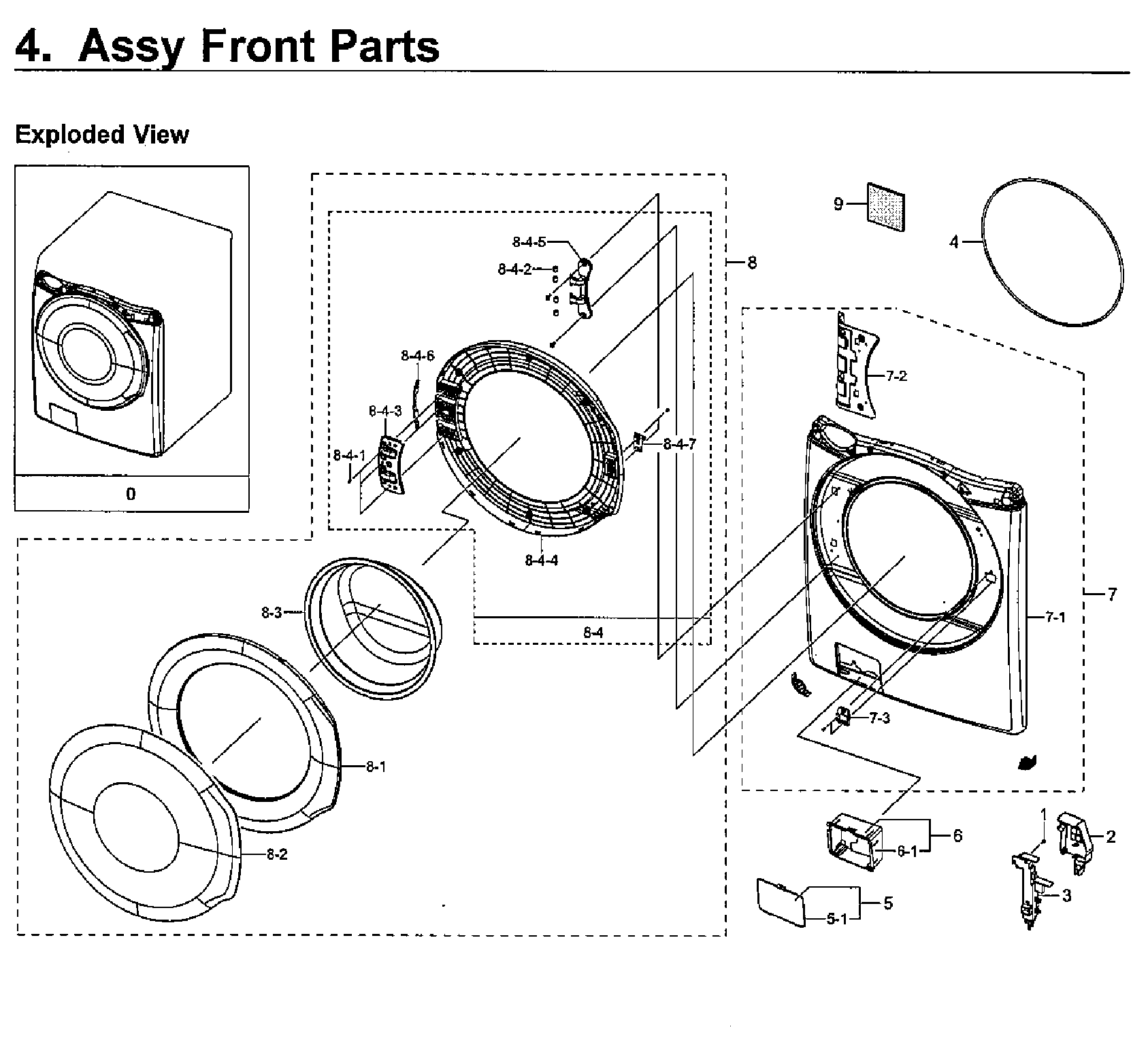

Door diagram
Washer door lock switchPart #DC64-00519D
$127.19 |9% OFF Phone Price : $139.19In Stock - #2-23
Tub/drum diagram
Washer drum shaft assembly by samsungPart #DC97-16509C
$272.90 |$12.00 OFF Phone Price : $284.90In Stock
