Model # 72162759100 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 72162759100 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

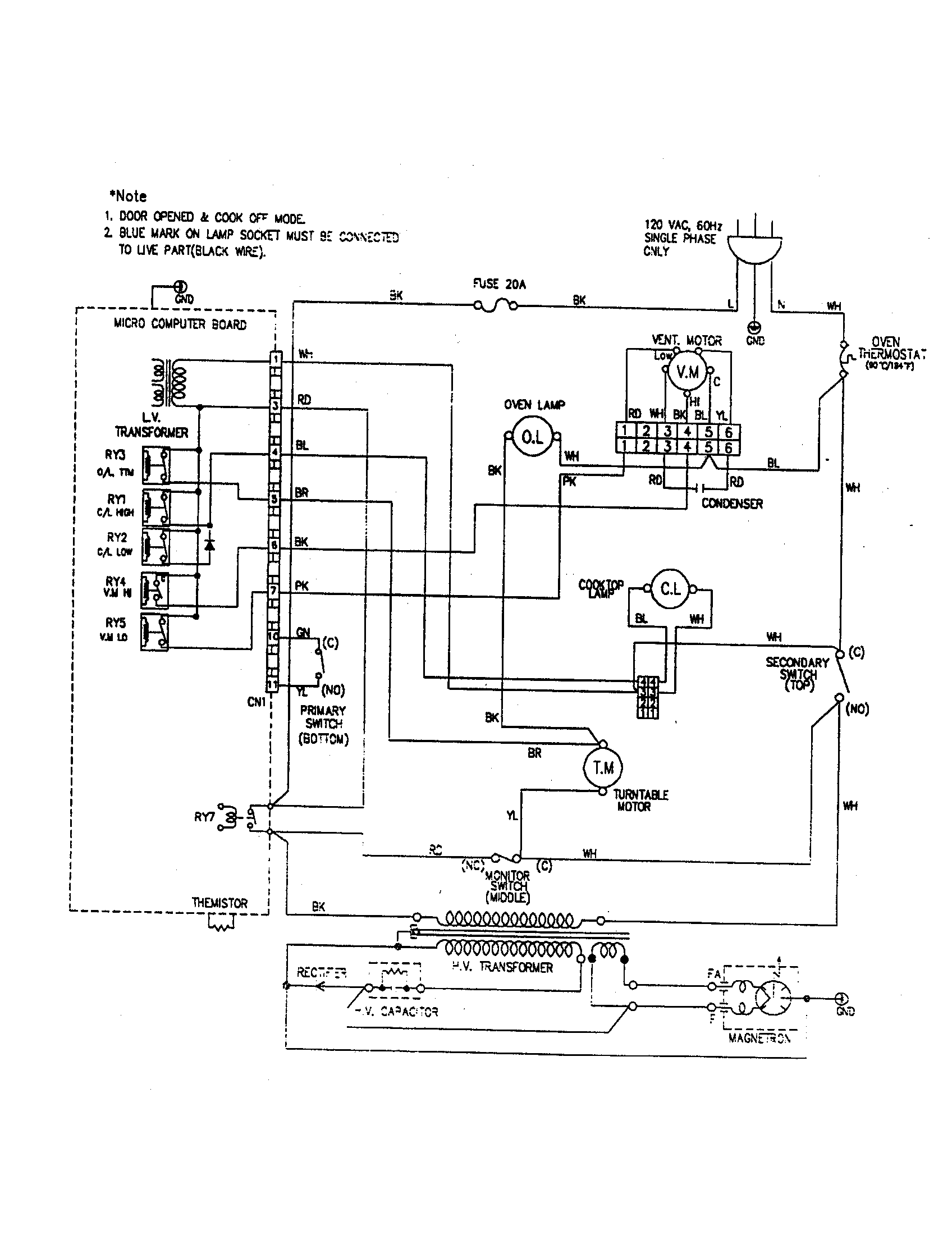

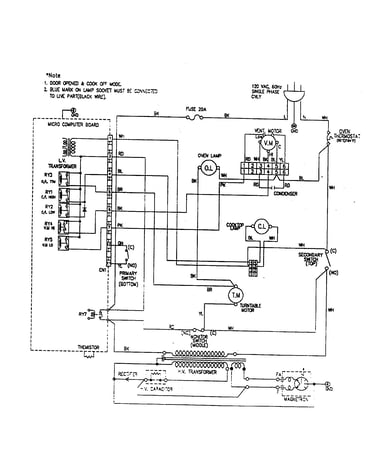

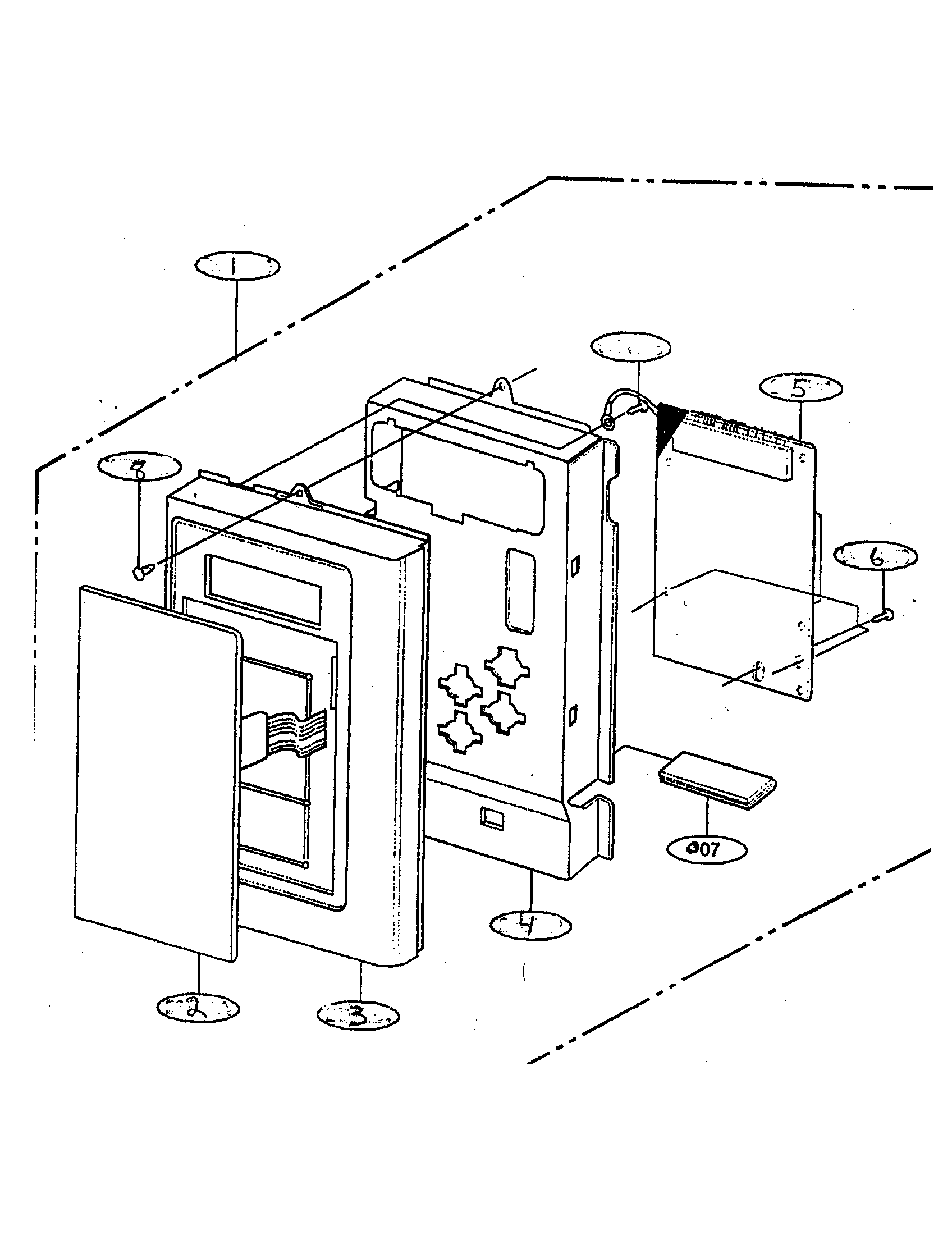

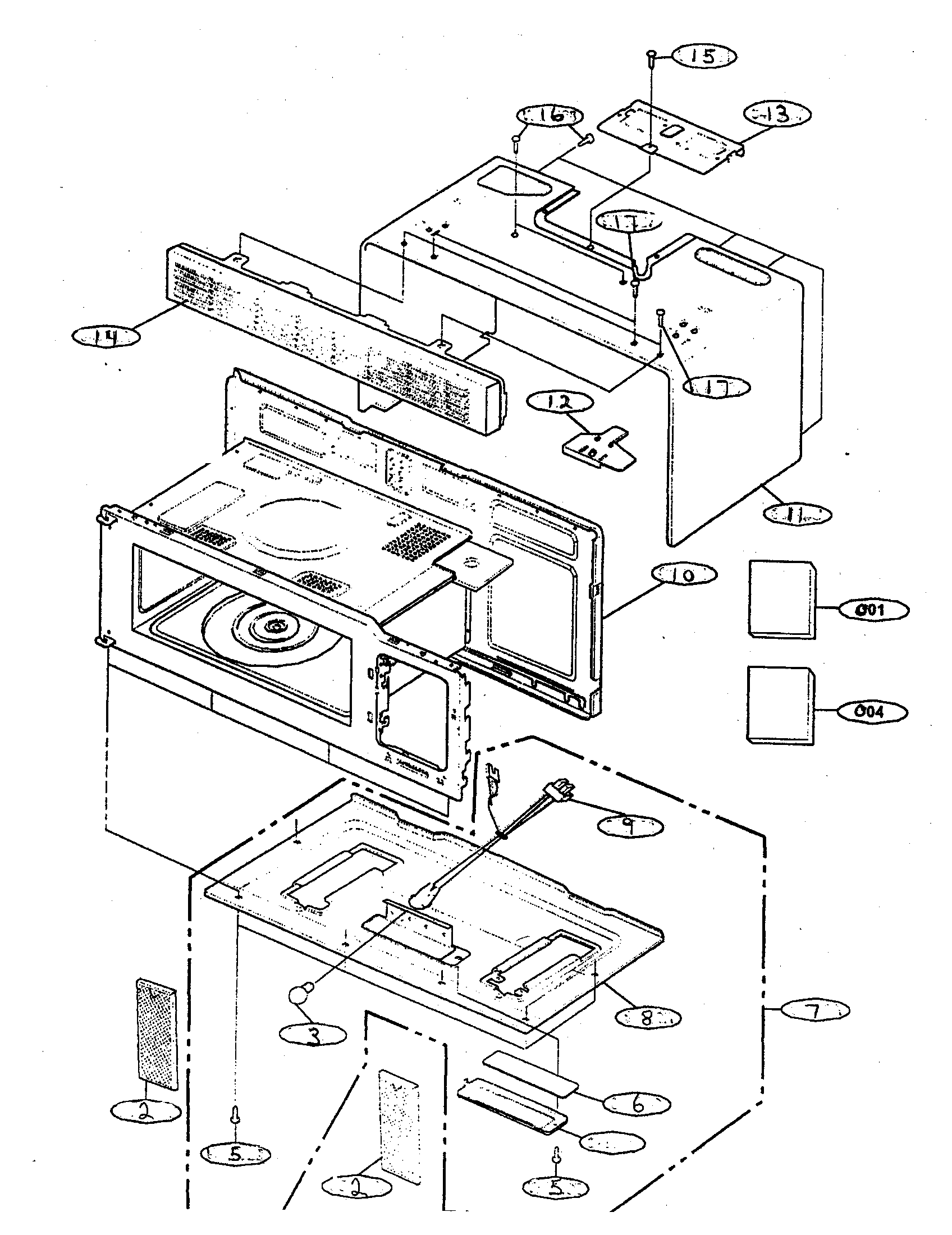

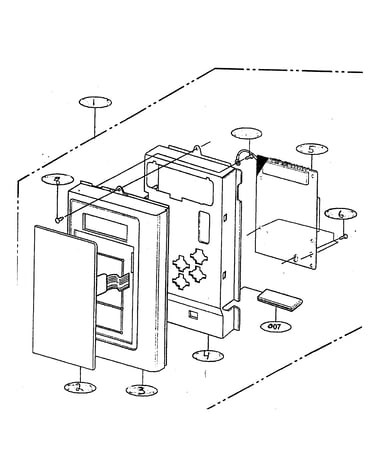

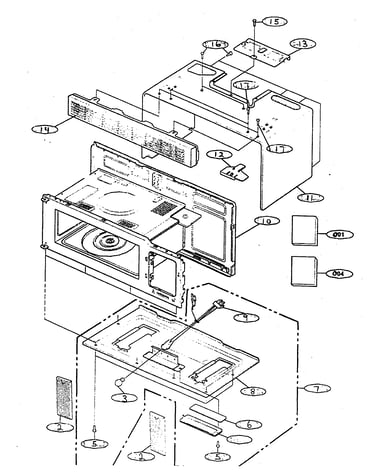

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Thermostat 6930W1A002K
#9

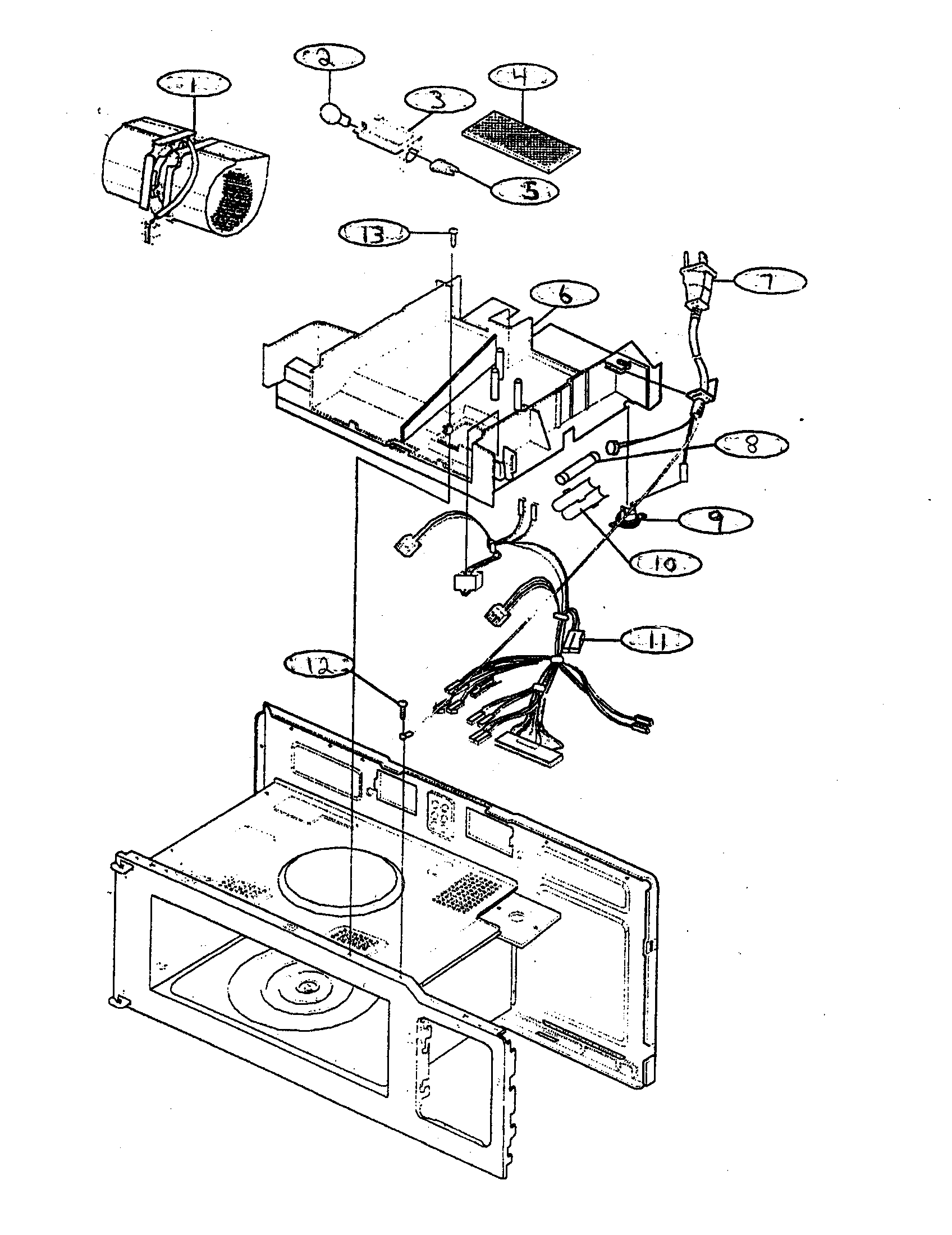

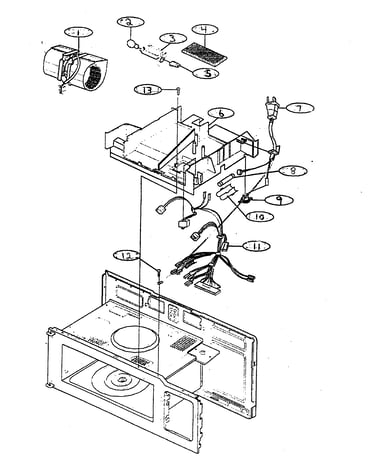

Plug diagram

Thermostat

Part #6930W1A002K

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930W1A002K. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Glass Turntable Tray 1B71961F
#10

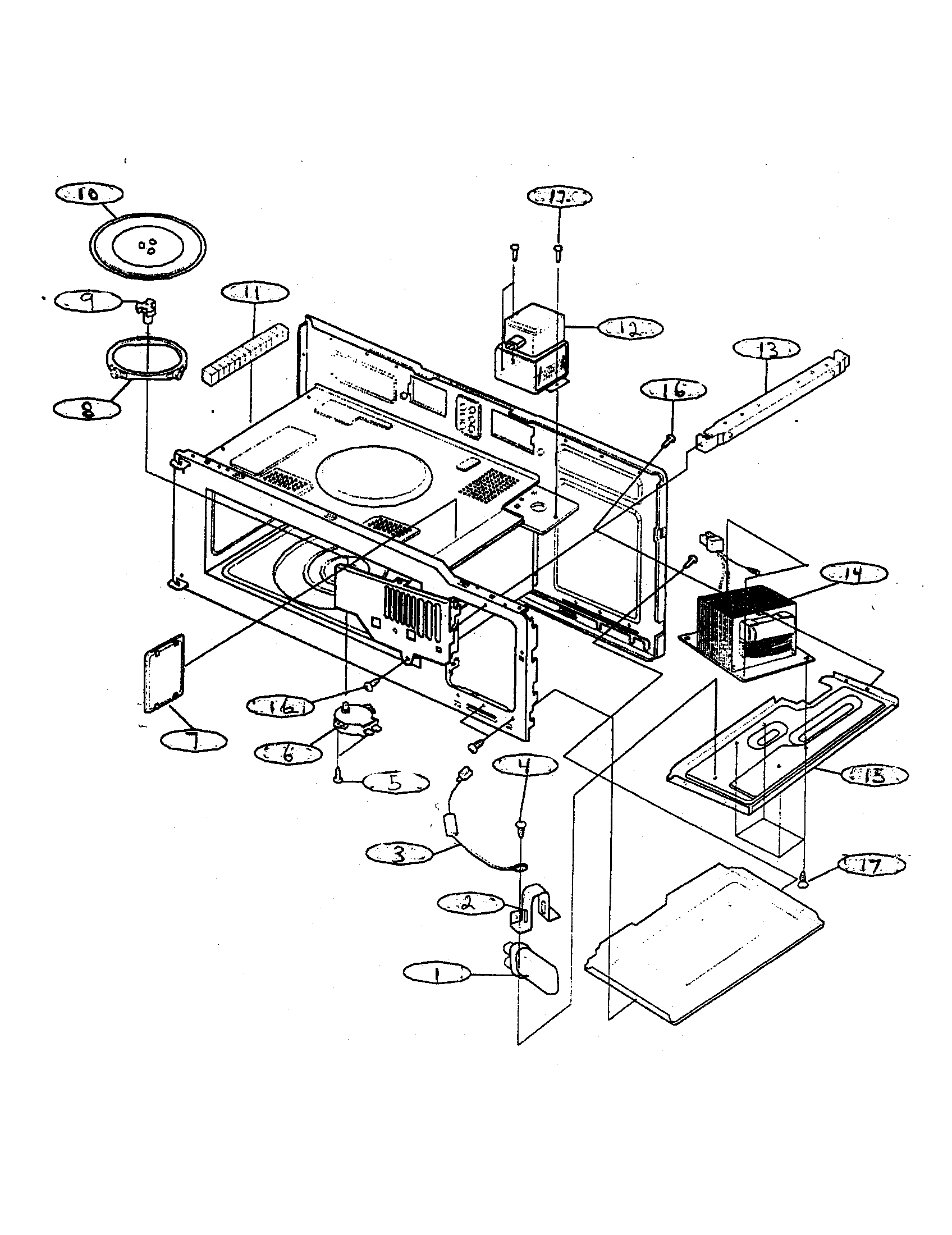

Magnetron diagram

Microwave glass turntable tray

Part #1B71961F

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961F. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Microwave Charcoal Filter 2B72706D
#4

Plug diagram

Microwave charcoal filter

Part #2B72706D

Replaced by #5230W1A011E

?
Manufacturer substitution
This part replaces 2B72706D. Substitute parts can look different from the original.
BEST SELLER
$14.35 |
12% OFF Phone Price : $16.35
In Stock
Microwave Door Latch Hook 4026W2A015A
#4

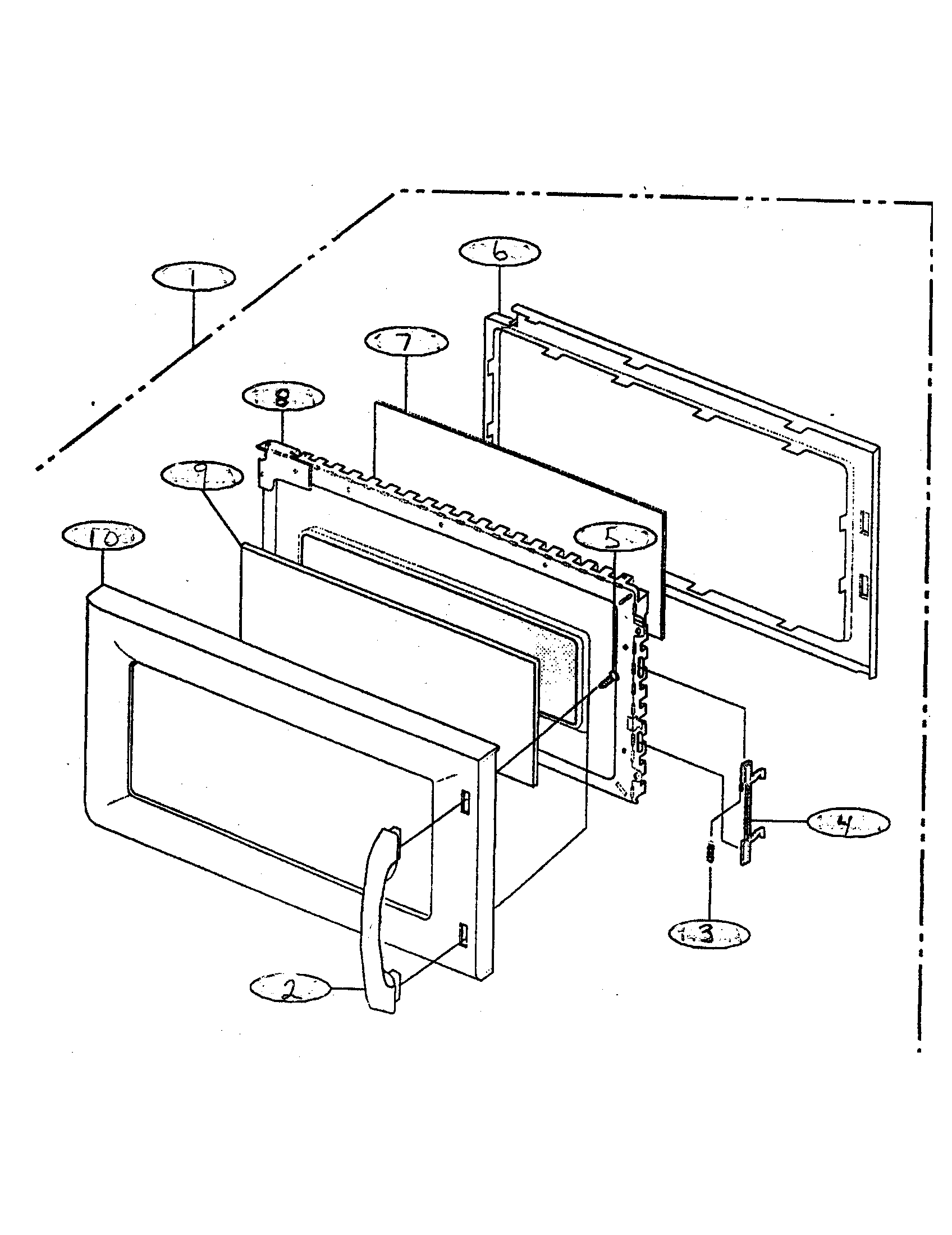

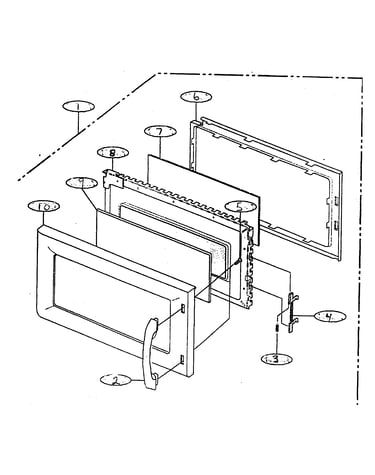

Door diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6

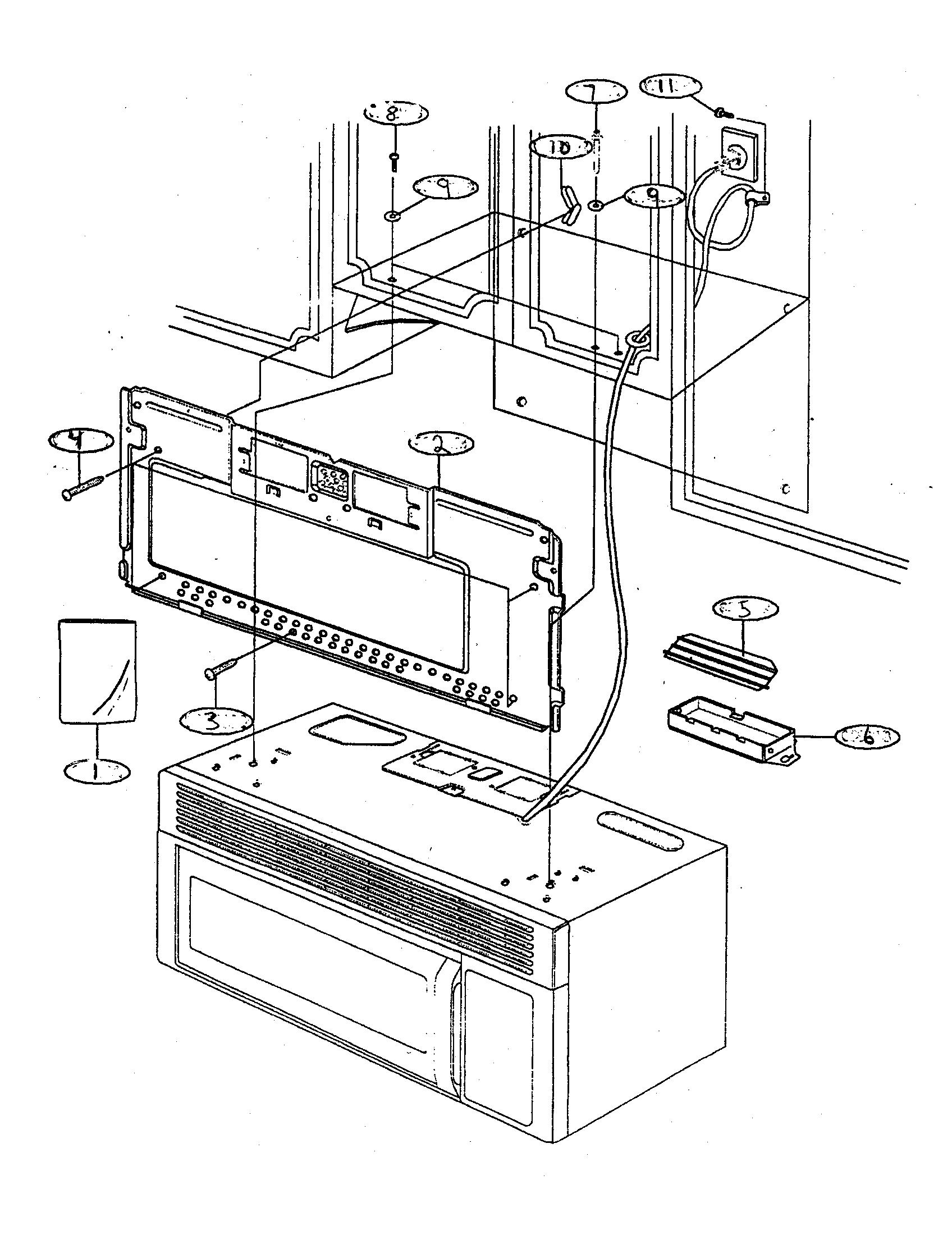

Installation diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Door Latch Spring 4970WRA001G
#3

Door diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Latch 3500W1A005A
#4

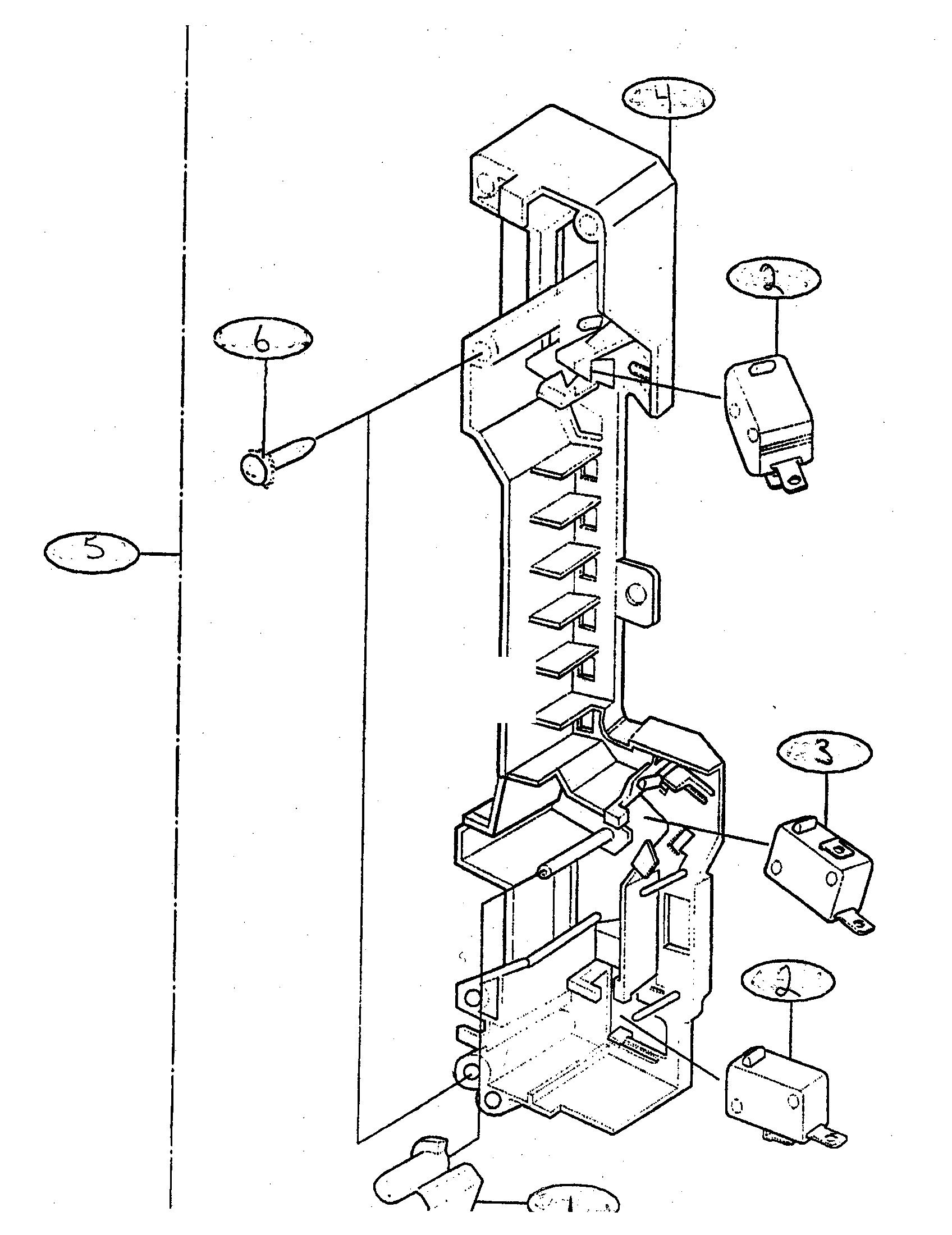

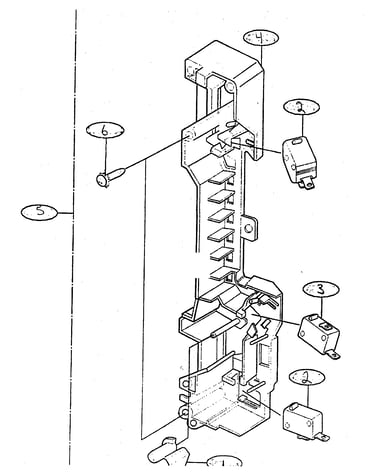

Switches diagram

Latch

Part #3500W1A005A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A005A. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
Seal Tape 3536WRA001R
#7

Door diagram

Seal tape

Part #3536WRA001R

Replaced by #3536W1A012B

?
Manufacturer substitution
This part replaces 3536WRA001R. Substitute parts can look different from the original.
This item is not returnable
$5.56 |
15% OFF Phone Price : $6.56
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#1

Switches diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
