Model # ACU072XH0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACU072XH0 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forACU072XH0 Air Conditioner

  • Washer 789784
    #23

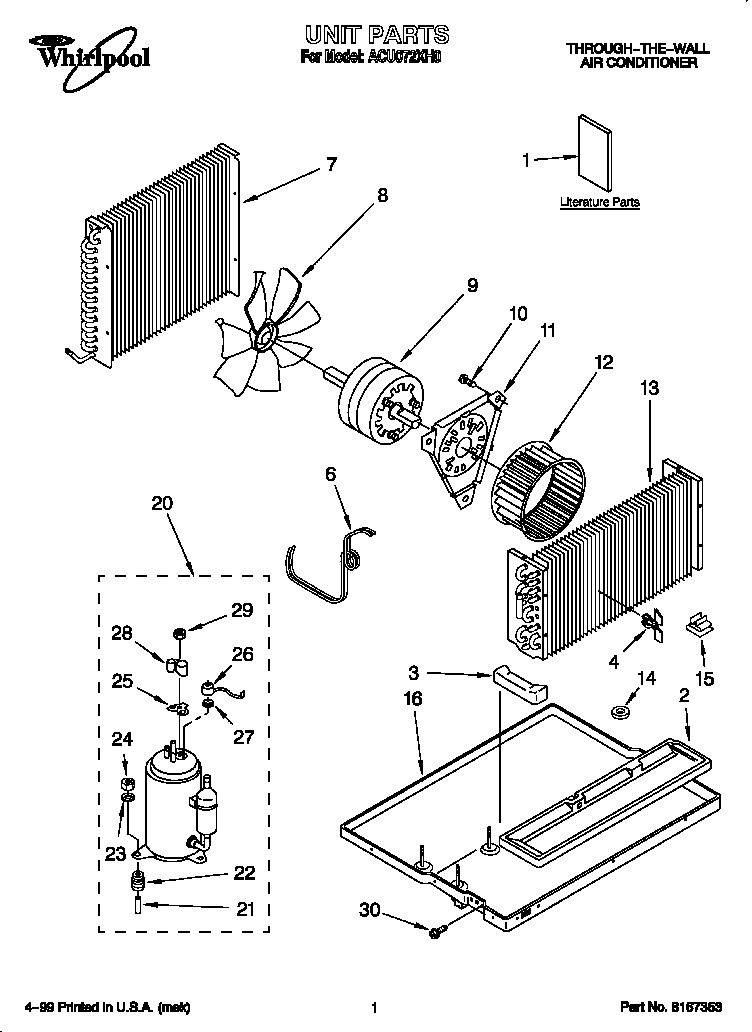

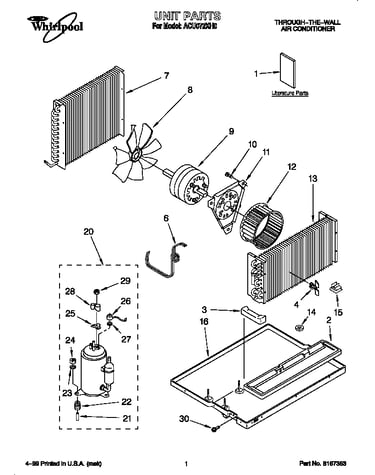

    Unit diagram

    Washer

    Part #789784

    Replaced by #W11236646

    ?
    Manufacturer substitution
    This part replaces 789784. Substitute parts can look different from the original.
    This item is not returnable
    $16.43
    11% OFF Phone Price : $18.43
    In Stock
  • Restrictor Tube 789859
    #6

    Unit diagram

    Restrictor tube

    Part #789859

    Replaced by #WP484322

    ?
    Manufacturer substitution
    This part replaces 789859. Substitute parts can look different from the original.
    In Stock
  • Seal Strip 789741
    #13

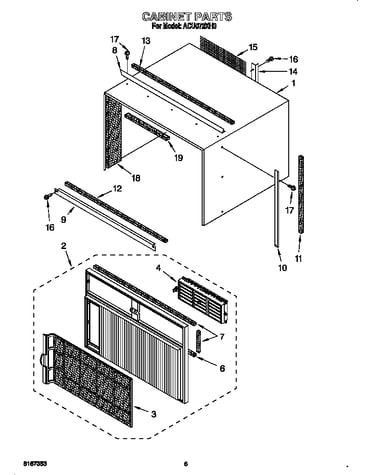

    Cabinet diagram

    Seal strip

    Part #789741

    Replaced by #WP854334

    ?
    Manufacturer substitution
    This part replaces 789741. Substitute parts can look different from the original.
    $9.85
    9% OFF Phone Price : $10.85
    In Stock
  • Spacer 789623
    #23

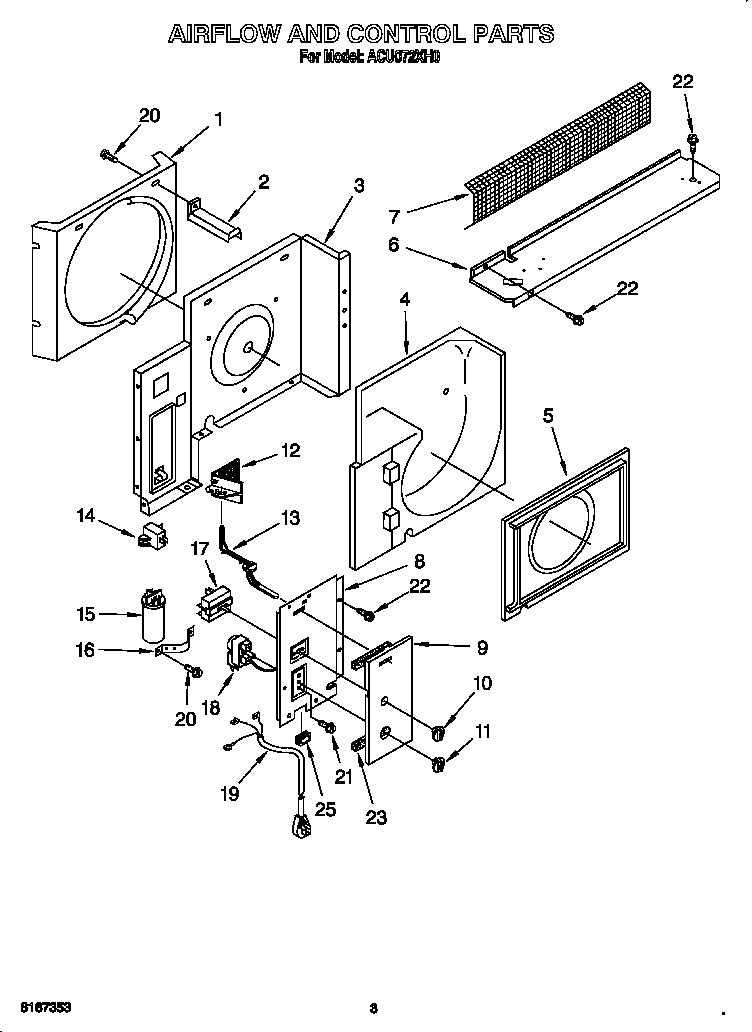

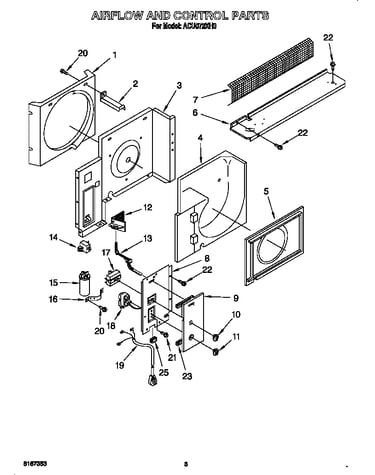

    Airflow and control diagram

    Spacer

    Part #789623

    Replaced by #WP854334

    ?
    Manufacturer substitution
    This part replaces 789623. Substitute parts can look different from the original.
    $9.85
    9% OFF Phone Price : $10.85
    In Stock
  • Seal Strip 789742
    #11

    Cabinet diagram

    Seal strip

    Part #789742

    Replaced by #WP854334

    ?
    Manufacturer substitution
    This part replaces 789742. Substitute parts can look different from the original.
    $9.85
    9% OFF Phone Price : $10.85
    In Stock
  • Cover Gasket 789831
    #25

    Unit diagram

    Cover gasket

    Part #789831

    Replaced by #WP950035

    ?
    Manufacturer substitution
    This part replaces 789831. Substitute parts can look different from the original.
    In Stock
  • Seal Strip 789740
    #12

    Cabinet diagram

    Seal strip

    Part #789740

    Replaced by #WP854334

    ?
    Manufacturer substitution
    This part replaces 789740. Substitute parts can look different from the original.
    $9.85
    9% OFF Phone Price : $10.85
    In Stock
  • Power Cord 789625
    #19

    Airflow and control diagram

    Power cord

    Part #789625

    The manufacturer no longer makes this part, and there's no substitute part

  • Clip 789763
    #15

    Unit diagram

    Clip

    Part #789763

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal Strip 1181046
    #19

    Cabinet diagram

    Seal strip

    Part #1181046

    The manufacturer no longer makes this part, and there's no substitute part
